Cross recessed countersunk flat head screws (common head style) - Grade A - Part 2: Steel of property class 8.8, stainless and non-ferrous metals (ISO 7046-2:1990)

Specifies the dimensional characteristics of screws with threads M2 up to M10. Three figures illustrate details. Includes examples for the designation of that screws.

Senkschrauben mit Kreuzschlitz (Einheitskopf) - Produktklasse A - Teil 2: Stahl mit Festigkeitsklasse 8.8 - Nichtrostender Stahl und Nichteisenmetalle (ISO 7046-2:1990)

Dieser Teil von ISO 7046 enthält Festlegungen über Senkschrauben mit Kreuzschlitz, mit Gewinde M2 bis M10, in Produktlasse A und Festigkeitsklasse 8.8 füR STAHL, A2-70 für nichtrostenden Stahl und CU2 und CU3 für Nichteisenmetalle. Werden in besonderen Fällen andere Festlegungen als die in der vorliegenden Internationalen Norm benötigt, so sind diese den bestehenden Internationalen Normen zu entnehmen, z. B. ISO 261, ISO 888, ISO 898-1, ISO 965-2, ISO 3506, ISO 4759-1 und ISO 8839.

Vis à métaux à tête fraisée à empreinte cruciforme - Grade A - Partie 1: Acier de classe de qualité 8.8, acier inoxydable et métaux non ferreux (ISO 7046-2:1990)

La présente partie de l'ISO 7046 prescrit les caractéristiques des vis à métaux à tête fraisée à empreinte cruciforme, de filetage M2 à M10 inclus, de grade A et de classe de qualité 8.8 pour acier, A2-70 pour acier inoxydable et CU2 et CU3 pour métaux non ferreux. Si, dans des cas particuliers, des spécifications autres que celles figurant dans la présente partie de l'ISO 7046 sont requises, il est recommandé de les choisir dans les Normes internationales existantes, par exemple ISO 261, ISO 888, ISO 898-1, ISO 965-2, ISO 3506, ISO 4759-1, ISO 8839.

Vijaki z ugrezno glavo in križno zarezo - Razred izdelave A - 2. del: Jeklo trdnostnega razreda 8,8, nerjavno jeklo in neželezne kovine

General Information

Status
Withdrawn
Publication Date
30-Jul-1994
Withdrawal Date
31-Aug-2011
ICS
21.060.10 - Bolts, screws, studs
Technical Committee
CEN/TC 185 - Threaded and nonthreaded mechanical fasteners and accessories
Drafting Committee
CEN/TC 185 - Threaded and nonthreaded mechanical fasteners and accessories
Current Stage
9960 - Withdrawal effective - Withdrawal
Start Date
01-Sep-2011
Completion Date
01-Sep-2011
Directive
97/23/EC - Directive 97/23/EC of the European Parliament and of the Council of 29 May 1997 on the approximation of the laws of the Member States concerning pressure equipment
Mandate
M/071 - Mandate to CEN for standardization in the field of Pressure equipment
Ref Project
SIST EN ISO 7046-2:1996 - Cross recessed countersunk flat head screws (common head style) - Grade A - Part 2: Steel of property class 8.8, stainless and non-ferrous metals (ISO 7046-2:1990)

Relations

Replaced By
EN ISO 7046-2:2011 - Countersunk flat head screws (common head style) with type H or type Z cross recess - Product grade A - Part 2: Steel screws of property class 8.8, stainless steel screws and non-ferrous metal screws (ISO 7046-2:2011)
Effective Date
18-Sep-2010

Frequently Asked Questions

EN ISO 7046-2:1994 is a standard published by the European Committee for Standardization (CEN). Its full title is "Cross recessed countersunk flat head screws (common head style) - Grade A - Part 2: Steel of property class 8.8, stainless and non-ferrous metals (ISO 7046-2:1990)". This standard covers: Specifies the dimensional characteristics of screws with threads M2 up to M10. Three figures illustrate details. Includes examples for the designation of that screws.

Specifies the dimensional characteristics of screws with threads M2 up to M10. Three figures illustrate details. Includes examples for the designation of that screws.

EN ISO 7046-2:1994 is classified under the following ICS (International Classification for Standards) categories: 21.060.10 - Bolts, screws, studs. The ICS classification helps identify the subject area and facilitates finding related standards.

EN ISO 7046-2:1994 has the following relationships with other standards: It is inter standard links to EN ISO 7046-2:2011. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.

EN ISO 7046-2:1994 is associated with the following European legislation: EU Directives/Regulations: 97/23/EC; Standardization Mandates: M/071. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.

EN ISO 7046-2:1994 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

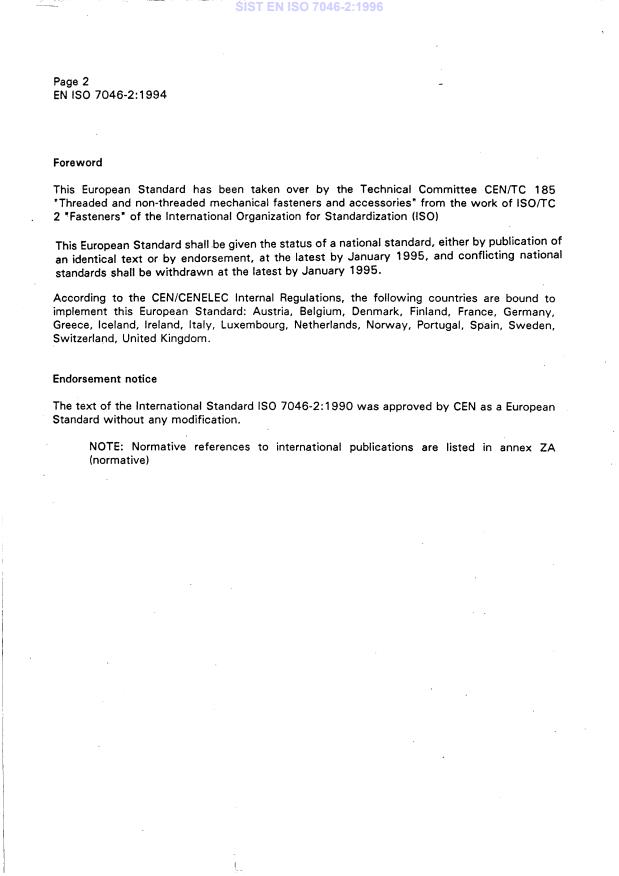

Standards Content (Sample)


SLOVENSKI STANDARD
01-april-1996
Vijaki z ugrezno glavo in križno zarezo - Razred izdelave A - 2. del: Jeklo
trdnostnega razreda 8,8, nerjavno jeklo in neželezne kovine
Cross recessed countersunk flat head screws (common head style) - Grade A - Part 2:
Steel of property class 8.8, stainless and non-ferrous metals (ISO 7046-2:1990)
Senkschrauben mit Kreuzschlitz (Einheitskopf) - Produktklasse A - Teil 2: Stahl mit
Festigkeitsklasse 8.8 - Nichtrostender Stahl und Nichteisenmetalle (ISO 7046-2:1990)
Vis a métaux a tete fraisée a empreinte cruciforme - Grade A - Partie 1: Acier de classe
de qualité 8.8, acier inoxydable et métaux non ferreux (ISO 7046-2:1990)
Ta slovenski standard je istoveten z: EN ISO 7046-2:1994
ICS:
21.060.10 Sorniki, vijaki, stebelni vijaki Bolts, screws, studs
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
...
