prEN 18388

prEN 18388 is a CEN draft European Standard for determining chloride content in inhibitors by ion chromatography with conductivity detection (IC-CD). It applies to inhibitors and inhibiting compounds, including mixtures, and gives laboratories a defined way to prepare the sample, measure chloride, calculate the result, and report the test. It is aimed at users who need a repeatable analytical method for chloride in fertilizer-related inhibitor products.

What does prEN 18388 specify?

prEN 18388 specifies a method for measuring chloride content in inhibitors by ion chromatography. The scope covers inhibitors and inhibiting compounds, including mixtures of these materials.

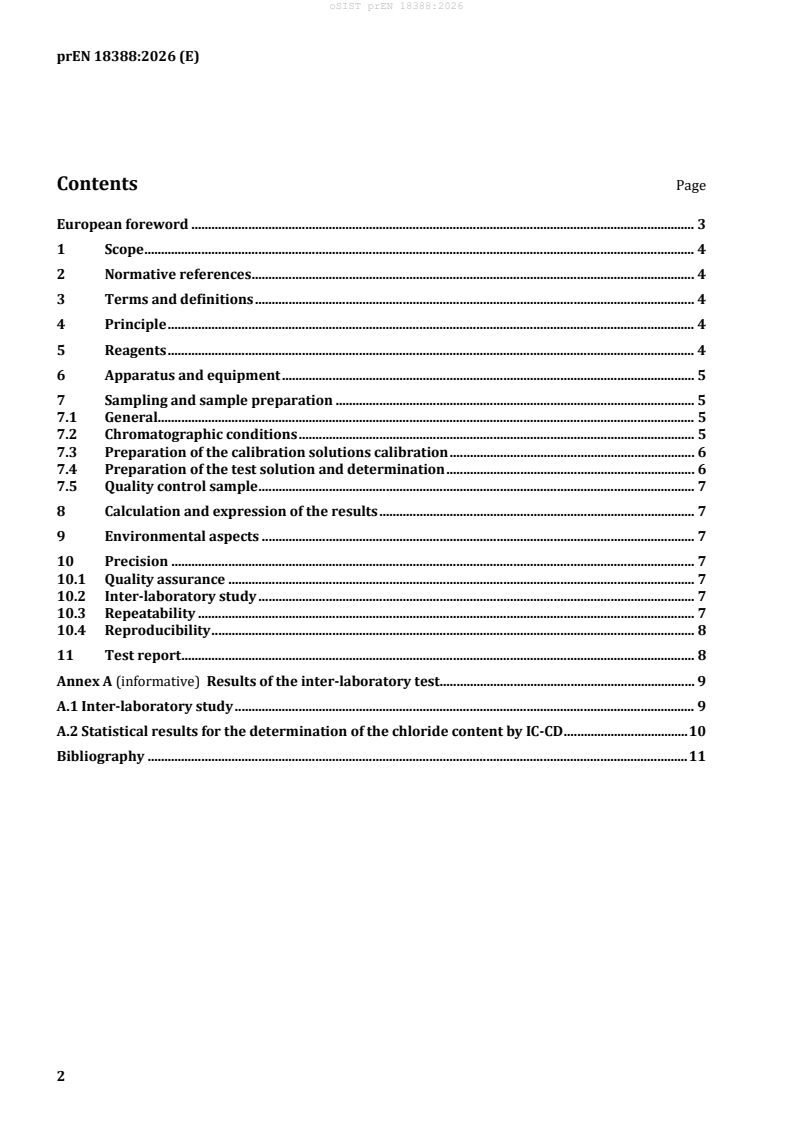

prEN 18388 is organized into:

• Scope
• Normative references
• Terms and definitions
• Principle
• Reagents
• Apparatus and equipment
• Sampling and sample preparation
• Calculation and expression of the results
• Environmental aspects
• Precision
• Test report
• Annex A, which gives informative inter-laboratory results

Sampling itself is not part of the method, but the document points users to related sampling and sample-preparation provisions.

What are the key requirements of prEN 18388?

prEN 18388 sets out a wet-chemistry style instrumental method: the sample is dissolved or suspended in water, and chloride is measured in the aqueous solution by ion chromatography with conductivity detection. In practice, the result depends on how well the sample is prepared, how stable the calibration is, and whether the instrument response stays inside the calibration range.

Sample handling and preparation

• The laboratory should receive a representative sample that has not been damaged or altered during transport or storage.
• Sample preparation is carried out according to EN 1482-2.
• The method uses about 1 000 mg of sample in a 100 ml flask, diluted with water, shaken, filled to volume, and filtered through a 0.45 μm syringe filter.
• The first filtrate is discarded, and the test solution is taken from the next filtrate.

This matters because poor sampling or incomplete dissolution can change the measured chloride content before the instrument is even used.

Chromatography and calibration

• prEN 18388 uses ion chromatography with a conductivity detector; a suppressed conductivity detector may be used for lower noise and background.
• The recommended separation uses a quaternary ammonium stationary phase and a carbonate/bicarbonate mobile phase, with operating conditions set according to the column manufacturer.
• The injection volume is 5 μl to 100 μl.
• Calibration is prepared from a chloride standard solution by a dilution series in a 100 ml graduated flask.

This means the laboratory must control the chromatographic setup and prepare standards carefully so the calibration curve matches the sample response.

Determination, quality control, and calculation

• The test is performed twice.
• If the sample concentration falls outside the calibration range, an extra dilution is advised.
• A quality control sample is run in each sample series and also determined twice.
• The recovery of the quality control sample should be between 95 % and 105 %; otherwise the method is recalibrated.
• The chloride content is calculated from the calibration curve and expressed as a mass fraction in g/kg.

For users, this provides a routine check that the system is working before accepting results.

Precision and reporting

• prEN 18388 includes repeatability and reproducibility criteria in Table 3.
• Annex A summarizes the inter-laboratory study behind the precision data.
• The test report must identify the sample, state the method used, give the results, record sampling information if known, give the analysis date, state whether the repeatability limit was met, and note any optional operating details or incidents that could have affected the result.

That gives buyers, labs, and auditors a clear record of how the result was obtained and how reliable it is.

Environmental and handling points

• Reagents, solutions, eluents, and packaging materials are handled according to their safety data sheets.
• Residues are disposed of with safety data sheets and local rules in mind.

What terms does prEN 18388 define?

prEN 18388 uses the vocabulary from EN 12944-1 and EN 12944-2. Key terms in the document include:

• IC-CD - ion chromatography with conductivity detection, the analytical technique used to separate and measure chloride.
• Inhibitors - the product group covered by the method.
• Inhibiting compounds - materials covered alongside inhibitors, including mixtures.
• Quality control sample - a chloride check sample run in each series to verify recovery.
• Repeatability - agreement between two results from the same lab, operator, equipment, and short time interval.
• Reproducibility - agreement between results from different laboratories using different operators and equipment.
• Eluent - the mobile phase used in the ion chromatography system.

Who uses prEN 18388?

prEN 18388 is used by analytical laboratories, quality control teams, and manufacturers working with inhibitors and inhibiting compounds in the fertilizers and liming materials sector. It is also relevant for buyers or technical reviewers who need a defined chloride test method when product quality depends on chloride content.

Which standards are used with prEN 18388?

prEN 18388 relies on several related standards:

• EN 1482-2 - gives the general provisions for sample preparation.
• EN 1482-1 - gives a recommended sampling method, which the document points to for obtaining a representative sample.
• EN 12944-1 - provides general vocabulary.
• EN 12944-2 - provides vocabulary for fertilizer-related terms.
• ISO 5725-3 - is used for the calculation approach behind the precision data in Annex A.

These references matter because they supply the sampling, terminology, and precision framework that support the chloride test method.

What does the prEN 18388 document contain?

prEN 18388 contains the full laboratory method, including the principle of measurement, reagent requirements, apparatus, sample preparation, calibration, calculation, environmental handling, precision criteria, and reporting rules. Table 1 gives recommended chromatographic conditions, Table 2 gives calibration dilution steps, and Table 3 gives repeatability and reproducibility limits. Annex A presents the inter-laboratory study and statistical results used to support the method’s precision.
