EN 4652-112:2015
(Main)Aerospace series - Connectors, coaxial, radio frequency - Part 112: Type 1, BNC interface - Clamp nut assembly version - Square flange receptacle - Product standard
Aerospace series - Connectors, coaxial, radio frequency - Part 112: Type 1, BNC interface - Clamp nut assembly version - Square flange receptacle - Product standard
This European Standard specifies the characteristics of bayonet coupling (BNC interface) coaxial square flange receptacle 50 ohms. The cable to connector assembly is a clamp technology.
Luft- und Raumfahrt - Koaxiale Hochfrequenz-Steckverbinder - Teil 112: Typ 1 BNC-Schnittstelle - Klemmverbindung - fester Steckverbinder mit quadratischem Montageflansch - Produktnorm
Série aérospatiale - Connecteurs coaxiaux pour radio fréquences - Partie 112 : Type 1, interface BNC - Version à presse étoupe - Embase à collerette carrée - Norme de produit
La présente Norme européenne spécifie les caractéristiques des embases coaxiales à collerette carrée à accouplement par baïonnette (interface BNC) - 50 ohms. L'ensemble câble-connecteur utilise une technologie de serrage.
Aeronavtika - Konektorji, koaksialni, radiofrekvenčni - 112. del: Tip 1, vmesnik BNC (bajonetni) - Izvedba z objemno matico - Vtičnica s prvokotno prirobnico - Standard za proizvod
Ta evropski standard določa lastnosti koaksialnih vtičnic s pravokotno prirobnico in bajonetnim spojem (vmesnik BNC) – 50 ohmov. Sklop kabla in konektorja je spojna tehnologija.
General Information
- Status
- Published
- Publication Date
- 08-Sep-2015
- Withdrawal Date
- 30-Mar-2016
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 2 - Electrical
- Current Stage
- 6060 - Definitive text made available (DAV) - Publishing
- Start Date
- 09-Sep-2015
- Completion Date
- 09-Sep-2015
Relations
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Overview - EN 4652-112:2015 (BNC, 50 Ω, square flange receptacle)
EN 4652-112:2015 is a CEN aerospace product standard that specifies the characteristics of a bayonet‑coupling BNC interface coaxial square flange receptacle (50 ohm) using a clamp nut assembly cable‑to‑connector technology. It defines configuration, materials, electrical and mechanical performance, environmental tests and qualification/quality assurance requirements for RF connectors intended for aerospace use.
Key topics and technical requirements
- Scope & interface: 50 Ω BNC bayonet coupling, square flange receptacle, clamp assembly cable termination.
- Dimensions & mass: Detailed maximum dimensions and mass per cable group (A and B) are given; panel thickness and flange details are specified.
- Materials & finish: Centre contact: copper alloy, gold plated over nickel undercoat; insulators: PTFE; seals: silicone rubber or silicone fluoride; body: copper alloy, nickel plated; heat‑shrink: polyolefin.
- Electrical characteristics: Impedance 50 Ω; maximum frequency up to 4 GHz; VSWR ≤ 1.15 from 1.15 GHz to 4 GHz; insertion loss 0.1·√f dB max (f in GHz); contact resistance and insulation resistance limits; withstand voltage 1 500 Veff at sea level.
- Mechanical & service requirements: Mating/unmating torque and forces, service life of 500 cycles, centre contact retention ≥ 27 N, cable retention values per cable group.
- Environmental & test methods: Extensive test program referencing EN 2591 series (visual, contact resistance, insulation, RF performance, corona, salt mist, vibration, shock, immersion at low pressure for unmated cable group A, etc.). Specific RF tests include surface transfer impedance, RF leakage (2–3 GHz), RF high potential, and impedance measurement.
- Designation, marking, packaging and storage: Identification and marking per EN 4652‑001; quality assurance and qualification per EN 9133 and EN 4652‑001.
Practical applications and who uses this standard
- Intended users: aerospace and defence manufacturers, connector designers, procurement/specification engineers, test laboratories, avionics maintenance teams and system integrators working on RF signal and telemetry interfaces.
- Typical uses: 50 Ω RF interconnects in aircraft and spacecraft avionics, telemetry, radar subsystems, ground test equipment where reliable, qualified BNC coaxial terminations with clamp nut assembly and square flange mounting are required.
- Benefits: Ensures interoperability, reproducible electrical performance (VSWR, insertion loss, impedance), environmental resilience (temperature, vibration, salt mist, low pressure) and traceable qualification for aerospace programs.
Related standards
- EN 4652-001 (technical specification / interface rules)
- EN 4652-110 (BNC straight plug, same clamp technology)
- EN 2591 series (test methods)
- EN 2812 (cable stripping)
- EN 9133 (quality management / qualification)
- TR 6058 (cable code identification list)
Keywords: EN 4652-112:2015, BNC connector, 50 ohm, coaxial square flange receptacle, clamp nut assembly, aerospace connectors, RF connector standard, avionics interconnects.
Get Certified
Connect with accredited certification bodies for this standard
DEKRA North America
DEKRA certification services in North America.
Eagle Registrations Inc.
American certification body for aerospace and defense.
Element Materials Technology
Materials testing and product certification.
Sponsored listings
Frequently Asked Questions
EN 4652-112:2015 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Connectors, coaxial, radio frequency - Part 112: Type 1, BNC interface - Clamp nut assembly version - Square flange receptacle - Product standard". This standard covers: This European Standard specifies the characteristics of bayonet coupling (BNC interface) coaxial square flange receptacle 50 ohms. The cable to connector assembly is a clamp technology.
This European Standard specifies the characteristics of bayonet coupling (BNC interface) coaxial square flange receptacle 50 ohms. The cable to connector assembly is a clamp technology.
EN 4652-112:2015 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 4652-112:2015 has the following relationships with other standards: It is inter standard links to EN 2591-212:2005, EN 2591-102:1996, EN 2591-303:1997, EN 2812:2019, EN 2591-206:1996, EN 2591-508:2023, EN 2591-409:1999, EN 2591-312:1997, EN 2591-223:2007, EN 2591-513:2002, EN 2591-406:1998, EN 2591-222:2007, EN 2591-221:2007, EN 2591-202:1996, EN 2591-214:2012. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 4652-112:2015 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)

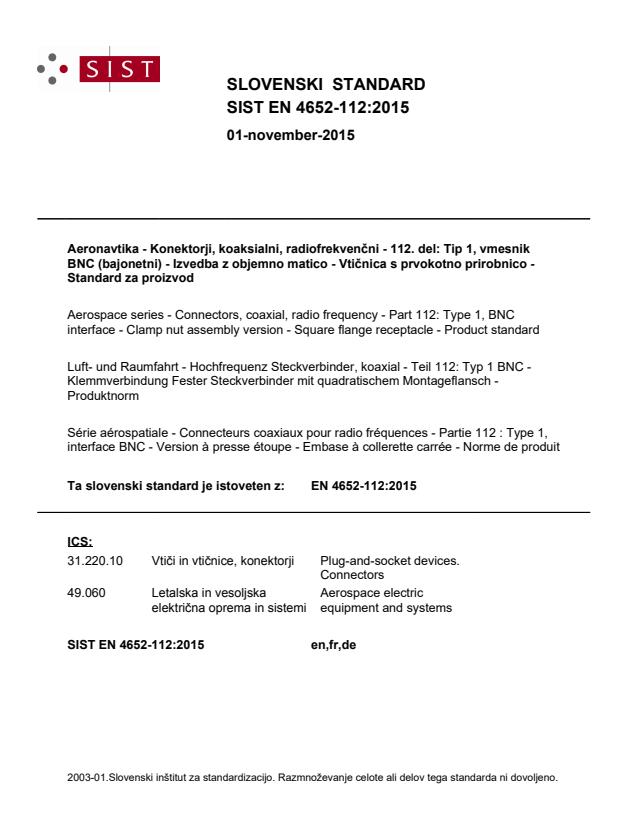

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Luft- und Raumfahrt - Hochfrequenz Steckverbinder, koaxial - Teil 112: Typ 1 BNC - Klemmverbindung Fester Steckverbinder mit quadratischem Montageflansch - ProduktnormSérie aérospatiale - Connecteurs coaxiaux pour radio fréquences - Partie 112 : Type 1, interface BNC - Version à presse étoupe - Embase à collerette carrée - Norme de produitAerospace series - Connectors, coaxial, radio frequency - Part 112: Type 1, BNC interface - Clamp nut assembly version - Square flange receptacle - Product standard49.060Aerospace electric equipment and systems31.220.10Plug-and-socket devices. ConnectorsICS:Ta slovenski standard je istoveten z:EN 4652-112:2015SIST EN 4652-112:2015en,fr,de01-november-2015SIST EN 4652-112:2015SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 4652-112
September
t r s w ICS
v {ä r x r English Version
Aerospace series æ Connectorsá coaxialá radio frequency æ Part
s s tã Type
sá BNC interface æ Clamp nut assembly version æ Square flange receptacle æ Product standard Série aérospatiale æ Connecteurs coaxiaux pour radio fréquences æ Partie
s s t ã Type
sá interface BNC æ Version à presse étoupe æ Embase à collerette carrée æ Norme de produit
Luftæ und Raumfahrt æ Koaxiale HochfrequenzæSteckverbinder æ Teil
s s tã Typ
s BNCæSchnittstelle æ Klemmkonus æ Fester Steckverbinderá gerade æ Produktnorm This European Standard was approved by CEN on
s v February
t r s wä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey andUnited Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels
t r s w CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
v x w tæ s s tã t r s w ESIST EN 4652-112:2015
EN 2812, Aerospace series — Stripping of electric cables EN 4652-001, Aerospace series — Connectors, coaxial, radio frequency — Part 001: Technical specification EN 4652-110, Aerospace series — Connectors, coaxial, radio frequency — Part 110: Type 1, BNC interface — Clamp nut assembly version — Straight plug — Product standard EN 9133, Aerospace series — Quality management systems — Qualification procedure for aerospace standard parts TR 6058, Aerospace series — Cable code identification list 2) 3 Terms and definitions For the purposes of this document, the terms and definitions given in EN 4652-001 apply. 4 Required characteristics The connection technology shall comply to required tests described in Clause 5. Interface shall comply to EN 4652-001. Water ingress resistance is required in unmated condition for cable group A.
1) All parts quoted in this European Standard. 2) Published as ASD-STAN Technical Report at the date of publication of this European Standard. http://www.asd-stan.org/ SIST EN 4652-112:2015
...
