EN 13084-6:2004

SLOVENSKI STANDARD
01-april-2005
3URVWRVWRMHþLGLPQLNLGHO-HNOHQHWXOMDYH3URMHNWLUDQMHLQL]YHGED
Free-standing chimneys - Part 6: Steel liners - Design and execution
Freistehende Schornsteine - Teil 6: Innenrohre aus Stahl - Bemessung und Ausführung
Cheminées autoportantes - Partie 6: Parois intérieurs en acier - Conception et mise en
oeuvre
Ta slovenski standard je istoveten z: EN 13084-6:2004
ICS:
91.060.40 Dimniki, jaški, kanali Chimneys, shafts, ducts
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 13084-6
NORME EUROPÉENNE
EUROPÄISCHE NORM
November 2004
ICS 91.060.40
English version
Free-standing chimneys - Part 6: Steel liners - Design and
execution
Conduits de fumée auto-portants - Partie 6: Parois Freistehende Schornsteine - Teil 6: Innenrohre aus Stahl -
intérieurs en acier - Planification et exécution Bemessung und Ausführung
This European Standard was approved by CEN on 10 October 2004.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,
Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2004 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13084-6:2004: E
worldwide for CEN national Members.

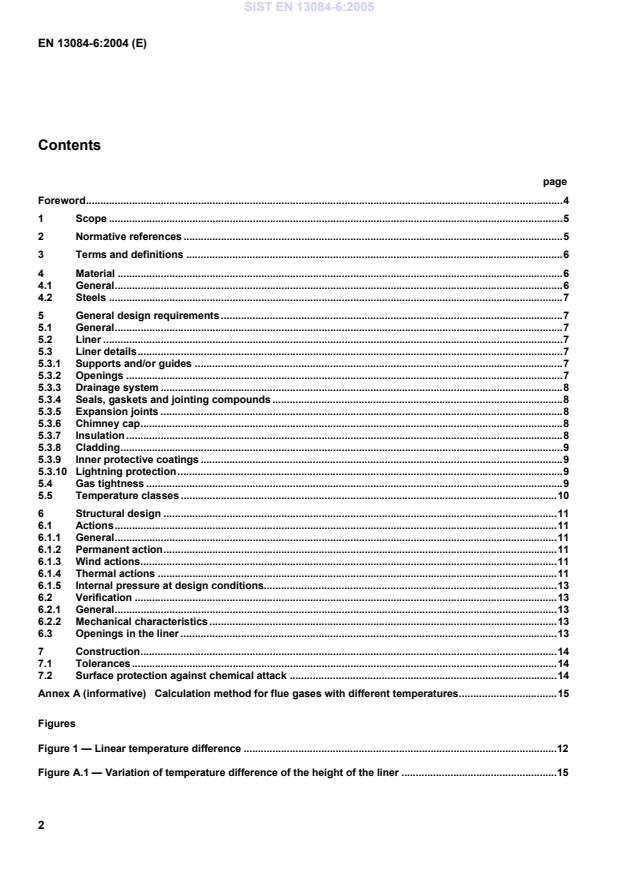

Contents
page
Foreword.4
1 Scope .5
2 Normative references .5
3 Terms and definitions .6
4 Material .6
4.1 General.6
4.2 Steels .7
5 General design requirements.7
5.1 General.7
5.2 Liner .7
5.3 Liner details.7
5.3.1 Supports and/or guides .7
5.3.2 Openings .7
5.3.3 Drainage system .8
5.3.4 Seals, gaskets and jointing compounds .8
5.3.5 Expansion joints .8
5.3.6 Chimney cap.8
5.3.7 Insulation .8
5.3.8 Cladding.9
5.3.9 Inner protective coatings .9
5.3.10 Lightning protection.9
5.4 Gas tightness .9
5.5 Temperature classes .10
6 Structural design .11
6.1 Actions.11
6.1.1 General.11
6.1.2 Permanent action.11
6.1.3 Wind actions.11
6.1.4 Thermal actions .11
6.1.5 Internal pressure at design conditions.13
6.2 Verification .13
6.2.1 General.13
6.2.2 Mechanical characteristics .13
6.3 Openings in the liner .13
7 Construction.14
7.1 Tolerances .14
7.2 Surface protection against chemical attack .14
Annex A (informative)  Calculation method for flue gases with different temperatures.15

Figures
Figure 1 — Linear temperature difference .12
Figure A.1 — Variation of temperature difference of the height of the liner .15

Tables
Table 1 — Gas tightness.10
Table 2 — Minimum radius of corners of openings in liner .13
Table A.1 — Heat transfer correction parameter A .16
Table A.2 — Volume parameter B .17
Table A.3 — Duct width parameter K.17

Foreword
This document (EN 13084-6:2004) has been prepared by Technical Committee CEN/TC 297 “Free-standing indus-
trial chimneys”, the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an identical text or
by endorsement, at the latest by May 2005, and conflicting national standards shall be withdrawn at the latest by
May 2005.
This European Standard is part one of the package of standards listed below:
 EN 13084-1, Free-standing industrial chimneys – Part 1: General requirements.
 EN 13084-2, Free-standing chimneys – Part 2: Concrete chimneys.
 EN 13084-4, Free-standing chimneys – Part 4: Brick liners – Design and execution.
 EN 13084-5, Free-standing chimneys – Part 5: Material for brick liners – Product specifications .
 EN 13084-6, Free-standing chimneys – Part 6: Steel liners – Design and execution .
 EN 13084-7, Free-standing chimneys – Part 7: Product specifications of cylindrical steel fabrications for
use in single wall steel chimneys and steel liners .
 EN 13084-8, Free-standing chimneys – Part 8: Design and execution of mast construction with satellite
components .
 EN 1993-3-2, Eurocode 3: Design of steel structures – Part 3-2: Towers, masts and chimneys – Chim-
neys.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following coun-
tries are bound to implement this European Standard: Austria, Belgium, Cyprus, Czech Republic, Denmark, Esto-
nia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.

To be published
1 Scope
This document deals with special requirements and performance criteria for the design of lining systems made of
steel for free standing chimneys. It specifies the requirements for cylindrical steel liners as stated in EN 13084-1.
This document covers the design of the following three basic types of liners located in a load bearing structure:
a) base supported liner;
b) sectional liner;
c) top hung liner.
Additionally this document also applies to single wall chimneys whose surface is in contact with flue gases.
Liners built from prefabricated metal chimneys in accordance with EN 1856-1 and EN 1856-2 are installed as base
supported liners with additional supports and guides as defined in this document.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated references,
only the edition cited applies. For undated references, the latest edition of the referenced document (including any
amendments) applies.
EN 1443, Chimneys - General requirements.
EN 1856-1, Chimneys – Requirements for metal chimneys – Part 1: System chimney products.
EN 1856-2, Chimneys - Requirements for metal chimneys – Part 2: Metal liners and connecting flue pipes.
EN 1859:2000, Chimneys – Metal chimneys – Test methods.
EN 1993-1-6, Eurocode 3: Design of steel structures – Part 1-6: General rules - Supplementary rules for the shell
structures.
EN 1993-3-2, Eurocode 3: Design of steel structures – Part 3-2: Towers, masts and chimneys – Chimneys.
EN 10028 (all parts), Flat products made of steels for pressure purposes.
EN 10088 (all parts), Stainless steels.
EN 10095, Heat resisting steels and nickel alloys.
EN 13084-1:2000, Free-standing industrial chimneys – Part 1: General requirements.
prEN 13084-7:2001, Free-standing chimneys – Part 7: Product specification of cylindrical steel fabrications for use
in single wall steel chimneys and steel liners.
IEC 62305-1, Protection against lightning – Part 1: General principles.
3 Terms and definitions
For the purpose of this document, the terms and definitions given in EN 13084-1:2000 and the following apply.
3.1
base supported liner
liner which is supported vertically only at the liner base
3.2
independent liner
base supported liner which has no other horizontal support or restraint
3.3
guided liner
liner which has horizontal supports and/or guides allowing free expansion
3.4
top hung liner
liner which is supported vertically at the top
3.5
sectional steel liner
liner with at least two independent vertically supported sections
3.6
liner support
load bearing component which supports the liner
3.7
duct entry
part of the liner which introduces the flue gases into the liner
3.8
gas flow
mass or volume of gas through the liner per unit of time
3.9
single wall chimney
liner which
...
