EN 2240-048:2010
(Main)Aerospace series - Lamps, incandescent - Part 048: Lamp, code 718 NPC - Product standard
Aerospace series - Lamps, incandescent - Part 048: Lamp, code 718 NPC - Product standard
This standard specifies the required characteristics for lamp, code 718 NPC, with nickel-plated contact for aerospace applications.
It shall be used together with EN 2756.
Luft- und Raumfahrt - Glühlampen - Teil 048: Lampe, Kode 718 NPC - Produktnorm
Diese Norm legt die Anforderungen von Lampen, Kode 718 NPC mit vernickeltem Kontakt zur Anwendung in
der Luftfahrt fest.
Sie ist in Verbindung mit EN 2756 anzuwenden.
Série aérospatiale - Lampes à incandescence - Partie 048: Lampe, code 718 NPC - Norme de produit
Aeronavtika - Žarnice - 048. del: Žarnica, kod 718 NPC - Standard za proizvod
Ta standard opredeljuje zahtevane značilnosti za žarnico, kot 718, s ponikljanim stikalom, za aeronavtično uporabo. Uporablja se skupaj z EN 2756.
General Information
- Status
- Published
- Publication Date
- 23-Mar-2010
- Withdrawal Date
- 29-Sep-2010
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 2 - Electrical
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 01-Jun-2017
- Completion Date
- 21-Jan-2026
Relations
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Overview
EN 2240-048:2010 is a CEN European product standard in the Aerospace series that defines the required characteristics for lamp, code 718 NPC - an incandescent aerospace lamp with a nickel-plated contact. The standard applies to lamp manufacturing, procurement and testing for aviation systems and is intended to be used together with EN 2756 (test methods).
Key topics and requirements
- Electrical and optical characteristics: nominal voltage 5 V, nominal current 0.115 A, nominal power 0.575 W, nominal luminous flux 1.9 lm, colour temperature ~1 980 K (values as specified in the standard).
- Service life: static life with d.c. 4 000 h, dynamic life with d.c. 3 000 h, static life with a.c. 4 000 h.
- Mechanical and dimensional data: dimensions are given in millimetres; Light Centre Length (LCL) = 4.8 ± 0.5 mm; overall mass (for 1 000 units) 0.24 kg. Detailed geometry and bulb appearance are specified in the standard figures and tables.
- Filament form and cap: filament forms reference EN 2240-002 (e.g., C - 2R CC - 6), cap designation SX4s/4 per EN 2241.
- Material/contact finish: nickel-plated contact requirement specified for compatibility and corrosion resistance in aerospace environments.
- Designation and marking: prescriptive format for product designation (example: LAMP, INCANDESCENT / EN2240-718NPC) and mandatory marking of the international code number on lamp and packaging where space permits.
- Normative references: the standard is to be applied together with EN 2240-001 (technical specification), EN 2240-002 (main characteristics), EN 2241 (lamp caps), and EN 2756 (test methods).
Applications and users
- Applications: cockpit indicators, instrument-panel lamps, avionics indicators, marker and status lamps in aircraft and aerospace systems where a small-volume incandescent lamp with nickel-plated contact is required.
- Primary users:
- Aerospace OEMs and suppliers specifying components
- Lamp manufacturers and component designers
- Aircraft maintenance organizations and procurement teams
- Test laboratories and certification bodies applying EN 2756 test methods
- Quality and regulatory compliance personnel ensuring European standard conformity
Related standards
- EN 2240-001 - Technical specification (Aerospace incandescent lamps)
- EN 2240-002 - Main characteristics (filament forms, codes)
- EN 2241 - Lamp caps - Dimensions (SX4s/4 cap)
- EN 2756 - Test methods (mandatory companion standard)
This standard ensures consistent performance, interchangeability and traceability for the EN 2240-048:2010 lamp code 718 NPC, supporting safe, reliable lighting components across aerospace supply chains. Keywords: EN 2240-048:2010, lamp code 718 NPC, aerospace incandescent lamp, nickel-plated contact, EN 2756, SX4s/4.
Get Certified
Connect with accredited certification bodies for this standard
National Aerospace and Defense Contractors Accreditation Program (NADCAP)
Global cooperative program for special process quality in aerospace.
NSF-ISR
NSF International Strategic Registrations.
Orion Registrar Inc.
US-based certification body for management systems.
Sponsored listings
Frequently Asked Questions
EN 2240-048:2010 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Lamps, incandescent - Part 048: Lamp, code 718 NPC - Product standard". This standard covers: This standard specifies the required characteristics for lamp, code 718 NPC, with nickel-plated contact for aerospace applications. It shall be used together with EN 2756.
This standard specifies the required characteristics for lamp, code 718 NPC, with nickel-plated contact for aerospace applications. It shall be used together with EN 2756.
EN 2240-048:2010 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 2240-048:2010 has the following relationships with other standards: It is inter standard links to EN 2241:2010, EN 2240-002:2009, EN 2240-001:2009, EN 2756:2010, EN ISO 11269-1:2012, EN ISO 8692:2012, EN ISO 35103:2019, EN ISO 18763:2020. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 2240-048:2010 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

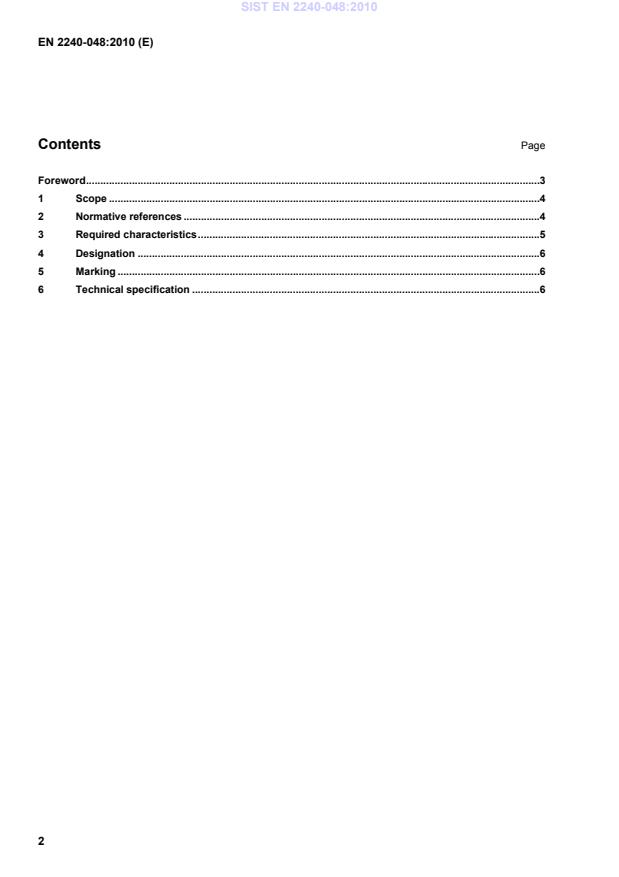

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Aeronavtika - Žarnice - 048. del: Žarnica, kod 718 NPC - Standard za proizvodLuft- und Raumfahrt - Glühlampen - Teil 048: Lampe, Kode 718 NPC - ProduktnormSérie aérospatiale - Lampes à incandescence - Partie 048: Lampe, code 718 NPC - Norme de produitAerospace series - Lamps, incandescent - Part 048: Lamp, code 718 NPC - Product standard49.060Aerospace electric equipment and systemsICS:Ta slovenski standard je istoveten z:EN 2240-048:2010SIST EN 2240-048:2010en01-maj-2010SIST EN 2240-048:2010SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 2240-048
March 2010 ICS 49.060 English Version
Aerospace series - Lamps, incandescent -Part 048: Lamp, code 718 NPC - Product standard
Série aérospatiale - Lampes à incandescence - Partie 048: Lampe, code 718 NPC - Norme de produit
Luft- und Raumfahrt - Glühlampen - Teil 048: Lampe, Kode 718 NPC - Produktnorm This European Standard was approved by CEN on 6 February 2010.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2010 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 2240-048:2010: ESIST EN 2240-048:2010
...
