EN 14691:2017
(Main)Flexible sheets for waterproofing - Waterproofing of concrete bridge decks and other concrete surfaces trafficable by vehicles - Compatibility by heat conditioning
Flexible sheets for waterproofing - Waterproofing of concrete bridge decks and other concrete surfaces trafficable by vehicles - Compatibility by heat conditioning
This European Standard specifies a test method for the evaluation of the compatibility of the waterproofing system applied to a concrete surface and covered with an asphalt layer. The complete system is exposed to an accelerated heat conditioning followed by a determination of the shear strength properties before and after heat conditioning.
Abdichtungsbahnen - Abdichtung von Betonbrücken und anderen Verkehrsflächen aus Beton - Bestimmung der Verträglichkeit nach Wärmelagerung
Diese Europäische Norm legt ein Prüfverfahren für die Beurteilung der Verträglichkeit von Abdichtungs-systemen fest, die auf eine Betonfläche aufgebracht und mit einer Asphaltschicht bedeckt werden. Das vollständige System wird einer beschleunigten Wärmelagerung ausgesetzt und die Schubfestigkeitseigen-schaften werden vor und nach dieser Wärmelagerung bestimmt.
Feuilles souples d'étanchéité - Étanchéité des tabliers de ponts en béton et autres surfaces en béton circulables par les véhicules - Détermination de la compatibilité au conditionnement thermique
La présente Norme européenne spécifie une méthode d'essai permettant d'évaluer la compatibilité du système d'étanchéité appliqué sur une surface en béton recouverte d'une couche d'enrobé bitumineux. La totalité du système est exposée à un processus de conditionnement thermique accéléré, après quoi les propriétés de résistance au cisaillement sont déterminées avant et après le conditionnement thermique.
Hidroizolacijski trakovi - Hidroizolacija betonskih premostitvenih objektov in drugih betonskih povoznih površin - Združljivost pri povišani temperaturi
Ta evropski standard določa preskusno metodo za vrednotenje združljivosti hidroizolacijskega sistema, ki se uporablja za betonske površine in z asfaltno plastjo. Celoten sistem je izpostavljen pospešenemu poviševanju temperature, ki mu sledi določitev lastnosti strižne trdnosti pred in po povišanju temperature.
General Information
- Status
- Published
- Publication Date
- 28-Mar-2017
- Withdrawal Date
- 29-Sep-2017
- Technical Committee
- CEN/TC 254 - Flexible sheets for water proofing
- Drafting Committee
- CEN/TC 254/WG 6 - Bridge deck waterproofing
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 26-Jan-2024
- Completion Date
- 14-Apr-2025
Relations
- Effective Date
- 24-Jun-2015
Overview
EN 14691:2017 (CEN) specifies a laboratory test method to evaluate the compatibility of flexible waterproofing sheets installed on concrete bridge decks and other concrete surfaces trafficable by vehicles when overlaid with asphalt. The complete waterproofing system (sheet + asphalt + concrete substrate) is exposed to an accelerated heat conditioning cycle and the change in shear strength is measured before and after conditioning to detect potential long‑term incompatibility (migration, diffusion or interfacial separation).
Key topics and requirements
- Scope: Compatibility testing of waterproofing systems on concrete decks covered by asphalt, using an accelerated heat conditioning followed by shear strength determination.
- Principle: Compare mean shear strength of conditioned specimens with reference (unconditioned) specimens to assess change in mechanical performance.
- Specimen preparation: Prepare specimens (Type 3) in accordance with EN 13375; four specimens for conditioning and four reference specimens for comparison.
- Heat conditioning:
- Oven with circulating air (no fresh air supply), maintained at (50 ± 2) °C.
- Specimens placed horizontally, not stacked, for 91 days.
- After removal, conditioned specimens are equilibrated at (23 ± 2) °C for 24 h before testing.
- Shear testing: Per EN 13653, using a loading/support device meeting that standard’s requirements.
- Visual inspection: Before and after shear testing inspect for migration, semi‑liquid build‑up or layer separation.
- Expression of results: Compatibility C (%) expressed from mean shear strengths:
- C (%) = [(τ0_max − τC_max) / τ0_max] × 100
- τ0_max = mean shear strength of reference specimens
- τC_max = mean shear strength of conditioned specimens
- C (%) = [(τ0_max − τC_max) / τ0_max] × 100
- Reporting: Include product ID, reference to EN 14691:2017, specimen prep and test procedure, force–displacement plots, individual failure modes, compatibility value, visual observations, and test dates.
- Note: No precision data currently available for this method.
Applications and users
- Who uses it:
- Manufacturers of flexible waterproofing sheets (quality verification)
- Independent testing laboratories (type and performance testing)
- Bridge and highway engineers (specification and acceptance)
- Contractors and asset owners (procurement and QA)
- Certification bodies and standards committees
- Practical uses:
- Assess long‑term compatibility between waterproofing membranes, adhesives and asphalt overlays
- Support product selection for trafficked concrete decks
- Provide objective data for contract specifications, warranty claims and durability assessments
Related standards
- EN 13375 - specimen preparation for bridge deck systems
- EN 13653 - determination of shear strength (test method used here)
- EN 13416 - sampling rules for sheets
- EN 14695 and prEN 17048 - definitions and characteristics for sheet materials
Keywords: EN 14691:2017, flexible sheets for waterproofing, waterproofing of concrete bridge decks, compatibility by heat conditioning, shear strength, accelerated heat conditioning, CEN.
Frequently Asked Questions
EN 14691:2017 is a standard published by the European Committee for Standardization (CEN). Its full title is "Flexible sheets for waterproofing - Waterproofing of concrete bridge decks and other concrete surfaces trafficable by vehicles - Compatibility by heat conditioning". This standard covers: This European Standard specifies a test method for the evaluation of the compatibility of the waterproofing system applied to a concrete surface and covered with an asphalt layer. The complete system is exposed to an accelerated heat conditioning followed by a determination of the shear strength properties before and after heat conditioning.
This European Standard specifies a test method for the evaluation of the compatibility of the waterproofing system applied to a concrete surface and covered with an asphalt layer. The complete system is exposed to an accelerated heat conditioning followed by a determination of the shear strength properties before and after heat conditioning.
EN 14691:2017 is classified under the following ICS (International Classification for Standards) categories: 91.100.50 - Binders. Sealing materials. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 14691:2017 has the following relationships with other standards: It is inter standard links to EN 14691:2005. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 14691:2017 is associated with the following European legislation: EU Directives/Regulations: 305/2011; Standardization Mandates: M/124. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
EN 14691:2017 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

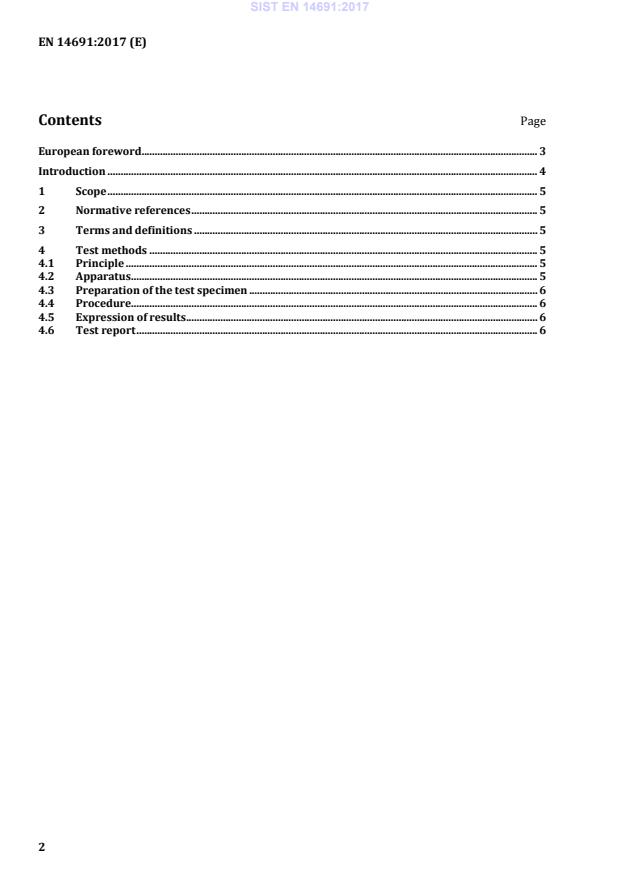

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Hidroizolacijski trakovi - Hidroizolacija betonskih premostitvenih objektov in drugih betonskih povoznih površin - Združljivost pri povišani temperaturiAbdichtungsbahnen - Abdichtungen von Betonbrücken und anderen Verkehrsflächen aus Beton - Bestimmung der Verträglichkeit nach WärmelagerungFeuilles souples d'étanchéité - Étanchéité des tabliers de ponts en béton et autres surfaces en béton circulables par les véhicules - Détermination de la compatibilité au conditionnement thermiqueFlexible sheets for waterproofing - Waterproofing of concrete bridge decks and other concrete surfaces trafficable by vehicles - Compatibility by heat conditioning91.100.50Veziva. Tesnilni materialiBinders. Sealing materialsICS:Ta slovenski standard je istoveten z:EN 14691:2017SIST EN 14691:2017en,fr,de01-september-2017SIST EN 14691:2017SLOVENSKI
STANDARDSIST EN 14691:20051DGRPHãþD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 14691
March
t r s y ICS
{ sä s r rä w r Supersedes EN
s v x { sã t r r wEnglish Version
Flexible sheets for waterproofing æ Waterproofing of concrete bridge decks and other concrete surfaces trafficable by vehicles æ Compatibility by heat conditioningFeuilles souples d 5étanchéité æ Étanchéité des tabliers de ponts en béton et autres surfaces en béton circulables par les véhicules æ Détermination de la compatibilité au conditionnement thermique
Abdichtungsbahnen æ Abdichtung von Betonbrücken und anderen Verkehrsflächen aus Beton æ Bestimmung der Verträglichkeit nach Wärmelagerung This European Standard was approved by CEN on
x February
t r s yä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Serbiaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels
t r s y CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s v x { sã t r s y ESIST EN 14691:2017
...
