EN ISO 7047:1994
(Main)Countersunk raised head screws (common head style) with type H or type Z cross recess - Product grade A (ISO 7047:1994)
Countersunk raised head screws (common head style) with type H or type Z cross recess - Product grade A (ISO 7047:1994)
Specifies the characteristics of countersunk raised head screws of product grade A, with threads from M1,6 to M10 inclusive and with type H or type Z cross recess. If, in special cases, specifications other than those listed here are required, they should be selected from existing International Standards, e.g. ISO 261, ISO 888, ISO 898-1, ISO 965-2 and ISO 3506.
Linsen-Senkschrauben (Einheitskopf) mit Kreuzschlitz Form H oder Z - Produktklasse A (ISO 7047:1994)
Diese Norm enthält Festlegungen über Linsen-Senkschrauben mit Kreuzschlitz, in Produktklasse A, mit Gewinde von M 1,6 bis M 10. Werden in besonderen Fällen andere Festlegungen als die in der vorliegenden Internationalen Norm benötigt, so sind diese den bestehenden Internationalen Normen zu entnehmen, z. B. ISO 261, ISO 888, ISO 898-1, ISO 965-2, ISO 3506.
Vis à métaux à tête fraisée bombée à empreinte cruciforme de type H ou de type Z - Grade A (ISO 7047:1994)
La présente Norme internationale prescrit les caractéristiques des vis à métaux à tête fraisée bombée à empreinte cruciforme de type H ou de type Z, de filetage M1,6 à M10 inclus et de grade A. Si dans des cas particuliers, des spécifications autres que celles figurant dans la présente Norme internationale sont requises, il est recommandé de les prendre dans les Normes internationales existantes, par exemple ISO 261, ISO 888, ISO 898-1, ISO 965-2 et ISO 3506.
Vijaki z lečasto ugrezno glavo in križno zarezo - Razred izdelave A
General Information
- Status
- Withdrawn
- Publication Date
- 30-Jul-1994
- Withdrawal Date
- 31-Aug-2011
- Technical Committee
- CEN/TC 185 - Threaded and nonthreaded mechanical fasteners and accessories
- Current Stage
- 9960 - Withdrawal effective - Withdrawal
- Start Date
- 01-Sep-2011
- Completion Date
- 01-Sep-2011
Relations
- Effective Date
- 10-Sep-2011
Frequently Asked Questions
EN ISO 7047:1994 is a standard published by the European Committee for Standardization (CEN). Its full title is "Countersunk raised head screws (common head style) with type H or type Z cross recess - Product grade A (ISO 7047:1994)". This standard covers: Specifies the characteristics of countersunk raised head screws of product grade A, with threads from M1,6 to M10 inclusive and with type H or type Z cross recess. If, in special cases, specifications other than those listed here are required, they should be selected from existing International Standards, e.g. ISO 261, ISO 888, ISO 898-1, ISO 965-2 and ISO 3506.
Specifies the characteristics of countersunk raised head screws of product grade A, with threads from M1,6 to M10 inclusive and with type H or type Z cross recess. If, in special cases, specifications other than those listed here are required, they should be selected from existing International Standards, e.g. ISO 261, ISO 888, ISO 898-1, ISO 965-2 and ISO 3506.
EN ISO 7047:1994 is classified under the following ICS (International Classification for Standards) categories: 21.060.10 - Bolts, screws, studs. The ICS classification helps identify the subject area and facilitates finding related standards.
EN ISO 7047:1994 has the following relationships with other standards: It is inter standard links to EN ISO 7047:2011. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN ISO 7047:1994 is associated with the following European legislation: EU Directives/Regulations: 97/23/EC; Standardization Mandates: M/071. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
EN ISO 7047:1994 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

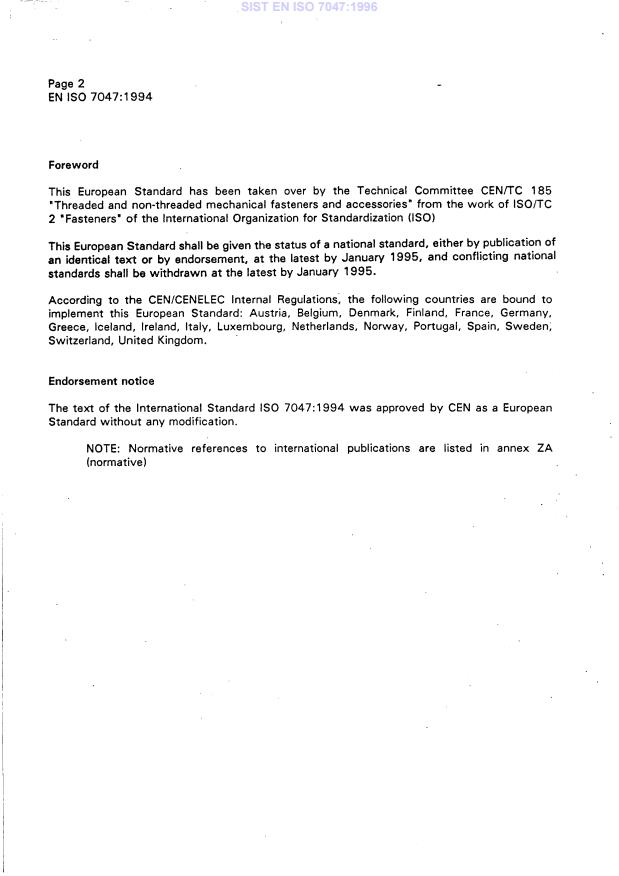

Standards Content (Sample)
SLOVENSKI STANDARD
01-april-1996
9LMDNL]OHþDVWRXJUH]QRJODYRLQNULåQR]DUH]R5D]UHGL]GHODYH$
Countersunk raised head screws (common head style) with type H or type Z cross
recess - Product grade A (ISO 7047:1994)
Linsen-Senkschrauben (Einheitskopf) mit Kreuzschlitz Form H oder Z - Produktklasse A
(ISO 7047:1994)
Vis a métaux a tete fraisée bombée a empreinte cruciforme de type H ou de type Z -
Grade A (ISO 7047:1994)
Ta slovenski standard je istoveten z: EN ISO 7047:1994
ICS:
21.060.10 Sorniki, vijaki, stebelni vijaki Bolts, screws, studs
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
...
