EN 3456:2012
(Main)Aerospace series - Titanium alloy TI-P64001 (Ti-6Al-4V) - Annealed - Sheet and strip, hot rolled — a ≤ 6 mm
Aerospace series - Titanium alloy TI-P64001 (Ti-6Al-4V) - Annealed - Sheet and strip, hot rolled — a ≤ 6 mm
This standard specifies the requirements relating to:
Titanium alloy TI-P64001 (Ti-6Al-4V)
Annealed
Sheet and strip, hot rolled
a ≤ 6 mm
Luft- und Raumfahrt - Titanlegierung TI-P64001 (Ti-6Al-4V) - Geglüht - Bleche und Bänder, warmgewalzt - a ≤ 6 mm
Diese Norm legt die Anforderungen an
Titanlegierung TI P64001 (Ti 6Al 4V)
Geglüht
Bleche und Bänder, warmgewalzt
a < oder = 6 mm
für Anwendungen in der Luft und Raumfahrt fest.
Série aérospatiale - Alliage de titane TI-P64001 (Ti-6Al-4V) - Recuit - Tôles et bandes, laminées à chaud - a ≤ 6 mm
La présente norme spécifie les exigences relatives à :
Alliage de titane TI-P64001 (Ti-6Al-4V)
Recuit
Tôles et bandes, laminées à chaud
a < ou = 6 mm
pour les applications aérospatiales.
Aeronavtika - Titanova zlitina TI-P64001 (Ti-6Al-4V) - Žarjena - Pločevina in trakovi, vroče valjani - a ≤ 6 mm
Ta evropski standard določa zahteve glede: titanove zlitine TI-P64001 (Ti-6Al-4V); žarjene pločevine in trakovi; vroče valjani a ≤ 6 mm; za uporabo v aeronavtiki.
General Information
- Status
- Published
- Publication Date
- 17-Jul-2012
- Withdrawal Date
- 30-Jan-2013
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 4 - Metallic
- Current Stage
- 6060 - Definitive text made available (DAV) - Publishing
- Start Date
- 18-Jul-2012
- Completion Date
- 18-Jul-2012
Relations
- Effective Date
- 07-Dec-2011
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Overview
EN 3456:2012 is a CEN (ASD-STAN) aerospace material standard that defines the requirements for Titanium alloy TI‑P64001 (Ti‑6Al‑4V) in the annealed, hot‑rolled sheet and strip form with a nominal thickness a ≤ 6 mm. This specification is intended for aerospace applications and sets out chemical, metallurgical, heat‑treatment and mechanical criteria, plus referenced test methods and inspection rules.
Key topics and requirements
- Material designation: TI‑P64001 (Ti‑6Al‑4V) for aerospace use.
- Form and production: Sheet and strip, hot‑rolled; applicable for thicknesses up to 6 mm.
- Delivery condition: Annealed (designation code U).
- Heat treatment: Anneal at 700 °C to 840 °C for at least 30 minutes followed by air cooling (AC) in an inert atmosphere.
- Mechanical properties:
- Proof stress (Rp0.2) ≥ 870 MPa
- Tensile strength (Rm) between 920 and 1 180 MPa
- Elongation A (50 mm) ≥ 8%
- Chemical composition limits (as given in the standard):
- Al: 5.50–6.75%
- V: 3.50–4.50%
- Limits for interstitials and impurities (examples quoted): O + 2N ≤ 0.25%, N ≤ 0.03%, H ≤ 0.012%, Fe ≤ 0.30%, C ≤ 0.08%, Y ≤ 0.005%, Ti = balance; total impurities noted.
- Microstructure and inspection: Microstructure and grain‑size requirements are referenced to EN 3114‑004 and EN 2002‑8; dimensional, marking and defect acceptance follow EN 4800‑001, EN 2338 and EN 2032‑2 as applicable.
- Product qualification: Qualification programme to be agreed between manufacturer and purchaser.
Applications and users
EN 3456:2012 is used by:
- Aerospace manufacturers and structural designers specifying Ti‑6Al‑4V sheet for airframe and engine components where high strength-to-weight and corrosion resistance are critical.
- Material suppliers and mill producers to control chemistry, processing (hot rolling, annealing) and delivery condition.
- Quality assurance, inspection and test laboratories implementing referenced test methods (microstructure, grain size, tensile testing).
- Procurement and regulatory teams ensuring supplied material meets aerospace industry material standards.
Relevant applications include lightweight structural panels, cover skins, internal components, and other aerospace parts where annealed, hot‑rolled Ti‑6Al‑4V sheet/strip (≤ 6 mm) is appropriate.
Related standards
- EN 4800‑001 (Titanium technical specification: plate, sheet, strip)
- EN 2338 (Sheets, hot rolled in titanium and titanium alloys - Dimensions)
- EN 2002‑8 (Micrographic determination of grain size)
- EN 3114‑004 (Microstructure of (α+β) titanium alloy sheet)
- EN 2032‑2 (Coding of metallurgical condition in delivery)
Keywords: EN 3456:2012, Ti‑6Al‑4V, TI‑P64001, annealed titanium sheet, hot rolled titanium strip, aerospace titanium specification, mechanical properties, chemical composition.
Get Certified
Connect with accredited certification bodies for this standard
National Aerospace and Defense Contractors Accreditation Program (NADCAP)
Global cooperative program for special process quality in aerospace.

NSF-ISR
NSF International Strategic Registrations.
Orion Registrar Inc.
US-based certification body for management systems.
Sponsored listings
Frequently Asked Questions
EN 3456:2012 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Titanium alloy TI-P64001 (Ti-6Al-4V) - Annealed - Sheet and strip, hot rolled — a ≤ 6 mm". This standard covers: This standard specifies the requirements relating to: Titanium alloy TI-P64001 (Ti-6Al-4V) Annealed Sheet and strip, hot rolled a ≤ 6 mm
This standard specifies the requirements relating to: Titanium alloy TI-P64001 (Ti-6Al-4V) Annealed Sheet and strip, hot rolled a ≤ 6 mm
EN 3456:2012 is classified under the following ICS (International Classification for Standards) categories: 49.025.30 - Titanium. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 3456:2012 has the following relationships with other standards: It is inter standard links to EN 3456:2009, EN 3114-004:2006, EN 2032-2:1994, EN 2338:2001, EN 4258:2024, EN 4800-001:2025, EN 2243-4:2005, EN 3267:2001, EN 4632-006:2013, EN 2243-1:2005. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 3456:2012 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
SLOVENSKI STANDARD
01-oktober-2012
1DGRPHãþD
SIST EN 3456:2010
$HURQDYWLND7LWDQRYD]OLWLQD7,37L$O9äDUMHQD3ORþHYLQDLQWUDNRYL
YURþHYDOMDQLD”PP
$HURVSDFHVHULHV7LWDQLXPDOOR\7,37L$O9$QQHDOHG6KHHWDQGVWULS
KRWUROOHGD”PP
/XIWXQG5DXPIDKUW7LWDQOHJLHUXQJ7,37L$O9*HJOKW%OHFKHXQG
%lQGHUZDUPJHZDO]WD”PP
6pULHDpURVSDWLDOH$OOLDJHGHWLWDQH7,37L$O95HFXLW7{OHVHWEDQGHV
ODPLQpHVjFKDXGD”PP
Ta slovenski standard je istoveten z: EN 3456:2012
ICS:
49.025.30 Titan Titanium
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD
EN 3456
NORME EUROPÉENNE
EUROPÄISCHE NORM
July 2012
ICS 49.025.30 Supersedes EN 3456:2009
English Version
Aerospace series - Titanium alloy TI-P64001 (Ti-6Al-4V) -
Annealed - Sheet and strip, hot rolled - a ≤ 6 mm
Série aérospatiale - Alliage de titane TI-P64001 (Ti-6Al-4V) Luft- und Raumfahrt - Titanlegierung TI-P64001 (Ti-6Al-4V)
- Recuit - Tôles et bandes, laminées à chaud - a ≤ 6 mm - Geglüht - Bleche und Bänder, warmgewalzt - a ≤ 6 mm
This European Standard was approved by CEN on 23 March 2012.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same
status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2012 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 3456:2012: E
worldwide for CEN national Members.

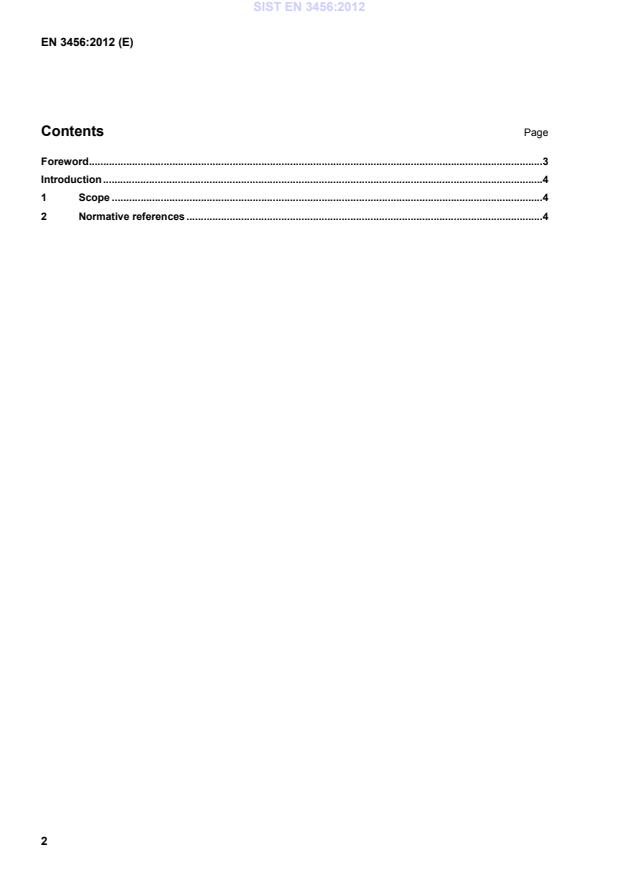

Contents Page
Foreword . 3
Introduction . 4
1 Scope . 4
2 Normative references . 4
Foreword
This document (EN 3456:2012) has been prepared by the Aerospace and Defence Industries Association of
Europe - Standardization (ASD-STAN).
After enquiries and votes carried out in accordance with the rules of this Association, this Standard has
received the approval of the National Associations and the Official Services of the member countries of ASD,
prior to its presentation to CEN.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by January 2013, and conflicting national standards shall be withdrawn at
the latest by January 2013.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 3456:2009.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czec
...
