EN 14458:2004

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Persönlicher Augenschutz - Gesichtsschutzschilde und Visiere zur Verwendung mit Schutzhelmen für die Feuerwehr, Krankenwagenpersonal und NotfalldiensteEquipement de protection des yeux - Ecran facial et visiere des casques de sapeurs-pompiers et de protection a haute performance pour l'industrie, utilisés par les sapeurs-pompiers, les services d'ambulance et d'urgencePersonal eye-equipment - Faceshields and visors for use with firefighters' and high performance industrial safety helmets used by firefighters, ambulance and emergency services13.340.20Varovalna oprema za glavoHead protective equipment13.220.10Gašenje požaraFire-fightingICS:Ta slovenski standard je istoveten z:EN 14458:2004SIST EN 14458:2004en01-oktober-2004SIST EN 14458:2004SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 14458August 2004ICS 13.340.20 English versionPersonal eye-equipment - Faceshields and visors for use withfirefighters' and high performance industrial safety helmets usedby firefighters, ambulance and emergency servicesEquipement de protection des yeux - Ecran facial et visièreutilisés avec des casques pour les sapeurs-pompiers et lesservices d'ambulance et d'urgencePersönlicher Augenschutz - Gesichtsschutzschilde undVisiere zur Verwendung mit Schutzhelmen für dieFeuerwehr, Krankenwagenpersonal und NotfalldiensteThis European Standard was approved by CEN on 27 May 2004.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2004 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 14458:2004: ESIST EN 14458:2004

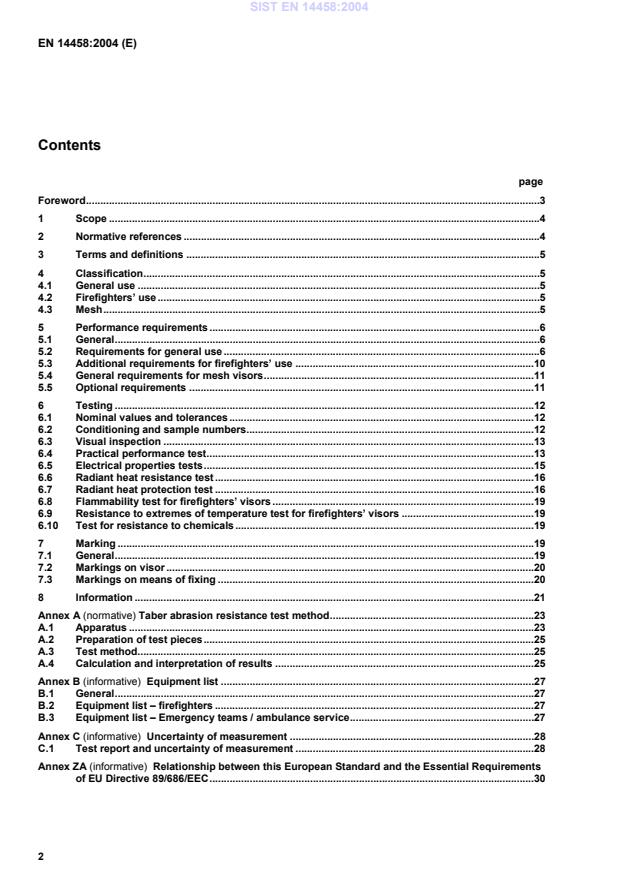

Equipment list.27 B.1 General.27 B.2 Equipment list – firefighters.27 B.3 Equipment list – Emergency teams / ambulance service.27 Annex C (informative)
Uncertainty of measurement.28 C.1 Test report and uncertainty of measurement.28 Annex ZA (informative)
Relationship between this European Standard and the Essential Requirements of EU Directive 89/686/EEC.30
EN 165:1995, Personal eye protection – Vocabulary EN 166:2001, Personal eye protection – Specifications EN 167:2001, Personal eye protection – Optical test methods EN 168:2001, Personal eye protection – Non-optical test methods EN 170:2002, Personal eye-protection - Ultraviolet filters - Transmittance requirements and recommended use EN 171:2002, Personal eye-protection - Infrared filters - Transmittance requirements and recommended use EN 172:1994, Personal eye protection - Sunglare filters for industrial use EN 443:1997, Helmets for firefighters EN 659, Protective gloves for firefighters EN 960, Headforms for use in the testing of protective helmets EN 1731:1997, Mesh type eye and face protectors for industrial and non-industrial use against mechanical hazards and/or heat EN ISO 6942, Protective clothing - Protection against heat and fire - Method of test: Evaluation of materials and material assemblies when exposed to a source of radiant heat (ISO 6942:2002) EN 13087-10, Protective helmets – Test methods – Part 10: Resistance to radiant heat prEN 14052, High performance industrial helmets SIST EN 14458:2004

5.2.1 Construction The visor shall be free from projections, sharp edges or other defects, which are likely to cause discomfort or injury during use. Test in accordance with 6.3. 5.2.2 Materials No parts of the visor assembly, which may be in contact with the wearer shall be made of materials which, under foreseeable conditions of use, are known to be likely to cause skin irritation or any adverse effect on health. Test in accordance with 6.3. 5.2.3 Resistance to ageing Oculars shall meet the requirements of EN 166:2001, 7.1.5.2 when tested according to Clause 6 of EN 168:2001. 5.2.4 Cleaning and disinfection Substances and procedures recommended by the manufacturer for cleaning, maintenance or disinfection shall have no adverse effect on the exposed components of the helmet or visor, nor leave residues, which may enhance flammability. Neither shall they be known to be likely to have any adverse effect on the wearer when applied in accordance with the manufacturer’s instructions. Test in accordance with 6.3. After cleaning and disinfection, the visor shall continue to meet the requirements of either 5.2.15 or 5.3.3. 5.2.5 Compatibility with other equipment The visor shall integrate satisfactorily with: a) the helmet with which it is designed to be used; b) any respiratory protective devices designated for use with the helmet/visor assembly by the eye protector manufacturer; c) any corrective eyewear designated for use with the helmet/visor by the eye protector manufacturer; d) other items of PPE likely to be worn simultaneously during use. Test in accordance with 6.3 and 6.4. The test report shall identify the specific items of other PPE used during these tests. NOTE 1 Compatibility with other items of work equipment (e.g. medical devices, thermal imaging cameras) which may be required in situations where the helmet/visor is intended to be used, cannot be explicitly included in the assessment. Such compatibilities should be assessed by potential purchasers. NOTE 2 Only frames for corrective eyewear which have been shown to be compatible with the visor / helmet should be used. SIST EN 14458:2004

Transmittance EN 166:2001, 7.1.2.2 Depends on visor characteristics.
See EN 166:2001, 7.1.2.2 for relevant documents Diffusion of light 0.75 cd/m2.lx EN 167:2001, Clause 4 Quality of material surface EN 166:2001, 7.1.3 EN 167:2001, Clause 5
The visor, marked in accordance with the requirements of 7, shall not reduce the available field of vision provided by the helmet(s) for which it is designated. Test in accordance with 6.4. There shall be no undue distortion of vision as subjectively determined during testing in accordance with 6.4. Where anti-fogging compounds are specified by the manufacturer they shall be compatible with the eyes, the skin, and the visor assembly under the foreseeable conditions of use. Test in accordance with 6.3. After application of anti-fogging compounds, the visor shall continue to meet the requirements of either 5.2.15 or 5.3.3. 5.2.9 Ergonomics The visor/helmet assembly shall undergo practical performance tests under realistic conditions in accordance with 6.4. These general tests serve the purpose of checking for shortcomings that cannot be determined by the tests described elsewhere in this document. Where practical performance tests show the visor/helmet assembly has shortcomings related to wearer acceptance, the test house shall provide full details of those parts of the practical performance tests, which revealed these imperfections. This will enable other test houses to duplicate the tests and assess the results thereof.
Specific aspects of the practical performance of the visor/helmet assembly, which shall be examined, are given in Clauses 5.2.10 and 5.2.11. SIST EN 14458:2004

5.3 Additional requirements for firefighters’ use In addition to relevant requirements of 5.2, visors for firefighters’ use shall meet the following requirements. 5.3.1 Radiant heat resistance 5.3.1.1 In-use position One visor shall be exposed according to 6.6.1. No part of the visor shall melt, drip or ignite, nor come into contact with any part of the headform. After the exposure, and allowing the visor to cool to ambient temperature for at least 60 minutes, it shall continue to satisfy the requirements for protection against high-speed particles according to 5.2.14 (optionally 5.5.3 and / or 5.5.4), and there shall be no distortion of vision (5.2.8 and 6.4.4). 5.3.1.2 Out of use position One visor shall be exposed according 6.6.2. No part of the visor shall ignite or come into contact with the test headform. 5.3.2 Radiant heat protection The visor, supported on its carrier and in the in-use position, shall be tested according to 6.7. Information on the performance achieved shall be included in the information supplied by the manufacturer (8 s)). NOTE For most visor materials, radiant heat protection varies significantly with the temperature of the heat source. Provision of this information is essential to allow the user to select the optimum protective equipment for their application. 5.3.3 Flammability When tested according to 6.8, no part of the visor or means of fixing shall show: a) any drip during the whole test; b) visible flame or glowing combustion 5s after removal from the test flame. 5.3.4 Resistance to molten metals and hot solids Visors and their means of fixing to the designated helmet(s) shall meet the requirements of e), f) and g) of 7.2.3 of EN 166:2001. 5.3.5 Extremes of temperature The visor/helmet assembly shall show no apparent deformation when subjected to the series of thermal conditions given in Clause 6.9. At the end of each of the periods a) to e), the raising/lowering mechanism for the visor shall operate correctly in accordance with the manufacturer’s instructions. Visors shall match or exceed the extremes of temperature against which designated helmets have been tested for thermal shock. SIST EN 14458:2004

In addition, mesh visors shall meet the following requirements of EN 1731:  4.1.5 – Number of apertures in a mesh  4.3.1 – Luminous transmittance  4.3.2 – Variations in luminous transmittance Field of vision shall be considered adequate during testing according to 6.4 (practical performance test). 5.5 Optional requirements 5.5.1 General Where a manufacturer claims performance in any of the areas covered by Clauses 5.5.2 to 5.5.6, the requirements of the relevant Clause shall be met. 5.5.2 Optical filtering performance Visors (except mesh) shall conform to the requirements for filtering of optical radiation, as given in Table 3. Table 3 - Optional optical properties of visor oculars Property Requirement Test according to: Ultraviolet protection EN 170:2002, Clause 5 EN 167:2001, Clause 6 Infrared protection EN 171:2002, Clause 5
EN 167:2001, Clause 6 Sunglare protection EN 172:1994, Clause 4 EN 172:1994, Clause 5 Enhanced infrared reflection EN 166:2001, 7.3.3 EN 167:2001, Clause 8
Where equipment meets any of these listed requirements, the appropriate markings in EN 166 shall be affixed to the visor, and be detailed in the information provided. 5.5.3 Resistance to high speed particles at extremes of temperature Visors and their means of fixing to the designated helmet(s) shall conform to the requirement of EN 166:2001, 7.3.4. Testing in accordance with EN 168:2001, Clause 9, in the in-use position only, substituting the relevant temperature extremes. 5.5.4 Resistance to high energy impact Visors and their means of fixing to the designated helmet(s) shall conform to the requirement of EN 166:2001, 7.2.2 for resistance to high-speed particles, high-energy impact (class A). Testing in accordance with EN 168:2001, Clause 9, after conditioning the visor/helmet assembly according to the series of temperatures as described in Clauses 5.2.6 or 5.3.5 (as appropriate), and allowing it to return to ambient temperature. Only the in-use position shall be tested for impact. SIST EN 14458:2004

X
X
X Area of coverage X
Radiant heat resistance X
Radiant heat protection X
Abrasion X
Optical filtration X
X
Vision X X
X
Flammability X X X X
X X X
X X
X
Practical performance X X X X
Impact B X X X X
X X X X X
X
X
X Impact A X X X X
X X X X X
X
X
X Impact at extremes of temperature X X X X
X X X X X
X
X
X
6.3 Visual inspection A visual inspection of the device shall be carried out before the laboratory or practical performance tests. This may entail some dismantling in accordance with the manufacturers instructions for maintenance. The visual inspection shall include examination of the marking on the equipment and the information supplied by the manufacturer. 6.4 Practical performance test For each combination of visor and designated helmet, practical performance tests shall be carried out on two complete sets of equipment on different wearers. Where designated corrective frames are available, the same wearer shall repeat the test with and without the frames. The test shall be conducted in an environment with a background noise level of <55 dB (A), and with a lighting level of (500 + 50) lux. The ambient temperature and humidity of the test environment shall be (23 + 5)oC and
(50 + 15)%. SIST EN 14458:2004

The stability of the source output, after a suitable “warming up“ period, shall be verified by a suitable method (i.e. the use of the chosen detector system). At the measuring point, the measured output of the source shall not vary by more than 5% over a period in excess of the maximum required for a series of five faceshield transmission measurements (typically more than an hour). 6.7.2.3 Power incident on the detector The power of the source, measured at the position of the detector, shall be (2 ± 1) kW/m2 for any heat source used. If practicable, the same incident power shall be used for both IR sources. The distance between the source and detector may be adjusted to ensure that this condition is met. However, the distance between the detector and the faceshield shall remain at 50 mm, which is representative of the in-use spacing. NOTE It should be remembered that longer working distances will be less susceptible to the introduction of variability as a result of positioning inaccuracies of the faceshield and detector. SIST EN 14458:2004
...
