EUROPEAN STANDARD
DRAFT
NORME EUROPÉENNE
EUROPÄISCHE NORM
October 2007
ICS 91.140.30
English Version
Ventilation for buildings - Ductwork - Technical ductwork
products, leakage classification and testing
Ventilation des bâtiments - Réseau de conduits - Produits Lüftung von Gebäuden - Luftleitungen - Technische
techniques des réseaux, classification de l'étanchéité et Luftleitungsprodukte, Klassifizierung entsprechend der
essais Luftdichtheit und Prüfung
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee CEN/TC 156.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the
same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to
provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and
shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2007 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 15727:2007: E
worldwide for CEN national Members.

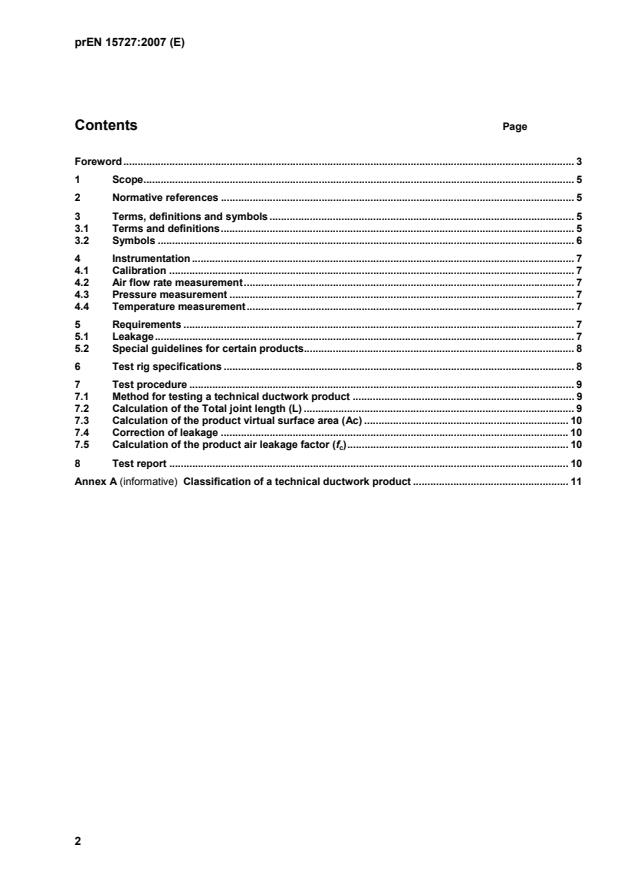

Contents Page
Foreword. 3
1 Scope. 5
2 Normative references . 5
3 Terms, definitions and symbols . 5
3.1 Terms and definitions. 5
3.2 Symbols . 6
4 Instrumentation . 7
4.1 Calibration . 7
4.2 Air flow rate measurement. 7
4.3 Pressure measurement . 7
4.4 Temperature measurement. 7
5 Requirements . 7
5.1 Leakage. 7
5.2 Special guidelines for certain products. 8
6 Test rig specifications . 8
7 Test procedure . 9
7.1 Method for testing a technical ductwork product . 9
7.2 Calculation of the Total joint length (L) . 9
7.3 Calculation of the product virtual surface area (Ac) . 10
7.4 Correction of leakage . 10
7.5 Calculation of the product air leakage factor (f ). 10
c
8 Test report . 10
Annex A (informative) Classification of a technical ductwork product . 11

Foreword
This document (prEN 15727:2007) has been prepared by Technical Committee CEN/TC 156
“Ventilation for buildings”, the secretariat of which is held by BSI.
This document is currently submitted to the CEN Enquiry.

The position of this standard in the field of mechanical services is shown in Figure N° 1.

Mechanical Building Services
Control systems  Ventilation and air conditioning  Heating systems
systems
Air handling  Ductwork  Installation

units
Circular sheet  Flexible ducts   Determination of Hangers and
metal ducts mechanical energy loss supports
Dimensions
Rectangular  Measurement of duct surface   Requirements for  Flanges
sheet metal area ductwork components to
ducts. facilitate maintenance
Dimensions
Circular sheet metal ducts  Rectangular sheet metal  Ductwork
Strength and leakage ducts Strength and made of
leakage insulation
duct boards
Technical ductwork products,
leakage classification and testing

Figure 1 — Position of standard in the field of mechanical services
1 Scope
This standard applies to technical ductwork products, intended for installation in ductwork conforming
to EN 1505, EN 1506, EN 13180 and EN 13403, used in air conditioning and ventilation systems
defined in the scope of CEN/TC 156. This standard specifies the leakage requirements for technical
ductwork products, i.e. components in the ductwork that has more functions than conveying air.
Dampers according to EN 1751 are not included in this standard.
This standard is a parallel standard to EN 12237, EN 1507, EN 13180 and EN 1751, based on the
same leakage classification.
2 Normative references
This European Standard incorporates by dated or undated reference, provisions from other
publications. These normative references are cited at the appropriate places in the text and the
publications are listed hereafter. For dated references, subsequent amendments to or revisions of any
of these publications apply to this European Standard only when incorporated in it by amendment or
revision. For undated references the latest edition of the publication referred to applies.
EN 1505, Ventilation for buildings — Rectangular sheet metal air ducts and duct fittings —
Dimensions
EN 1506, Ventilation for buildings — Circular sheet metal air ducts and duct fittings — Dimensions
EN 1751, Ventilation for buildings — Air terminal devices — Aerodynamic testing of dampers and
valves
EN 1886, Ventilation for buildings — Air handling units – Mechanical performance
EN 12237, Ventilation for buildings — Circular sheet metal air ducts — Strength and leakage —
requirements and test
...
