EUROPEAN STANDARD
DRAFT
prEN 54-5 rev
NORME EUROPÉENNE
EUROPÄISCHE NORM
March 2011
ICS 13.220.20 Will supersede EN 54-5:2000
English Version
Fire detection and fire alarm systems - Part 5: Heat detectors -
Point detectors
Systèmes de détection et d'alarme incendie - Partie 5: Brandmeldeanlagen - Teil 5: Wärmemelder - Punktförmige
Détecteurs de chaleur - Détecteurs ponctuels Melder
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee CEN/TC 72.

If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.

Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to
provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and
shall not be referred to as a European Standard.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2011 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 54-5 rev:2011: E
worldwide for CEN national Members.

prEN 54-5:2011 (E)

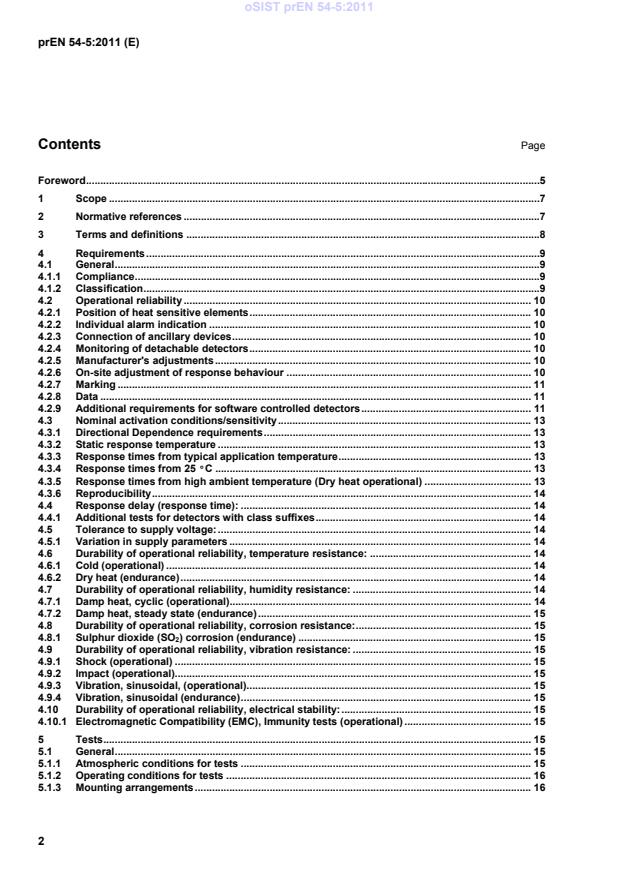

Contents Page
Foreword .5
1 Scope .7
2 Normative references .7
3 Terms and definitions .8
4 Requirements .9
4.1 General .9
4.1.1 Compliance .9
4.1.2 Classification .9
4.2 Operational reliability . 10
4.2.1 Position of heat sensitive elements . 10
4.2.2 Individual alarm indication . 10
4.2.3 Connection of ancillary devices . 10
4.2.4 Monitoring of detachable detectors . 10
4.2.5 Manufacturer's adjustments . 10
4.2.6 On-site adjustment of response behaviour . 10
4.2.7 Marking . 11
4.2.8 Data . 11
4.2.9 Additional requirements for software controlled detectors . 11
4.3 Nominal activation conditions/sensitivity . 13
4.3.1 Directional Dependence requirements . 13
4.3.2 Static response temperature . 13
4.3.3 Response times from typical application temperature . 13
4.3.4 Response times from 25 °C . 13
4.3.5 Response times from high ambient temperature (Dry heat operational) . 13
4.3.6 Reproducibility . 14
4.4 Response delay (response time): . 14
4.4.1 Additional tests for detectors with class suffixes . 14
4.5 Tolerance to supply voltage: . 14
4.5.1 Variation in supply parameters . 14
4.6 Durability of operational reliability, temperature resistance: . 14
4.6.1 Cold (operational) . 14
4.6.2 Dry heat (endurance) . 14
4.7 Durability of operational reliability, humidity resistance: . 14
4.7.1 Damp heat, cyclic (operational) . 14
4.7.2 Damp heat, steady state (endurance) . 15
4.8 Durability of operational reliability, corrosion resistance: . 15
4.8.1 Sulphur dioxide (SO ) corrosion (endurance) . 15
4.9 Durability of operational reliability, vibration resistance: . 15
4.9.1 Shock (operational) . 15
4.9.2 Impact (operational). 15
4.9.3 Vibration, sinusoidal, (operational). 15
4.9.4 Vibration, sinusoidal (endurance) . 15
4.10 Durability of operational reliability, electrical stability: . 15
4.10.1 Electromagnetic Compatibility (EMC), Immunity tests (operational) . 15
5 Tests . 15
5.1 General . 15
5.1.1 Atmospheric conditions for tests . 15
5.1.2 Operating conditions for tests . 16
5.1.3 Mounting arrangements . 16
prEN 54-5:2011 (E)
5.1.4 Tolerances . 16
5.1.5 Measurement of response time . 16
5.1.6 Provision for tests . 17
5.1.7 Test schedule . 17
5.2 Operational reliability . 20
5.2.1 Position of heat sensitive elements . 20
5.2.2 Individual alarm indication . 20
5.2.3 Connection of ancillary devices . 20
5.2.4 Monitoring of detachable detectors . 20
5.2.5 Manufacturer's adjustments . 20
5.2.6 On-site adjustment of response behaviour . 20
5.2.7 Marking . 20
5.2.8 Data . 20
5.2.9 Additional requirements for software controlled detectors . 20
5.3 Nominal activation conditions/sensitivity . 21
5.3.1 Directional dependence . 21
5.3.2 Static response temperature . 21
5.3.3 Response times from typical application temperature . 22
5.3.4 Response times from 25 °C . 23
5.3.5 Response times from high ambient temperature (Dry heat operational) . 23
5.3.6 Reproducibility . 24
5.4 Response delay (response time): . 24
5.4.1 Additional tests for detectors with class suffixes . 24
5.5 Tolerance to supply voltage: . 26
5.5.1 Variation in supply parameters . 26
5.6 Durability of operational reliability, temperature resistance: . 27
5.6.1 Cold (operational) . 27
5.6.2 Dry heat (endurance) . 28
5.7 Durability of operational reliability, humidity resistance: . 29
5.7.1 Damp heat, cyclic (operational) . 29
5.7.2 Damp heat, steady state (endurance) . 30
5.8 Durability of operational reliability, corrosion resistance: . 31
5.8.1 Sulphur dioxide (SO ) corrosion (endurance) . 31
5.9 Durability of operational reliability, vibration resistance: . 32
5.9.1 Shock (operational) . 32
5.9.2 Impact (operational) . 34
5.9.3 Vibration, sinusoidal, (operational) . 35
5.9.4 Vibration, sinusoidal (endurance) . 36
5.10 Durability of operational reliability, electrical stability: . 37
5.10.1 Electromagnetic Compatibility (EMC), Immunity tests (operational) . 37
6 Evaluation of conformity . 39
6.1 General . 39
6.2 Initial type testing . 39
6.2.1 General . 39
6.2.2 Test samples . 40
6.2.3 Test reports . 40
6.3 Factory production control. 40
6.3.1 General . 40
6.3.2 General requirements . 41
6.3.3 Product specific requirements . 42
6.3.4 Initial inspection of factory and FPC . 43
6.3.5 Surveillance of FPC . 44
6.4 Procedure for modifications. 44
6.5 One-off products, pre-production products, prototypes and products produced in very
low quantities . 44
Annex A (normative) Heat tunnel for response time and response temperature measurements . 46
Annex B (informative) Information concerning the construction of the heat tunnel . 47
prEN 54-5:2011 (E)
Annex C (informative) Derivation of upper and lower limits of response times . 50
Annex D (informative) Apparatus for impact test . 53
Annex ZA (informative) Clauses of this European Standard addressing the provisions of the EU
Construction Products Directive (89/106/EEC) . 55
ZA.1 Scope and relevant characteristics . 55
ZA.2 Procedures for the attestation of conformity of heat detectors . 57
ZA.2.1 System of attestation of conformity . 57
ZA.2.2 EC Certificate of conformity . 58
ZA.3 CE marking and labelling . 59

prEN 54-5:2011 (E)
Foreword
This document (prEN 54-5:2011) has been prepared by Technical Committee CEN/TC 72 “Fire detection and
fire alarm systems”, the secretariat of which is held by BSI.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 54-5:2000.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive(s).
For relationship with EU Directive, see informative Annex ZA, which is an integral part of this document.
EN 54, Fire detection and fire alarm systems, consists of the following parts:
 Part 1: Introduction
 Part 2: Control and indicating equipment
 Part 3: Fire alarm devices – Sounders
 Part 4: Power supply equipment
 Part 5: Heat detectors – Point detectors
 Part 7: Smoke detectors – Point detectors using scattered light, transmitted light or ionization
 Part 10: Flame detector – Point detectors
 Part 11: Manual call points
 Part 12: Smoke detectors – Line detector using an optical light beam
 Part 13: Compatibility assessment of system components
 Part 14: Guidelines for planning, design, installation, commissioning, use and maintenance
 Part 15: Point detectors using a combination of detected phenomena
 Part 16: Voice alarm control and indicating equipment
 Part 17: Short circuit isolators
 Part 18: Input/output devices
 Part 20: Aspirating smoke detectors
 Part 21: Alarm transmission and fault warning routine equipment
 Part 22: Line-type heat detectors
prEN 54-5:2011 (E)
 Part 23: Fire alarm devices – Visual alarms
 Part 24: Components of voice alarm systems – Loudspeakers
 Part 25: Components using radio links and system requirements
 Part 26: Carbon monoxide detectors – Point detectors
 Part 27: Duct smoke detectors
 Part 28: Non-resettable (digital) line type heat detectors
 Part 29: Multi-sensor fire detectors - Point detectors using a combination of smoke and heat sensors
 Part 30: Multi-sensor fire detectors - Point detectors using a combination of carbon monoxide and heat
sensors
 Part 31: Multi-sensor detector – Point detectors using a combination of smoke, carbon monoxide and
optionally heat sensors
 Part 32: Guidelines for the planning, design, installation, commissioning, use and maintenance of voice
alarm systems
NOTE This list includes standards that are in preparation and other standards may be added. For current status of
published standards refer to www.cen.eu.
prEN 54-5:2011 (E)
1 Scope
This European Standard specifies the requirements, test methods and performance criteria for point heat
detectors for use in fire detection and fire alarm systems for buildings (see EN 54-1:1996).
For other types of heat detector, or for detectors intended for use in other environments, this standard should
only be used for guidance. Heat detectors with special characteristics and developed for specific risks are not
covered by this standard.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO/IEC
Publication Year Title EN/HD Year
- - Fire detection and fire alarm systems - Part 1: EN 54-1 1996
Introduction.
- - - Alarm Systems – Part 4: Electromagnetic EN 50130-4 2003
compatibility EN 50130-4:
- product family standard: Immunity
requirements for 1995/A2:2003 2003
components of fire, intruder and social alarm
systems
IEC 60068-1 1988 Environmental testing - Part 1: General and guidance, + EN 60068-1 1994
A1:1992.
IEC 60068-2-1 1990 Environmental testing - Part 2: Tests - Tests A: Cold, + EN 60068-2-1 1993
A1:1993, A2:1994.
IEC 60068-2-2 1974 Basic Environmental testing procedures - Part 2: Tests - EN 60068-2-2 1993
Tests B: Dry heat, + Supp. A:1976, A1:1993, A2:1994.
IEC 60068-2-3 1969 Basic Environmental testing procedures - Part 2: Tests - HD 323.2.3 S2 1987
Test Ca: Damp heat, steady state, + A1:1984.
IEC 60068-2-6 1995 Environmental testing – Part 2: Tests - Test Fc: Vibration, EN 60068-2-6 1995
sinusoidal, + Corr.:1995
IEC 60068-2-27 1987 Basic Environmental testing procedures - Part 2: Tests - EN 60068-2-27 1993
Test Ea & Guidance: Shock.
prEN 54-5:2011 (E)
IEC 60068-2-30 1980 Basic Environmental testing procedures - Part 2: Tests - HD 323.2.30 S3 1988
Test Db & Guidance: Damp heat, cyclic (12 + 12 hour
cycle), + A1:1985.
IEC 60068-2-42 1982 Basic Environmental testing procedures - Part 2: Tests - - -
Test Kc: Sulphur dioxide test for contacts and
connections.
IEC 60068-2-56 1988 Environmental testing – Part 2: Tests - Test Cb: Damp HD 323.2.56 S1 1990
heat, steady state, primarily for equipment.
ISO 209-1 1989 Wrought aluminium and aluminium alloys - Chemical - -
composition and forms of products - Part 1: Chemical
composition.
3 Terms and definitions
For the purposes of this standard, the following terms and definitions and those given in EN 54-1:1996 apply:
3.1
typical application temperature
temperature that an installed detector can be expected to experience for long periods of time in the absence
of a fire condition
NOTE This temperature is deemed to be 29 °C below the minimum static response temperature, according to the class
marked on the detector, as specified in Table 1.
3.2
maximum application temperature
maximum temperature that an installed detector can be expected to experience, even for short periods of
time, in the absence of a fire condition
NOTE This temperature is deemed to be 4 °C below the minimum static response temperature, according to the class
marked on the detector, as specified in Table 1.
3.3
static response temperature
temperature at which the detector would produce an alarm signal if subjected to a vanishingly small rate of
rise of temperature.
-1
NOTE Rates of rise of temperature of approximately 0,2 K min are normally found to be suitable for measuring this,
however lower rates can be required in some instances (see 5.3).
prEN 54-5:2011 (E)
4 Requirements
4.1 General
4.1.1 Compliance
In order to comply with this standard the detector shall meet the requirements clause 4,, which shall be
verified by visual inspection or engineering assessment, shall be tested as described in clause 5. , and shall
meet the requirements of the tests.
4.1.2 Classification
Detectors shall conform to one or more of the following classes: A1, A2, B, C, D, E, F or G according to the
requirements of the tests specified in clause 5 (see Table 1).
Table 1 — Detector classification temperatures
Detector Typical Maximum Minimum Static Maximum Static
Class Application Application Response Response
Temperature Temperature Temperature Temperature

°C °C °C °C
A1 25 50 54 65
A2 25 50 54 70
B 40 65 69 85
C 55 80 84 100
D 70 95 99 115
E 85 110 114 130
F 100 125 129 145
G 115 140 144 160
Manufacturers may optionally give additional information concerning the type of response exhibited by the
1)
detector, by adding the suffix S or R to the above classes . Detectors, which are marked with the letter S or R
as a suffix to the class marking, shall be tested in accordance with the applicable test, specified in
clause 5.3.7, and shall meet the requirements of that test, in addition to the tests of clause 5.

1)
Detectors, with a suffix S to their class, do not respond below the minimum static response temperature, applicable to
their classification (see Table 1), even at high rates of rise of air temperature. Detectors with a suffix R to their class,
incorporate a rate-of-rise characteristic, which meets the response time requirements (see Table 4) for high rates of rise of
air temperature even when starting at air temperatures substantially below the typical application temperature.
prEN 54-5:2011 (E)
4.2 Operational reliability
4.2.1 Position of heat sensitive elements
Each detector shall be constructed such that at least part of its heat sensitive element(s), except elements
with auxiliary functions (e.g. characteristic correctors), shall be ≥ 15 mm from the mounting surface of the
detector. To confirm this, the detector shall be tested in accordance with clause 5.2.1.
4.2.2 Individual alarm indication
Class A1, A2, B, C or D detectors shall be provided with an integral red visual indicator, by which the
individual detector, which released an alarm, can be identified, until the alarm condition is reset. Where other
conditions of the detector can be visually indicated, they shall be clearly distinguishable from the alarm
indication, except when the detector is switched into a service mode. For detachable detectors the indicator
may be integral with the base or the detector head. The visual indicator shall be visible from a distance of 6 m
directly below the detector, in an ambient light intensity up to 500 lux.
Class E, F or G detectors shall be provided with either an integral red indicator, or with another means for
locally indicating the alarm status of the detector. To confirm this, the detector shall be assessed in
accordance with clause 5.2.2.
NOTE The alarm condition is reset manually at the control and indicating equipment (See EN 54-2).
4.2.3 Connection of ancillary devices
Where the detector provides for connections to ancillary devices (e.g. remote indicators, control relays), open-
or short-circuit failures of these connections shall not prevent the correct operation of the detector. To confirm
this, the detector shall be assessed in accordance with clause 5.2.3.
4.2.4 Monitoring of detachable detectors
For detachable detectors, a means shall be provided for a remote monitoring system (e.g. the control and
indicating equipment) to detect the removal of the head from the base, in order to give a fault signal. To
confirm this, the detector shall be assessed in accordance with clause 5.2.4.
4.2.5 Manufacturer's adjustments
It shall not be possible to change the manufacturer's settings except by special means (e.g. a special code or
tool, or by breaking or removing a seal). To confirm this, the detector shall be assessed in accordance with
clause 5.2.5.
4.2.6 On-site adjustment of response behaviour
If there is provision for on-site adjustment of the response behaviour of the detector then:
a) for each setting, at which the manufacturer claims compliance with this standard, he shall declare a
corresponding class, and for each such setting the detector shall comply with the requirements of this
standard for the corresponding class, and access to the adjustment means shall only be possible by the
use of a code or special tool or by removing the detector from its base or mounting;
b) any setting(s), at which the manufacturer does not claim compliance with this standard, shall only be
accessible by the use of a code or special tool, and it shall be clearly marked on the detector or in the
associated data, that if these setting(s) are used, the detector does not comply with the standard.
To confirm this, the detector shall be assessed in accordance with clause 5.2.6.
NOTE These adjustments may be carried out at the detector or at the control and indicating equipment.
prEN 54-5:2011 (E)
4.2.7 Marking
Each detector shall be clearly marked with the following information:
a) the number of this standard and its date(i.e. EN 54-5:2009);
b) the class(es) of the detector (e.g. A1, A1R, A1S, A2, B etc.). If the detector has provision for on-site
adjustment of the class (see 4.2.6), then the marking of the class may be replaced by the symbol P;
c) the name or trademark of the manufacturer or supplier;
d) the model designation (type or number);
e) the wiring terminal designations;
f) some mark(s) or code(s) (e.g. serial number or batch code), by which the manufacturer can identify, at
least, the date or batch and place of manufacture, and the version number(s) of any software, contained
within the detector.
For detachable detectors, the detector head shall be marked with a), b), c), d) and f), and the base shall be
marked with, at least d) (i.e. its own model designation) and e).
Where any marking on the device uses symbols or abbreviations not in common use then these shall be
explained in the data supplied with the device.
The marking shall be visible during installation of the detector and shall be accessible during maintenance.
The markings shall not be placed on screws or other easily removable parts.
To confirm this, the detector shall be assessed in accordance with clause 5.2.7.
4.2.8 Data
Detectors shall either be supplied with sufficient technical, installation and maintenance data to enable their
2)
correct installation and operation or, if all of these data are not supplied with each detector, reference to the
appropriate data sheet(s) shall be given on, or with each detector.
For detectors with provision for on-site adjustment of their class, these data shall identify the applicable
classes and shall describe the method of programming (e.g. by selecting a switch position on the detector or a
setting from a menu in the control and indicating equipment).
To confirm this, the detector shall be assessed in accordance with clause 5.2.8.
NOTE Additional information may be required by organizations certifying that detectors conform to the requirements
of this standard.
4.2.9 Additional requirements for software controlled detectors
4.2.9.1 General
For detectors which rely on software control in order to fulfil the requirements of this standard, the
requirements of 4.2.9.2, 4.2.9.3 and 4.2.9.4 shall be met.

2)
To enable correct operation of the detectors, these data should describe the requirements for the correct processing of
the signals from the detector. This can be in the form of a full technical specification of these signals, a reference to the
appropriate signalling protocol or a reference to suitable types of control and indicating equipment etc.
prEN 54-5:2011 (E)
4.2.9.2 Software documentation
4.2.9.2.1 The manufacturer shall submit documentation which gives an overview of the software design.
This documentation shall be in sufficient detail for the design to be inspected for compliance with this standard
and shall include at least the following:
a) a functional description of the main program flow (e.g. as a flow diagram or structogram) including:
1) a brief description of the modules and the functions that they perform;
2) the way in which the modules interact;
3) the overall hierarchy of the program;
4) the way in which the software interacts with the hardware of the detector;
5) the way in which the modules are called, including any interrupt processing.
b) a description of which areas of memory are used for the various purposes (e.g. the program, site specific
data and running data);
c) a designation, by which the software and its version can be uniquely identified.
4.2.9.2.2 The manufacturer shall have available detailed design documentation, which only needs to be
provided if required by the testing authority. It shall comprise at least the following:
a) an overview of the whole system configuration, including all software and hardware components;
b) a description of each module of the program, containing at least:
1) the name of the module;
2) a description of the tasks performed;
3) a description of the interfaces, including the type of data transfer, the valid data range and the
checking for valid data.
c) full source code listings, as hard copy or in machine-readable form (e.g. ASCII-code), including all global
and local variables, constants and labels used, and sufficient comment for the program flow to be
recognized;
d) details of any software tools used in the design and implementation phase (e.g. CASE-tools, compilers).
prEN 54-5:2011 (E)
4.2.9.3 Software design
In order to ensure the reliability of the detector, the following requirements for software design shall apply:
a) the software shall have a modular structure;
b) the design of the interfaces for manually and automatically generated data shall not permit invalid data to
cause error in the program operation;
c) the software shall be designed to avoid the occurrence of deadlock of the programme flow.
4.2.9.4 The storage of programs and data
The program necessary to comply with this standard and any preset data, such as manufacturer's settings,
shall be held in non-volatile memory. Writing to areas of memory containing this program and data shall only
be possible by the use of some special tool or code and shall not be possible during normal operation of the
detector.
Site-specific data shall be held in memory which will retain data for at least 2 weeks without external power to
the detector, unless provision is made for the automatic renewal of such data, following loss of power, within
1 h of power being restored.
To confirm this, the detector shall be assessed in accordance with clause 5.2.9.
4.3 Nominal activation conditions/sensitivity
4.3.1 Directional Dependence requirements
The response time of the detector shall not be unduly dependent on the direction of airflow around the
detector. To confirm this, the detector shall be tested in accordance with clause 5.3.1.
4.3.2 Static response temperature
The detector shall respond correctly to a slow rate of rise of air temperature. To confirm this, the detector shall
be tested in accordance with clause 5.3.2.
4.3.3 Response times from typical application temperature
The detector shall respond correctly over a range of rates of rise of air temperature. To confirm this, the
detector shall be tested in accordance with clause 5.3.3.
4.3.4 Response times from 25 °C
Detectors in a class with a typical application temperature above 25 °C (see Table 1) shall not exhibit an
abnormally fast response to normal increases in temperature.
To confirm this, the detector shall be tested in accordance with clause 5.3.4.
This requirement is not applicable to class A1 or A2 detectors.
4.3.5 Response times from high ambient temperature (Dry heat operational)
The detector shall function correctly at high ambient temperatures appropriate to the anticipated service
temperatures. To confirm this, the detector shall be tested in accordance with clause 5.3.5.
prEN 54-5:2011 (E)
4.3.6 Reproducibility
The response times of the detectors shall be within the required limits. To confirm this, the detector shall be
tested in accordance with clause 5.3.6.
4.4 Response delay (response time):
4.4.1 Additional tests for detectors with class suffixes
4.4.1.1 Suffix S detectors
Suffix S detector shall not respond below the minimum static response temperature applicable to the class of
the detector. To confirm this, the detector shall be tested in accordance with clause 5.4.7.1.
This requirement is only applicable to suffix S detectors.
4.4.1.2 Test for suffix R detectors
Suffix R detector shall maintain the response requirements of its class for high rates of rise of temperature
starting from an initial temperature below the typical application temperature applicable to the class marked on
the detector. To confirm this, the detector shall be tested in accordance with clause 5.3.7.2.
This requirement is only applicable to suffix R detectors.
4.5 Tolerance to supply voltage:
4.5.1 Variation in supply parameters
Within the specified range(s) of the supply parameters (e.g. voltage), the response time of the detector shall
not be unduly dependent on these parameters. To confirm this, the detector shall be tested in accordance with
clause 5.5.1.
4.6 Durability of operational reliability, temperature resistance:
4.6.1 Cold (operational)
The detector shall function correctly at low ambient temperatures appropriate to the anticipated service
temperature. To confirm this, the detector shall be tested in accordance with clause 5.6.1.
4.6.2 Dry heat (endurance)
The detector shall withstand a high ambient temperature appropriate to its class. To confirm this, the detector
shall be tested in accordance with clause 5.6.2.
This requirement is not applicable to class A1, A2 and B detectors.
4.7 Durability of operational reliability, humidity resistance:
4.7.1 Damp heat, cyclic (operational)
The detector shall function correctly at high relative humidities (with condensation), which can occur for short
periods in the anticipated service environment. To confirm this, the detector shall be tested in accordance with
clause 5.7.1.
prEN 54-5:2011 (E)
4.7.2 Damp heat, steady state (endurance)
The detector shall withstand the long term effects of humidity in the service environment (e.g. changes in
electrical properties of materials, chemical reactions involving moisture, galvanic corrosion etc.). To confirm
this, the detector shall be tested in accordance with clause 5.7.2.
4.8 Durability of operational reliability, corrosion resistance:
4.8.1 Sulphur dioxide (SO ) corrosion (endurance)
The detector shall withstand the corrosive effects of sulphur dioxide as an atmospheric pollutant. To confirm
this, the detector shall be tested in accordance with clause 5.8.1.
4.9 Durability of operational reliability, vibration resistance:
4.9.1 Shock (operational)
The detector shall withstand mechanical shocks, which are likely to occur, albeit infrequently, in the
anticipated service environment. To confirm this, the detector shall be tested in accordance with clause 5.9.1.
4.9.2 Impact (operational)
The detector shall withstand mechanical impacts upon its surface, which it may sustain in the normal service
environment, and which it can reasonably be expected to withstand. To confirm this, the detector shall be
tested in accordance with clause 5.9.2.
4.9.3 Vibration, sinusoidal, (operational)
The detector shall withstand vibration at levels considered appropriate to the normal service environment. To
confirm this, the detector shall be tested in accordance with clause 5.9.3.
4.9.4 Vibration, sinusoidal (endurance)
The detector shall withstand the long term effects of vibration at levels appropriate to the service environment.
To confirm this, the detector shall be tested in accordance with clause 5.9.4.
4.10 Durability of operational reliability, electrical stability:
4.10.1 Electromagnetic Compatibility (EMC), Immunity tests (operational)
The detector shall be immune to Electromagnetic influences. To confirm this, the detector shall be tested in
accordance with clause 5.10.1.
5 Tests
5.1 General
5.1.1 Atmospheric conditions for tests
Unless otherwise stated in a test procedure, the testing shall be carried out after the test specimen has been
allowed to stabilize in the standard atmospheric conditions for testing as described in
IEC 60068-1:1988+A1:1992 as follows:
a) temperature: (15 to 35) °C;
prEN 54-5:2011 (E)
b) relative humidity: (25 to 75) %;
c) air pressure: (86 to 106) kPa.
NOTE If variations in these parameters have a significant effect on a measurement, then such variations should be kept
to a minimum during a series of measurements carried out as part of one test on one specimen.
5.1.2 Operating conditions for tests
If a test method requires a specimen to be operational, then the specimen shall be connected to suitable
supply and monitoring equipment with characteristics as required by the manufacturer's data. Unless
otherwise specified in the test method, the supply parameters applie
...
