EN 6059-301:2017
(Main)Aerospace series - Electrical cables, installation - Protection sleeves - Test methods - Part 301: Sun light exposure
Aerospace series - Electrical cables, installation - Protection sleeves - Test methods - Part 301: Sun light exposure
This European Standard specifies a method for the sun light exposure of protection sleeve for electrical cable and cable bundles for aerospace application.
It shall be used together with EN 6059-100.
Luft- und Raumfahrt - Elektrische Leitungen, Installation - Schutzschläuche - Prüfverfahren - Teil 301: Beständigkeit gegen Sonnenlicht
Diese Europäische Norm legt ein Verfahren zur Bestimmung der Sonnenlichtbeständigkeit von Schutz-schläuchen für elektrische Leitungen und Leitungsbündel in Luft- und Raumfahrtanwendungen fest.
Sie ist in Verbindung mit EN 6059-100 anzuwenden.
Série aérospatiale - Câbles électriques, installation - Gaines de protection - Méthodes d'essais - Partie 301: Exposition au soleil
La présente Norme européenne spécifie une méthode d’exposition au soleil des gaines de protection pour les câbles et torons de câbles électriques pour application aérospatiale.
Elle doit être utilisée conjointement avec l’EN 6059-100.
Aeronavtika - Električni kabli, namestitev - Zaščitne obojke - Preskusne metode - 301. del: Izpostavljenost sončni svetlobi
Ta evropski standard določa metodo za izpostavljenost sončni svetlobi za zaščitne obojke za električne kable in snope kablov za uporabo v aeronavtiki. Uporabljati ga je treba skupaj s standardom EN 6059-100.
General Information
- Status
- Published
- Publication Date
- 28-Mar-2017
- Withdrawal Date
- 29-Sep-2017
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 2 - Electrical
- Current Stage
- 6060 - Definitive text made available (DAV) - Publishing
- Start Date
- 29-Mar-2017
- Completion Date
- 29-Mar-2017
Overview
EN 6059-301:2017 - Aerospace series - Protection sleeves - Test methods - Part 301: Sun light exposure - specifies a laboratory method for exposing protection sleeves used on electrical cables and cable bundles in aerospace applications to simulated sunlight. Published by CEN and prepared by ASD‑STAN, this standard is intended to verify the sunlight (UV/visible) resistance of sleeve materials and assemblies when used in aircraft and aerospace systems. It is to be used together with EN 6059-100 (general test requirements).
Key topics and technical requirements
- Scope: Test method for sun light exposure of protection sleeves for electrical cables and cable bundles in aerospace applications.
- Specimen preparation: Take a finished sleeve specimen with a minimum length of 600 mm.
- Apparatus: Use test apparatus in accordance with ISO 4892 (all parts) - Plastics - Methods of exposure to laboratory light sources (i.e., controlled laboratory sunlight/UV simulation).
- Exposure method: Expose the specimen to a laboratory light source as detailed in ISO 4892 for the duration specified in the applicable product standard. Ensure closures and printed faces are oriented toward the light source.
- Acceptance criteria:
- Specimens must meet the dimensions and expanding range defined in the product standard after exposure.
- No damage or broken fibres shall be evident.
- Specimens must retain the minimum tensile strength specified in the product standard.
- Closures (if present) shall remain undamaged.
- Normative references: EN 6059-100 and ISO 4892 are indispensable for applying this part.
Applications and who uses it
EN 6059-301:2017 is practically valuable for:
- Aerospace component manufacturers validating the UV/sunlight durability of cable protection sleeves.
- Test laboratories conducting conformity and qualification testing for aircraft wiring and harness protection.
- Design and materials engineers selecting sleeve materials for exterior or UV‑exposed installations on aircraft and spacecraft.
- Procurement, quality assurance and regulatory teams seeking documented compliance with aerospace material performance requirements. This standard supports lifecycle reliability by ensuring sleeves resist degradation from sunlight exposure that could compromise mechanical properties or protective function.
Related standards
- EN 6059-100 - Aerospace series - Protection sleeves - Test methods - Part 100: General (must be used together with Part 301).
- ISO 4892 (all parts) - Plastics - Methods of exposure to laboratory light sources (reference for apparatus and exposure conditions).
Keywords: EN 6059-301:2017, protection sleeve, sun light exposure, aerospace electrical cables, test method, cable bundles, ISO 4892, EN 6059-100, UV exposure, laboratory light sources.
Get Certified
Connect with accredited certification bodies for this standard
National Aerospace and Defense Contractors Accreditation Program (NADCAP)
Global cooperative program for special process quality in aerospace.
NSF-ISR
NSF International Strategic Registrations.
Orion Registrar Inc.
US-based certification body for management systems.
Sponsored listings
Frequently Asked Questions
EN 6059-301:2017 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Electrical cables, installation - Protection sleeves - Test methods - Part 301: Sun light exposure". This standard covers: This European Standard specifies a method for the sun light exposure of protection sleeve for electrical cable and cable bundles for aerospace application. It shall be used together with EN 6059-100.
This European Standard specifies a method for the sun light exposure of protection sleeve for electrical cable and cable bundles for aerospace application. It shall be used together with EN 6059-100.
EN 6059-301:2017 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 6059-301:2017 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
SLOVENSKI STANDARD
01-junij-2017
$HURQDYWLND(OHNWULþQLNDEOLQDPHVWLWHY=DãþLWQHRERMNH3UHVNXVQHPHWRGH
GHO ,]SRVWDYOMHQRVWVRQþQLVYHWOREL
Aerospace series - Electrical cables, installation - Protection sleeves - Test methods -
Part 301: Sun light exposure
Luft- und Raumfahrt - Elektrische Leitungen, Installation - Schutzschläuche -
Prüfverfahren - Teil 301: Beständigkeit gegen Sonnenlicht
Série aérospatiale - Câbles électriques, installation - Gaines de protection - Méthodes
d'essais - Partie 301: Exposition au soleil
Ta slovenski standard je istoveten z: EN 6059-301:2017
ICS:
29.060.20 Kabli Cables
49.060 /HWDOVNDLQYHVROMVND Aerospace electric
HOHNWULþQDRSUHPDLQVLVWHPL equipment and systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EN 6059-301
EUROPEAN STANDARD
NORME EUROPÉENNE
March 2017
EUROPÄISCHE NORM
ICS 49.060
English Version
Aerospace series - Electrical cables, installation -
Protection sleeves - Test methods - Part 301: Sun light
exposure
Série aérospatiale - Câbles électriques, installation - Luft- und Raumfahrt - Elektrische Leitungen,
Gaines de protection - Méthodes d'essais - Partie 301: Installation - Schutzschläuche - Prüfverfahren - Teil
Exposition au soleil 301: Beständigkeit gegen Sonnenlicht
This European Standard was approved by CEN on 6 February 2017.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2017 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 6059-301:2017 E
worldwide for CEN national Members.

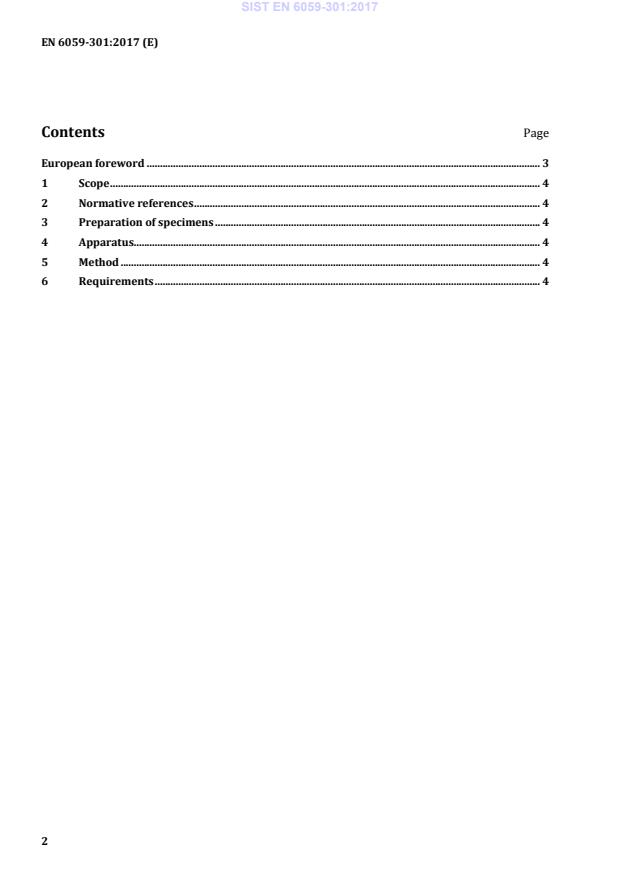

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Preparation of specimens .
...
