EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 13443-1December 2002ICS 13.060.20; 91.140.60English versionWater conditioning equipment inside buildings - Mechanicalfilters - Part 1: Particle rating 80 µm to 150 µm - Requirementsfor performances, safety and testingAppareils de conditionnement d'eau à l'intérieur desbâtiments - Filtres mécaniques - Partie 1: Particules dedimension comprise entre 80 µm et 150 µm - Spécificationsde performances et de sécurité, essaisAnlagen zur Behandlung von Trinkwasser innerhalb vonGebäuden - Mechanisch wirkende Filter - Teil 1:Filterfeinheit 80 µm bis 150 µm - Anforderungen anAusführung und Sicherheit, PrüfungThis European Standard was approved by CEN on 23 October 2002.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2002 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 13443-1:2002 ESIST EN 13443-1:2003

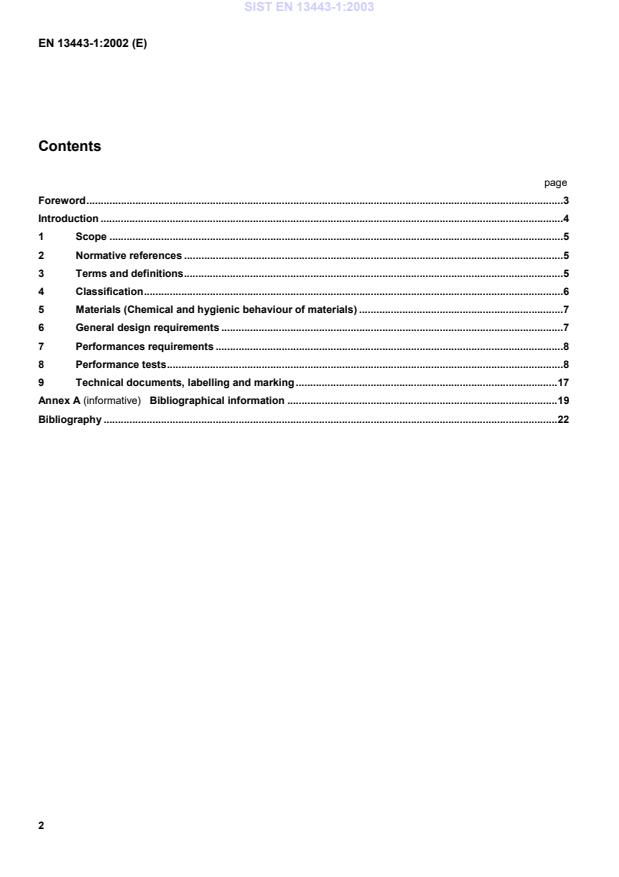

EN 13443-1:2002 (E)2ContentspageForeword.3Introduction.41Scope.52Normative references.53Terms and definitions.54Classification.65Materials (Chemical and hygienic behaviour of materials).76General design requirements.77Performances requirements.88Performance tests.89Technical documents, labelling and marking.17Annex A (informative)
Bibliographical information.19Bibliography.22SIST EN 13443-1:2003



EN 13443-1:2002 (E)3ForewordThis document (EN 13443-1:2002) has been prepared by Technical Committee CEN/TC 164 "Water Supply", thesecretariat of which is held by AFNOR.This European Standard shall be given the status of a national standard, either by publication of an identical text orby endorsement, at the latest by June 2003, and conflicting national standards shall be withdrawn at the latest byJune 2003.Annex A is informative.According to the CEN/CENELEC Internal Regulations, the national standards organizations of the followingcountries are bound to implement this European Standard: Austria, Belgium, Czech Republic, Denmark, Finland,France, Germany, Greece, Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Spain,Sweden, Switzerland and the United Kingdom.SIST EN 13443-1:2003



EN 13443-1:2002 (E)4IntroductionIn respect of potential adverse effects on the quality of water intended for human consumption, caused by theproduct covered by this standard:1) this standard provides no information as to whether the product may be used without restriction in any ofthe Member States of the EU or EFTA;2) it should be noted that, while awaiting the adoption of verifiable European criteria, existing nationalregulations concerning the use and/or the characteristics of this product remain in force.SIST EN 13443-1:2003



EN 13443-1:2002 (E)51 ScopePart 1 of this European Standard applies to mechanical filters for drinking water installations inside buildings, ofnominal size from DN 15 to DN 100, minimum nominal pressure PN10, particle rating of 80 µm to 150 µm, andminimum design temperature of 30 °C. It specifies requirements relating to the construction and mode of operationof filters and describes relevant methods of testing. It only concerns units which are permanently connected to themains supply at the point of entry into the building.Part 2 of this European Standard (prEN 13443-2) is a separate document and deals with filters with a particle sizelimit less than 80 µm.2 Normative referencesThis European Standard incorporates by dated or undated reference, provisions from other publications. Thesenormative references are cited at the appropriate places in the text, and the publications are listed hereafter. Fordated references, subsequent amendments to or revisions of any of these publications apply to this EuropeanStandard only when incorporated in it by amendment or revision. For undated references the latest edition of thepublication referred to applies (including amendments).EN 1333, Pipe work components - Definition and selection of PN.EN 1567, Building valves - Water pressure reducing valves and combination water pressure reducing valves -Characteristics and tests.EN 1717, Protection against pollution of potable water in water installations and general requirements of devices toprevent pollution by backflow.EN ISO 3822-3, Acoustics - Laboratory tests on noise emission from appliances and equipment used in watersupply installations - Part 3: Mounting and operating conditions for in-line valves and appliances (ISO 3822-3:1997).EN ISO 6509, Corrosion of metals and alloys - Determination of dezincification resistance of brass(ISO 6509:1981).ISO 7-1, Pipe threads where pressure-tight joints are made on the threads - Part 1: Dimensions, tolerances anddesignation.ISO 228-1, Pipe threads where pressure-tight joints are not made on the threads - Part 1: Dimensions, tolerancesand designation.3 Terms and definitionsFor the purposes of this European Standard, the following terms and definitions apply.3.1drinking Waterwater intended for human consumption as defined in Directive 98/83/EC (see “A”)3.2mechanical Filtersappliances designed to remove undissolved substances from water, down to a specified particle size3.3filter elementpart of a filter designed to ensure the retention of particlesSIST EN 13443-1:2003



EN 13443-1:2002 (E)63.4grade of filtrationability of a filter to retain particles and suspended matter of a given size range irrespective of the nature of thematerial used in the filter element, defined by the maximum and minimum filter particle rating3.5minimum particle ratingnumber determining the particle size, in µm, of a material 90 % by mass of which is able to pass through the filterunder test conditions3.6maximum particle ratingnumber determining the particle size, in µm, of a material 10 % by mass of which is able to pass through the filterunder test conditions3.7filter surface velocityflow rate divided by the filter surface area, expressed in m3/(h cm2)3.8nominal flow rateclean filter flow rate at which either the
pressure drop does not exceed a value of 50 kPa (0,5 bar), or the filtersurface velocity does not exceed the maximum specified value, whichever is lower4 Classification4.1 PrincipleMechanical filters shall be designated by:¾ nominal size DN;¾ end connections;¾ filter type;¾ nominal pressure PN.The designation shall be clearly identified on the manufacturer's rating plate or in the instruction manual. Examplesare given in annex A.4.2 Nominal size (DN)The nominal size DN shall correspond to the flow rates in Table 2. The inlet connection of the filter may be DN orone size larger or one size smaller than the nominal size DN. In the case of flange connections the nominal sizeDN is determined by the DN of the inlet connection.4.3 End ConnectionsExamples of end connections are shown in annex A. Combinations of two kinds of connections are possible.4.4 Filter TypeFilters conforming to this standard shall be presented as one of the following types:¾ filters requiring single use filter elements;SIST EN 13443-1:2003



EN 13443-1:2002 (E)7¾ backwashing filters filter elements cleaned by backwashing ( without any dismantling).4.5 Nominal Pressure (PN)The nominal pressure PN shall correspond to EN 1333.5 Materials (Chemical and hygienic behaviour of materials)The selection of materials shall be the responsibility of the manufacturer, provided that the complete filter satisfiesthe requirements of EN 1567.NOTEThe materials and coatings used should not contaminate or change the drinking water, when in normal or accidentalcontact up to the maximum designed temperature.The requirements , with regard to the effects of materials on drinking water quality, are specified in nationalregulations.The manufacturer shall state in his technical literature what materials and coatings are used. The materials, inparticular copper alloys, shall conform to relevant national standards or recommendations. These references shallbe stated.Copper-zinc alloys containing more than 10 % zinc are subject to dezincification when submitted to water capableof dezincification. In countries where the use of products made of dezincification resistant material is required, theproduct have to guarantee a dezincification depth less than 200 µm in any direction. They have to be tested and marked inaccordance with EN ISO 6509 and have to be marked in compliance with the indications under clause 9 of the presentstandard.6 General design requirements6.1 Backwashable filtersBackwashable filters shall be able to be cleaned without the aid of tools. No substances shall be allowed topenetrate into the drinking water supply as a result of the cleaning operation. After completion of backwashing, theoriginal grade of filtration and pressure drop shall be recovered.Backwashable filters shall be provided with a backwash water outlet, conforming to EN 1717.It shall be possible to clean the filter mounted in any of the positions specified by the manufacturer with nointerruption of filtered water supply during backwashing.6.2 Single-use filtersSingle use filters shall be designed in such a way that the filter elements can be replaced without any risk ofcontamination of the drinking water. It shall be possible to replace the filter mounted in any of the positionsspecified by the manufacturer.Any tools used in this process shall not come into contact with drinking water and shall be provided by themanufacturer. If specific tools are necessary they shall be supplied by the manufacturer.Replacement filter elements shall be single packaged to prevent contamination from outside.6.3 Thermal stabilityFilters shall be designed to withstand room and water temperatures of at least 30°°C.SIST EN 13443-1:2003



EN 13443-1:2002 (E)87 Performances requirements7.1 Bending Strength of the bodyWhen subjected to a bending moment in accordance with 8.2.1.2, there shall be no permanent deformation,fissures or ruptures.7.2 Pressure Strength of the Filter HousingWhen subjected to a hydraulic test as defined in 8.2.2, there shall be no visible leakage or permanent deformation.7.3 Pressure Strength of the Filter ElementAfter being subjected to a differential pressure as described in 8.2.3.2, there shall be no visible deformation of thefilter cartridge.7.4 Dynamic Pressure TestWhile subject to cyclic pressure test as described in 8.2.4 the filter hosing shall show no visible signs of leakage orpermanent deformation.7.5 Pressure DropWhen subjected to the nominal flow rate as described in 8.3.1.2, the filter, with a clean element, shall not develop apressure drop higher than 50 kPa.7.6 Filter Surface VelocityThe filter surface velocity shall not exceed 0,15 m3/(h cm2) for backwashable filters and 0,025 m3/(h cm2) forreplaceable cartridge filters at the nominal flow rate.7.7 Filtration RatingWhen tested in accordance with 8.4.2, the maximum filter rating shall be between 100 micrometres (mm) and150 micrometres (mm) and the minimum filter rating shall be between 80 micrometres (mm) and 120 micrometres(mm).8 Performance tests8.1 Test ConditionsTests shall be carried out with the filter in the horizontal position, except for special models. Unless otherwisespecified tolerances shall be ± 5%. Unless otherwise stated tests shall be carried out at room temperature withwater between 10 °C and 30 °C. If the designed water temperature is higher than 30 °C, the designed temperatureshall be used for the test.8.2 Mechanical Performance8.2.1 Bending strength of the body8.2.1.1 PrincipleThe mechanical bending strength of the body is tested by a bending moment test, in which a force is applied for apredetermined period.SIST EN
...
