EN 13036-3:2002
(Main)Road and airfield surface characteristics - Test methods - Part 3: Measurement of pavement surface horizontal drainability
Road and airfield surface characteristics - Test methods - Part 3: Measurement of pavement surface horizontal drainability
This standard describes a method for determining road surface horizontal drainability using the outflow meter as a stationary device.
Oberflächeneigenschaften von Straßen und Flugplätzen - Prüfverfahren - Teil 3: Messung der horizontalen Entwässerung von Deckschichten
Diese Europäische Norm beschreibt ein Verfahren zur Bestimmung der horizontalen Entwässerung von Fahrbahnoberflächen als Hinweis auf eine verhältnismäßig niedrige Oberflächenstruktur mit Hilfe eines Ausflussmessgerätes, das als stationäres Messgerät eingesetzt wird.
Das Verfahren liefert einen Anhaltswert für die Enwässerung im Kontaktbereich zwischen Fahrbahn und Reifen. Es kann bei sämtlichen glatten, nichtporösen Fahrbahnoberflächen (mit einer mittleren Profiltiefe unter 0,4 mm) entweder vor Ort oder im Laboratorium angewendet werden.
Mit dem Verfahren der horizontalen Entwässerung wird nur ein kleiner Oberflächenbereich gemessen; daher sollte bei der Auswahl des Prüfbereiches darauf geachtet werden, dass dieser für die Fläche, auf der die Messungen erfolgen, repräsentativ ist.
Caractéristiques de surface de routes et aérodromes - Méthodes d'essai - Partie 3: Méthodes d'essai pour mesurer la drainabilité superficielle d'un revêtement de chaussée
Lorsque la couche de roulement d'une chaussée présente une macrotexture fine, une méthode d'évaluation de cette dernière, décrite dans la présente Norme européenne consiste à mesurer la drainabilité superficielle d'une chaussée, à l'aide d'un appareil statique, le drainomètredrainomètre de surface.
La présente méthode fournit une mesure de la drainabilité superficielle dans la zone de contact route/pneumatique, destinée à être utilisée sur toutes les chaussées non poreuses et à macrotexture fine (PMTP < à 0,4 mm), soit sur chantier, soit en laboratoire.
Etant donné que la méthode mesure seulement la drainabilité superficielle d'une petite surface de revêtement, il convient de choisir soigneusement la surface d'essai de sorte qu'elle soit représentative de l'ensemble du revêtement sur lequel doivent porter les mesurages.
Značilnosti cestnih in letaliških površin - Preskusne metode - 3. del: Merjenje vodoravne odvodnosti površine vozišča
General Information
- Status
- Published
- Publication Date
- 10-Dec-2002
- Withdrawal Date
- 29-Jun-2003
- Technical Committee
- CEN/TC 227 - Road materials
- Drafting Committee
- CEN/TC 227/WG 5 - Surface characteristics
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 05-Nov-2024
- Completion Date
- 14-Apr-2025
- Directive
- 89/106/EEC - Construction products
Overview
EN 13036-3:2002 is a CEN test method for measuring pavement surface horizontal drainability using the outflow meter as a stationary device. It is intended to assess the ability of smooth, non‑porous road and airfield surfaces (mean profile depth MPD ≤ 0.4 mm) to provide interconnecting voids that allow water to be squeezed out from the tyre/road contact area. The method can be used in the field or in the laboratory as an indicator of low surface texture and as part of surface skid resistance evaluation.
Key topics and technical requirements
- Scope and applicability: Designed for relatively smooth, non‑porous surfaces (MPD 0–0.4 mm). Not suitable for coarse or highly porous pavements.
- Apparatus (outflow meter): Transparent cylinder (specified dimensions), brass weighting ring and a carrier ring with a precision vulcanised rubber sealing ring. Typical component specs given include cylinder height and internal diameter, total mass (≈ 3 500 g) and carrier-ring mass (≈ 138 g).
- Marks and calibration: Upper, intermediate and lower marks are placed on the cylinder (upper mark distances and water volumes for intermediate/lower marks are specified). The outflow meter must be calibrated and validated by an authorised calibration organisation at least annually; a seal and expiry date are affixed to the carrier ring.
- Test procedure: Wet the rubber ring, place the device vertically on the test surface, fill with potable water and record the time for the water level to fall from the upper to lower mark. If the intermediate mark is reached in more than 3 minutes, record the intermediate time and multiply by six (per standard rules).
- Sampling and reporting: At least 10 test points (approximately 2.5 m apart) over a 25 m panel are averaged to give the panel result. Tests should be carried out in the wheel track and on representative, homogeneous areas; details of site, operator, test times and mean results must be recorded.
- Performance notes: Repeated tests on fine textured, plane surfaces showed a standard deviation around 4.0 s in a specified outflow time range; the standard contains provisions for verification and annexed calibration procedures.
Applications and users
- Primary users: highway and airport pavement engineers, road authorities, maintenance contractors, pavement testing laboratories and consultants.
- Practical uses:
- Screening for low macrotexture that may reduce water evacuation in the tyre contact patch.
- Supporting skid-resistance assessment programs (used alongside pendulum or other skid tests).
- Quality control of new surfacings and monitoring surface condition over time.
- Benefits: Simple, repeatable field method for detecting surfaces at risk of reduced horizontal drainability and increased hydroplaning potential on smooth pavements.
Related standards
- EN 13036-1 - volumetric patch technique for macrotexture depth (MPD)
- prEN 13036-2 - procedure for skid resistance determination
- prEN 13036-4 - pendulum test for slip/skid resistance
- ISO 13473 series - texture measurement methods
Keywords: EN 13036-3:2002, pavement surface horizontal drainability, outflow meter, road surface texture, macrotexture, pavement testing, CEN standard, skid resistance.
Frequently Asked Questions
EN 13036-3:2002 is a standard published by the European Committee for Standardization (CEN). Its full title is "Road and airfield surface characteristics - Test methods - Part 3: Measurement of pavement surface horizontal drainability". This standard covers: This standard describes a method for determining road surface horizontal drainability using the outflow meter as a stationary device.
This standard describes a method for determining road surface horizontal drainability using the outflow meter as a stationary device.
EN 13036-3:2002 is classified under the following ICS (International Classification for Standards) categories: 93.080.20 - Road construction materials. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 13036-3:2002 is associated with the following European legislation: EU Directives/Regulations: 305/2011, 89/106/EEC. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
EN 13036-3:2002 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Oberflächeneigenschaften von Straßen und Flugplätzen - Prüfverfahren - Teil 3: Messung der horizontalen Entwässerung von DeckschichtenCaractéristiques de surface de routes et aérodromes - Méthodes d'essai - Partie 3: Méthodes d'essai pour mesurer la drainabilité superficielle d'un revetement de chausséeRoad and airfield surface characteristics - Test methods - Part 3: Measurement of pavement surface horizontal drainability93.120Construction of airports93.080.10Gradnja cestRoad construction17.040.20Lastnosti površinProperties of surfacesICS:Ta slovenski standard je istoveten z:EN 13036-3:2002SIST EN 13036-3:2004en01-junij-2004SIST EN 13036-3:2004SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 13036-3December 2002ICS 93.080.20English versionRoad and airfield surface characteristics - Test methods - Part 3:Measurement of pavement surface horizontal drainabilityCaractéristique de surface de routes et aérodromes -Méthodes d'essai - Partie 3: Méthodes d'essai pourmesurer la drainabilité superficielle d'un revêtement dechausséeOberflächeneigenschaften von Straßen und Flugplätzen -Prüfverfahren - Teil 3: Messung der horizontalenEntwässerung von DeckschichtenThis European Standard was approved by CEN on 23 October 2002.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2002 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 13036-3:2002 ESIST EN 13036-3:2004

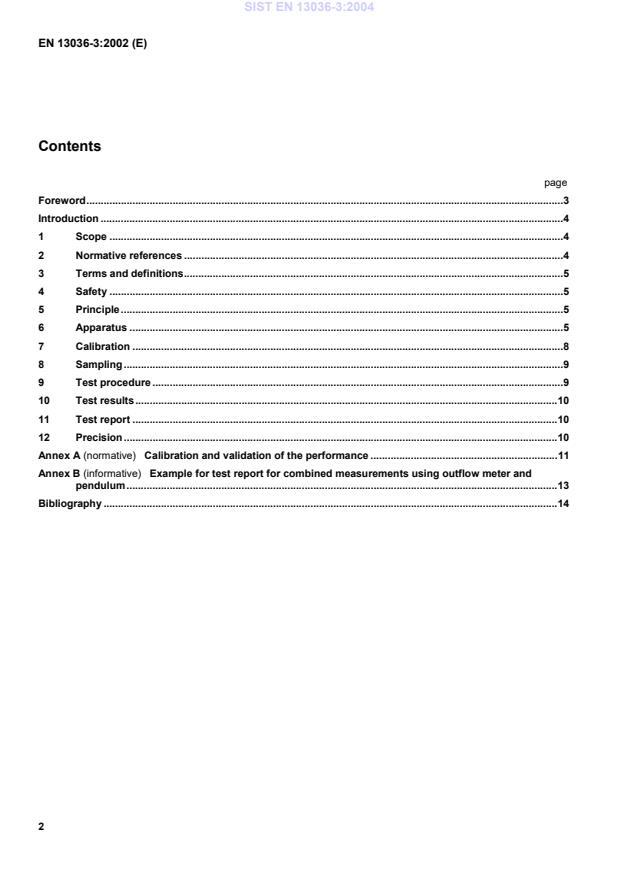

Calibration and validation of the performance.11Annex B (informative)
