EN 6049-006:2012
(Main)Aerospace series - Electrical cables, installation - Protection sleeve in meta-aramid fibres - Part 006: Self-wrapping protective sleeve, flexible post installation - Product standard
Aerospace series - Electrical cables, installation - Protection sleeve in meta-aramid fibres - Part 006: Self-wrapping protective sleeve, flexible post installation - Product standard
This European Standard specifies the characteristics of post installation flexible self-wrapping protection sleeves for electrical cable and cable bundles made from meta-aramid fibres and provided with a water repelled protection for aerospace application.
Luft- und Raumfahrt - Elektrische Leitungen, Installation - Schutzschläuche aus Meta-Aramidfasern - Teil 006: Selbstverschließender Schutzschlauch, flexibel, nachträglich montierbar - Produktnorm
Diese Norm legt die Eigenschaften von biegsamen Schutzschläuchen aus Meta-Aramidfasern mit einer wasserabweisenden Schutzfunktion für elektrische Leitungen und Leitungsbündel für die Anwendung in der Luft- und Raum¬fahrt fest, die mit einem Haftverschluss ausgerüstet und zur nachträglichen Montage bestimmt sind.
Série aérospatiale - Câbles électriques, installation - Gaine de protection en fibres méta-aramides - Partie 006: Gaine de protection auto-fermable, souple après montage - Norme de produit
La présente Norme Européenne spécifie les caractéristiques des gaines flexibles auto-fermables de post installation, pour câbles et torons de câbles en fibre méta-aramide et munis d'une protection repoussant l'eau, pour une application aéronautique.
Aeronavtika - Električni kabli, namestitev - Zaščitna obojka iz meta-aramidnih vlaken - 006. del: Samoovojna zaščitna obojka, zvijava, z možnostjo poznejše montaže - Standard za izdelek
Ta evropski standard določa značilnosti zvijavih samoovojnih zaščitnih obojk z možnostjo poznejše montaže za električne kable in svežnje kablov, ki so izdelane iz meta-aramidnih vlaken in imajo vodoodbojno zaščito, uporabljajo pa se v aeronavtiki.
General Information
- Status
- Published
- Publication Date
- 13-Mar-2012
- Withdrawal Date
- 29-Sep-2012
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 2 - Electrical
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 30-Jun-2017
- Completion Date
- 28-Jan-2026
Relations
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Overview
EN 6049-006:2012 is a CEN European product standard for self-wrapping, post-installation protection sleeves used on aerospace electrical cables and cable bundles. It specifies the required composition, dimensional classes, identification, environmental and fire performance, and test methods for flexible sleeves made from meta-aramid fibres with PPS monofilament and a water‑repellent finish. The standard supports safe, retrofit cable protection in aircraft and aerospace systems.
Key topics and technical requirements
- Composition: Woven, openable sleeving made from textured meta-aramid yarn blended with polyphenylene sulfide (PPS) monofilament. Designed to reduce fraying after cold cutting.
- Size classes: Size codes cover nominal protected bundle diameters from about 1 mm to 40 mm (multiple size codes such as 05, 08, 13, 16, 19, 25, 32, 40). Overlap angle and wall thickness are defined per size.
- Color and identification:
- Olive green (code 5), Orange (code 3 for FTI), Red (code 2 for arm systems).
- Optional tracer lines: none (dash), R = red 3 mm (arm systems), P = pink 9 mm (fuel systems).
- Temperature range: Operational from −55 °C to +200 °C.
- Mechanical and environmental performance:
- Tensile strength: minimum 0.02 N per dTex (unaged); after high temperature/fluids not less than 0.01 N per dTex.
- Sunlight exposure: minimum 45% retention of tensile strength after 40 h.
- Dynamic cut-through, abrasion, bending, vibration requirements and other mechanical tests specified.
- Fire, smoke and toxicity:
- Flammability limits (after-burn length/time and drip times) per EN 3844-1.
- Smoke density limits: Ds ≤ 200 (flaming), Ds ≤ 150 (non‑flaming).
- Toxic gas limits for HF, HCl, HCN, SO2/H2S, NO/NO2 and CO are specified (4‑minute exposure limits).
- Testing: Test methods referenced to EN 6059-100 and related EN aerospace flammability/smoke standards.
Applications and who uses this standard
- Aerospace electrical installation engineers and cable-harness designers specifying protective sleeving for new builds and retrofit work.
- Avionics maintenance and modification teams performing post‑installation cable protection.
- Suppliers and manufacturers of aerospace textile sleeving and electrical protection products.
- Procurement, certification and safety compliance teams ensuring components meet fire, smoke and toxicity constraints for aircraft interiors and systems.
Related standards
- EN 6049-001 - Technical specification for meta-aramid protection sleeve series
- EN 6059-100 - Test methods for protection sleeves
- EN 2825, EN 2826, EN 3844-1 - Smoke, toxicity and flammability test standards
Keywords: EN 6049-006:2012, self-wrapping protective sleeve, meta-aramid fibres, aerospace cable protection, post-installation sleeve, water repellent, aviation sleeving.
Get Certified
Connect with accredited certification bodies for this standard
National Aerospace and Defense Contractors Accreditation Program (NADCAP)
Global cooperative program for special process quality in aerospace.
NSF-ISR
NSF International Strategic Registrations.
Orion Registrar Inc.
US-based certification body for management systems.
Sponsored listings
Frequently Asked Questions
EN 6049-006:2012 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Electrical cables, installation - Protection sleeve in meta-aramid fibres - Part 006: Self-wrapping protective sleeve, flexible post installation - Product standard". This standard covers: This European Standard specifies the characteristics of post installation flexible self-wrapping protection sleeves for electrical cable and cable bundles made from meta-aramid fibres and provided with a water repelled protection for aerospace application.
This European Standard specifies the characteristics of post installation flexible self-wrapping protection sleeves for electrical cable and cable bundles made from meta-aramid fibres and provided with a water repelled protection for aerospace application.
EN 6049-006:2012 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 6049-006:2012 has the following relationships with other standards: It is inter standard links to EN 2825:2011, EN 2826:2011, EN 3844-1:2019, EN 6059-100:2015, EN 6049-002:2010, EN 6049-001:2015, EN 6049-001:2018. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 6049-006:2012 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

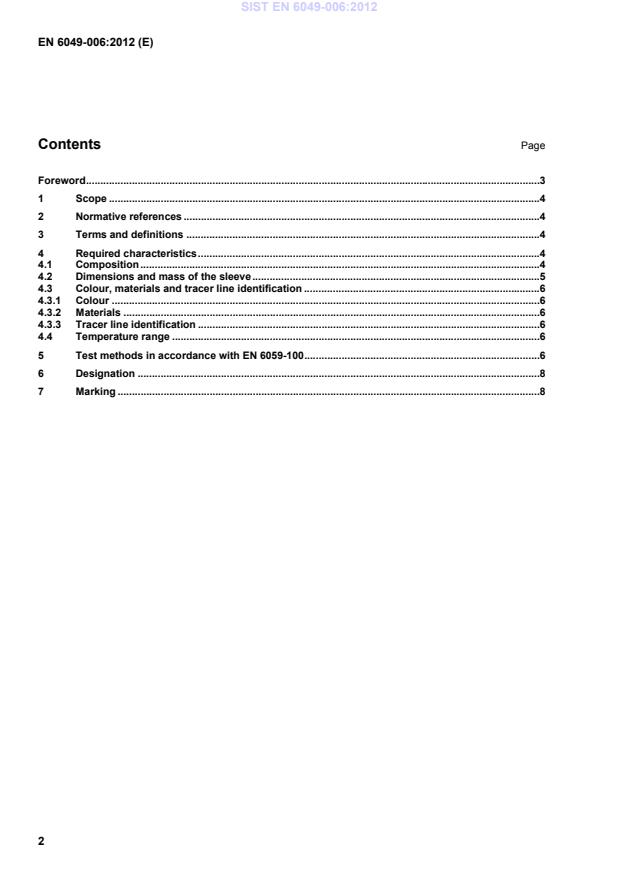

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.HWDDUDPLGQLKLuft- und Raumfahrt - Elektrische Leitungen, Installation - Schutzschläuche aus Meta-Aramidfasern - Teil 006: Selbstverschließender Schutzschlauch, flexibel, nachträglich montierbar - ProduktnormSérie aérospatiale - Câbles électriques, installation - Gaine de protection en fibres méta-aramides - Partie 006: Gaine de protection auto-fermable, souple après montage - Norme de produitAerospace series - Electrical cables, installation - Protection sleeve in meta-aramid fibres - Part 006: Self-wrapping protective sleeve, flexible post installation - Product standard49.060Aerospace electric equipment and systemsICS:Ta slovenski standard je istoveten z:EN 6049-006:2012SIST EN 6049-006:2012en,fr,de01-julij-2012SIST EN 6049-006:2012SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 6049-006
March 2012 ICS 49.060 English Version
Aerospace series - Electrical cables, installation - Protection sleeve in meta-aramid fibres - Part 006: Self-wrapping protective sleeve, flexible post installation - Product standard
Série aérospatiale - Câbles électriques, installation - Gaine de protection en fibres méta-aramides - Partie 006: Gaine de protection auto-fermable, souple après montage - Norme de produit
Luft- und Raumfahrt - Elektrische Leitungen, Installation - Schutzschläuche aus Meta-Aramidfasern - Teil 006: Selbstverschließender Schutzschlauch, flexibel, nachträglich montierbar - Produktnorm This European Standard was approved by CEN on 23 December 2011.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2012 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 6049-006:2012: ESIST EN 6049-006:2012
...
