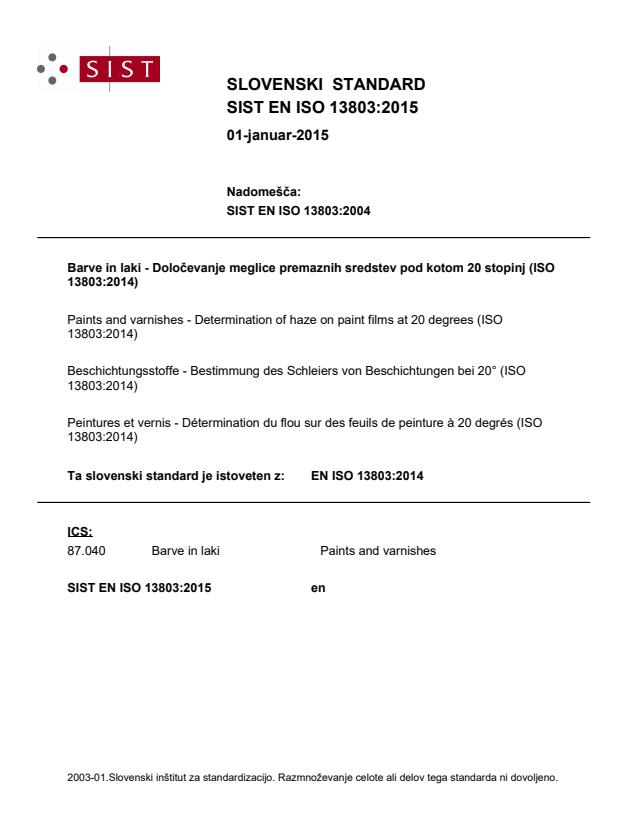

SLOVENSKI STANDARD
01-januar-2015
1DGRPHãþD
SIST EN ISO 13803:2004
%DUYHLQODNL'RORþHYDQMHPHJOLFHSUHPD]QLKVUHGVWHYSRGNRWRPVWRSLQM,62

Paints and varnishes - Determination of haze on paint films at 20 degrees (ISO
13803:2014)
Beschichtungsstoffe - Bestimmung des Schleiers von Beschichtungen bei 20° (ISO
13803:2014)
Peintures et vernis - Détermination du flou sur des feuils de peinture à 20 degrés (ISO
13803:2014)
Ta slovenski standard je istoveten z: EN ISO 13803:2014
ICS:
87.040 Barve in laki Paints and varnishes
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

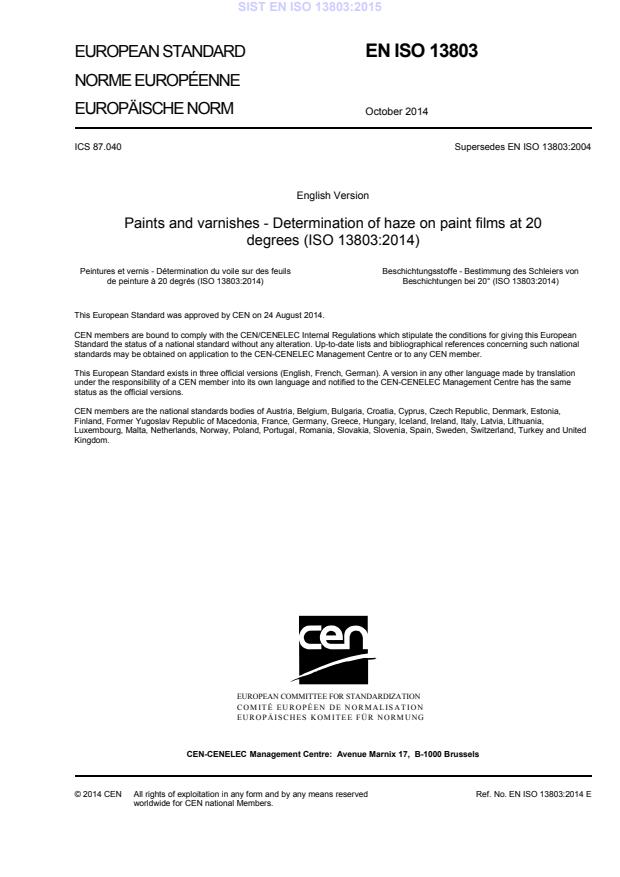

EUROPEAN STANDARD
EN ISO 13803
NORME EUROPÉENNE
EUROPÄISCHE NORM
October 2014
ICS 87.040 Supersedes EN ISO 13803:2004
English Version
Paints and varnishes - Determination of haze on paint films at 20
degrees (ISO 13803:2014)
Peintures et vernis - Détermination du voile sur des feuils Beschichtungsstoffe - Bestimmung des Schleiers von
de peinture à 20 degrés (ISO 13803:2014) Beschichtungen bei 20° (ISO 13803:2014)
This European Standard was approved by CEN on 24 August 2014.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same
status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2014 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 13803:2014 E
worldwide for CEN national Members.

Contents Page
Foreword .3
Foreword
This document (EN ISO 13803:2014) has been prepared by Technical Committee ISO/TC 35 “Paints and
varnishes” in collaboration with Technical Committee CEN/TC 139 “Peintures et vernis” the secretariat of
which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by April 2015, and conflicting national standards shall be withdrawn at the
latest by April 2015.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN ISO 13803:2004.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech
Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece,
Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.
Endorsement notice
The text of ISO 13803:2014 has been approved by CEN as EN ISO 13803:2014 without any modification.

INTERNATIONAL ISO
STANDARD 13803
Second edition
2014-10-01
Paints and varnishes — Determination
of haze on paint films at 20°
Peintures et vernis — Détermination du voile sur des feuils de
peinture à 20°
Reference number
ISO 13803:2014(E)
©
ISO 2014
ISO 13803:2014(E)
© ISO 2014
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2014 – All rights reserved

ISO 13803:2014(E)
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principle . 1
5 Apparatus and materials. 2
5.1 Hazemeter . 2
5.2 Measurement standards (certified reference material, working measurement standards) 6
6 Test panels . 7
6.1 Substrate . 7
6.2 Preparation and coating . . 7
6.3 Drying and conditioning . 7
6.4 Thickness of coating . 7
7 Calibration and adjustment of the hazemeter . 7
7.1 Preparation of the apparatus . 7
7.2 Zero point check . 7
7.3 Calibration and adjustment . 7
8 Procedure. 8
8.1 General . 8
8.2 Haze measurement of coatings from liquid paints and powder coating materials on
glass plates. 8
8.3 Haze measurement on other coated dry substrates . 8
9 Precision . 8
9.1 General . 8
9.2 Repeatability limit r . 8
9.3 Reproducibility limit R . 9
10 Test report . 9
Annex A (normative) Calculation of linear haze .10
Bibliography .11
ISO 13803:2014(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of any
patent rights identified during the development of the document will be in the Introduction and/or on
the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical Barriers
to Trade (TBT) see the following URL: Foreword - Supplementary information.
The committee responsible for this document is ISO/TC 35, Paints and varnishes, Subcommittee SC 9,
General test methods for paints and varnishes.
This second edition cancels and replaces the first edition (ISO 13803:2000), which has been technically
revised. The main technical changes are:
a) the symbols have been adapted to the revision of ISO 2813;
b) an introduction and a principle clause have been added;
c) the supplementary test conditions have been included in the test report;
d) the normative references have been updated.
iv © ISO 2014 – All rights reserved

ISO 13803:2014(E)
Introduction
High quality surfaces are expected to have a clear and brilliant appearance. Microstructures can cause
a milky appearance. This effect is described as haze. A high gloss surface with microscopic texture has
diffused light with low intensity adjacent to the main direction of reflection. The majority of the incident
light is reflected in the specular direction which will make the surface appear high glossy with image
forming qualities, but with a milky haziness on top of it.
The phenomenon haze can be seen on high gloss surfaces only. Therefore, the 20° geometry is used
like with a gloss meter. The aperture range of a 20° gloss meter is 1,8°. Two additional sensors next to
the gloss detector measure the intensity of the diffused light responsible for haze. Thus, the specularly
reflected and the scattered light are measured simultaneously. In order to better correlate with the
visual perception, haze is displayed in a logarithmic scale – the lower the haze reading the better the
surface.
INTERNATIONAL STANDARD ISO 13803:2014(E)
Paints and varnishes — Determination of haze on paint
films at 20°
1 Scope
This International Standard specifies a test method for determining the haze of coatings. The method is
suitable for the haze measurement of non-textures coatings on plane, opaque substrates.
The use of the 20° geometry means that the method is closely related to the measurement of gloss at 20°
in ISO 2813. The application of this method is intended to give improved differentiation between high-
gloss surfaces, for example in the field of assessment of dispersion characteristics.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
ISO 1514, Paints and varnishes — Standard panels for testing
ISO 2808, Paints and varnishes — Determination of film thickness
ISO 2813, Paints and varnishes — Determination of gloss value at 20°, 60°and 85°
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
haze
milky opalescence in high-gloss or clear coatings
[SOURCE: ISO 4618
...
