TECHNICAL SPECIFICATION
CEN/TS 13547
SPÉCIFICATION TECHNIQUE
TECHNISCHE SPEZIFIKATION
November 2006
ICS 23.060.20
English Version
Industrial valves - Copper alloy ball valves
Robinetterie industrielle - Robinets à tournant sphérique en Industriearmaturen - Kugelhähne aus Kupferlegierungen
alliage de cuivre
This Technical Specification (CEN/TS) was approved by CEN on 17 July 2006 for provisional application.
The period of validity of this CEN/TS is limited initially to three years. After two years the members of CEN will be requested to submit their
comments, particularly on the question whether the CEN/TS can be converted into a European Standard.
CEN members are required to announce the existence of this CEN/TS in the same way as for an EN and to make the CEN/TS available
promptly at national level in an appropriate form. It is permissible to keep conflicting national standards in force (in parallel to the CEN/TS)
until the final decision about the possible conversion of the CEN/TS into an EN is reached.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,
Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36 B-1050 Brussels
© 2006 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN/TS 13547:2006: E
worldwide for CEN national Members.

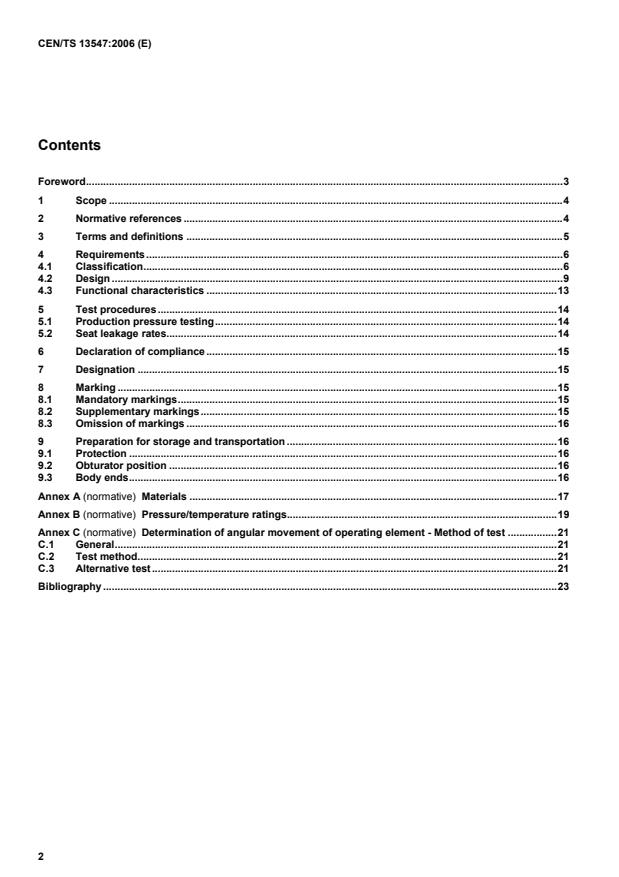

Contents
Foreword.3
1 Scope.4
2 Normative references.4
3 Terms and definitions .5
4 Requirements.6
4.1 Classification.6
4.2 Design.9
4.3 Functional characteristics.13
5 Test procedures.14
5.1 Production pressure testing.14
5.2 Seat leakage rates.14
6 Declaration of compliance .15
7 Designation.15
8 Marking.15
8.1 Mandatory markings.15
8.2 Supplementary markings.15
8.3 Omission of markings .16
9 Preparation for storage and transportation .16
9.1 Protection.16
9.2 Obturator position.16
9.3 Body ends.16
Annex A (normative) Materials .17
Annex B (normative) Pressure/temperature ratings.19
Annex C (normative) Determination of angular movement of operating element - Method of test .21
C.1 General.21
C.2 Test method.21
C.3 Alternative test.21
Bibliography .23
Foreword
This document (CEN/TS 13547:2006) has been prepared by Technical Committee CEN/TC 69 “Industrial valves”,
the secretariat of which is held by AFNOR.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to announce this CEN Technical Specification: Austria, Belgium, Cyprus, Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden,
Switzerland and the United Kingdom.
1 Scope
This document applies to copper alloy ball valves for general use having, flanged, threaded, capillary or
compression or loose nut/union body ends.
This document does not apply to copper alloy ball valves for drinking water applications.
This document specifies the design and performance requirements including materials, pressure/temperature
ratings for the shell and body seats, dimensions, test procedures and marking.
For some specific fields of application, for example gas, valves to this document can be used provided the
requirements of the relevant performance standards are met. Approval by the relevant regulatory body may be
required.
The range of nominal sizes is DN 6 to DN 300 and of nominal diameters 6 mm to 110 mm
The range of pressure designations covered is PN 6 ; PN 10 ; PN 16 ; PN 20 ; PN 25 ; PN 32 ; PN 40 ; PN 63 ;
Class 150 and Class 300.
For the applicability of each nominal size/diameter and each pressure designation to the different types of valve
end, see 4.1.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated references,
only the edition cited applies. For undated references, the latest edition of the referenced document (including any
amendments) applies.
EN 19:2002, Industrial valves — Marking of metallic valves
EN ISO 228-1, Pipe threads where pressure-tight joints are not made on the threads — Part 1: Dimensions,
tolerances and designation (ISO 228-1:2000)
EN 558-1, Industrial valves — Face-to-face and centre-to-face dimensions of metal valves for use in flanged pipe
systems — Part 1: PN-designated valves
EN 558-2, Industrial valves — Face-to-face and centre-to-face dimensions of metal valves for use in flanged pipe
systems — Part 1: Class-designated valves
EN 736-1:1995, Valves — Terminology — Part 1: Definition of types of valves
EN 736-2:1997, Valves — Terminology — Part 2: Definition of components of valves
EN 736-3:1999, Valves — Terminology — Part 3: Definition of terms
EN 1092-3, Flanges and their joints — Circular flanges for pipes, valves, fittings and accessories, PN
designated — Part 3: Copper alloy flanges
EN 1254-1, Copper and copper alloys — Plumbing fittings — Part 1: Fittings with ends for capillary soldering or
capillary brazing to copper tubes
EN 1254-2, Copper and copper alloys — Plumbing fittings — Part 2: Fittings with compression ends for use with
copper tubes
EN 1254-3, Copper and copper alloys — Plumbing fittings — Part 3: Fittings with compression ends for use with
plastics pipes
EN 1254-4:1998, Copper and copper alloys — Plumbing fittings — Part 4: Fittings combining other end
connections with capillary or compression ends
EN 1254-5, Copper and copper alloys — Plumbing fittings — Part 5: Fittings with short ends for capillary brazing to
copper tubes
EN 1759-3, Flanges and their joints — Circular flanges for pipes, valves, fittings and accessories, Class
designated — Part 3: Copper alloy flanges
EN 1982, Copper and copper alloys — Ingots and castings
EN ISO 5211, Industrial valves — Part-turn actuator attachments (ISO 5211:2001)
EN ISO 6509, Corrosion of metals and alloys — Determination of dezincification resistance of brass
(ISO 6509:1981)
EN 12163, Copper and copper alloys — Rod for general purposes
EN 12164, Copper and copper alloys — Rod for free machining purposes
EN 12167, Copper and copper alloys — Profiles and rectangular bar for general purposes
EN 12168, Copper and copper alloys — Hollow rod for free machining purposes
EN 12266-1, Industrial valves — Testing of valves — Part 1: Pressure tests, test procedures and acceptance
criteria — Mandatory requirements
EN 12420, Copper and copper alloys — Forgings
EN 12516-3, Valves — Shell design strength — Part 3: Experimental method
EN 12570, Industrial valves — Method for sizing the operating element
ISO 7-1, Pipe threads where pressure-tight joints are made on the threads — Part 1: Dimensions, tolerances and
designation
ASME B1.20.1, Pipe threads, general purpose (inch)
3 Terms and definitions
For the purposes of this Technical Specification, the definitions of types of valves and components and the
definitions of terms given in EN 736-1:1995, EN 736-2:1997 and EN 736-3:1999 apply, together with the following.
3.1
loose nut end
body end provided with tailpiece which retains a loose internally threaded nut or ring for connection to the mating
component
3.2
union end
body end provided with an external thread to which is attached a threaded nut or ring, which retains a tailpiece for
connection to the mating component
3.3
NPS
alphanumeric designation of size for components of a pipework system, which is used for reference purposes, and
which comprises the letters NPS followed by a dimensionless number indirectly related to the physical size of the
bore or outside diameter of the end connections
NOTE The number following the letters NPS does not represent a measurable value and should not be used for calculation
purposes except where specified in the relevant standard.
4 Requirements
4.1 Classification
4.1.1 Nominal sizes
The nominal sizes applicable to each type of body end shall be as specified in Table 1 and Table 2.
NOTE 1 DN is applicable to flanged valves (PN designated) and NPS is applicable to flanged valves (Class designated).
Threaded valves are normally identified by the thread size (NPS). Capillary and compression end valves are normally identified
by nominal diameter expressed as nominal outside diameter of the connecting tube or pipe. The use of DN for valves with body
ends other than flanged is permitted.
NOTE 2 DN 6 and DN 8 are not listed in EN ISO 6708 but are the commonly used equivalent nominal size for valves having
size 1/8 and ¼ threaded ends respectively.
Table 1 — Nominal sizes for flanged and threaded end valves
Valve body ends
Nominal size
Flanged Threaded
DN NPS PN Class PN
1/8
6 - - ••••
8 ¼ - -
••••
3/8
10 •• - ••
•• ••
15 ½
•••• •••• ••••
20 ¾ •••• •••• ••••
25 1 •••• •••• ••••
32 1¼ •• •• ••
•• •• ••
40 1½ •• •• ••
•• •• ••
50 2 •• •• ••
•• •• ••
65 2½
•••• •••• ••••
80 3 •••• •••• ••••
100 4 •••• •••• ••••
125 5 •• •• -
•• ••
150 6 •• •• -
•• ••
200 8 •• •• -
•• ••
250 10 -
•••• ••••
300 12 •••• •••• -
Table 2 — Nominal diameters for capillary and compression ends valves
Valve body ends Valve body ends
Nominal Nominal
Capillary and Capillary and
Compression Compression
diameter diameter
compression compression
ends for ends for
mm ends for mm ends for
plastic pipe plastic pipe
copper tubes copper tubes
6 O - - - -
8 O - 40 X O
10 O O 40,5 X X
12 O O 42 O -
14 X X 50 - O
14,7 X X 53,6 X X
15 O X 54 O -
16 X O 63 - O
18 O X 64 O -
20 - O 66,7 O -
21 X X 70 X -
22 O X 75 - O
25 X O 76,1 O -
27,4 X X 80 X -
28 O X 88,9 O -
32 - O 90 - O
34 X X 108 O -
35 O - 110 - O
NOTE O = recommended European tube or pipe outside diameters.
X = other European tube or pipe outside diameters.
4.1.2 Nominal size relationship
...
