EN 2714-012:2005
(Main)Aerospace series - Cables, electrical, single and multicore for general purpose - Operating temperatures between - 55 °C and 260 °C - Part 012: DM family, screened (braided) and jacketed, UV laser printable - Product standard
Aerospace series - Cables, electrical, single and multicore for general purpose - Operating temperatures between - 55 °C and 260 °C - Part 012: DM family, screened (braided) and jacketed, UV laser printable - Product standard
This standard specifies the characteristics of UV laser printable DM family, 5 to 7 multicore screened (braided) and jacketed electrical lightweight cables for use in the on-board electrical systems of aircraft, at operating temperatures between - 55 °C and 260 °C. Nevertheless, if needed, - 65 °C is also acceptable as shown by cold test.
It shall also be possible to mark these cables by qualified compatible marking.
These markings shall satisfy the requirements of EN 3838.
Luft- und Raumfahrt - Leitungen, elektrisch, ein- und mehradrig, für allgemeine Verwendung - Betriebstemperaturen zwischen - 55 °C und 260 °C - Teil 012: DM-Familie, geschirmt (Umflechtung) und ummantelt, UV Laser-bedruckbar - Produktnorm
Diese Norm legt die Eigenschaften von UV-Laser-bedruckbaren, fünf- bis siebenadrigen, geschirmten (umseilten) und ummantelten, leichten elektrischen Leitungen der DM-Familie zur Verwendung in Bordnetzen von Luftfahrzeugen bei Betriebstemperaturen zwischen 55 °C und 260 °C fest. Es können aber auch, falls erforderlich, 65 °C verwendet werden, wie die Kälteprüfung zeigt.
Es muss auch möglich sein, diese Leitungen mit einer qualifizierten, verträglichen Kennzeichnung zu versehen.
Diese Kennzeichnungen müssen den Anforderungen von EN 3838 entsprechen.
Série aérospatiale - Câbles, électriques, mono et multiconducteurs d'usage général - Températures de fonctionnement comprises entre - 55 °C et 260 °C - Partie 012 : Famille DM, blindés (tressés) et gainés, marquable au laser UV - Norme de produit
Aeronavtika – Eno- ali večžilni električni kabli za splošno uporabo – Delovne temperature med –55 °C in 260 °C – 012. del: Družina DM, oklopljeni (opleteni) in oplaščeni, z možnostjo UV-laserskega tiskanja – Standard za proizvod
General Information
- Status
- Published
- Publication Date
- 25-Oct-2005
- Withdrawal Date
- 29-Apr-2006
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 2 - Electrical
- Current Stage
- 6060 - Definitive text made available (DAV) - Publishing
- Start Date
- 26-Oct-2005
- Completion Date
- 26-Oct-2005
Relations
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Overview
EN 2714-012:2005 is a CEN (AECMA) product standard for aerospace electrical cables - specifically the DM family: UV laser printable, screened (braided) and jacketed lightweight multicore cables intended for on‑board aircraft electrical systems. It covers 5 to 7 multicore constructions with conductor sizes from about 0.15 mm² up to 5 mm² (nearest AWG equivalents), designed for continuous operating temperatures between −55 °C and 260 °C (cold testing to −65 °C is acceptable). The standard also mandates compatibility with qualified, user‑applied markings that meet EN 3838.
Key topics and requirements
- Construction and materials
- 5–7 multicore twisted assemblies (central filler permitted for 5/6 cores) per EN 2235.
- Core insulation per EN 2267‑007.
- Tape: polyimide layer (nom. 25 µm).
- Screen: nickel‑plated copper stranded braid (material per EN 4434).
- Outer jacket: polyimide layer (nom. 30 µm) with fluorocarbon coatings (2.5 µm both sides) and a PTFE layer (0.076 mm) applied with specified overlaps.
- Electrical and mechanical characteristics
- Conductor resistance, dimensions and mass referenced in the standard (see table of nominal sections and AWG equivalents).
- Screen construction and plating continuity/adherence requirements.
- Performance and tests
- Test suite drawn from EN 3475‑100 (visual, mass, dimensions, ohmic resistance, voltage proof, insulation resistance, surface resistance).
- Thermal tests: accelerated ageing, delamination, thermal shock (260 °C), cold bending at −65 °C where specified.
- Flammability: extinguishing time ≤ 3 s.
- Mechanical tests: scrape abrasion, tensile on conductors, plating thickness and continuity, strippability.
- Marking: UV laser markability required; contrast K ≥ 50% and permanence per EN 3838.
- Quality & identification
- Quality assurance per EN 9133.
- Designation, marking, packaging and delivery lengths per EN 2235 and EN 2714‑002.
Applications and who uses it
- Intended for aircraft wiring harnesses and onboard electrical systems where high temperature tolerance, lightweight construction and EMI screening are required.
- Primary users:
- Aerospace cable manufacturers and suppliers
- Avionics and electrical design engineers
- Aircraft OEMs, component qualification teams, and procurement specialists
- Maintenance, repair and overhaul (MRO) organizations specifying replacement wiring
- Certification and quality assurance personnel ensuring compliance with aerospace standards
Related standards
- EN 2235 - single & multicore screened/jacketed cable technical specification
- EN 2267‑007 - DM(A) family core requirements
- EN 2714‑002 - general designation/marking rules for similar cables
- EN 3475‑100 - test methods for aircraft cables
- EN 3838 - requirements for user‑applied markings on aircraft cables
- EN 4434 - conductor materials and tests
- EN 9133 - quality management for aerospace standard parts
This standard is essential when specifying UV laser printable, braided and jacketed aerospace cables (EN 2714‑012:2005) for high‑temperature, screened, lightweight aircraft wiring applications.
Get Certified
Connect with accredited certification bodies for this standard
National Aerospace and Defense Contractors Accreditation Program (NADCAP)
Global cooperative program for special process quality in aerospace.
NSF-ISR
NSF International Strategic Registrations.
Orion Registrar Inc.
US-based certification body for management systems.
Sponsored listings
Frequently Asked Questions
EN 2714-012:2005 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Cables, electrical, single and multicore for general purpose - Operating temperatures between - 55 °C and 260 °C - Part 012: DM family, screened (braided) and jacketed, UV laser printable - Product standard". This standard covers: This standard specifies the characteristics of UV laser printable DM family, 5 to 7 multicore screened (braided) and jacketed electrical lightweight cables for use in the on-board electrical systems of aircraft, at operating temperatures between - 55 °C and 260 °C. Nevertheless, if needed, - 65 °C is also acceptable as shown by cold test. It shall also be possible to mark these cables by qualified compatible marking. These markings shall satisfy the requirements of EN 3838.
This standard specifies the characteristics of UV laser printable DM family, 5 to 7 multicore screened (braided) and jacketed electrical lightweight cables for use in the on-board electrical systems of aircraft, at operating temperatures between - 55 °C and 260 °C. Nevertheless, if needed, - 65 °C is also acceptable as shown by cold test. It shall also be possible to mark these cables by qualified compatible marking. These markings shall satisfy the requirements of EN 3838.
EN 2714-012:2005 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 2714-012:2005 has the following relationships with other standards: It is inter standard links to EN 3838:2022, EN 4434:2005, EN 2267-007:2005, EN 9133:2018, EN 2235:2022, EN 2714-002:2016, EN 3475-100:2010, EN 2714-002:2012. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 2714-012:2005 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

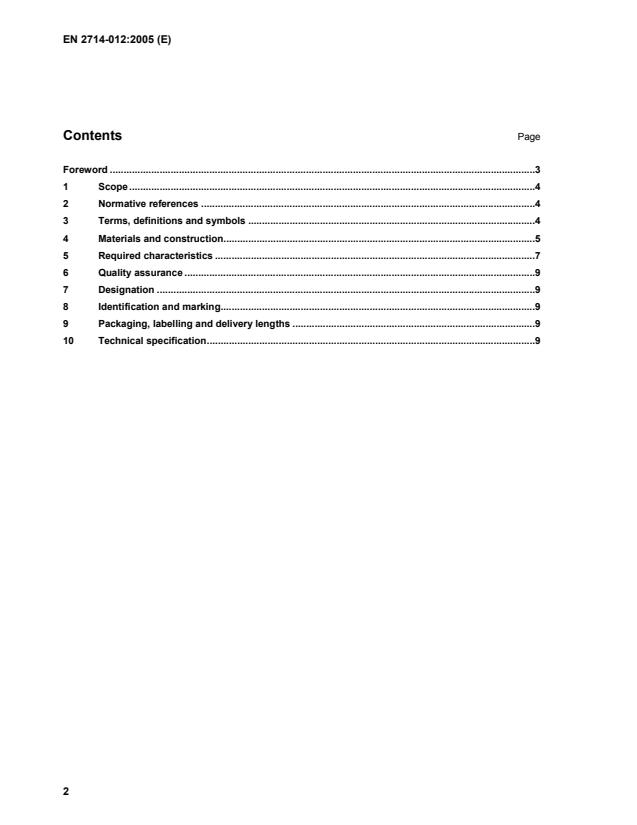

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Aerospace series - Cables, electrical, single and multicore for general purpose - Operating temperatures between - 55 °C and 260 °C - Part 012: DM family, screened (braided) and jacketed, UV laser printable - Product standardYRGSérie aérospatiale - Câbles, électriques, mono et multiconducteurs d'usage général - Températures de fonctionnement comprises entre - 55 °C et 260 °C - Partie 012 : Famille DM, blindés (tressés) et gainés, marquable au laser UV - Norme de produitLuft- und Raumfahrt - Leitungen, elektrisch, ein- und mehradrig, für allgemeine Verwendung - Betriebstemperaturen zwischen - 55 °C und 260 °C - Teil 012: DM-Familie, geschirmt (Umflechtung) und ummantelt, UV Laser-bedruckbar - ProduktnormTa slovenski standard je istoveten z:EN 2714-012:2005SIST EN 2714-012:2006en49.060ICS:SLOVENSKI
STANDARDSIST EN 2714-012:200601-julij-2006
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 2714-012
October 2005 ICS 49.060 English Version
Aerospace series - Cables, electrical, single and multicore for general purpose - Operating temperatures between - 55 °C and 260 °C - Part 012: DM family, screened (braided) and jacketed, UV laser printable - Product standard
Série aérospatiale - Câbles, électriques, mono et multiconducteurs d'usage général - Températures de fonctionnement comprises entre - 55 °C et 260 °C - Partie 012 : Famille DM, blindés (tressés) et gainés, marquable au laser UV - Norme de produit
Luft- und Raumfahrt - Leitungen, elektrisch, ein- und mehradrig, für allgemeine Verwendung - Betriebstemperaturen zwischen - 55 °C und 260 °C - Teil 012: DM-Familie, geschirmt (Umflechtung) und ummantelt UV Laser bedruckbar - Produktnorm This European Standard was approved by CEN on 12 September 2005.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36
B-1050 Brussels © 2005 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 2714-012:2005: E
...
