General Information
Overview
EN 4869-103:2024 - "Aerospace series - Expanded beam termini, fibre optic non‑physical contact in EN 3645 standard cavities - Part 103: Multimode male termini size 12" specifies the dimensional and performance requirements for a multimode, size 12 expanded beam male terminus designed for non‑physical contact fibre‑optic connections in EN 3645 standard cavities (connectors with EN 3155‑008M12 pin crimp contact cavities). The document is intended for aerospace connector assemblies and defines optical interface geometry, mechanical dimensions and qualification/test interfaces.
Key Topics and Requirements
- Contact designation: Identity letters for AR coating and fibre types (50 µm/125 µm and 62,5 µm/125 µm) and wavelengths (850 nm, 1 300 nm).
- Optical interface parameters:
- Beam size (1/e) for 62,5 µm fibre: 0.430 mm at 0.56 mm and 1 mm; 0.700 mm at 10 mm; 3.030 mm at 50 mm; 5.550 mm at 100 mm (850 nm values shown).
- Beam size for 50 µm fibre: 0.320 mm at 0.56 mm and 1 mm; 0.570 mm at 10 mm; 2.350 mm at 50 mm; 4.130 mm at 100 mm (850 nm values shown).
- Air gap between mating lenses: 0.61 ± 0.05 mm.
- Beam circularity: > 93 %; beam divergence specified (e.g., 0.00 ± 0.1° between 0.56 mm and 1 mm; 0.85 ± 0.1° between 1 mm and 10 mm).
- AR coating: Transmittance T > 98 % at specified wavelength; coating must be free from stains.
- Mechanical dimensions: Detailed size 12 contact geometry and tolerances (figures referenced).
- Qualification & testing: Component qualification as part of a complete connector assembly per EN 4869‑001; tests per the EN 2591 series (endurance at temperature, damp heat, salt mist, rapid temperature change, immersion at low air pressure, optical insertion loss/return loss and cleaning capability).
Applications and Users
- Primary users: aerospace connector manufacturers, avionic systems engineers, cable assembly houses, test laboratories, and procurement/specification engineers in civil and military aerospace.
- Typical applications: avionics backplanes, airborne sensors, flight‑critical data links, space vehicle harnesses and any harsh‑environment systems requiring reliable expanded beam termini and non‑physical contact multimode optical connections.
Related Standards
- EN 4869‑001 (general expanded beam termini product family and qualification)
- EN 2591 series (aerospace test methods for electrical/optical connections)
- EN 4639‑101 / EN 4639‑102 (connector product standards)
- EN 4641 series (optical cable product standards)
- EN 3645 (standard cavities reference)
Keywords: EN 4869‑103:2024, expanded beam termini, multimode male size 12, non‑physical contact, fibre optic terminals, aerospace connectors, EN 3645, EN 2591.
Standards Content (Sample)

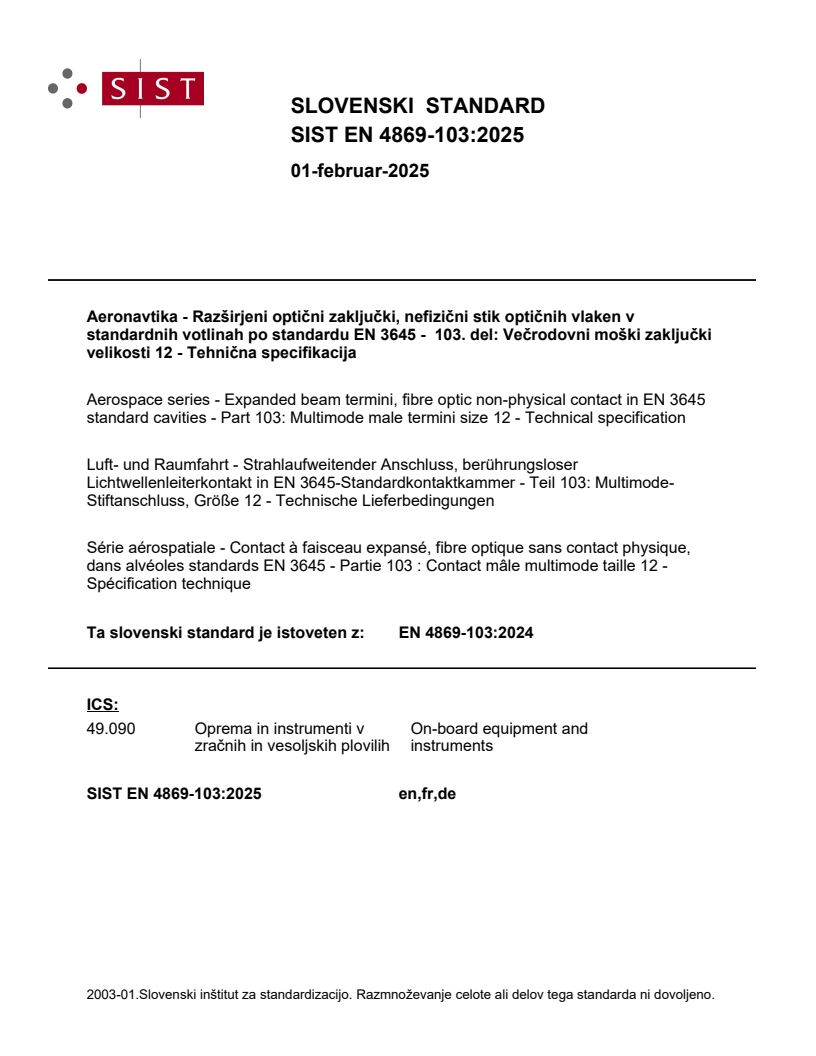

SLOVENSKI STANDARD
01-februar-2025
Aeronavtika - Razširjeni optični zaključki, nefizični stik optičnih vlaken v
standardnih votlinah po standardu EN 3645 - 103. del: Večrodovni moški zaključki
velikosti 12 - Tehnična specifikacija
Aerospace series - Expanded beam termini, fibre optic non-physical contact in EN 3645
standard cavities - Part 103: Multimode male termini size 12 - Technical specification
Luft- und Raumfahrt - Strahlaufweitender Anschluss, berührungsloser
Lichtwellenleiterkontakt in EN 3645-Standardkontaktkammer - Teil 103: Multimode-
Stiftanschluss, Größe 12 - Technische Lieferbedingungen
Série aérospatiale - Contact à faisceau expansé, fibre optique sans contact physique,
dans alvéoles standards EN 3645 - Partie 103 : Contact mâle multimode taille 12 -
Spécification technique
Ta slovenski standard je istoveten z: EN 4869-103:2024
ICS:
49.090 Oprema in instrumenti v On-board equipment and
zračnih in vesoljskih plovilih instruments
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EN 4869-103
EUROPEAN STANDARD
NORME EUROPÉENNE
December 2024
EUROPÄISCHE NORM
ICS 49.090
English Version
Aerospace series - Expanded beam termini, fibre optic
non-physical contact in EN 3645 standard cavities - Part
103: Multimode male termini size 12 - Technical
specification
Série aérospatiale - Terminaisons à faisceau élargi, Luft- und Raumfahrt - Strahlaufweitender Anschluss,
contact à fibre optique non physique dans des cavités berührungsloser Lichtwellenleiterkontakt in EN 3645-
EN 3645 standard - Partie 103 : Terminaisons mâles Standardkontaktkammer - Teil 103: Multimode-
multimodes taille 12 - Spécification technique Stiftanschluss, Größe 12 - Technische
Lieferbedingungen
This European Standard was approved by CEN on 19 August 2024.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 4869-103:2024 E
worldwide for CEN national Members.

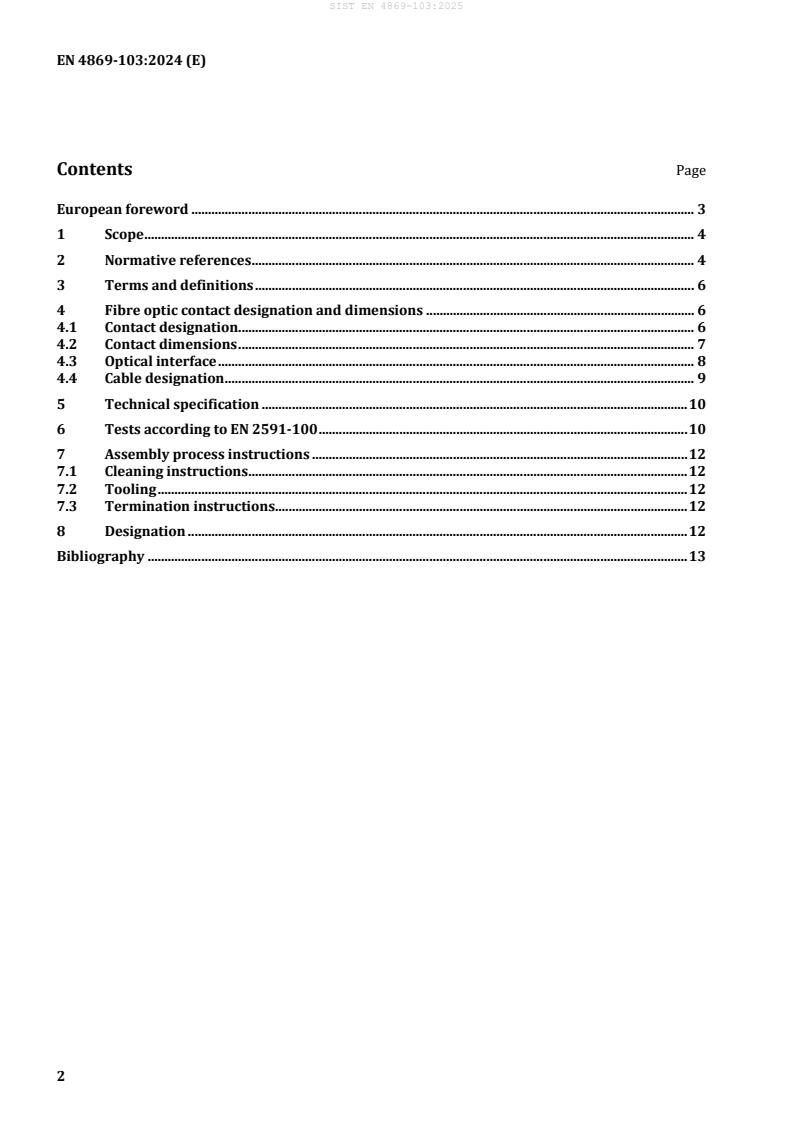

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 6
4 Fibre optic contact designation and dimensions . 6
4.1 Contact designation . 6
4.2 Contact dimensions . 7
4.3 Optical interface . 8
4.4 Cable designation . 9
5 Technical specification . 10
6 Tests according to EN 2591-100 . 10
7 Assembly process instructions . 12
7.1 Cleaning instructions . 12
7.2 Tooling . 12
7.3 Termination instructions . 12
8 Designation . 12
Bibliography . 13
European foreword
This document (EN 4869-103:2024) has been prepared by ASD-STAN.
After enquiries and votes carried out in accordance with the rules of this Association, this document has
received the approval of the National Associations and the Official Services of the member countries of
ASD-STAN, prior to its presentation to CEN.
This document shall be given the status of a national standard, either by publication of an identical text
or by endorsement, at the latest by June 2025, and conflicting national standards shall be withdrawn at
the latest by June 2025.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this document: Austria, Belgium, Bulgaria, Croatia, Cyprus,
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the
United Kingdom.
1 Scope
This document specifies the dimensions and performance requirements of a multimode male size 12,
non-physical contact expanded beam terminus. This terminus is applicable (for use) with connectors
which have standard size 12 pin crimp contact cavities: connectors with cavities for contact of type
EN 3155-008M12.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 2591-100, Aerospace series — Elements of electrical and optical connection — Test methods —
Part 100: General
EN 2591-304, Aerospace series — Elements of electrical and optical connection — Test methods —
Part 304: Damp heat steady state
EN 2591-407, Aerospace series — Elements of electrical and optical connection — Test methods —
Part 407: Durability of contact retention system and seals
EN 2591-601, Aerospace series — Elements of electrical and optical connection — Test methods —
Part 601: Optical elements — Insertion loss
EN 2591-602, Aerospace series — Elements of electrical and optical connection — Test methods —
Part 602: Optical elements — Variation of attenuation and optical discontinuity
EN 2591-604, Aerospace series — Elements of electrical and optical connection — Test methods —
Part 604: Optical elements — Cleaning capability of optical face
EN 2591-605, Aerospace series — Elements of electrical and optical connection — Test methods —
Part 605: Optical elements — Return loss
EN 2591-609, Aerospace series — Elements of electrical and optical connection — Test methods —
Part 609: Optical elements — Effectiveness of cable attachment — Cable cyclic flexing
EN 2591-610, Aerospace series — Elements of electrical and optical connection — Test methods —
Part 610: Optical elements — Effectiveness of cable attachment — Cable pulling
EN 2591-611, Aerospace series — Elements of electrical and optical connection — Test methods —
Part 611: Optical elements — Effectiveness of cable attachment — Cable torsion
EN 2591-612, Aerospace series — Elements of electrical and optical connection — Test methods —
Part 612: Optical elements — Effectiveness of cable attachment — Cable axial compression
EN 2591-613, Aerospace series — Elements of electrical and optical connection — Test methods —
Part 613: Optical elements — Impact test
Published as ASD-STAN prEN at the date of publication of this document, available at:
https://www.asd-stan.org/.
EN 2591-617, Aerospace series — Elements of electrical and optical connection — Test methods —
Part 617: Optical elements — Temperature cycling
EN 2591-6301, Aerospace series — Elements of electrical and optical connection — Test methods —
Part 6301: Optical elements — Endurance at temperature
EN 2591-6303, Aerospace series — Elements of electrical and optical connection — Test methods —
Part 6303: Optical elements — Cold/low pressure and damp heat
EN 2591-6305, Aerospace series — Elements of electrical and optical connection — Test methods —
Part 6305: Optical elements — Rapid change of temperature
EN 2591-6307, Aerospace series — Elements of electrical and optical connec
...
