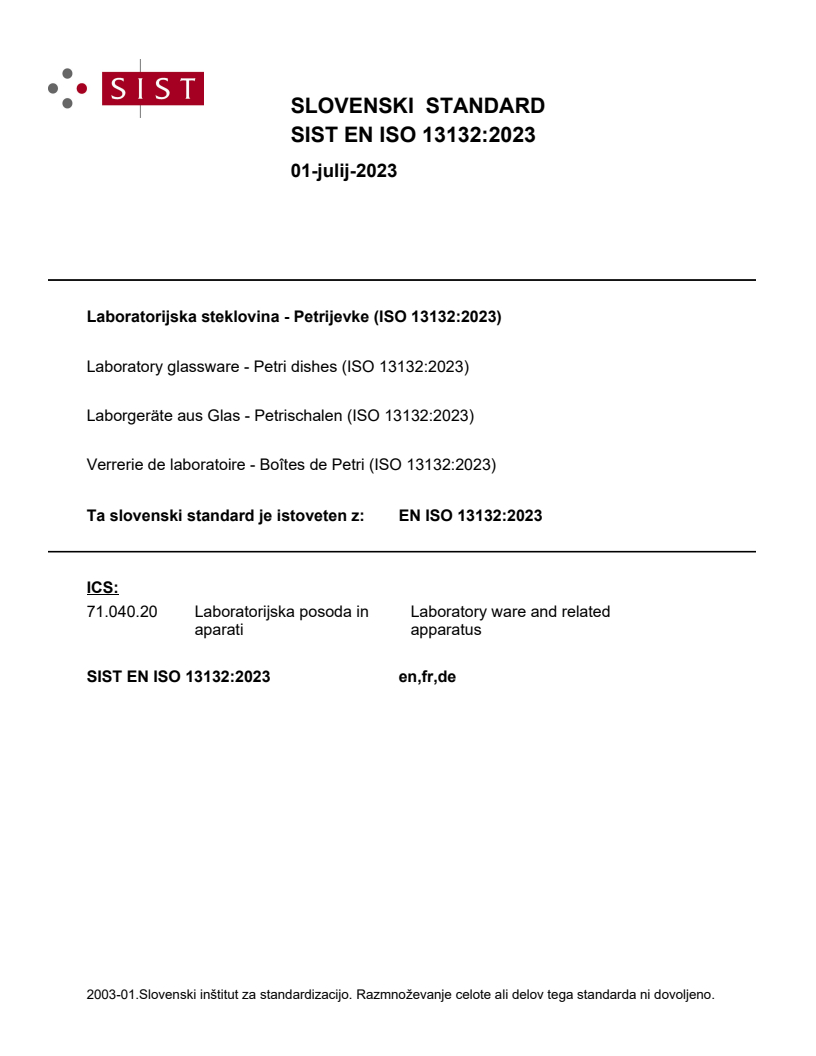

EN ISO 13132:2023

SLOVENSKI STANDARD
01-julij-2023
Laboratorijska steklovina - Petrijevke (ISO 13132:2023)
Laboratory glassware - Petri dishes (ISO 13132:2023)
Laborgeräte aus Glas - Petrischalen (ISO 13132:2023)
Verrerie de laboratoire - Boîtes de Petri (ISO 13132:2023)
Ta slovenski standard je istoveten z: EN ISO 13132:2023
ICS:
71.040.20 Laboratorijska posoda in Laboratory ware and related
aparati apparatus
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

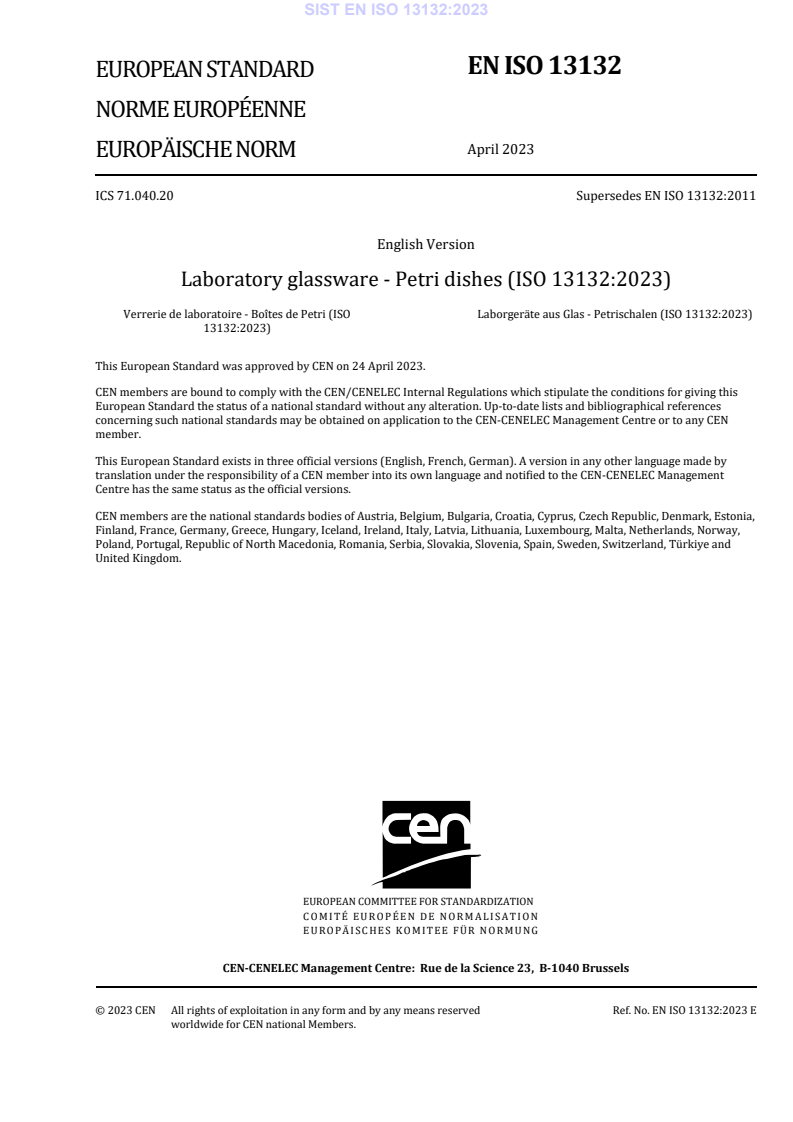

EN ISO 13132
EUROPEAN STANDARD
NORME EUROPÉENNE
April 2023
EUROPÄISCHE NORM
ICS 71.040.20 Supersedes EN ISO 13132:2011
English Version
Laboratory glassware - Petri dishes (ISO 13132:2023)
Verrerie de laboratoire - Boîtes de Petri (ISO Laborgeräte aus Glas - Petrischalen (ISO 13132:2023)
13132:2023)
This European Standard was approved by CEN on 24 April 2023.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 13132:2023 E
worldwide for CEN national Members.

Contents Page
European foreword . 3

European foreword
This document (EN ISO 13132:2023) has been prepared by Technical Committee ISO/TC 48
"Laboratory equipment" in collaboration with Technical Committee CEN/TC 332 “Laboratory
equipment” the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by October 2023, and conflicting national standards shall
be withdrawn at the latest by October 2023.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN ISO 13132:2011.
Any feedback and questions on this document should be directed to the users’ national standards
body/national committee. A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the
United Kingdom.
Endorsement notice
The text of ISO 13132:2023 has been approved by CEN as EN ISO 13132:2023 without any modification.

INTERNATIONAL ISO
STANDARD 13132
Second edition
2023-04
Laboratory glassware — Petri dishes
Verrerie de laboratoire — Boîtes de Petri
Reference number
ISO 13132:2023(E)
ISO 13132:2023(E)
© ISO 2023
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
ISO 13132:2023(E)
Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Types . 1
5 Nominal sizes and series . 1
5.1 Nominal sizes . 1
5.2 Series . 1
6 Designation . 2
7 Material. 2
8 Dimensions .3
8.1 Series A Petri dishes (class HGB 1 or HGB 2) . 3
8.2 Series B Petri dishes (class HGB 1 or HGB 2) . 4
8.3 Series C Petri dishes (class HGB 3). 4
9 Construction . 5
9.1 Basic requirements . 5
9.2 Base and side . 5
9.3 Edge . 5
9.4 Flatness of bottom dishes . 5
9.5 Performance requirements . 5
9.6 Thermal shock resistance . . 5
10 Marking . . 6
Annex A (normative) Test method for flatness . 7
iii
ISO 13132:2023(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to
the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see
www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 48, Laboratory equipment, in collaboration
with the European Committee for Standardization (CEN) Technical Committee CEN/TC 332, Laboratory
equipment, in accordance with the Agreement on technical cooperation between ISO and CEN (Vienna
Agreement).
This second edition cancels and replaces the first edition (ISO 13132:2011), which has been technically
revised.
The main changes are as follows:
— additional series C for class HGB 3 has been added;
— new dimensions have been added to the series A;
— thermal shock resistance has been added.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
INTERNATIONAL STANDARD ISO 13132:2023(E)
Laboratory glassware — Petri dishes
1 Scope
This document specifies requirements and tests for glass Petri dishes intended for general laboratory
purposes and microbiological work.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 718, Laboratory glassware — Thermal shock and thermal shock endurance — Test methods
ISO 719, Glass — Hydrolytic resistance of glass grains at 98 °C — Method of test and classification
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
4 Types
Two types of Petri dishes are specified in this document:
— Type 1 — Thick-walled Petri dishes
— Type 2 — Thin-walled Petri dishes
5 Nominal sizes and series
5.1 Nominal sizes
Petri dishes shall have one of the following nominal sizes:
40 mm, 50 mm, 60 mm, 80 mm, 90 mm, 100 mm, 120 mm, 150 mm, 180 mm or 200 mm.
NOTE For Series B, nominal sizes refer to the external diameter of the bottom dish.
5.2 Series
Petri dishes shall comply with the following dimensional requirements:
— For Series A
...
