EN 27434:1992
(Main)Slotted set screws with cone point (ISO 7434:1983)
Slotted set screws with cone point (ISO 7434:1983)
Specifies the characteristics of products with metric dimensions and thread sizes from M 1,2 up to and including M 12 and product grade A; includes specifications with reference to International Standards; tabulates thread sizes M 1,2 up to M 12 with nominal lengths from 2 mm up to 60mm; gives an example for the designation.
Gewindestifte mit Schlitz und Spitze (ISO 7434:1983)
Vis sans tête, fendues, à bout pointu (ISO 7434:1983)
La présente Norme internationale spécifie les caractéristiques des vis sans tête, fendues, à bout pointeau, de diamètre nominal de filetage M 1,2 à M 12 inclus et de grade A. Si d'autres spécifications sont requises, il est recommandé de les choisir dans les Normes internationales existantes, par exemple ISO 261, ISO 888, ISO 898, ISO 965, ISO 3506, 4759/1.
Navojni zatiči z zarezo in končino s konico (ISO 7434:1983)
General Information
- Status
- Withdrawn
- Publication Date
- 23-Jul-1992
- Withdrawal Date
- 20-Jan-2026
- Technical Committee
- CEN/TC 185 - Threaded and nonthreaded mechanical fasteners and accessories
- Current Stage
- 9960 - Withdrawal effective - Withdrawal
- Start Date
- 26-Jun-2024
- Completion Date
- 21-Jan-2026
Relations
- Effective Date
- 19-Jan-2023
Frequently Asked Questions
EN 27434:1992 is a standard published by the European Committee for Standardization (CEN). Its full title is "Slotted set screws with cone point (ISO 7434:1983)". This standard covers: Specifies the characteristics of products with metric dimensions and thread sizes from M 1,2 up to and including M 12 and product grade A; includes specifications with reference to International Standards; tabulates thread sizes M 1,2 up to M 12 with nominal lengths from 2 mm up to 60mm; gives an example for the designation.
Specifies the characteristics of products with metric dimensions and thread sizes from M 1,2 up to and including M 12 and product grade A; includes specifications with reference to International Standards; tabulates thread sizes M 1,2 up to M 12 with nominal lengths from 2 mm up to 60mm; gives an example for the designation.
EN 27434:1992 is classified under the following ICS (International Classification for Standards) categories: 21.060.10 - Bolts, screws, studs. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 27434:1992 has the following relationships with other standards: It is inter standard links to EN ISO 7434:2024. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 27434:1992 is associated with the following European legislation: EU Directives/Regulations: 97/23/EC; Standardization Mandates: M/071. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
EN 27434:1992 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

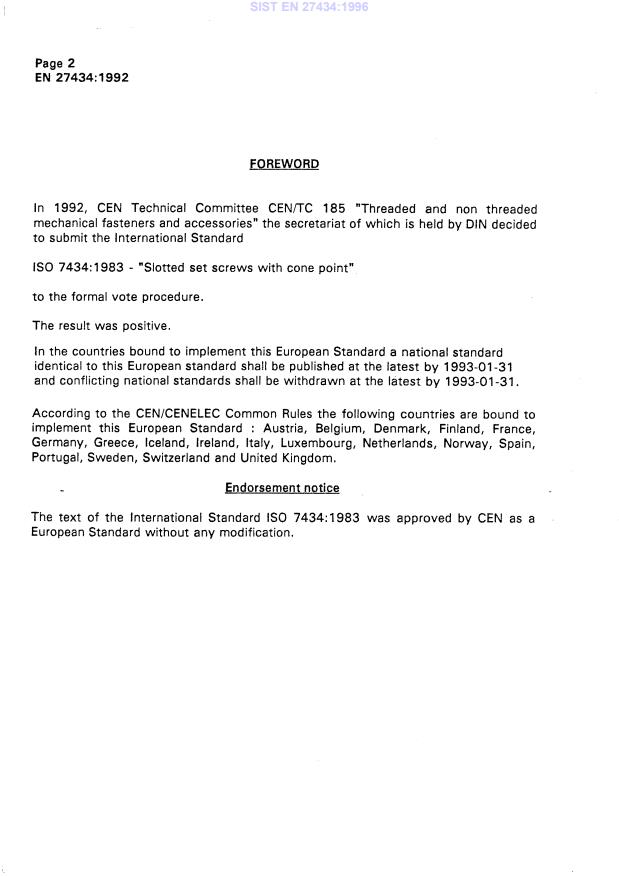

Standards Content (Sample)
SLOVENSKI STANDARD
01-april-1996
1DYRMQL]DWLþL]]DUH]RLQNRQþLQRVNRQLFR ,62
Slotted set screws with cone point (ISO 7434:1983)
Gewindestifte mit Schlitz und Spitze (ISO 7434:1983)
Vis sans tete, fendues, a bout pointu (ISO 7434:1983)
Ta slovenski standard je istoveten z: EN 27434:1992
ICS:
21.060.10 Sorniki, vijaki, stebelni vijaki Bolts, screws, studs
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
--
...
