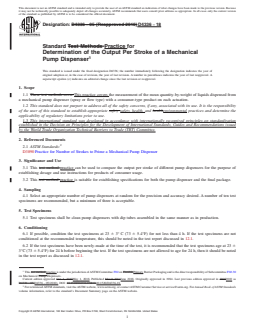

ASTM D4336-18

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
Designation: D4336 − 05 (Reapproved 2010) D4336 − 18
Standard Test Methods Practice for
Determination of the Output Per Stroke of a Mechanical
Pump Dispenser
This standard is issued under the fixed designation D4336; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope
1.1 These test methods cover This practice covers the measurement of the mean quantity-by-weight of liquids dispensed from
a mechanical pump dispenser (spray or flow type) with a consumer-type product on each actuation.
1.2 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety safety, health, and healthenvironmental practices and determine the
applicability of regulatory limitations prior to use.
1.3 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 ASTM Standards:
D3890 Practice for Number of Strokes to Prime a Mechanical Pump Dispenser
3. Significance and Use
3.1 This test method practice can be used to compare the output per stroke of different pump dispensers for the purpose of
establishing dosage and use instructions for products of consumer usage.
3.2 This test method practice is suitable for establishing specifications for both the pump dispenser and the final package.
4. Sampling
4.1 Select an appropriate number of pump dispensers at random for the precision and accuracy desired. A number of ten test
specimens are recommended, but a minimum of three is acceptable.
5. Test Specimens
5.1 Test specimens shall be clean pump dispensers with dip tubes assembled in the same manner as in production.
6. Conditioning
6.1 If possible, condition the test specimens at 23 6 3° C (73 6 5.4°F) for not less than 4 h. If the test specimens are not
conditioned at the recommended temperature, this should be noted in the test report discussed in 12.1.
6.2 If the test specimens have been newly-made at the time of the test, it is recommended that the test specimens age at 23 6
3°C (73 6 5.4°F) for 24 h before beginning the test. If the test specimens are not allowed to age for 24 h, then it should be noted
in the test report as discussed in 12.1.
This test method practice is under the jurisdiction of ASTM Committee F02 on FlexiblePrimary Barrier Packaging and is the direct responsibility of Subcommittee F02.30
on Mechanical Pump Dispensers.
Current edition approved Oct. 1, 2010May 1, 2018. Published March 2011June 2018. Originally approved in 1984. Last previous edition approved in 20052010 as
D4336 – 05.D4336 – 05(2010). DOI: 10.1520/D4336-05R10.10.1520/D4336-18.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States

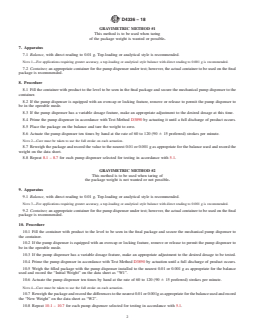

D4336 − 18
GRAVIMETRIC METHOD #1
This method is to be used when taring
of the package weight is wanted or possible.
7. Apparatus
7.1 Balance, with direct reading to 0.01 g. Top-loading or analytical style is recommended.
NOTE 1—For applications requiring greater accuracy, a top-loading or analytical style balance with direct reading to 0.001 g is recommended.
7.2 Container, an appropriate container for the pump dispenser under test; however, the actual container to be used on the final
package is recommended.
8. Procedure
8.1 Fill the container with product to the level to be seen in the final package and secure the mechanical pump dispenser to the
container.
8.2 If the pump dispenser is equipped with an overcap or locking feature, remove or release to permit the pump dispenser to
be in the operable mode.
8.3 If the pump dispenser has a variable dosage feature, make an appropriate adjustment to the desired dosage at this time.
8.4 Prime the pump dispenser in accordance with Test Method D3890 by actuating it until a full discharge of product occurs.
8.5 Place the package on the balance and tare the weight to zero.
8.6 Actuate the pump dispenser ten times by hand at the rate of 60 to 120 (90 6 15 preferred) strokes per minute.
NOTE 2—Care must be taken
...
