ASTM F2822-10(2024)
(Specification)Standard Specification for Fixed Anchorages Installed on Structures Used for Rope Rescue Training
Standard Specification for Fixed Anchorages Installed on Structures Used for Rope Rescue Training
ABSTRACT
This specification specifies the minimum strength requirements for anchorages permanently installed or attached to training towers or other structures used for rope rescue training. It specifies the design loads that must be considered and does not describe how those anchorages are constructed, installed in, or attached to the structure nor does it include any factors of safety. Each anchorage shall be designed to hold a minimum of 40 kN in all directions of potential loading and shall be manufactured in such a way that a carabiner with a gate opening of 25 mm or greater shall fit around it and the gate shall be able to close and lock. The anchorage shall be constructed using rounded stock or with beveled or chamfered edges to minimize damage to hardware, rope, or webbing that is attached to the anchorage.
SCOPE
1.1 This standard specifies the minimum strength requirements for anchorages permanently installed or attached to training towers or other structures used for rope rescue training. It does not describe how those anchorages are constructed, installed in, or attached to the structure, nor does it include any factors of safety. It only specifies the design loads that must be considered.
1.2 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
- Status
- Published
- Publication Date
- 31-Mar-2024
- Technical Committee
- F32 - Search and Rescue
- Drafting Committee
- F32.01 - Equipment, Testing, and Maintenance
Relations
- Effective Date
- 01-Apr-2024
Overview
ASTM F2822-10(2024) is the standard specification developed by ASTM International for fixed anchorages installed on structures used for rope rescue training. This standard outlines the essential minimum strength requirements and testing protocol for anchorages that are permanently installed or attached to training towers and similar structures, ensuring reliable and consistent safety performance during rope rescue training exercises. The intent is to provide a benchmark for product acceptance, prioritizing the safety and durability of anchorages without prescribing specific construction or installation methods.
Key Topics
Minimum Strength Requirements:
Each fixed anchorage must be designed to withstand a minimum loading of 40 kilonewtons (kN) in all potential directions. This robust strength criterion supports a wide variety of rope rescue scenarios.Design Loads and Proof Testing:
The specification mandates that anchorages be proof tested using a nondestructive load that is twice the maximum anticipated service load, verifying their reliability before use.Carabiner Compatibility:
Anchorages must accommodate carabiners with a gate opening of 25 mm or more, ensuring interoperability with common rescue hardware.Safe Construction Features:
Anchorages are to be constructed from rounded stock, or with beveled or chamfered edges, to minimize any risk of abrasion or damage to attached ropes, webbing, or hardware.Testing Protocol:
The standard establishes testing procedures for evaluating anchorage strength in all directions, including systematic visual inspections for any evidence of damage or deformation post-testing.Terminology and Definitions:
Provides key definitions such as "anchorage," "proof load," and "failure" to ensure a common understanding across users and stakeholders.
Applications
ASTM F2822-10(2024) is applicable in a wide range of settings where fixed anchorages are vital for rope-based training, particularly:
Fire Training Towers
Permanent anchor points for fire brigade or emergency services practicing high-angle and rope rescue techniques.Rope Rescue Training Facilities
Any structure designed for specialized rescue training, including rappel towers and urban search and rescue simulators, benefits from standardized, reliable anchorages.Industrial Training Environments
Used for training in confined space rescue, work-at-height, and other hazardous operational contexts where secure attachment points are essential.Product Manufacturing and Acceptance
Anchor device manufacturers use the standard’s requirements and test methods as benchmarks for new products and post-installation inspections.
Following ASTM F2822 strengthens overall training safety, aids compliance with regulatory frameworks, and promotes trust among equipment operators and instructors.
Related Standards
- ASTM F2266: Specification for Masses Used in Testing Rescue Systems and Components - referenced for defining the anticipated loads when designing and evaluating anchorages.
- Other Rope Rescue Standards:
- Anchor systems and hardware used in rope access work and other rescue-related applications often reference or complement this standard.
- International Standardization:
Developed in line with the WTO Technical Barriers to Trade (TBT) principles, ensuring global relevance.
Key terms: rope rescue training, fixed anchorage, anchor strength, training tower safety, proof load test, carabiner compatibility, ASTM standards for rescue, reliable anchorages
For complete compliance and operational guidance, organizations should reference ASTM F2822-10(2024) directly through ASTM International.
Frequently Asked Questions
ASTM F2822-10(2024) is a technical specification published by ASTM International. Its full title is "Standard Specification for Fixed Anchorages Installed on Structures Used for Rope Rescue Training". This standard covers: ABSTRACT This specification specifies the minimum strength requirements for anchorages permanently installed or attached to training towers or other structures used for rope rescue training. It specifies the design loads that must be considered and does not describe how those anchorages are constructed, installed in, or attached to the structure nor does it include any factors of safety. Each anchorage shall be designed to hold a minimum of 40 kN in all directions of potential loading and shall be manufactured in such a way that a carabiner with a gate opening of 25 mm or greater shall fit around it and the gate shall be able to close and lock. The anchorage shall be constructed using rounded stock or with beveled or chamfered edges to minimize damage to hardware, rope, or webbing that is attached to the anchorage. SCOPE 1.1 This standard specifies the minimum strength requirements for anchorages permanently installed or attached to training towers or other structures used for rope rescue training. It does not describe how those anchorages are constructed, installed in, or attached to the structure, nor does it include any factors of safety. It only specifies the design loads that must be considered. 1.2 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard. 1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. 1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
ABSTRACT This specification specifies the minimum strength requirements for anchorages permanently installed or attached to training towers or other structures used for rope rescue training. It specifies the design loads that must be considered and does not describe how those anchorages are constructed, installed in, or attached to the structure nor does it include any factors of safety. Each anchorage shall be designed to hold a minimum of 40 kN in all directions of potential loading and shall be manufactured in such a way that a carabiner with a gate opening of 25 mm or greater shall fit around it and the gate shall be able to close and lock. The anchorage shall be constructed using rounded stock or with beveled or chamfered edges to minimize damage to hardware, rope, or webbing that is attached to the anchorage. SCOPE 1.1 This standard specifies the minimum strength requirements for anchorages permanently installed or attached to training towers or other structures used for rope rescue training. It does not describe how those anchorages are constructed, installed in, or attached to the structure, nor does it include any factors of safety. It only specifies the design loads that must be considered. 1.2 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard. 1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. 1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
ASTM F2822-10(2024) is classified under the following ICS (International Classification for Standards) categories: 97.220.40 - Outdoor and water sports equipment. The ICS classification helps identify the subject area and facilitates finding related standards.
ASTM F2822-10(2024) has the following relationships with other standards: It is inter standard links to ASTM F2822-10(2016). Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
ASTM F2822-10(2024) is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

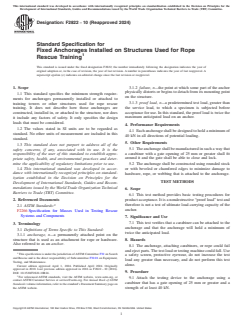

Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
Designation: F2822 − 10 (Reapproved 2024)
Standard Specification for
Fixed Anchorages Installed on Structures Used for Rope
Rescue Training
This standard is issued under the fixed designation F2822; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope 3.1.2 failure, n—the point at which some part of the anchor
physically distorts or begins to detach from its mounting point
1.1 This standard specifies the minimum strength require-
on the structure.
ments for anchorages permanently installed or attached to
3.1.3 proof load, n—a predetermined test load, greater than
training towers or other structures used for rope rescue
the service load, to which a specimen is subjected before
training. It does not describe how those anchorages are
acceptance for use. In this standard, the proof load is twice the
constructed, installed in, or attached to the structure, nor does
maximum anticipated load on an anchor.
it include any factors of safety. It only specifies the design
loads that must be considered.
4. Performance Requirements
1.2 The values stated in SI units are to be regarded as
4.1 Each anchorage shall be designed to hold a minimum of
standard. No other units of measurement are included in this
40 kN in all directions of potential loading.
standard.
5. Other Requirements
1.3 This standard does not purport to address all of the
5.1 The anchorage shall be manufactured in such a way that
safety concerns, if any, associated with its use. It is the
a carabiner with a gate opening of 25 mm or greater shall fit
responsibility of the user of this standard to establish appro-
around it and the gate shall be able to close and lock.
priate safety, health, and environmental practices and deter-
mine the applicability of regulatory limitations prior to use.
5.2 The anchorage shall be constructed using rounded stock
1.4 This international standard was developed in accor-
or with beveled or chamfered edges to minimize damage to
dance with internationally recognized principles on standard-
hardware, rope, or webbing that is attached to the anchorage.
ization established in the Decision on Principles for the
TEST METHODS
Development of International Standards, Guides and Recom-
mendations issued by the World Trade Organization Technical
6. Scope
Barriers to Trade (TBT) Committee.
6.1 This test method provides basic testing procedures for
2. Referenced Documents product acceptance. It is a nondestructive “proof load” test and
therefore is not a test of ultimate load-carrying capacity of the
2.1 ASTM Standards:
anchor.
F2266 Specification for Masses Used in Testing Rescue
Systems and Components
7. Significance and Use
7.1 This test verifies that a carabiner can be attached to the
3. Terminology
anchorage and that the anchorage will hold a minimum of
3.1 Definitions of Terms Specific to This Standard:
twice the anticipated load.
3.1.1 anchorage, n—a permanently attached point on the
structure that is used as an attachment for rope or hardware.
8. Hazards
Also referred to as an anchor.
8.1 The anchorage, attaching carabiners, or rope could fail
and eject parts. The test load or testing machine could fall. Use
This specification is under the jurisdiction of ASTM Committee F32 on Search
a safety screen, protective eyewear, do not increase the test
and Rescue and is the direct responsibility of Subcommittee F32.01 on Equipment,
load any greater than necessary, and do not perform this test
Testing, and Maintenance.
alone.
Current edition approved April 1, 2024. Published April 2024. Originally
approved in 2010. Last previous edition approved in 2016 as F2822 – 10 (2016).
9. Procedure
DOI: 10.1520/F2822-10R24.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
9.1 Attach the testing device to t
...
