ASTM F269-60(2019)
(Test Method)Standard Test Method for Sag of Tungsten Wire
Standard Test Method for Sag of Tungsten Wire
ABSTRACT
This test method covers a determination of the sag properties of tungsten wire. The specimen of tungsten wire to be tested for sag shall have a clean, bright surface and should have the required length. With the aid of external heat, the test specimen shall be bent into a hairpin-shape until it reached the required distance between the ends. The formed test specimen shall be of sufficient length so that when clamped in the fixture, the exposed lengths measured from the top of the apex will be of required distance.
SCOPE
1.1 This test method covers a determination of the sag properties of tungsten wire 0.030 in. (0.76 mm) and over in diameter.
1.2 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
- Status
- Published
- Publication Date
- 31-Mar-2019
- Technical Committee
- F01 - Electronics
- Drafting Committee
- F01.03 - Metallic Materials, Wire Bonding, and Flip Chip
Relations
- Effective Date
- 01-Apr-2019
- Referred By
ASTM F288-96(2019) - Standard Specification for Tungsten Wire for Electron Devices and Lamps - Effective Date
- 01-Apr-2019
Overview
ASTM F269-60(2019), titled Standard Test Method for Sag of Tungsten Wire, provides a recognized procedure for determining the sag properties of tungsten wire with a diameter of 0.030 inches (0.76 mm) and greater. Developed by ASTM International, this standard sets forth uniform methods ensuring valid, repeatable testing across manufacturers and industries. Tungsten wire, known for its strength and high-temperature resilience, is widely used in electronics, lighting, and materials engineering. Reliable sag testing is essential for applications requiring precise dimensional stability during thermal processing or under load.
Key Topics
- Test Applicability: Covers tungsten wire with diameters from 0.030 in. (0.76 mm) upwards.
- Testing Environment: Testing is conducted in a controlled hydrogen atmosphere to prevent oxidation and maintain material integrity.
- Specimen Preparation:
- Tungsten wire samples must have a clean, bright surface and a minimum length as specified.
- Formed into a hairpin shape using external heat, ensuring the legs are coplanar and the distance between ends meets defined criteria.
- Procedural Steps:
- Mounting the wire in a bell jar envelope.
- Attaching precise weights (ranging from 3 to 13 lb, depending on wire diameter).
- Heating to 2600 K at a constant rate, then holding for a specified duration.
- Measuring sag as the change in vertical displacement of the wire’s apex.
- Measurement Tools: Use of cathetometer or equivalent devices capable of precise displacement readings.
- Reporting Requirements: Documentation includes wire manufacturer, type, lot and ingot numbers, wire size, and measured sag values.
Applications
ASTM F269-60(2019) is critical for industries relying on tungsten wire in high-performance or thermally demanding environments. Typical applications include:
- Electronics Manufacturing: Quality control of tungsten wire used in filament production, support structures, and wire bonding applications.
- Lighting Industry: Ensuring stability and performance consistency of tungsten filaments in lamps and specialized lighting devices.
- Materials Engineering: Evaluating the creep and deformation behavior of tungsten under high temperatures for research and product development.
- Aerospace and Scientific Equipment: Certification and quality assurance of tungsten components exposed to thermal cycling and stress.
By standardizing test conditions and reporting, ASTM F269-60(2019) supports comparability and reliability of tungsten wire sag data, which informs engineering design, supplier validation, and regulatory compliance.
Related Standards
Consider referencing these international and ASTM standards for complementary or extended testing:
- ASTM E145 - Standard Specification for Gravity-Convection and Forced-Ventilation Ovens
- ASTM B777 - Standard Specification for Tungsten Heavy Alloys
- ASTM F132 - Standard Test Method for Shear Strength of Bonds of Electronic Elements by Wire Bond Pull Test
- ISO 9001 - Quality Management Systems (for general quality assurance practices)
- ISO 6892 - Metallic Materials - Tensile Testing
These related standards may address other physical properties, general materials testing, or provide context for quality management systems involving tungsten wire and related components.
Keywords: ASTM F269-60, tungsten wire, sag test, creep testing, hydrogen atmosphere, high temperature, wire deformation, materials testing, electronic components, lighting industry, quality assurance.
Get Certified
Connect with accredited certification bodies for this standard
Intertek Testing Services NA Inc.
Intertek certification services in North America.
UL Solutions
Global safety science company with testing, inspection and certification.
ANCE
Mexican certification and testing association.
Sponsored listings
Frequently Asked Questions
ASTM F269-60(2019) is a standard published by ASTM International. Its full title is "Standard Test Method for Sag of Tungsten Wire". This standard covers: ABSTRACT This test method covers a determination of the sag properties of tungsten wire. The specimen of tungsten wire to be tested for sag shall have a clean, bright surface and should have the required length. With the aid of external heat, the test specimen shall be bent into a hairpin-shape until it reached the required distance between the ends. The formed test specimen shall be of sufficient length so that when clamped in the fixture, the exposed lengths measured from the top of the apex will be of required distance. SCOPE 1.1 This test method covers a determination of the sag properties of tungsten wire 0.030 in. (0.76 mm) and over in diameter. 1.2 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard. 1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. 1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
ABSTRACT This test method covers a determination of the sag properties of tungsten wire. The specimen of tungsten wire to be tested for sag shall have a clean, bright surface and should have the required length. With the aid of external heat, the test specimen shall be bent into a hairpin-shape until it reached the required distance between the ends. The formed test specimen shall be of sufficient length so that when clamped in the fixture, the exposed lengths measured from the top of the apex will be of required distance. SCOPE 1.1 This test method covers a determination of the sag properties of tungsten wire 0.030 in. (0.76 mm) and over in diameter. 1.2 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard. 1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. 1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
ASTM F269-60(2019) is classified under the following ICS (International Classification for Standards) categories: 29.060.10 - Wires. The ICS classification helps identify the subject area and facilitates finding related standards.
ASTM F269-60(2019) has the following relationships with other standards: It is inter standard links to ASTM F269-60(2014), ASTM F288-96(2019). Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
ASTM F269-60(2019) is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

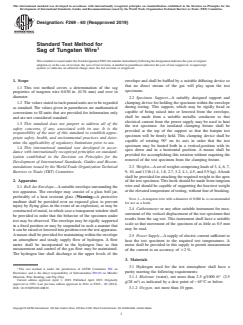

Designation: F269 − 60 (Reapproved 2019)
