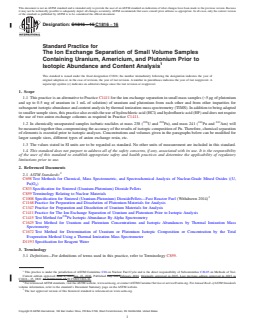

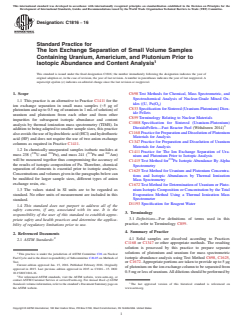

ASTM C1816-16

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
Designation: C1816 − 15 C1816 − 16
Standard Practice for
The Ion Exchange Separation of Small Volume Samples
Containing Uranium, Americium, and Plutonium Prior to
Isotopic Abundance and Content Analysis
This standard is issued under the fixed designation C1816; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope
1.1 This practice is an alternative to Practice C1411 for the ion exchange separation in small mass samples (~5 μg of plutonium
and up to 0.5 mg of uranium in 1 mL of solution) of uranium and plutonium from each other and from other impurities for
subsequent isotopic abundance and content analysis by thermal ionization mass spectrometry (TIMS). In addition to being adapted
to smaller sample sizes, this practice also avoids the use of hydrochloric acid (HCl) and hydrofluoric acid (HF) and does not require
the use of two anion exchange columns as required in Practice C1411.
238 238 241 241
1.2 In chemically unseparated samples isobaric nuclides at mass 238 ( U and Pu), and mass 241 ( Pu and Am) will
be measured together thus compromising the accuracy of the results of isotopic composition of Pu. Therefore, chemical separation
of elements is essential prior to isotopic analyses. Concentrations and volumes given in the paragraphs below can be modified for
larger sample sizes, different types of anion exchange resin, etc.
1.3 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety and health practices and determine the applicability of regulatory
limitations prior to use.
2. Referenced Documents
2.1 ASTM Standards:
C698 Test Methods for Chemical, Mass Spectrometric, and Spectrochemical Analysis of Nuclear-Grade Mixed Oxides ((U,
Pu)O )
C833 Specification for Sintered (Uranium-Plutonium) Dioxide Pellets
C859 Terminology Relating to Nuclear Materials
C1008 Specification for Sintered (Uranium-Plutonium) DioxidePellets—Fast Reactor Fuel (Withdrawn 2014)
C1168 Practice for Preparation and Dissolution of Plutonium Materials for Analysis
C1347 Practice for Preparation and Dissolution of Uranium Materials for Analysis
C1411 Practice for The Ion Exchange Separation of Uranium and Plutonium Prior to Isotopic Analysis
C1415 Test Method for Pu Isotopic Abundance By Alpha Spectrometry
C1625 Test Method for Uranium and Plutonium Concentrations and Isotopic Abundances by Thermal Ionization Mass
Spectrometry
C1672 Test Method for Determination of Uranium or Plutonium Isotopic Composition or Concentration by the Total
Evaporation Method Using a Thermal Ionization Mass Spectrometer
D1193 Specification for Reagent Water
3. Terminology
3.1 Definitions—For definitions of terms used in this practice, refer to Terminology C859.
This practice is under the jurisdiction of ASTM Committee C26 on Nuclear Fuel Cycle and is the direct responsibility of Subcommittee C26.05 on Methods of Test.
Current edition approved June 1, 2015Jan. 15, 2016. Published July 2015February 2016. Originally approved in 2015. Last previous edition approved in 2015 as
C1816 – 15. DOI: 10.1520/C1816-15.10.1520/C1816-16.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
The last approved version of this historical standard is referenced on www.astm.org.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
C1816 − 16

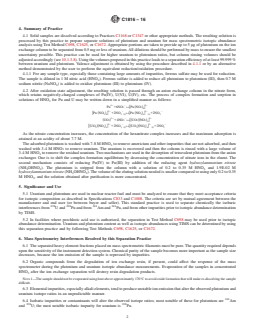

4. Summary of Practice
4.1 Solid samples are dissolved according to Practices C1168 or C1347 or other appropriate methods. The resulting solution is
processed by this practice to prepare separate solutions of plutonium and uranium for mass spectrometric isotopic abundance
analysis using Test Method C698, C1625, or C1672. Appropriate portions are taken to provide up to 5 μg of plutonium on the ion

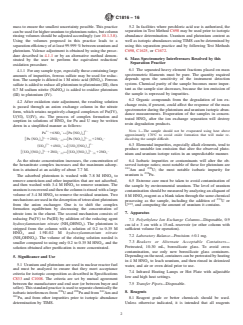

exchange column to be separated from 0.5 mg or less of uranium. All dilutions should be performed by mass to ensure the smallest
uncertainty possible. This practice can be used for higher uranium to plutonium ratios, but column rinsing volumes should be
adjusted accordingly (see 10.1.3.8). Using the volumes proposed in this practice leads to a separation efficiency of at least 99.999 %
between uranium and plutonium. Valence adjustment is obtained by using the procedure described in 4.1.1 or by an alternative
method demonstrated by the user to perform the equivalent reduction/oxidation procedure.
4.1.1 For any sample type, especially those containing large amounts of impurities, ferrous sulfate may be used for reduction.
The sample is diluted in 1 M nitric acid (HNO ). Ferrous sulfate is added to reduce all plutonium to plutonium (III), then 0.7 M
sodium nitrite (NaNO ) is added to oxidize plutonium (III) to plutonium (IV).
4.2 After oxidation state adjustment, the resulting solution is passed through an anion exchange column in the nitrate form,
which retains negatively-charged complexes of Pu(IV), U(VI), U(IV), etc. The process of complex formation and sorption in
solutions of HNO for Pu and U may be written down in a simplified manner as follows:
41 2 22
Pu 16NO ↔@Pu ~NO ! #
3 3 6
22 2 22 2
Pu NO 12NO ↔ Pu NO 12NO
@ ~ ! # @ ~ ! #
3 6 3 ~5! 3 6 5 3
~ !
21 2 22
~UO ! 14NO ↔@~UO !~NO ! #
2 3 2 3
22 2 22 2
@~UO !~NO ! # 12NO ↔@~UO !~NO ! # 12NO
2 3 4 3 ~5! 2 3 4 5 3
~ !
As the nitrate concentration increases, the concentration of the hexanitrate complex increases and the maximum adsorption is
attained at an acidity of about 7.7 M.
The adsorbed plutonium is washed with 7-8 M HNO to remove americium and other impurities that are not adsorbed, and then
washed with 3-4 M HNO to remove uranium. The uranium is recovered and then the column is rinsed with a large volume of
3-4 M HNO to remove the residual uranium. Two mechanisms are used in the desorption of tetravalent plutonium from the anion
exchanger. One is to shift the complex formation equilibrium by decreasing the concentration of nitrate ions in the eluent. The
second mechanism consists of reducing Pu(IV) to Pu(III) by addition of the reducing agent hydroxylammonium nitrate
(NH OHNO ). The plutonium is stripped from the column with a solution of 0.2 to 0.35 M HNO and 1.9E-02 M
3 3 3
hydroxylammonium nitrate (NH OHNO ). The volume of the eluting solution needed is smaller compared to using only 0.2 to 0.35
3 3
M HNO , and the solution obtained after purification is more concentrated.
5. Significance and Use
5.1 Uranium and plutonium are used in nuclear reactor fuel and must be analyzed to ensure that they meet acceptance criteria
for isotopic composition as described in Specifications C833 and C1008. The criteria are set by mutual agreement between the
manufacturer and end user (or between buyer and seller). This standard practice is used to separate chemically the isobaric
238 238 241 241
interferences from U and Pu and from Am and Pu, and from other impurities prior to isotopic abundance determination
by TIMS.
5.2 In facilities where perchloric acid use is authorized, the separation in Test Method C698 may be used prior to isotopic
abundance determination. Uranium and plutonium content as well as isotopic abundances using TIMS can be determined by using
this separation practice and by following Test Methods C698, C1625, or C1672.
6. Mass Spectrometry Interferences Resolved by this Separation Practice
6.1 The separated heavy element fractions placed on mass spectrometric filaments must be pure. The quantity required depends
upon the sensitivity of the instrument detection system. Chemical purity of the sample becomes more important as the sample size
decreases, because the ion emission of the sample is repressed by impurities.
6.2 Organic compounds from the degradation of ion exchange resin, if present, could affect the response of the mass
spectrometer during the plutonium and uranium isotopic abundance measurements. Evaporation of the samples in concentrated
HNO after the ion exchange separation will destroy resin degradation products.
NOTE 1—The sample should not be evaporated using heat above approximately 170°C to avoid oxide formation that will make re-dissolving the sample
difficult.
6.3 Elemental impurities, especially alkali elements, tend to produce unstable ion emission that alter the observed plutonium and
uranium isotope ratios in an unpredictable manner.
6.4 Isobaric impurities or contaminants will alter the observed isotope ratios; most notable of these for plutonium are Am
238 238
and U; the most notable isobaric impurity for uranium is Pu.
C1816 − 16

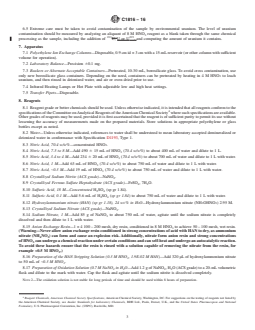

6.5 Extreme care must be taken to avoid contamination of the sample by environmental uranium. The level of uranium
contamination should be measured by analyzing an aliquant of 8 M HNO reagent as a blank taken through the same chemical
233 235
processing as the sample, including the addition of U, U or U , and computing the amount of uranium it contains.
7. Apparatus
7.1 Polyethylene Ion Exchange Columns—Disposable, 0.9 cm id × 3 cm with a 15-mL reservoir (or other column with sufficient
volume for operation).
7.2 Laboratory Balance—Precision 60.1 mg.
7.3 Beakers or Alternate Acceptable Containers—Pretreated, 10-30 mL, borosilicate glass. To avoid cross contamination, use
only new borosilicate glass containers. Depending on the need, containers can be pretreated by heating in 4 M HNO to leach
uranium, and then rinsed in deionized water, and air or oven dried prior to use.
7.4 Infrared Heating Lamps or Hot Plate with adjustable low and high heat settings.
7.5 Transfer Pipets—Disposable.
8. Reagents

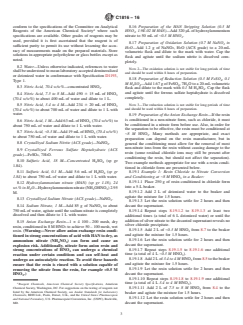

8.1 Reagent grade or better chemicals should be used. Unless otherwise indicated, it is intended that all reagents conform to the
specifications of the Committee on Analytical Reagents of the American Chemical Society where such specifications are available.
Other grades of reagents may be used, provided it is first ascertained that the reagent is of sufficient purity to permit its use without
lessening the accuracy of measurements made on the prepared materials. Store solutions in appropriate polyethylene or glass
bottles except as noted.
8.2 Water—Unless otherwise indicated, references to water shall be understood to mean laboratory accepted demineralized or
deionized water in conformance with Specification D1193, Type 1.
8.3 Nitric Acid, 70.4 w/w%—concentrated HNO .
8.4 Nitric Acid, 7.5 to 8 M—Add 490 6 15 mL of HNO (70.4 w/w%) to about 400 mL of water and dilute to 1 L.
8.5 Nitric Acid, 3.4 to 4 M—Add 234 6 20 mL of HNO (70.4 w/w%) to about 700 mL of water and dilute to 1 L with water.
8.6 Nitric Acid, 1 M—Add 63 mL of HNO (70.4 w/w%) to about 750 mL of water and dilute to 1 L with water.
8.7 Nitric Acid, ~0.3 M—Add 19 mL of HNO (70.4 w/w%) to about 750 mL of water and dilute to 1 L with water.
8.8 Crystallized Sodium Nitrite (ACS grade)—NaNO .
8.9 Crystallized Ferrous Sulfate Heptahydrate (ACS grade)—FeSO , 7H O.
4 2
8.10 Sulfuric Acid, 18 M—Concentrated H SO (sp gr 1.84).
2 4
8.11 Sulfuric Acid, 0.1 M—Add 5.6 mL of H SO (sp gr 1.84) to about 750 mL of water and dilute to 1 L with water.
2 4
8.12 Hydroxylammonium nitrate (HAN) (sp gr 1.18), 24 wt.% in H O—Hydroxylammonium nitrate (NH OHNO ) 2.95 M.
2 3 3
8.13 Crystallized Sodium Nitrate (ACS grade)—NaNO .
8.14 Sodium Nitrate, 1 M—Add 85 g of NaNO to about 750 mL of water, agitate until the sodium nitrate is completely
dissolved and then dilute to 1 L with water.
8.15 Anion Exchange Resin—1 × 4 100 – 200 mesh, dry resin, conditioned in 8 M HNO to achieve 50 – 100 mesh, wet resin.
(Warning—Never allow anion exchange resin conditioned in strong concentrations of acid with HAN to dry, as ammonium
nitrate (NH NO ) can form and cause an explosion risk. Additionally, nitrate form anion resin and strong concentrations
4 3
of HNO can undergo a chemical reaction under certain conditions and can self-heat and undergo an autocatalytic reaction.
To avoid these hazards ensure that the resin is rinsed with a solution capable of removing the nitrate from the resin, for
example <0.5 M HNO .)

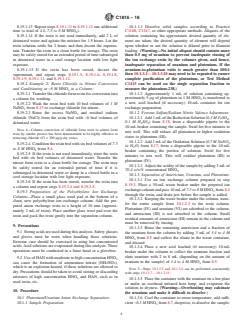

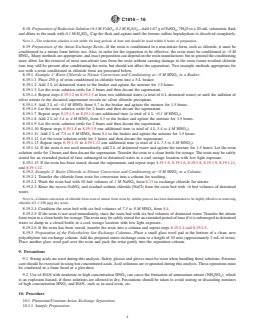

8.16 Preparation of the HAN Stripping Solution (0.3 M HNO , 1.9E-02 M HAN)—Add 320 μL of hydroxylammonium
...
