EUROPEAN STANDARD EN IEC 60974-13

NORME EUROPÉENNE
EUROPÄISCHE NORM
June 2021
ICS 25.160.30 Supersedes EN 60974-13:2011 and all of its
amendments and corrigenda (if any)
English Version
Arc welding equipment - Part 13: Welding current return clamp
(IEC 60974-13:2021)
Matériel de soudage à l'arc - Partie 13: Connecteur de Lichtbogenschweißeinrichtungen - Teil 13:
pièce Schweißstromrückleitungsklemmen
(IEC 60974-13:2021) (IEC 60974-13:2021)
This European Standard was approved by CENELEC on 2021-05-20. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 60974-13:2021 E

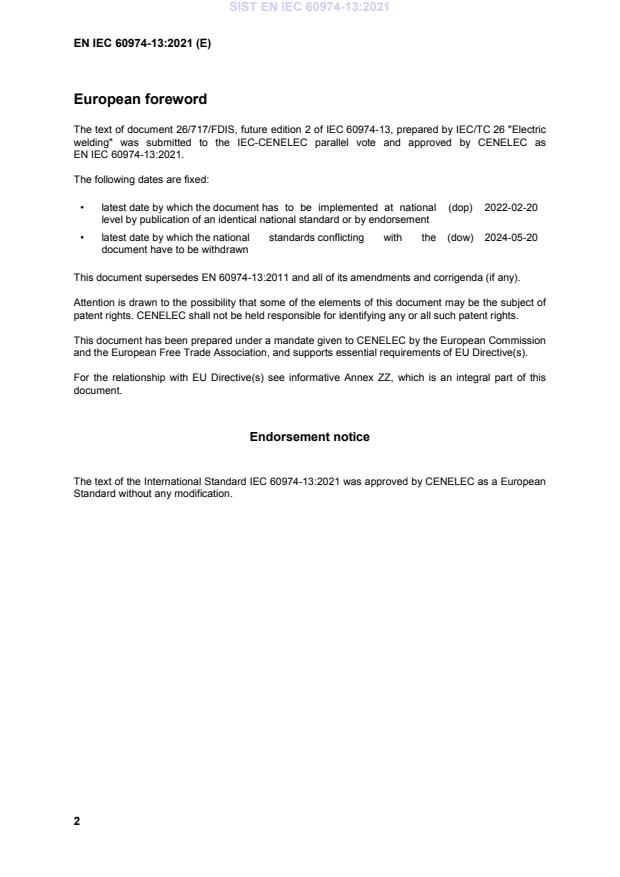

European foreword
The text of document 26/717/FDIS, future edition 2 of IEC 60974-13, prepared by IEC/TC 26 "Electric
welding" was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2022-02-20
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2024-05-20
document have to be withdrawn
This document supersedes EN 60974-13:2011 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
This document has been prepared under a mandate given to CENELEC by the European Commission
and the European Free Trade Association, and supports essential requirements of EU Directive(s).
For the relationship with EU Directive(s) see informative Annex ZZ, which is an integral part of this
document.
Endorsement notice
The text of the International Standard IEC 60974-13:2021 was approved by CENELEC as a European
Standard without any modification.

Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod),
the relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is
available here: www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 60050-151 2001 International Electrotechnical - -
Vocabulary – Part 151: Electrical
and magnetic devices (available at:
http://www.electropedia.org)
+ A1 2013  - -
+ A2 2014  - -
+ A3 2019  - -
+ A4 2020  -
IEC 60974-1 2017 Arc welding equipment – Part 1: EN60974-1 2018
Welding power source
+ A1 2019  + A1 2019
Annex ZZ
(informative)
Relationship between this European standard and the safety
objectives of Directive 2014/35/EU [2014 OJ L96] aimed to be
covered
This European Standard has been prepared under a Commission’s standardization request relating to
harmonized standards in the field of the Low Voltage Directive, M/511, to provide one voluntary means
of conforming to safety objectives of Directive 2014/35/EU of the European Parliament and of the
Council of 26 February 2014 on the harmonization of the laws of the Member States relating to the
making available on the market of electrical equipment designed for use within certain voltage limits
[2014 OJ L96].
Once this standard is cited in the Official Journal of the European Union under that Directive,
compliance with the normative clauses of this standard given in Table ZZ.1 confers, within the limits of
the scope of this standard, a presumption of conformity with the corresponding safety objectives of
that Directive, and associated EFTA regulations.
Table ZZ.1 — Correspondence between this European standard and Annex I of Directive
2014/35/EU [2014 OJ L96]
Clause(s) / sub-clause(s)
Safety objectives of
Remarks / Notes
Directive 2014/35/EU
of this EN
1(a) Clauses 10 and 11
1(b) Clause 11
1(c) Clauses 6,8 and 9
2(a) Clause 7 and 8
2(b) Clauses 7 and 8
2(c) Clauses 8.2 and 9
2(d) Clause 8.2
3(a) Clause 9
Functional safety is covered in
separate standards
3(b) Clauses 8.2
Safety-related security is covered in
separate standards
3(c) Clause 8
WARNING 1 — Presumption of conformity stays valid only as long as a reference to this European
standard is maintained in the list published in the Official Journal of the European Union. Users of this
standard should consult frequently the latest list published in the Official Journal of the European
Union.
WARNING 2 — Other Union legislation may be applicable to the product(s) falling within the scope of
this standard.
