SIST EN 62841-3-4:2016/A11:2018
(Amendment)Electric motor-operated hand-held tools, transportable tools and lawn and garden machinery - Safety - Part 3-4: Particular requirements for transportable bench grinders
Electric motor-operated hand-held tools, transportable tools and lawn and garden machinery - Safety - Part 3-4: Particular requirements for transportable bench grinders
This standard applies to transportable bench grinders that can be equipped with one or two accessories as follows:
- type 1 grinding wheels in accordance with ISO 603-4 with a diameter not exceeding 310 mm and a thickness not exceeding 55 mm;
- wire brushes with a diameter not exceeding 310 mm and a thickness not exceeding 55 mm;
- polishing wheels with a diameter not exceeding 310 mm;
and with a peripheral speed of any accessory between 10 m/s and 50 m/s.
NOTE Polishing wheels are also known as buffing wheels.
Elektrische motorbetriebene handgeführte Werkzeuge, transportable Werkzeuge und Rasen- und Gartenmaschinen - Sicherheit - Teil 3-4: Besondere Anforderungen für transportable Tischschleifmaschinen
Outils électroportatifs à moteur, outils portables et machines pour jardins et pelouses - Sécurité - Partie 3-4: Exigences particulières pour les tourets à meuler transportables
Elektromotorna ročna orodja, prenosna orodja ter stroji za trato in vrt - Varnost - 3-4. del: Posebne zahteve za prenosne namizne brusilnike - Dopolnilo A11
General Information
- Status
- Published
- Public Enquiry End Date
- 30-Jun-2017
- Publication Date
- 19-Dec-2017
- Technical Committee
- I09 - Imaginarni 09
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 13-Dec-2017
- Due Date
- 17-Feb-2018
- Completion Date
- 20-Dec-2017
Overview
EN 62841-3-4:2016/A11:2017 (CLC) specifies safety requirements for transportable bench grinders - a subset of electric motor‑operated hand‑held tools, transportable tools and lawn and garden machinery. The standard covers bench grinders fitted with one or two accessories: type 1 grinding wheels (ISO 603‑4), wire brushes or polishing (buffing) wheels with a maximum diameter of 310 mm and a maximum thickness of 55 mm, and accessories operating at peripheral speeds between 10 m/s and 50 m/s. Amendment A11 (2017) updates requirements on guards, transparent screens and marking/instructions.
Key Topics and Requirements
- Scope of accessories: Accepts grinding wheels (ISO 603‑4), wire brushes and polishing wheels (buffing wheels) within the specified diameters/thickness and peripheral speeds.
- Guards and screens:
- Guards and transparent screens must not be removable without the aid of a tool, aligning bench grinder requirements with Part 1.
- Transparent screens must be adjustable, meet minimum dimensions (see Figure 103 in the standard), and be made of shatter‑resistant material such as polycarbonate or laminated glass.
- Screens must be mounted so the screen’s symmetrical axis coincides with the vertical median plane of the grinding wheel or wire brush.
- Marking and instructions (noise):
- Declared noise emission values must be measured using a standard test method and may be used to compare tools and for preliminary exposure assessment.
- Manuals must include warnings that actual noise during use may differ and operators must assess exposure based on actual operating conditions.
- Vibration declaration:
- Amendment A11 removes the requirement for declaring vibration values for transportable bench grinders because vibration is not required to be measured for these tools.
- Mechanical hazard details:
- Changes were made to subclauses (19.1, 19.1.103) and drawing updates (Figure 102) to clarify guard dimensions, clearances and adjustment behavior.
Applications and Who Uses This Standard
- Manufacturers of transportable bench grinders use the standard to design and certify machines that meet European safety rules.
- Test laboratories and conformity assessment bodies reference EN 62841-3-4 for inspection and compliance testing (guards, screens, markings).
- Safety engineers, compliance officers and procurement teams use it to specify safe equipment for workshops, vocational training centers and mobile maintenance operations.
- Regulatory bodies and notified bodies rely on the standard to support essential requirements of EU directives.
Related Standards
- EN 62841 Part 1 (general safety requirements for motor-operated tools)
- ISO 603‑4 (type 1 grinding wheels) - referenced for wheel specifications
- CLC/TC 116 (technical committee responsible for safety of motor‑operated electric tools)
Keywords: EN 62841-3-4:2016/A11:2017, transportable bench grinders safety, bench grinder guards, transparent screens, noise emission, vibration declaration, ISO 603-4, CENELEC, CLC.
Frequently Asked Questions
SIST EN 62841-3-4:2016/A11:2018 is a amendment published by the Slovenian Institute for Standardization (SIST). Its full title is "Electric motor-operated hand-held tools, transportable tools and lawn and garden machinery - Safety - Part 3-4: Particular requirements for transportable bench grinders". This standard covers: This standard applies to transportable bench grinders that can be equipped with one or two accessories as follows: - type 1 grinding wheels in accordance with ISO 603-4 with a diameter not exceeding 310 mm and a thickness not exceeding 55 mm; - wire brushes with a diameter not exceeding 310 mm and a thickness not exceeding 55 mm; - polishing wheels with a diameter not exceeding 310 mm; and with a peripheral speed of any accessory between 10 m/s and 50 m/s. NOTE Polishing wheels are also known as buffing wheels.
This standard applies to transportable bench grinders that can be equipped with one or two accessories as follows: - type 1 grinding wheels in accordance with ISO 603-4 with a diameter not exceeding 310 mm and a thickness not exceeding 55 mm; - wire brushes with a diameter not exceeding 310 mm and a thickness not exceeding 55 mm; - polishing wheels with a diameter not exceeding 310 mm; and with a peripheral speed of any accessory between 10 m/s and 50 m/s. NOTE Polishing wheels are also known as buffing wheels.
SIST EN 62841-3-4:2016/A11:2018 is classified under the following ICS (International Classification for Standards) categories: 25.080.50 - Grinding and polishing machines; 25.140.20 - Electric tools. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN 62841-3-4:2016/A11:2018 is associated with the following European legislation: EU Directives/Regulations: 2006/42/EC; Standardization Mandates: M/396. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
You can purchase SIST EN 62841-3-4:2016/A11:2018 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of SIST standards.
Standards Content (Sample)
SLOVENSKI STANDARD
01-februar-2018
(OHNWURPRWRUQDURþQDRURGMDSUHQRVQDRURGMDWHUVWURML]DWUDWRLQYUW9DUQRVW
GHO 3RVHEQH]DKWHYH]DSUHQRVQHQDPL]QHEUXVLOQLNH'RSROQLOR$
Electric motor-operated hand-held tools, transportable tools and lawn and garden
machinery - Safety - Part 3-4: Particular requirements for transportable bench grinders
Elektrische motorbetriebene handgeführte Werkzeuge, transportable Werkzeuge und
Rasen- und Gartenmaschinen - Sicherheit - Teil 3-4: Besondere Anforderungen für
transportable Tischschleifmaschinen
Outils électroportatifs à moteur, outils portables et machines pour jardins et pelouses -
Sécurité - Partie 3-4: Exigences particulières pour les tourets à meuler transportables
Ta slovenski standard je istoveten z: EN 62841-3-4:2016/A11:2017
ICS:
25.080.50 Brusilni in polirni stroji Grinding and polishing
machines
25.140.20 (OHNWULþQDRURGMD Electric tools
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD EN 62841-3-4:2016/A11
NORME EUROPÉENNE
EUROPÄISCHE NORM
December 2017
ICS 25.140.20
English Version
Electric motor-operated hand-held tools, transportable tools and
lawn and garden machinery - Safety - Part 3-4: Particular
requirements for transportable bench grinders
Outils électroportatifs à moteur, outils portables et machines Elektrische motorbetriebene handgeführte Werkzeuge,
pour jardins et pelouses - Sécurité - Partie 3-4: Exigences transportable Werkzeuge und Rasen- und
particulières pour les tourets à meuler transportables Gartenmaschinen - Sicherheit - Teil 3-4: Besondere
Anforderungen für transportable Tischschleifmaschinen
This amendment A11 modifies the European Standard EN 62841-3-4:2016; it was approved by CENELEC on 2017-10-19. CENELEC
members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this amendment the
status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the
responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as
the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,
Switzerland, Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2017 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 62841-3-4:2016/A11:2017 E

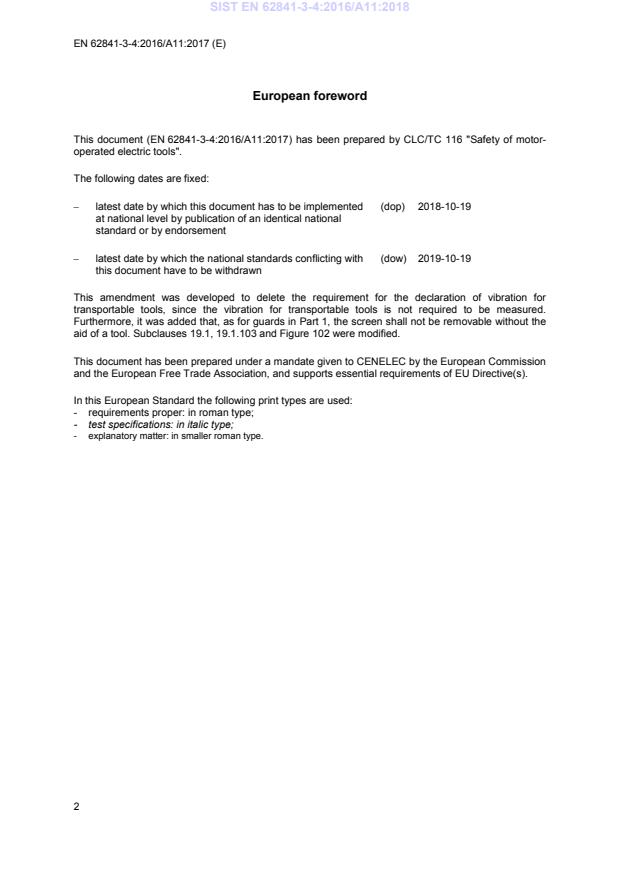

European foreword
This document (EN 62841-3-4:2016/A11:2017) has been prepared by CLC/TC 116 "Safety of motor-
operated electric tools".
...
