EUROPEAN STANDARD EN 62841-2-2

NORME EUROPÉENNE

EUROPÄISCHE NORM
August 2014
ICS 25.140.20 Supersedes EN 60745-2-2:2010
English Version
Electric motor-operated hand-held tools, transportable tools and
lawn and garden machinery - Safety - Part 2-2: Particular
requirements for hand-held screwdrivers and impact wrenches
(IEC 62841-2-2:2014, modified)
Outils électroportatifs à moteur, outils portables et machines Elektrische motorbetriebene handgeführte Werkzeuge,
pour jardins et pelouses - Sécurité - Partie 2-2: Règles transportable Werkzeuge und Rasen- und
particulières pour les visseuses et les clés à chocs Gartenmaschinen - Sicherheit - Teil 2-2: Besondere
portatives Anforderungen für handgeführte Schrauber und
(CEI 62841-2-2:2014, modifiée) Schlagschrauber
(IEC 62841-2-2:2014, modifiziert)
This European Standard was approved by CENELEC on 2014-06-26. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.


European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2014 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
 Ref. No. EN 62841-2-2:2014 E

---------------------- Page: 3 ----------------------

SIST EN 62841-2-2:2014
EN 62841-2-2:2014 - 2 -

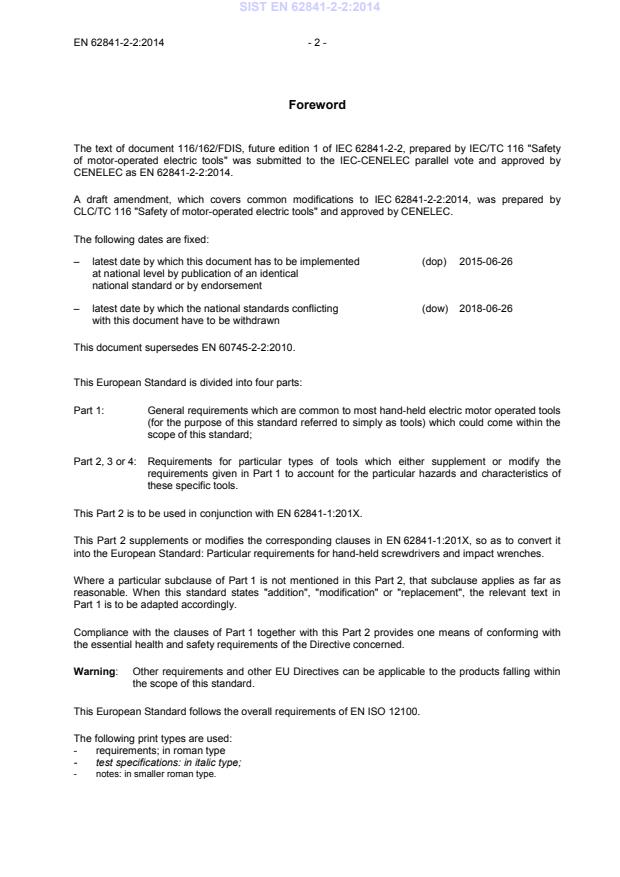

Foreword
The text of document 116/162/FDIS, future edition 1 of IEC 62841-2-2, prepared by IEC/TC 116 "Safety
of motor-operated electric tools" was submitted to the IEC-CENELEC parallel vote and approved by
CENELEC as EN 62841-2-2:2014.
A draft amendment, which covers common modifications to IEC 62841-2-2:2014, was prepared by
CLC/TC 116 "Safety of motor-operated electric tools" and approved by CENELEC.
The following dates are fixed:
– latest date by which this document has to be implemented (dop) 2015-06-26
at national level by publication of an identical
national standard or by endorsement
– latest date by which the national standards conflicting (dow) 2018-06-26
with this document have to be withdrawn
This document supersedes EN 60745-2-2:2010.
This European Standard is divided into four parts:
Part 1: General requirements which are common to most hand-held electric motor operated tools
(for the purpose of this standard referred to simply as tools) which could come within the
scope of this standard;
Part 2, 3 or 4: Requirements for particular types of tools which either supplement or modify the
requirements given in Part 1 to account for the particular hazards and characteristics of
these specific tools.
This Part 2 is to be used in conjunction with EN 62841-1:201X.
This Part 2 supplements or modifies the corresponding clauses in EN 62841-1:201X, so as to convert it
into the European Standard: Particular requirements for hand-held screwdrivers and impact wrenches.
Where a particular subclause of Part 1 is not mentioned in this Part 2, that subclause applies as far as
reasonable. When this standard states "addition", "modification" or "replacement", the relevant text in
Part 1 is to be adapted accordingly.
Compliance with the clauses of Part 1 together with this Part 2 provides one means of conforming with
the essential health and safety requirements of the Directive concerned.
Warning: Other requirements and other EU Directives can be applicable to the products falling within
the scope of this standard.
This European Standard follows the overall requirements of EN ISO 12100.
The following print types are used:
- requirements; in roman type
- test specifications: in italic type;
- notes: in smaller roman type.

---------------------- Page: 4 ----------------------

SIST EN 62841-2-2:2014
- 3 - EN 62841-2-2:2014
The terms defined in Clause 3 are printed in bold typeface.
Subclauses, notes, tables and figures which are additional to those in Part 1 are numbered starting
from 101.
Clauses, subclauses, notes, tables, figures and annexes which are additional to those in
IEC 62841-2-2:2014 are prefixed “Z”.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent
rights.
This document has been prepared under a mandate given to CENELEC by the European Commission
and the European Free Trade Association and supports essential requirements of EU Directive(s).
For the relationship with EU Directive(s), see informative Annex ZZ, which is an integral part of this
document.

---------------------- Page: 5 ----------------------

SIST EN 62841-2-2:2014
EN 62841-2-2:2014 - 4 -
COMMON MODIFICATIONS
Replace the title of Annex I by the following:
Annex I
(normative)

Measurement of noise and vibration emissions

Add the following annexes:

Annex ZA
(normative)

Normative references to international publications
with their corresponding European publications
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
NOTE  When an international publication has been modified by common modifications, indicated by (mod), the
relevant EN/HD applies.
This annex from Part 1 is applicable with the following addition:
Publication Year Title EN/HD Year
ISO 28927-2 2009 Hand-held portable power tools - Test EN ISO 28927-2 2009
methods for evaluation of vibration emission -
Part 2: Wrenches, nutrunners and
screwdrivers


Annex ZZ
(informative)

Coverage of Essential Requirements of Directive 2006/42/EC
This European Standard has been prepared under a mandate given to CENELEC by the European
Commission and the European Free Trade Association and within its scope the standard covers all
relevant Essential Requirements as given in EU Directive 2006/42/EC (Machinery Directive).
Compliance with this standard provides one means of conformity with the specified essential
requirements of the Directives concerned.
WARNING: Other requirements and other EU Directives may be applicable to the products falling within
the scope of this standard.

---------------------- Page: 6 ----------------------

SIST EN 62841-2-2:2014




IEC 62841-2-2

®


Edition 1.0 2014-05




INTERNATIONAL



STANDARD




NORME



INTERNATIONALE
colour

inside










Electric motor-operated hand-held tools, transportable tools and lawn and

garden machinery – Safety –

Part 2-2: Particular requirements for hand-held screwdrivers and impact


wrenches



Outils électroportatifs à moteur, outils portables et machines pour jardins et


pelouses – Sécurité –

Partie 2-2: Règles particulières pour les visseuses et les clés à chocs portatives












INTERNATIONAL

ELECTROTECHNICAL

COMMISSION


COMMISSION

ELECTROTECHNIQUE

PRICE CODE
INTERNATIONALE

CODE PRIX P


ICS 25.140.20 ISBN 978-2-8322-1520-3



Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale

---------------------- Page: 7 ----------------------

SIST EN 62841-2-2:2014
– 2 – IEC 62841-2-2:2014 © IEC 2014
CONTENTS

FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 General requirements . 6
5 General conditions for the tests . 6
6 Radiation, toxicity and similar hazards . 6
7 Classification . 6
8 Marking and instructions . 6
9 Protection against access to live parts . 6
10 Starting . 6
11 Input and current . 6
12 Heating . 6
13 Resistance to heat and fire . 7
14 Moisture resistance . 7
15 Resistance to rusting . 7
16 Overload protection of transformers and associated circuits . 7
17 Endurance . 7
18 Abnormal operation . 8
19 Mechanical hazards . 8
20 Mechanical strength . 8
21 Construction . 9
22 Internal wiring . 9
23 Components . 9
24 Supply connection and external flexible cords . 9
25 Terminals for external conductors . 9
26 Provision for earthing . 9
27 Screws and connections . 9
28 Creepage distances, clearances and distances through insulation . 9
Annexes . 10
Annex I (informative) Measurement of noise and vibration emissions . 10
Annex K (normative) Battery tools and battery packs . 15
Bibliography . 16

Figure I.101 – Brake . 12
Figure I.102 – Position of transducer for screwdrivers . 12
Figure I.103 – Positions of transducers for impact wrenches . 13
Figure I.104 – Test fixture options for impact wrenches . 14

Table 4 – Required performance levels . 8
Table I.101 – Operating conditions for screwdrivers . 11
Table I.102 – Operating conditions for impact wrenches . 11

---------------------- Page: 8 ----------------------

SIST EN 62841-2-2:2014
IEC 62841-2-2:2014 © IEC 2014 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________

ELECTRIC MOTOR-OPERATED HAND-HELD TOOLS,
TRANSPORTABLE TOOLS AND LAWN AND GARDEN
MACHINERY – SAFETY –

Part 2-2: Particular requirements for hand-held
screwdrivers and impact wrenches

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other I
...
