SIST EN 3475-503:2004

Overview

SIST EN 3475-503:2004 is a European standard from the Aerospace series that specifies test methods for electrical cables used in aircraft applications. This part, Part 503: Scrape Abrasion, defines a precise method to measure the resistance of aircraft cables to abrasion caused by scraping. The standard ensures that cable insulation and jackets maintain durability and safety under mechanical wear conditions typical in aerospace environments.

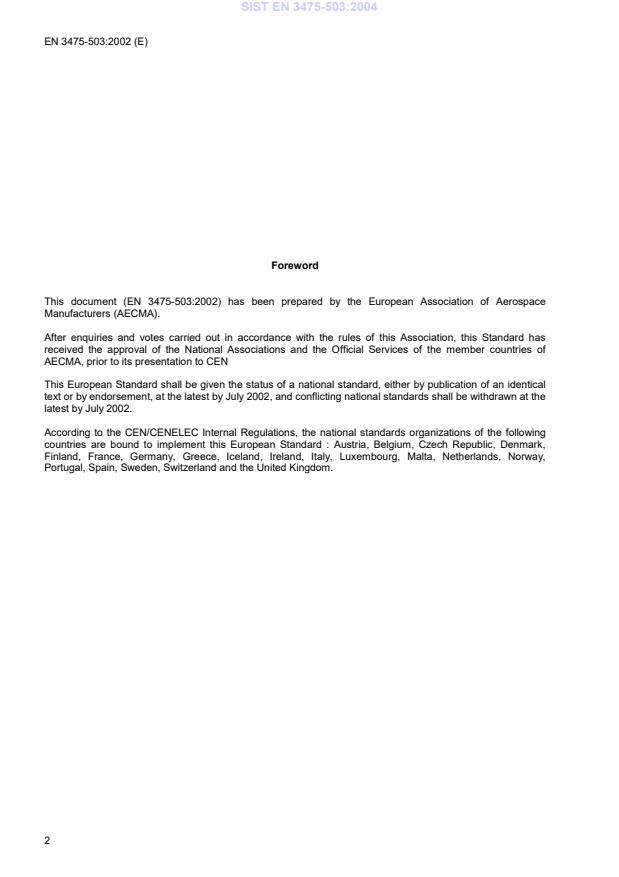

Developed by the European Association of Aerospace Manufacturers (AECMA) and approved by CEN, SIST EN 3475-503:2004 complements the general test methods outlined in EN 3475-100, together providing a comprehensive approach to cable testing in aviation sectors.

Key Topics

• Purpose: Assess the resistance of cable insulation or jacket to mechanical scraping abrasion.
• Test Method:
  • Uses a specialized device that applies repeated scraping cycles with controlled load and frequency.
  • Specimens 750 mm long are taken from finished cables or insulated conductors.
• Apparatus Details:
  • Device includes a needle holder applying load parallel to the cable axis.
  • Movement cycle length is approximately 10 mm at about 55 cycles per minute.
  • Equipped with a current leakage detector to halt the test when the insulation fails.
• Test Conditions:
  • Performed at ambient temperature and the cable's maximum operating temperature.
  • Each specimen undergoes six tests with 100 mm movement and 90° turning between tests.
• Performance Criteria:
  • The insulation or jacket must withstand an average of at least 100 abrasion cycles.
  • Abrasion resistance is quantified by the number of cycles until complete wear-through occurs.

Applications

SIST EN 3475-503:2004 is vital for aerospace manufacturers, cable designers, and quality assurance teams to:

• Ensure Safety and Reliability
  Confirm that electrical aircraft cables withstand mechanical scraping without loss of insulation integrity, which could otherwise lead to electrical faults or hazards.

• Validate Material Performance
  Evaluate new cable materials or designs for abrasion durability to meet rigorous aerospace operational environments.

• Support Certification and Compliance
  Facilitate compliance with aerospace quality standards, ensuring procurement and manufacturing processes satisfy international regulations.

• Guide Product Development
  Inform engineering decisions regarding cable insulation and jacketing materials that enhance longevity and abrasion resistance.

Related Standards

• EN 3475-100: Aerospace series - Cables, electrical, aircraft use - Test methods - Part 100: General
  Provides the overarching framework and general testing conditions that EN 3475-503 references and must be used in conjunction.

• Other parts of EN 3475 Series
  Cover various test methods such as electrical, mechanical, and environmental performance to fully qualify aerospace cables.

• International Aerospace Standards
  Complementary standards by organizations such as SAE and ASTM that also address electrical cable performance, design, and testing.
