SIST EN 301 908-3 V7.1.1:2015

ETSI EN 301 908-3 V7.1.1 (2015-07)






HARMONISED EUROPEAN STANDARD
IMT cellular networks;
Harmonized EN covering the essential requirements
of article 3.2 of the R&TTE Directive;
Part 3: CDMA Direct Spread (UTRA FDD) Base Stations (BS)

---------------------- Page: 1 ----------------------

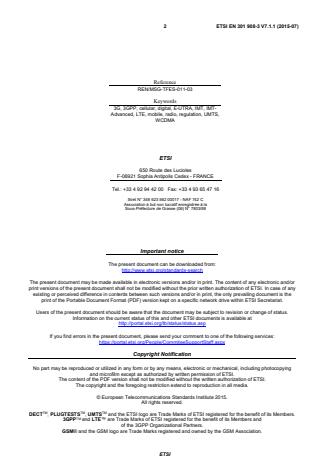

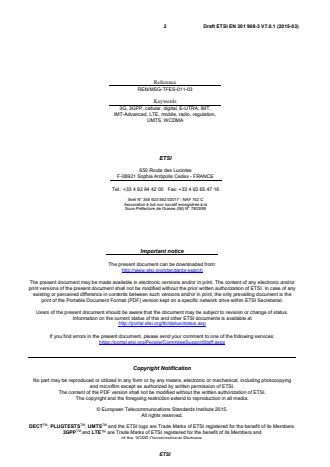

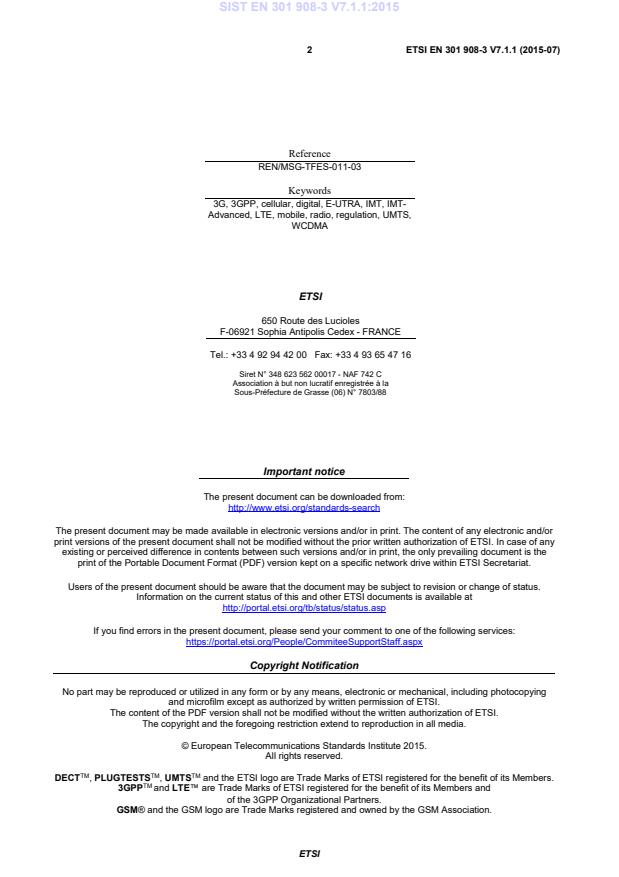

2 ETSI EN 301 908-3 V7.1.1 (2015-07)



Reference
REN/MSG-TFES-011-03
Keywords
3G, 3GPP, cellular, digital, E-UTRA, IMT, IMT-
Advanced, LTE, mobile, radio, regulation, UMTS,
WCDMA
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: +33 4 92 94 42 00  Fax: +33 4 93 65 47 16

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the only prevailing document is the
print of the Portable Document Format (PDF) version kept on a specific network drive within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying
and microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2015.
All rights reserved.

TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members.
TM
3GPP and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI

---------------------- Page: 2 ----------------------
3 ETSI EN 301 908-3 V7.1.1 (2015-07)
Contents
Intellectual Property Rights . 6
Foreword . 6
Modal verbs terminology . 6
Introduction . 6
1 Scope . 7
2 References . 7
2.1 Normative references . 7
2.2 Informative references . 8
3 Definitions, symbols and abbreviations . 9
3.1 Definitions . 9
3.2 Symbols . 11
3.3 Abbreviations . 12
4 Technical requirements specifications . 13
4.1 Environmental profile . 13
4.2 Conformance requirements . 13
4.2.1 Introduction. 13
4.2.2 Spectrum emissions mask . 16
4.2.2.1 Definition . 16
4.2.2.2 Limit . 16
4.2.2.3 Conformance . 22
4.2.3 Adjacent channel leakage power ratio (ACLR) . 23
4.2.3.1 Definition . 23
4.2.3.2 Limits . 23
4.2.3.3 Cumulative ACLR test requirement in non-contiguous spectrum or multiple-bands . 24
4.2.3.4 Conformance . 25
4.2.4 Transmitter spurious emis sions . 25
4.2.4.1 Definition . 25
4.2.4.2 Limits . 25
4.2.4.2.1 Spurious emissions . 25
4.2.4.2.2 Co-existence with other systems . 26
4.2.4.2.3 Co-existence with services in adjacent frequency bands . 27
4.2.4.2.4 Protection of the BS receiver of own or different BS . 27
4.2.4.2.5 Co-existence with Home BS operating in other bands . 29
4.2.4.3 Conformance . 29
4.2.5 Base Station maximum output power . 29
4.2.5.1 Definition . 29
4.2.5.2 Limit . 29
4.2.5.3 Conformance . 30
4.2.6 Transmitter intermodulation . 30
4.2.6.1 Definition . 30
4.2.6.2 Limit . 31
4.2.6.3 Conformance . 31
4.2.7 Receiver spurious emissions . 31
4.2.7.1 Definition . 31
4.2.7.2 Limit . 31
4.2.7.3 Conformance . 31
4.2.8 Blocking characteristics . 31
4.2.8.1 Definition . 31
4.2.8.2 Limit . 32
4.2.8.3 Conformance . 36
4.2.9 Receiver intermodulation characteristics . 36
4.2.9.1 Definition . 36
4.2.9.2 Limit . 36
4.2.9.3 Conformance . 38
ETSI

---------------------- Page: 3 ----------------------
4 ETSI EN 301 908-3 V7.1.1 (2015-07)
4.2.10 Receiver adjacent channel selectivity . 38
4.2.10.1 Definition . 38
4.2.10.2 Limit . 38
4.2.10.3 Conformance . 39
4.2.11 Home BS output power for adjacent channel protection . 39
4.2.11.1 Definition . 39
4.2.11.2 Limit . 39
4.2.11.3 Conformance . 40
5 Testing for compliance with technical requirements . 40
5.1 Environmental conditions for testing . 40
5.2 Interpretation of the measurement results . 40
5.3 Essential radio test suites . 42
5.3.0 Introduction. 42
5.3.1 Spectrum emission mask . 42
5.3.1.0 General . 42
5.3.1.1 Initial conditions . 42
5.3.1.2 Procedures . 42
5.3.2 Adjacent Channel Leakage power Ratio (ACLR) . 43
5.3.2.1 Initial conditions . 43
5.3.2.2 Procedure . 43
5.3.3 Transmitter spurious emis sions . 44
5.3.3.0 General . 44
5.3.3.1 Initial conditions . 44
5.3.3.2 Procedure . 44
5.3.4 Base Station maximum output power . 45
5.3.4.0 General . 45
5.3.4.1 Initial conditions . 45
5.3.4.2 Procedure . 45
5.3.5 Transmit intermodulation . 45
5.3.5.0 General . 45
5.3.5.1 Initial conditions . 45
5.3.5.2 Procedures . 46
5.3.6 Receiver spurious emissions . 46
5.3.6.0 General . 46
5.3.6.1 Initial conditions . 47
5.3.6.2 Procedure . 47
5.3.7 Blocking characteristics . 47
5.3.7.0 General . 47
5.3.7.1 Initial conditions . 47
5.3.7.2 Procedure . 48
5.3.8 Receiver intermodulation characteristics . 49
5.3.8.0 General . 49
5.3.8.1 Initial conditions . 49
5.3.8.2 Procedures . 49
5.3.9 Adjacent Channel Selectivity (ACS) . 50
5.3.9.0 General . 50
5.3.9.1 Initial conditions . 50
5.3.9.2 Procedure . 50
5.3.10 Home BS output power for adjacent channel protection . 50
5.3.10.1 Initial conditions . 50
5.3.10.2 Procedure . 51
Annex A (normative): HS Requirements and conformance Test specifications Table
(HS-RTT) . 52
Annex B (normative): Base Station configurations . 54
B.1 Receiver diversity . 54
B.2 Duplexers . 54
B.3 Power supply options . 54
ETSI

---------------------- Page: 4 ----------------------
5 ETSI EN 301 908-3 V7.1.1 (2015-07)
B.4 Ancillary RF amplifiers . 55
B.5 BS using antenna arrays . 55
B.5.0 Introduction . 55
B.5.1 Receiver tests . 56
B.5.2 Transmitter tests . 56
B.6 Transmit diversity and MIMO transmission . 56
B.7 BS with integrated Iuant BS modem . 57
Annex C (informative): Environmental profile specification . 58
Annex D: Void . 59
Annex E (informative): Bibliography . 60
History . 61

ETSI

---------------------- Page: 5 ----------------------
6 ETSI EN 301 908-3 V7.1.1 (2015-07)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://ipr.etsi.org).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Harmonised European Standard (EN) has been produced by ETSI Technical Committee Mobile Standards Group
(MSG).
The present document has been produced by ETSI in response to mandates M/284 and M/406 issued from the European
Commission under Directive 98/34/EC [i.1] as amended by Directive 98/48/EC [i.7].
The title and reference to the present document are intended to be included in the publication in the Official Journal of
the European Union of titles and references of Harmonized Standard under the Directive 1999/5/EC [i.2].
The requirements relevant to Directive 1999/5/EC [i.2] are summarized in annex A.
The present document is part 3 of a multi-part deliverable. Full details of the entire series can be found in part 1 [i.5].

National transposition dates
Date of adoption of this EN: 1 July 2015
Date of latest announcement of this EN (doa): 31 October 2015
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 30 April 2016
Date of withdrawal of any conflicting National Standard (dow): 30 April 2017

Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
Introduction
The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to
cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive [i.2]. The
modular structure is shown in ETSI EG 201 399 [i.3].
ETSI

---------------------- Page: 6 ----------------------
7 ETSI EN 301 908-3 V7.1.1 (2015-07)
1 Scope
The present document applies to the following {radio}{telecommunications terminal} equipment types:
1) Stations for IMT 2000 CDMA Direct Spread (UTRA FDD).
This radio equipment type is capable of operating in all or any part of the frequency bands given in table 1-1.
Table 1-1: UTRA FDD Base Station operating bands
UTRA FDD Direction of transmission UTRA FDD Base Station operating bands
band
I Transmit 2 110 MHz to 2 170 MHz
Receive 1 920 MHz to 1 980 MHz
III Transmit 1 805 MHz to 1 880 MHz
Receive 1 710 MHz to 1 785 MHz
VII Transmit 2 620 MHz to 2 690 MHz
Receive 2 500 MHz to 2 570 MHz
VIII Transmit 925 MHz to 960 MHz
Receive 880 MHz to 915 MHz
XV Transmit 2 600 MHz to 2 620 MHz
Receive 1 900 MHz to 1 920 MHz
XVI Transmit 2 585 MHz to 2 600 MHz
Receive 2 010 MHz to 2 025 MHz
XX Transmit 791 MHz to 821 MHz
Receive 832 MHz to 862 MHz
XXII Transmit 3 510 MHz to 3 590 MHz
Receive 3 410 MHz to 3 490 MHz
XXXII Transmit 1 452 MHz to 1 492 MHz
(see note)
Receive -
NOTE: The down link frequenc(ies) of this band are paired with the uplink frequenc(ies) of the other
FDD band (external) of the dual band configuration.

The present document covers requirements for UTRA FDD Base Stations for 3GPP Releases 99, 4, 5, 6, 7, 8, 9, 10 and
11. This includes the requirements for BS operating bands from 3GPP Release 12. In addition, the present document
covers requirements for UTRA FDD Base Stations in the operating bands specified in ETSI TS 102 735 [i.4].
The present document is intended to cover the provisions of Directive 1999/5/EC [i.2] (R&TTE Directive), Article 3.2,
which states that "…. radio equipment shall be so constructed that it effectively uses the spectrum allocated to
terrestrial/space radio communications and orbital resources so as to avoid harmful interference".
In addition to the present document, other ENs that specify technical requirements in respect of essential requirements
under other parts of article 3 of the R&TTE Directive may apply to equipment within the scope of the present
document.
NOTE: A list of such ENs is included on the web site http://www.newapproach.org.
2 References
2.1 Normative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
ETSI

---------------------- Page: 7 ----------------------
8 ETSI EN 301 908-3 V7.1.1 (2015-07)
The following referenced documents are necessary for the application of the present document.
[1] Void.
[2] ETSI TS 125 141 (V11.10.0) (01-2015): "Universal Mobile Telecommunications System (UMTS);
Base Station (BS) conformance testing (FDD) (3GPP TS 25.141 version 11.10.0 Release 11)".
[3] Recommendation ITU-R SM.329-12 (09-2012): "Unwanted emissions in the spurious domain".
[4] Recommendation ITU-T O.153 (10-1992): "Basic parameters for the measurement of error
performance at bit rates below the primary rate".
[5] ETSI TS 136 104 (V11.11.0) (01-2015): "LTE; Evolved Universal Terrestrial Radio Access
(E-UTRA); Base Station (BS) radio transmission and reception (3GPP TS 36.104 version 11.11.0
Release 11)".
[6] ETSI TS 145 004 (V11.0.0) (10-2012): "Digital cellular telecommunications system (Phase 2+);
Modulation (3GPP TS 45.004 version 11.0.0 Release 11)".
[7] Void.
[8] Void.
[9] ETSI TS 125 104 (V11.10.0) (01-2015): "Universal Mobile Telecommunications System (UMTS);
Base Station (BS) radio transmission and reception (FDD) (3GPP TS 25.104 version 11.10.0
Release 11)".
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] Directive 98/34/EC of the European Parliament and of the Council of 22 June 1998 laying down a
procedure for the provision of information in the field of technical standards and regulations.
[i.2] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio
equipment and telecommunicatio
...

Draft ETSI EN 301 908-3 V7.0.1 (2015-03)






HARMONIZED EUROPEAN STANDARD
IMT cellular networks;
Harmonized EN covering the essential requirements
of article 3.2 of the R&TTE Directive;
Part 3: CDMA Direct Spread (UTRA FDD) Base Stations (BS)

---------------------- Page: 1 ----------------------
2 Draft ETSI EN 301 908-3 V7.0.1 (2015-03)



Reference
REN/MSG-TFES-011-03
Keywords
3G, 3GPP, cellular, digital, E-UTRA, IMT,
IMT-Advanced, LTE, mobile, radio, regulation,
UMTS, WCDMA
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: +33 4 92 94 42 00  Fax: +33 4 93 65 47 16

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the only prevailing document is the
print of the Portable Document Format (PDF) version kept on a specific network drive within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx

Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying
and microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2015.
All rights reserved.

TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members.
TM
3GPP and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
ETSI

---------------------- Page: 2 ----------------------
3 Draft ETSI EN 301 908-3 V7.0.1 (2015-03)
Contents
Intellectual Property Rights . 6
Foreword . 6
Modal verbs terminology . 6
Introduction . 6
1 Scope . 7
2 References . 7
2.1 Normative references . 7
2.2 Informative references . 8
3 Definitions, symbols and abbreviations . 9
3.1 Definitions . 9
3.2 Symbols . 11
3.3 Abbreviations . 12
4 Technical requirements specifications . 13
4.1 Environmental profile . 13
4.2 Conformance requirements . 13
4.2.1 Introduction. 13
4.2.2 Spectrum emissions mask . 16
4.2.2.1 Definition . 16
4.2.2.2 Limit . 16
4.2.2.3 Conformance . 23
4.2.3 Adjacent channel leakage power ratio (ACLR) . 24
4.2.3.1 Definition . 24
4.2.3.2 Limits . 24
4.2.3.3 Cumulative ACLR test requirement in non-contiguous spectrum or multiple-bands . 25
4.2.3.4 Conformance . 26
4.2.4 Transmitter spurious emis sions . 26
4.2.4.1 Definition . 26
4.2.4.2 Limits . 26
4.2.4.2.1 Spurious emissions . 26
4.2.4.2.2 Co-existence with other systems . 27
4.2.4.2.3 Co-existence with services in adjacent frequency bands . 28
4.2.4.2.4 Protection of the BS receiver of own or different BS . 28
4.2.4.2.5 Co-existence with Home BS operating in other bands . 30
4.2.4.3 Conformance . 30
4.2.5 Base Station maximum output power . 30
4.2.5.1 Definition . 30
4.2.5.2 Limit . 30
4.2.5.3 Conformance . 31
4.2.6 Transmitter intermodulation . 31
4.2.6.1 Definition . 31
4.2.6.2 Limit . 32
4.2.6.3 Conformance . 32
4.2.7 Receiver spurious emissions . 32
4.2.7.1 Definition . 32
4.2.7.2 Limit . 32
4.2.7.3 Conformance . 32
4.2.8 Blocking characteristics . 33
4.2.8.1 Definition . 33
4.2.8.2 Limit . 33
4.2.8.3 Conformance . 37
4.2.9 Receiver intermodulation characteristics . 37
4.2.9.1 Definition . 37
4.2.9.2 Limit . 38
4.2.9.3 Conformance . 39
ETSI

---------------------- Page: 3 ----------------------
4 Draft ETSI EN 301 908-3 V7.0.1 (2015-03)
4.2.10 Receiver adjacent channel selectivity . 39
4.2.10.1 Definition . 39
4.2.10.2 Limit . 39
4.2.10.3 Conformance . 40
4.2.11 Home BS output power for adjacent channel protection . 40
4.2.11.1 Definition . 40
4.2.11.2 Limit . 40
4.2.11.3 Conformance . 41
5 Testing for compliance with technical requirements . 41
5.1 Environmental conditions for testing . 41
5.2 Interpretation of the measurement results . 41
5.3 Essential radio test suites . 43
5.3.0 Introduction. 43
5.3.1 Spectrum emission mask . 43
5.3.1.0 General . 43
5.3.1.1 Initial conditions . 43
5.3.1.2 Procedures . 44
5.3.2 Adjacent Channel Leakage power Ratio (ACLR) . 44
5.3.2.1 Initial conditions . 44
5.3.2.2 Procedure . 45
5.3.3 Transmitter spurious emis sions . 45
5.3.3.0 General . 45
5.3.3.1 Initial conditions . 45
5.3.3.2 Procedure . 46
5.3.4 Base Station maximum output power . 46
5.3.4.0 General . 46
5.3.4.1 Initial conditions . 46
5.3.4.2 Procedure . 46
5.3.5 Transmit intermodulation . 47
5.3.5.0 General . 47
5.3.5.1 Initial conditions . 47
5.3.5.2 Procedures . 47
5.3.6 Receiver spurious emissions . 48
5.3.6.0 General . 48
5.3.6.1 Initial conditions . 48
5.3.6.2 Procedure . 48
5.3.7 Blocking characteristics . 49
5.3.7.0 General . 49
5.3.7.1 Initial conditions . 49
5.3.7.2 Procedure . 50
5.3.8 Receiver intermodulation characteristics . 50
5.3.8.0 General . 50
5.3.8.1 Initial conditions . 50
5.3.8.2 Procedures . 50
5.3.9 Adjacent Channel Selectivity (ACS) . 51
5.3.9.0 General . 51
5.3.9.1 Initial conditions . 51
5.3.9.2 Procedure . 51
5.3.10 Home BS output power for adjacent channel protection . 52
5.3.10.1 Initial conditions . 52
5.3.10.2 Procedure . 52
Annex A (normative): HS Requirements and conformance Test specifications Table
(HS-RTT) . 54
Annex B (normative): Base Station configurations . 56
B.1 Receiver diversity . 56
B.2 Duplexers . 56
B.3 Power supply options . 56
ETSI

---------------------- Page: 4 ----------------------
5 Draft ETSI EN 301 908-3 V7.0.1 (2015-03)
B.4 Ancillary RF amplifiers . 57
B.5 BS using antenna arrays . 57
B.5.0 Introduction . 57
B.5.1 Receiver tests . 58
B.5.2 Transmitter tests . 58
B.6 Transmit diversity and MIMO transmission . 58
B.7 BS with integrated Iuant BS modem . 59
Annex C (informative): Environmental profile specification . 60
Annex D: Void . 61
Annex E (informative): Bibliography . 62
History . 63

ETSI

---------------------- Page: 5 ----------------------
6 Draft ETSI EN 301 908-3 V7.0.1 (2015-03)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://ipr.etsi.org).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This draft Harmonized European Standard (EN) has been produced by ETSI Technical Committee Mobile Standards
Group (MSG), and is now submitted for the combined Public Enquiry and Vote phase of the ETSI standards EN
Approval Procedure.
The present document has been produced by ETSI in response to mandates M/284 and M/406 issued from the European
Commission under Directive 98/34/EC [i.1] as amended by Directive 98/48/EC [i.7].
The title and reference to the present document are intended to be included in the publication in the Official Journal of
the European Union of titles and references of Harmonized Standard under the Directive 1999/5/EC [i.2].
The requirements relevant to Directive 1999/5/EC [i.2] are summarized in annex A.
The present document is part 3 of a multi-part deliverable. Full details of the entire series can be found in part 1 [i.5].

Proposed national transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa
Date of withdrawal of any conflicting National Standard (dow): 18 months after doa

Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
Introduction
The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to
cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive [i.2]. The
modular structure is shown in ETSI EG 201 399 [i.3].
ETSI

---------------------- Page: 6 ----------------------
7 Draft ETSI EN 301 908-3 V7.0.1 (2015-03)
1 Scope
The present document applies to the following {radio}{telecommunications terminal} equipment types:
1) Stations for IMT 2000 CDMA Direct Spread (UTRA FDD).
This radio equipment type is capable of operating in all or any part of the frequency bands given in table 1-1.
Table 1-1: UTRA FDD Base Station operating bands
UTRA FDD Direction of transmission UTRA FDD Base Station operating bands
band
I Transmit 2 110 MHz to 2 170 MHz
Receive 1 920 MHz to 1 980 MHz
III Transmit 1 805 MHz to 1 880 MHz
Receive 1 710 MHz to 1 785 MHz
VII Transmit 2 620 MHz to 2 690 MHz
Receive 2 500 MHz to 2 570 MHz
VIII Transmit 925 MHz to 960 MHz
Receive 880 MHz to 915 MHz
XV Transmit 2 600 MHz to 2 620 MHz
Receive 1 900 MHz to 1 920 MHz
XVI Transmit 2 585 MHz to 2 600 MHz
Receive 2 010 MHz to 2 025 MHz
XX Transmit 791 MHz to 821 MHz
Receive 832 MHz to 862 MHz
XXII Transmit 3 510 MHz to 3 590 MHz
Receive 3 410 MHz to 3 490 MHz
XXXII Transmit 1 452 MHz to 1 492 MHz
(see note)
Receive -
NOTE: The down link frequenc(ies) of this band are paired with the uplink frequenc(ies) of the other
FDD band (external) of the dual band configuration.

The present document covers requirements for UTRA FDD Base Stations for 3GPP Releases 99, 4, 5, 6, 7, 8, 9, 10 and
11. This includes the requirements for BS operating bands from 3GPP Release 12. In addition, the present document
covers requirements for UTRA FDD Base Stations in the operating bands specified in ETSI TS 102 735 [i.4].
The present document is intended to cover the provisions of Directive 1999/5/EC [i.2] (R&TTE Directive), Article 3.2,
which states that "…. radio equipment shall be so constructed that it effectively uses the spectrum allocated to
terrestrial/space radio communications and orbital resources so as to avoid harmful interference".
In addition to the present document, other ENs that specify technical requirements in respect of essential requirements
under other parts of article 3 of the R&TTE Directive may apply to equipment within the scope of the present
document.
NOTE: A list of such ENs is included on the web site http://www.newapproach.org.
2 References
2.1 Normative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
ETSI

---------------------- Page: 7 ----------------------
8 Draft ETSI EN 301 908-3 V7.0.1 (2015-03)
The following referenced documents are necessary for the application of the present document.
[1] Void.
[2] ETSI TS 125 141 (V11.10.0) (01-2015): "Universal Mobile Telecommunications System (UMTS);
Base Station (BS) conformance testing (FDD) (3GPP TS 25.141 version 11.10.0 Release 11)".
[3] Recommendation ITU-R SM.329-12 (09-2012): "Unwanted emissions in the spurious domain".
[4] Recommendation ITU-T O.153 (10-1992): "Basic parameters for the measurement of error
performance at bit rates below the primary rate".
[5] ETSI TS 136 104 (V11.11.0) (01-2015): "LTE; Evolved Universal Terrestrial Radio Access
(E-UTRA); Base Station (BS) radio transmission and reception (3GPP TS 36.104 version 11.11.0
Release 11)".
[6] ETSI TS 145 004 (V11.0.0) (10-2012): "Digital cellular telecommunications system (Phase 2+);
Modulation (3GPP TS 45.004 version 11.0.0 Release 11)".
[7] Void.
[8] Void.
[9] ETSI TS 125 104 (V11.10.0) (01-2015): "Universal Mobile Telecommunications System (UMTS);
Base Station (BS) radio transmission and reception (FDD) (3GPP TS 25.104 version 11.10.0
Release 11)".
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] Directive 98/34/EC of the European Parliament and of the Council of 22 June 1998 laying down a
procedure for the provision of information in the field of technical standards and regulations.
[i.2] Directive 1999/5/EC of the European Parliament an
...

Draft ETSI EN 301 908-3 V6.4.2 (2015-01)






HARMONIZED EUROPEAN STANDARD
IMT cellular networks;
Harmonized EN covering the essential requirements
of article 3.2 of the R&TTE Directive;
Part 3: CDMA Direct Spread (UTRA FDD) Base Stations (BS)

---------------------- Page: 1 ----------------------
2 Draft ETSI EN 301 908-3 V6.4.2 (2015-01)



Reference
REN/MSG-TFES-011-03
Keywords
3G, 3GPP, cellular, digital, E-UTRA, IMT,
IMT-Advanced, LTE, mobile, radio, regulation,
UMTS, WCDMA
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: +33 4 92 94 42 00  Fax: +33 4 93 65 47 16

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
The present document can be downloaded from:
http://www.etsi.org
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the only prevailing document is the
print of the Portable Document Format (PDF) version kept on a specific network drive within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying
and microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2015.
All rights reserved.

TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members.
TM
3GPP and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI

---------------------- Page: 2 ----------------------
3 Draft ETSI EN 301 908-3 V6.4.2 (2015-01)
Contents
Intellectual Property Rights . 6
Foreword . 6
Modal verbs terminology . 6
Introduction . 6
1 Scope . 7
2 References . 7
2.1 Normative references . 7
2.2 Informative references . 8
3 Definitions, symbols and abbreviations . 9
3.1 Definitions . 9
3.2 Symbols . 11
3.3 Abbreviations . 12
4 Technical requirements specifications . 13
4.1 Environmental profile . 13
4.2 Conformance requirements . 13
4.2.1 Introduction. 13
4.2.2 Spectrum emissions mask . 16
4.2.2.1 Definition . 16
4.2.2.2 Limit . 16
4.2.2.3 Conformance . 23
4.2.3 Adjacent channel leakage power ratio (ACLR) . 24
4.2.3.1 Definition . 24
4.2.3.2 Limits . 24
4.2.3.3 Cumulative ACLR test requirement in non-contiguous spectrum or multiple-bands . 25
4.2.3.4 Conformance . 26
4.2.4 Transmitter spurious emis sions . 26
4.2.4.1 Definition . 26
4.2.4.2 Limits . 26
4.2.4.2.1 Spurious emissions . 26
4.2.4.2.2 Co-existence with other systems . 27
4.2.4.2.3 Co-existence with services in adjacent frequency bands . 28
4.2.4.2.4 Protection of the BS receiver of own or different BS . 28
4.2.4.2.5 Co-existence with Home BS operating in other bands . 30
4.2.4.3 Conformance . 30
4.2.5 Base Station maximum output power . 30
4.2.5.1 Definition . 30
4.2.5.2 Limit . 30
4.2.5.3 Conformance . 31
4.2.6 Transmitter intermodulation . 31
4.2.6.1 Definition . 31
4.2.6.2 Limit . 32
4.2.6.3 Conformance . 32
4.2.7 Receiver spurious emissions . 32
4.2.7.1 Definition . 32
4.2.7.2 Limit . 32
4.2.7.3 Conformance . 32
4.2.8 Blocking characteristics . 33
4.2.8.1 Definition . 33
4.2.8.2 Limit . 33
4.2.8.3 Conformance . 37
4.2.9 Receiver intermodulation characteristics . 37
4.2.9.1 Definition . 37
4.2.9.2 Limit . 38
ETSI

---------------------- Page: 3 ----------------------
4 Draft ETSI EN 301 908-3 V6.4.2 (2015-01)
4.2.9.3 Conformance . 39
4.2.10 Receiver adjacent channel selectivity . 39
4.2.10.1 Definition . 39
4.2.10.2 Limit . 39
4.2.10.3 Conformance . 40
4.2.11 Home BS output power for adjacent channel protection . 40
4.2.11.1 Definition . 40
4.2.11.2 Limit . 40
4.2.11.3 Conformance . 41
5 Testing for compliance with technical requirements . 41
5.1 Environmental conditions for testing . 41
5.2 Interpretation of the measurement results . 41
5.3 Essential radio test suites . 43
5.3.0 Introduction. 43
5.3.1 Spectrum emission mask . 43
5.3.1.0 General . 43
5.3.1.1 Initial conditions . 43
5.3.1.2 Procedures . 44
5.3.2 Adjacent Channel Leakage power Ratio (ACLR) . 44
5.3.2.1 Initial conditions . 44
5.3.2.2 Procedure . 45
5.3.3 Transmitter spurious emis sions . 45
5.3.3.0 General . 45
5.3.3.1 Initial conditions . 45
5.3.3.2 Procedure . 46
5.3.4 Base Station maximum output power . 46
5.3.4.0 General . 46
5.3.4.1 Initial conditions . 46
5.3.4.2 Procedure . 46
5.3.5 Transmit intermodulation . 47
5.3.5.0 General . 47
5.3.5.1 Initial conditions . 47
5.3.5.2 Procedures . 47
5.3.6 Receiver spurious emissions . 48
5.3.6.0 General . 48
5.3.6.1 Initial conditions . 48
5.3.6.2 Procedure . 48
5.3.7 Blocking characteristics . 49
5.3.7.0 General . 49
5.3.7.1 Initial conditions . 49
5.3.7.2 Procedure . 50
5.3.8 Receiver intermodulation characteristics . 50
5.3.8.0 General . 50
5.3.8.1 Initial conditions . 50
5.3.8.2 Procedures . 50
5.3.9 Adjacent Channel Selectivity (ACS) . 51
5.3.9.0 General . 51
5.3.9.1 Initial conditions . 51
5.3.9.2 Procedure . 51
5.3.10 Home BS output power for adjacent channel protection . 52
5.3.10.1 Initial conditions . 52
5.3.10.2 Procedure . 52
Annex A (normative): HS Requirements and conformance Test specifications Table
(HS-RTT) . 54
Annex B (normative): Base Station configurations . 56
B.1 Receiver diversity . 56
B.2 Duplexers . 56
ETSI

---------------------- Page: 4 ----------------------
5 Draft ETSI EN 301 908-3 V6.4.2 (2015-01)
B.3 Power supply options . 56
B.4 Ancillary RF amplifiers . 57
B.5 BS using antenna arrays . 57
B.5.0 Introduction . 57
B.5.1 Receiver tests . 58
B.5.2 Transmitter tests . 58
B.6 Transmit diversity and MIMO transmission . 58
B.7 BS with integrated Iuant BS modem . 59
Annex C (informative): Environmental profile specification . 60
Annex D: Void . 61
Annex E (informative): Bibliography . 62
History . 63

ETSI

---------------------- Page: 5 ----------------------
6 Draft ETSI EN 301 908-3 V6.4.2 (2015-01)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://ipr.etsi.org).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This draft Harmonized European Standard (EN) has been produced by ETSI Technical Committee Mobile Standards
Group (MSG), and is now submitted for the combined Public Enquiry and Vote phase of the ETSI standards EN
Approval Procedure.
The present document has been produced by ETSI in response to mandates M/284 and M/406 issued from the European
Commission under Directive 98/34/EC [i.1] as amended by Directive 98/48/EC [i.7].
The title and reference to the present document are intended to be included in the publication in the Official Journal of
the European Union of titles and references of Harmonized Standard under the Directive 1999/5/EC [i.2].
The requirements relevant to Directive 1999/5/EC [i.2] are summarized in annex A.
The present document is part 3 of a multi-part deliverable. Full details of the entire series can be found in part 1 [i.5].

Proposed national transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa
Date of withdrawal of any conflicting National Standard (dow): 18 months after doa

Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "may not", "need", "need not", "will",
"will not", "can" and "cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms
for the expression of provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
Introduction
The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to
cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive [i.2]. The
modular structure is shown in ETSI EG 201 399 [i.3].
ETSI

---------------------- Page: 6 ----------------------
7 Draft ETSI EN 301 908-3 V6.4.2 (2015-01)
1 Scope
The present document applies to the following {radio}{telecommunications terminal} equipment types:
1) Stations for IMT 2000 CDMA Direct Spread (UTRA FDD).
This radio equipment type is capable of operating in all or any part of the frequency bands given in table 1-1.
Table 1-1: UTRA FDD Base Station operating bands
UTRA FDD Direction of transmission UTRA FDD Base Station operating bands
band
I Transmit 2 110 MHz to 2 170 MHz
Receive 1 920 MHz to 1 980 MHz
III Transmit 1 805 MHz to 1 880 MHz
Receive 1 710 MHz to 1 785 MHz
VII Transmit 2 620 MHz to 2 690 MHz
Receive 2 500 MHz to 2 570 MHz
VIII Transmit 925 MHz to 960 MHz
Receive 880 MHz to 915 MHz
XV Transmit 2 600 MHz to 2 620 MHz
Receive 1 900 MHz to 1 920 MHz
XVI Transmit 2 585 MHz to 2 600 MHz
Receive 2 010 MHz to 2 025 MHz
XX Transmit 791 MHz to 821 MHz
Receive 832 MHz to 862 MHz
XXII Transmit 3 510 MHz to 3 590 MHz
Receive 3 410 MHz to 3 490 MHz
XXXII Transmit 1 452 MHz to 1 492 MHz
(see note)
Receive -
NOTE: The down link frequenc(ies) of this band are paired with the uplink frequenc(ies) of the other
FDD band (external) of the dual band configuration.

The present document covers requirements for UTRA FDD Base Stations for 3GPP Releases 99, 4, 5, 6, 7, 8, 9, 10 and
11. This includes the requirements for BS operating bands from 3GPP Release 12. In addition, the present document
covers requirements for UTRA FDD Base Stations in the operating bands specified in ETSI TS 102 735 [i.4].
The present document is intended to cover the provisions of Directive 1999/5/EC [i.2] (R&TTE Directive), Article 3.2,
which states that "…. radio equipment shall be so constructed that it effectively uses the spectrum allocated to
terrestrial/space radio communications and orbital resources so as to avoid harmful interference".
In addition to the present document, other ENs that specify technical requirements in respect of essential requirements
under other parts of article 3 of the R&TTE Directive may apply to equipment within the scope of the present
document.
NOTE: A list of such ENs is included on the web site http://www.newapproach.org.
2 References
2.1 Normative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
ETSI

---------------------- Page: 7 ----------------------
8 Draft ETSI EN 301 908-3 V6.4.2 (2015-01)
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are necessary for the application of the present document.
[1] Void.
[2] ETSI TS 125 141 (V11.10.0) (01-2015): "Universal Mobile Telecommunications System (UMTS);
Base Station (BS) conformance testing (FDD) (3GPP TS 25.141 version 11.10.0 Release 11)".
[3] Recommendation ITU-R SM.329-12 (09-2012): "Unwanted emissions in the spurious domain".
[4] Recommendation ITU-T O.153 (10-1992): "Basic parameters for the measurement of error
performance at bit rates below the primary rate".
[5] ETSI TS 136 104 (V11.11.0) (01-2015): "LTE; Evolved Universal Terrestrial Radio Access
(E-UTRA); Base Station (BS) radio transmission and reception (3GPP TS 36.104 version 11.11.0
Release 11)".
[6] ETSI TS 145 004 (V11.0.0) (10-2012): "Digital cellular telecommunications system (Phase 2+);
Modulation (3GPP TS 45.004 version 11.0.0 Release 11)".
[7] Void.
[8] Void.
[9] ETSI TS 125 104 (V11.10.0) (01-2015): "Universal Mobile Telecommunications System (UMTS);
Base Station (BS) radio transmission and reception (FDD) (3GPP TS 25.104 version 11.10.0
Release 11)".
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] Directive 98/34/EC of the European Parliament and of the Council of 22 June 1998 laying down a
procedure for the provision of information in the field of technical standar
...
