Aerospace series - Rivets, solid, 100° normal countersunk head, in aluminium 1050A, inch based series

This standard specifies the characteristics of solid rivets, with 100° normal countersunk head, inch based series, in aluminium, for maximum operating temperature 120 °C

Luft- und Raumfahrt - Vollniete, mit 100° normalem Senkkopf, aus Aluminium 1050A, Inch-Reihe

Série aérospatiale - Rivets ordinaires, a tete fraisée 100° normale, en aluminium 1050A, série base inches

Aerospace series - Rivets, solid, 100° normal countersunk head, in aluminium 1050A, inch based series

General Information

Status
Published
Publication Date
31-Dec-2000
ICS
49.025.20 - Aluminium

49.030.60 - Rivets
Technical Committee
SS SPL - Technical Board for the general field
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
01-Jan-2001
Due Date
01-Jan-2001
Completion Date
01-Jan-2001
Directive
TRRTP244 - Pravilnik o energijskem označevanju gospodinjskih klimatskih naprav
Ref Project
EN 2550:1992 - Aerospace series - Rivets, solid, 100° normal countersunk head, in aluminium 1050A, inch based series

Overview

EN 2550:1992 - Aerospace series - specifies the characteristics of solid rivets with a 100° normal countersunk head, manufactured in aluminium 1050A, presented in an inch based series. Published by CEN, this aerospace standard defines the basic requirements for rivets intended for applications where a flush, countersunk finish is required and where the maximum operating temperature does not exceed 120 °C.

Key topics and requirements

The standard focuses on the essential characteristics needed to ensure interchangeability and reliable performance in aerospace use:

  • Head geometry: 100° normal countersunk head for flush installation and aerodynamic surfaces.
  • Material: Aluminium 1050A (commercially-pure aluminium grade specified by the standard).
  • Dimensional series: Inch-based sizes and tolerances to match legacy and imperial-design assemblies.
  • Temperature rating: Maximum continuous operating temperature limited to 120 °C.
  • Characteristic definition: Specifies the rivet characteristics (dimensions, material designation and intended use) required for procurement and specification in aerospace manufacturing and maintenance.

(Note: EN 2550 defines the characteristics - detailed tests, exact dimensions or mechanical property values should be verified in the full published standard.)

Applications

EN 2550 rivets are used where a flush surface and lightweight fastening are required under moderate temperature conditions:

  • Aircraft structural assemblies requiring countersunk, flush fastenings (skins, fairings, control surfaces).
  • Aerospace interior and secondary structural components where aluminium fasteners are suitable.
  • Maintenance, repair and overhaul (MRO) operations needing inch-based rivet sizes and compatible material.
  • Fastener suppliers and procurement teams specifying aluminium countersunk rivets for aerospace use.

Who uses this standard

  • Aerospace design and structural engineers selecting rivet types for assemblies.
  • Procurement and quality managers specifying compliant fasteners.
  • MRO technicians and inspectors ensuring parts meet required characteristics.
  • Fastener manufacturers and distributors producing or supplying inch-based aluminium rivets.

Related standards

  • Other EN aerospace fastener standards covering different rivet head forms, materials and metric series.
  • Aluminium material specifications that define composition and properties for aluminium 1050A.
  • Regulatory and certification guidance (airworthiness authorities) for fasteners and repairs.

EN 2550 is essential when specifying solid, 100° countersunk aluminium rivets in inch sizes for aerospace applications where temperatures remain at or below 120 °C.

Frequently Asked Questions

SIST EN 2550:2001 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Aerospace series - Rivets, solid, 100° normal countersunk head, in aluminium 1050A, inch based series". This standard covers: This standard specifies the characteristics of solid rivets, with 100° normal countersunk head, inch based series, in aluminium, for maximum operating temperature 120 °C

This standard specifies the characteristics of solid rivets, with 100° normal countersunk head, inch based series, in aluminium, for maximum operating temperature 120 °C

SIST EN 2550:2001 is classified under the following ICS (International Classification for Standards) categories: 49.025.20 - Aluminium; 49.030.60 - Rivets. The ICS classification helps identify the subject area and facilitates finding related standards.

SIST EN 2550:2001 is associated with the following European legislation: EU Directives/Regulations: TRRTP244. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.

SIST EN 2550:2001 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

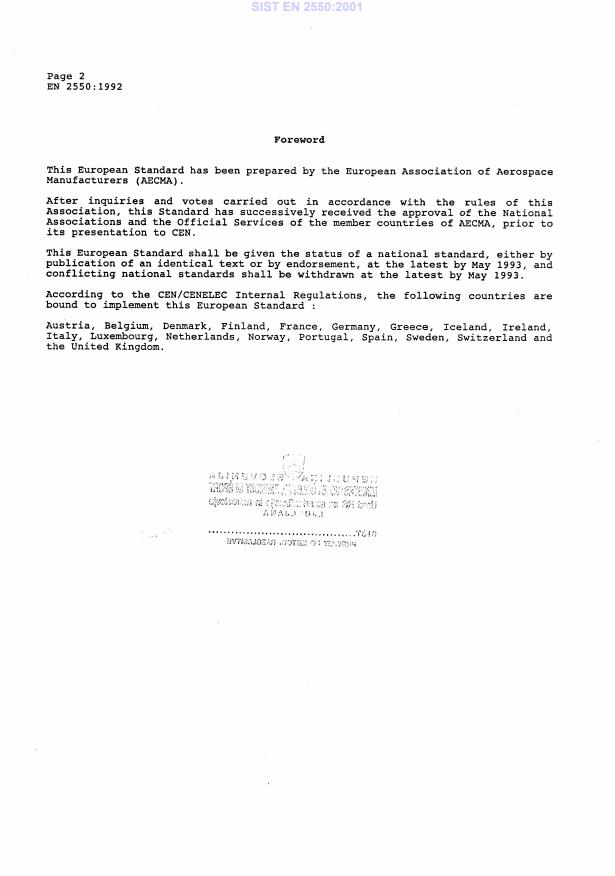

Standards Content (Sample)


2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Aerospace series - Rivets, solid, 100° normal countersunk head, in aluminium 1050A, inch based seriesLuft- und Raumfahrt - Vollniete, mit 100° normalem Senkkopf, aus Aluminium 1050A, Inch-ReiheSérie aérospatiale - Rivets ordinaires, a tete fraisée 100° normale, en aluminium 1050A, série base inchesAero
...
