SIST EN 1844:2013
(Main)Flexible sheets for waterproofing - Determination of resistance to ozone - Plastic and rubber sheets for roof waterproofing
Flexible sheets for waterproofing - Determination of resistance to ozone - Plastic and rubber sheets for roof waterproofing
This European Standard specifies a method for the determination of the resistance of plastic and rubber sheets for waterproofing to cracking when exposed, under static tensile strain, to air containing a definite concentration of ozone and at a definite temperature without the effects of direct light.
Abdichtungsbahnen - Verhalten bei Ozonbeanspruchung - Kunststoff- und Elastomerbahnen für Dachabdichtungen
Diese Europäische Norm legt ein Verfahren zur Bestimmung des Widerstandes von Abdichtungsbahnen aus Kunststoffen und Elastomeren gegen Rissbildung fest, wenn sie unter statischer Zugbelastung der Luft mit festgelegter Ozonkonzentration und bei festgelegter Temperatur und ohne direkte Lichteinwirkung ausgesetzt werden.
Feuilles souples d'étanchéité - Détermination de la résistance à l'ozone - Feuilles d'étanchéité de toiture plastiques et élastomères
La présente Norme européenne spécifie une méthode de détermination de la résistance à l'apparition de craquelage sur les feuilles d’étanchéité de toiture plastiques et élastomères lorsque celles-ci sont exposées, sous contrainte de traction statique, à de l’air contenant une concentration donnée d’ozone, à une température donnée et à l’abri de la lumière directe.
Hidroizolacijski trakovi - Ugotavljanje odpornosti proti ozonu - Polimerni in elastomerni trakovi za tesnjenje streh
Ta evropski standard določa metodo za ugotavljanje odpornosti polimernih in elastomernih trakov za tesnjenje proti pokanju ob izpostavitvi zraku, ki vsebuje določeno koncentracijo ozona, pod statično natezno obremenitvijo in pri določeni temperaturi, brez učinkov neposredne sončne svetlobe.
General Information
- Status
- Published
- Public Enquiry End Date
- 14-Jan-2013
- Publication Date
- 01-Aug-2013
- Technical Committee
- VLA - Water proofing
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 11-Jun-2013
- Due Date
- 16-Aug-2013
- Completion Date
- 02-Aug-2013
- Directive
- 89/106/EEC - Construction products
Relations
- Effective Date
- 01-Sep-2013
Overview
EN 1844:2013 - produced by CEN - specifies a laboratory method to determine the resistance of plastic and rubber flexible sheets for roof waterproofing to ozone-induced cracking. The test evaluates whether waterproofing membranes develop cracks when exposed, under static tensile strain, to a controlled ozone atmosphere and temperature, with direct light excluded. EN 1844:2013 supersedes EN 1844:2001 and includes a technical correction to the ozone concentration used in testing.
Key topics and technical requirements
- Scope: Assessment of cracking of polymeric and elastomeric roofing sheets (as manufactured or supplied), not installed membrane systems.
- Sampling: Follow EN 13416 for representative sampling of sheets.
- Test specimens: Strips (≥10 mm wide; ≥40 mm length between grips); surface must be undamaged; at least three specimens per test.
- Conditioning
- Unstrained: minimum 16 h after manufacture before straining (with specified upper limits for some test types).
- Strained: 48–96 h in ozone‑free dark at (23 ± 2) °C after stretching.
- Test conditions
- Ozone concentration: (200 ± 20) pphm (note guidance on expressing ozone as partial pressure per ISO 1431‑1).
- Temperature: (40 ± 2) °C.
- Relative humidity: (65 ± 5) %.
- Exposure time: (168 ± 2) h (one week).
- Elongation: (20 ± 2) % static strain.
- Apparatus: In accordance with ISO 1431‑1; ozone chamber must allow control of relative humidity and temperature.
- Result reporting: Simple outcome - “no cracking” or “cracking”. Test report must reference EN 1844 and include specimen prep, number tested, air flow, whether cracking occurred, dates, and other test particulars.
- Precision: No precision data provided in this revision.
Practical applications and users
- Manufacturers of plastic and rubber roofing membranes use EN 1844:2013 to verify material resistance to ozone and to support product data sheets.
- Independent testing laboratories and quality control departments adopt the method for type testing and production checks.
- Roof system specifiers, architects, consultants and building owners rely on results to select materials for ozone-exposed installations (urban/industrial environments).
- Regulatory bodies and certification schemes can reference EN 1844 when setting durability or conformity requirements for roofing membranes.
Related standards
- EN 13416 - Sampling rules for roof waterproofing sheets.
- ISO 1431‑1 - Ozone resistance testing (static/dynamic strain).
- ISO 23529 - Conditioning of rubber test pieces.
Keywords: EN 1844:2013, ozone resistance, flexible sheets for waterproofing, roof waterproofing, plastic and rubber sheets, ozone cracking test, CEN.
Frequently Asked Questions
SIST EN 1844:2013 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Flexible sheets for waterproofing - Determination of resistance to ozone - Plastic and rubber sheets for roof waterproofing". This standard covers: This European Standard specifies a method for the determination of the resistance of plastic and rubber sheets for waterproofing to cracking when exposed, under static tensile strain, to air containing a definite concentration of ozone and at a definite temperature without the effects of direct light.
This European Standard specifies a method for the determination of the resistance of plastic and rubber sheets for waterproofing to cracking when exposed, under static tensile strain, to air containing a definite concentration of ozone and at a definite temperature without the effects of direct light.
SIST EN 1844:2013 is classified under the following ICS (International Classification for Standards) categories: 91.060.20 - Roofs; 91.100.50 - Binders. Sealing materials. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN 1844:2013 has the following relationships with other standards: It is inter standard links to SIST EN 1844:2001. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
SIST EN 1844:2013 is associated with the following European legislation: EU Directives/Regulations: 305/2011, 89/106/EEC; Standardization Mandates: M/102. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
You can purchase SIST EN 1844:2013 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of SIST standards.

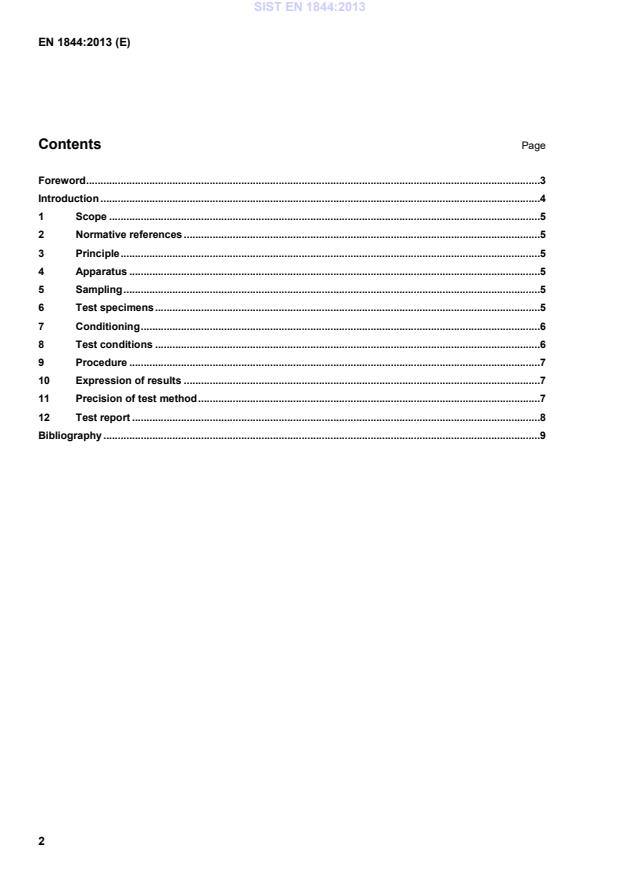

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Hidroizolacijski trakovi - Ugotavljanje odpornosti proti ozonu - Polimerni in elastomerni trakovi za tesnjenje strehAbdichtungsbahnen - Verhalten bei Ozonbeanspruchung - Kunststoff- und Elastomerbahnen für DachabdichtungenFeuilles souples d'étanchéité - Détermination de la résistance à l'ozone - Feuilles d'étanchéité de toiture plastiques et élastomèresFlexible sheets for waterproofing - Determination of resistance to ozone - Plastic and rubber sheets for roof waterproofing91.100.50Veziva. Tesnilni materialiBinders. Sealing materials91.060.20StreheRoofsICS:Ta slovenski standard je istoveten z:EN 1844:2013SIST EN 1844:2013en,fr,de01-september-2013SIST EN 1844:2013SLOVENSKI
STANDARDSIST EN 1844:20011DGRPHãþD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 1844
May 2013 ICS 91.100.50 Supersedes EN 1844:2001English Version
Flexible sheets for waterproofing - Determination of resistance to ozone - Plastic and rubber sheets for roof waterproofing
Feuilles souples d'étanchéité - Détermination de la résistance à l'ozone - Feuilles d'étanchéité de toiture plastiques et élastomères
Abdichtungsbahnen - Verhalten bei Ozonbeanspruchung - Kunststoff- und Elastomerbahnen für Dachabdichtungen This European Standard was approved by CEN on 28 March 2013.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2013 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 1844:2013: ESIST EN 1844:2013
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. SIST EN 1844:2013
...
