SIST EN 2591-415:2004
(Main)Aerospace series - Elements of electrical and optical connection - Test methods - Part 415: Test probe damage (female contacts)
Aerospace series - Elements of electrical and optical connection - Test methods - Part 415: Test probe damage (female contacts)
This standard specifies a method of checking that the female contacts used in elements of electrical and optical connection are not damaged by the insertion of a test probe.
It shall be used together with EN 2591-100.
Luft- und Raumfahrt - Elektrische und optische Verbindungselemente - Prüfverfahren - Teil 415: Beschädigung durch Prüfdorn (Buchsenkontakte)
Diese Norm legt ein Verfahren zum Nachweis fest, dass die Buchsenkontakte von elektrischen und optischen Verbindungselementen durch Einführen eines Prüfdorns nicht beschädigt werden.
Sie ist in Verbindung mit EN 2591-100 anzuwenden.
Série aérospatiale - Organes de connexion électrique et optique - Méthodes d'essais - Partie 415 : Endommagement par sonde d'essai (contacts femelles)
La présente norme spécifie une méthode pour vérifier que les contacts femelles utilisés dans les organes de connexion électrique et optique ne sont pas endommagés par l'insertion d'une sonde d'essai.
Elle doit être utilisée conjointement avec EN 2591-100.
Aerospace series - Elements of electrical and optical connection - Test methods - Part 415: Test probe damage (female contacts)
General Information
- Status
- Published
- Publication Date
- 30-Apr-2004
- Technical Committee
- I08 - Imaginarni 08
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 01-May-2004
- Due Date
- 01-May-2004
- Completion Date
- 01-May-2004
Overview
EN 2591-415:2001 is a CEN/AECMA aerospace test-method standard that defines a repeatable procedure to verify that female contacts in electrical and optical connector elements are not damaged by the insertion of a test probe. It is intended for use together with EN 2591-100 (general test methods) and complements gauge and force checks in connector qualification and inspection.
Key topics and requirements
- Objective: Detect mechanical damage to female contacts caused by probe insertion.
- Specimen preparation: Contacts are mounted into inserts and locked to prevent rotation; any alternative fixturing must simulate the insert.
- Test probe design:
- Probe nominal diameter shall match the corresponding male contact diameter.
- Probe length (A) is normally 3/4 of the female contact depth (A1).
- Probe made of polished, hardened steel and fixed in a handle sized to apply the required bending moment.
- Applied bending moment: A constant bending moment is applied to the probe via the handle during the test (handle mass/length selected to achieve specified moment).
- Procedure:
- Fully insert the test probe into the female contact while the contact is held horizontally.
- Apply the constant bending moment and slowly rotate the insert 360° about the contact axis so the moment is applied uniformly around the internal surface.
- Repeat the operation with the probe inserted to a depth of 2/3 A.
- Sampling (per table in the standard):
- 1–5 contacts: 100% tested
- 6–60 contacts: 50% tested (minimum 6 specimens)
- 61–130 contacts: 25% tested (minimum 31 specimens)
- 131+ contacts: 10% tested (minimum 34 specimens)
- Final measurements and acceptance: Where applicable, final dimensional or contact condition checks are performed (refer to EN 2591-418 for gauge insertion/extraction force measurement procedures).
Applications and users
- Aerospace manufacturers and suppliers for connector qualification and incoming inspection.
- Test laboratories performing mechanical integrity and durability checks on connector contacts.
- Quality assurance and procurement teams to ensure connector batches meet mechanical handling criteria.
- Design and R&D engineers verifying contact robustness against test probes, maintenance tools, and diagnostic jigs.
- Maintenance and overhaul organizations confirming reworked or serviced connectors remain undamaged.
Related standards
- EN 2591-100 – General test methods for elements of electrical and optical connection
- EN 2591-418 – Gauge insertion/extraction forces (female contact)
Keywords: EN 2591-415, test probe damage, female contacts, aerospace connectors, connector testing, probe insertion, bending moment, EN 2591-100, EN 2591-418.
Frequently Asked Questions
SIST EN 2591-415:2004 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Aerospace series - Elements of electrical and optical connection - Test methods - Part 415: Test probe damage (female contacts)". This standard covers: This standard specifies a method of checking that the female contacts used in elements of electrical and optical connection are not damaged by the insertion of a test probe. It shall be used together with EN 2591-100.
This standard specifies a method of checking that the female contacts used in elements of electrical and optical connection are not damaged by the insertion of a test probe. It shall be used together with EN 2591-100.
SIST EN 2591-415:2004 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN 2591-415:2004 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

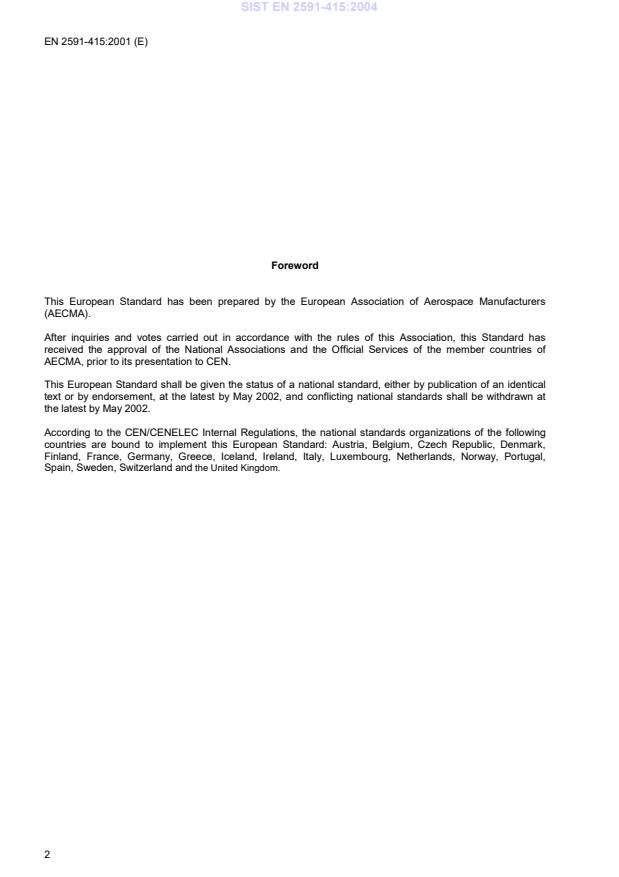

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Aerospace series - Elements of electrical and optical connection - Test methods - Part 415: Test probe damage (female contacts)Luft- und Raumfahrt - Elektrische und optische Verbindungselemente - Prüfverfahren - Teil 415: Beschädigung durch Prüfdorn (Buchsenkontakte)Série aérospatiale - Organes de connexion électrique et optique - Méthodes d'essais - Partie 415 : Endommagement par sonde d'essai (contacts femelles)Aerospace series - Elements of electrical and optical connection - Test methods - Part 415: Test probe damage (female contacts)49.060Aerospace electric equipment and systemsICS:Ta slovenski standard je istoveten z:EN 2591-415:2001SIST EN 2591-415:2004en01-maj-2004SIST EN 2591-415:2004SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 2591-415November 2001ICS 49.060English versionAerospace series - Elements of electrical and optical connection- Test methods - Part 415: Test probe damage (female contacts)Série aérospatiale - Organes de connexion électrique etoptique - Méthodes d'essais - Partie 415: Endommagementpar sonde d'essai (contact femelles)Luft- und Raumfahrt - Elektrische und optischeVerbindungselemente - Prüfverfahren - Teil 415:Beschädigung durch Prüfdorn (Buchsenkontakte)This European Standard was approved by CEN on 4 June 2001.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Iceland, Ireland, Italy, Luxembourg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2001 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 2591-415:2001 ESIST EN 2591-415:2004
...
