Overview
EN IEC 61753-071-02:2020 is a performance standard for non-connectorized single-mode fibre optic 1 × 2 and 2 × 2 spatial switches intended for category C – controlled environments. Published by CLC (adopting IEC 61753-071-02:2020), this first-edition update cancels the 2014 version and provides the minimum initial test and measurement requirements and severities a device must satisfy to be classified for controlled environments. The edition harmonizes test conditions with IEC 61753-1:2018 and introduces several technical changes to improve repeatability and durability assessment.
Key topics and requirements
- Scope: non-connectorized single-mode (SM) 1×2 and 2×2 spatial switches for category C (controlled environments).
- Test focus: initial test and measurement requirements and specified severities for categorization.
- New or revised technical requirements (high-level):
- Addition of repeatability and switching durability performance requirements.
- Removal of directivity performance requirements.
- Removal of operational shock test from this part.
- Changed requirements for switching time (updated performance expectations).
- Changed test condition for high optical power to reflect updated practices.
- Harmonization of test conditions with IEC 61753-1:2018.
- Test methods: references to the IEC 61300 series and other IEC test procedures for vibration, shock, temperature, high optical power, switching time, crosstalk and transient loss are normative in the document.
- Deliverables: defined sample sizes, test configurations (1×2 and 2×2, crossover/non-crossover), and required test reports.
Applications and who uses this standard
EN IEC 61753-071-02:2020 is practical for organizations involved in the design, manufacture, testing and procurement of fibre optic spatial switches used in controlled environments such as laboratory equipment, data centres, R&D facilities, and sensitive telecom installations. Primary users include:
- Manufacturers validating product performance and categorization.
- Test laboratories performing compliance and qualification testing.
- System integrators and procurement engineers specifying reliable spatial switches.
- Standards and compliance teams ensuring product documentation and test reports meet category C requirements.
Related standards
Key cross-references and normative documents include:
- IEC 61753-1:2018 (general performance standard guidance)
- IEC 61300 series (basic test and measurement procedures)
- IEC 60876-1, IEC 60793-2-50, and other IEC product/test specifications cited in the normative annex.
EN IEC 61753-071-02:2020 is essential when specifying or qualifying non‑connectorized single-mode spatial switches for controlled environments and provides the test framework to ensure consistent, repeatable performance.
Frequently Asked Questions
SIST EN IEC 61753-071-02:2021 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Fibre optic interconnecting devices and passive components - Performance standard - Part 071-02: Non-connectorized single-mode fibre optic 1 × 2 and 2 × 2 spatial switches for category C - Controlled environments (IEC 61753-071-02:2020)". This standard covers: IEC 61753-071-02:2020 contains the minimum initial test and measurement requirements and severities which non-connectorized single-mode fibre optic 1 × 2 and 2 × 2 spatial switches need to satisfy in order to be categorized as meeting the requirements of category C – controlled environments, as defined in Annex A of IEC 61753-1:2018. This first edition cancels and replaces IEC 61753-071-2 published in 2014. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to IEC 61753-071-2:2014. a) addition of performance requirements of repeatability and switching durability; b) deleting of performance requirements of directivity; c) deleting of test of operational shock; d) change of performance requirements of switching time; e) change of test condition of high optical power; f) harmonization of the test conditions with IEC 61753-1:2018.
IEC 61753-071-02:2020 contains the minimum initial test and measurement requirements and severities which non-connectorized single-mode fibre optic 1 × 2 and 2 × 2 spatial switches need to satisfy in order to be categorized as meeting the requirements of category C – controlled environments, as defined in Annex A of IEC 61753-1:2018. This first edition cancels and replaces IEC 61753-071-2 published in 2014. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to IEC 61753-071-2:2014. a) addition of performance requirements of repeatability and switching durability; b) deleting of performance requirements of directivity; c) deleting of test of operational shock; d) change of performance requirements of switching time; e) change of test condition of high optical power; f) harmonization of the test conditions with IEC 61753-1:2018.
SIST EN IEC 61753-071-02:2021 is classified under the following ICS (International Classification for Standards) categories: 33.180.20 - Fibre optic interconnecting devices. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN IEC 61753-071-02:2021 has the following relationships with other standards: It is inter standard links to SIST EN 61753-071-2:2014, SIST EN IEC 61753-071-02:2021/A1:2024. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase SIST EN IEC 61753-071-02:2021 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of SIST standards.
Standards Content (Sample)
SLOVENSKI STANDARD
01-januar-2021
Nadomešča:
SIST EN 61753-071-2:2014
Optični spojni elementi in pasivne komponente - Tehnični standard - 071-02. del:
Prostorska stikala brez konektorjev, 1 × 2 in 2 × 2, za enorodovna optična vlakna
za kategorijo C - Nadzorovana okolja (IEC 61753-071-02:2020)
Fibre optic interconnecting devices and passive components - Performance standard -
Part 071-02: Non-connectorized single-mode fibre optic 1 × 2 and 2 × 2 spatial switches
for category C - Controlled environments (IEC 61753-071-02:2020)
Lichtwellenleiter - Verbindungselemente und passive Bauteile - Betriebsverhalten - Teil
071-2: Nicht mit Steckverbindern versehene räumliche 1 x 2 und 2 x 2 Einmodenschalter
für die Kategorie C - Kontrollierte Umgebung (IEC 61753-071-02:2020)
Dispositifs d’interconnexion et composants passifs fibroniques - Norme de performance -
Partie 071-02: Commutateurs spatiaux optiques unimodaux 1 x 2 et 2 x 2 non
connectorisés pour la catégorie C - Environnements contrôlés (IEC 61753-071-02:2020)
Ta slovenski standard je istoveten z: EN IEC 61753-071-02:2020
ICS:
33.180.20 Povezovalne naprave za Fibre optic interconnecting
optična vlakna devices
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD EN IEC 61753-071-02
NORME EUROPÉENNE
EUROPÄISCHE NORM
October 2020
ICS 33.180.20 Supersedes EN 61753-071-2:2014 and all of its
amendments and corrigenda (if any)
English Version
Fibre optic interconnecting devices and passive components -
Performance standard - Part 071-02: Non-connectorized single-
mode fibre optic 1 × 2 and 2 × 2 spatial switches for category C -
Controlled environments
(IEC 61753-071-02:2020)
Dispositifs d'interconnexion et composants passifs Lichtwellenleiter - Verbindungselemente und passive
fibroniques - Norme de performance - Partie 071-02: Bauteile - Betriebsverhalten - Teil 071-2: Nicht mit
Commutateurs spatiaux optiques unimodaux 1 x 2 et 2 x 2 Steckverbindern versehene räumliche 1 x 2 und 2 x 2
non connectorisés pour la catégorie C - Environnements Einmodenschalter für die Kategorie C - Kontrollierte
contrôlés Umgebung
(IEC 61753-071-02:2020) (IEC 61753-071-02:2020)
This European Standard was approved by CENELEC on 2020-10-27. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2020 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 61753-071-02:2020 E

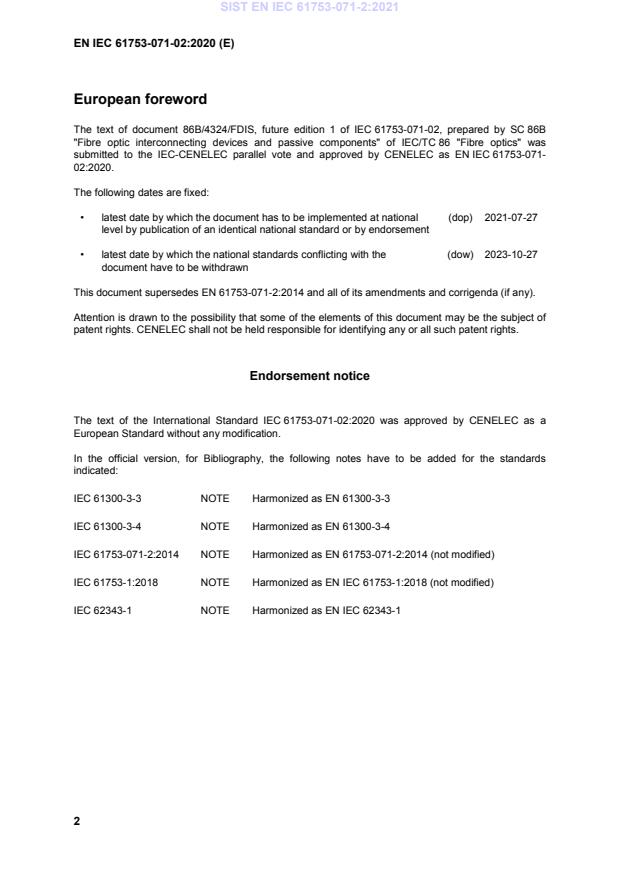

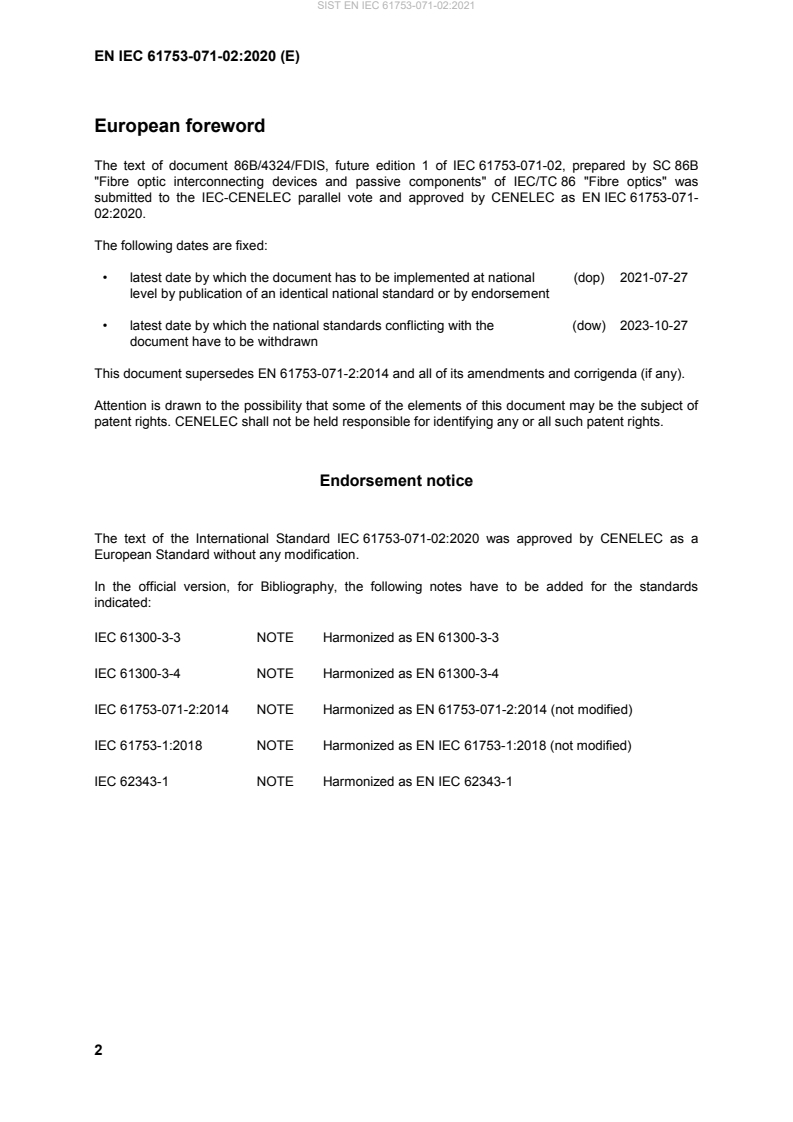

European foreword
