IEC 60811-503:2012 gives the test method for the shrinkage for sheaths. IEC 60811-503:2012 cancels and replaces Clause 11 of IEC 60811-1-3:1993, which is withdrawn. Full details of the replacements are shown in Annex A of IEC 60811-100:2012. There are no specific technical changes with respect to the previous edition, but see the Foreword to IEC 60811-100:2012. This publication is to be read in conjunction with IEC 60811-100:2012.
- Status
- Published
- Publication Date
- 08-Jul-2012
- Technical Committee
- IEKA - Electric cables
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 19-Jun-2012
- Due Date
- 24-Aug-2012
- Completion Date
- 09-Jul-2012
- Directive
- 2006/95/EC - Directive 2006/95/EC of the European Parliament and of the Council of 12 December 2006 on the harmonisation of the laws of Member States relating to electrical equipment designed for use within certain voltage limits (codified version)OJ Ref: C 348/03 OJ Date: 28-Nov-2013
2014/35/EU - Directive 2014/35/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limitsOJ Ref: C 249/03, UMIK 13.6.2025 OJ Date: 08-Jul-2016
SIST EN 60811-503:2012 is the Slovenian adoption of EN 60811-503:2012, published by SIST and aligned with IEC 60811-503:2012. It specifies a shrinkage test for cable sheaths used on electric and optical fibre cables. Engineers, quality teams, and test laboratories use it when they need a common method to check how a sheath behaves after heating.
What does SIST EN 60811-503:2012 specify?
SIST EN 60811-503:2012 gives one mechanical test method: the shrinkage test for sheaths. The standard is part of the IEC 60811 series for test methods for non-metallic materials, so it fits into broader cable material testing rather than standing alone.
The document is organized into a short, procedure-based structure.
| Clause or annex | What it covers |
|---|---|
| Clause 1 | Scope |
| Clause 2 | Normative references |
| Clause 3 | Terms and definitions |
| Clause 4 | Test method, including equipment, sampling, preparation, procedure, and expression of results |
| Clause 5 | Test report |
| Annex ZA | Normative references to international publications with corresponding European publications |
| Bibliography | Reference to IEC 60811-1-3:1993, marked withdrawn |
The scope is narrow and practical: it tells users how to measure shrinkage of sheaths, and it ties the method to the general rules in IEC 60811-100.
What are the key requirements of SIST EN 60811-503:2012?
SIST EN 60811-503:2012 is a laboratory test method, so the main requirements are about specimen selection, conditioning, heating, measurement, and reporting. In practice, the standard tells you how to prepare the sample and how to judge the change in length after repeated heat exposure.
Sampling and test pieces
The cable to be tested is stored for at least 24 h at room temperature before the test. One test piece of complete cable, 500 ± 5 mm long, is taken at least 2 m away from the cable end. This matters because the result should represent the cable sheath, not an area affected by cutting or handling at the end.
Measuring the initial and final length
The initial sheath length is measured immediately after cutting as the mean of two longitudinal measurements between diametrically opposite marks. If the sample is bent, the measurements are taken on the inside and outside of the bend. This gives a practical way to track how much the sheath shortens after heat exposure.
Test equipment and heating cycle
The test uses an electrically heated air oven that can maintain the required temperature, plus a measuring tape with 1 mm scale division. The test piece is supported horizontally in the oven, heated at the temperature specified in the cable standard for the specified time, removed, and allowed to cool in air to room temperature. That cycle is repeated five times, so the result reflects repeated thermal exposure rather than a single heat event.
Result and reporting
SIST EN 60811-503:2012 expresses shrinkage as a percentage based on the change between the initial and final marked distances. The test report follows IEC 60811-100. For users, this means the method defines how to measure and calculate the result, while the general reporting format comes from the companion part.
What terms does SIST EN 60811-503:2012 define?
SIST EN 60811-503:2012 sends users to IEC 60811-100 for terms and definitions, and the method uses a small set of technical terms.
- Sheath - the cable covering being checked for shrinkage after heating.
- Test piece - one complete cable specimen cut to the specified length for the test.
- Air oven - the electrically heated chamber used to hold the specimen at test temperature.
- Thermal cycle - one heat exposure in the oven followed by cooling in air to room temperature.
- Percentage shrinkage - the result reported as the length change after heating and cooling, compared with the initial length.
- IEC 60811-100 - the general part that provides the shared terms, general test rules, and report format.
Who uses SIST EN 60811-503:2012?
SIST EN 60811-503:2012 is used by cable manufacturers, test laboratories, and quality control teams that assess non-metallic cable materials. It is also relevant to specifiers and buyers who reference cable construction or cable material standards and need a repeatable sheath shrinkage test.
The IEC 60811 series is described as a basic set of methods used mainly for energy cables, and also widely used for optical fibre cables, communication and control cables, and cables for ships and offshore applications. In practice, that means the method helps compare sheath behavior across different cable families.
What changed in SIST EN 60811-503:2012 from the previous edition?
SIST EN 60811-503:2012 replaces Clause 11 of IEC 60811-1-3:1993, and the European foreword says it supersedes Clause 11 of EN 60811-1-3:1995 plus A1:2001, partially. The standard also states that there are no specific technical changes compared with the previous edition.
Which standards are used with SIST EN 60811-503:2012?
SIST EN 60811-503:2012 is used together with IEC 60811-100:2012, and the European text identifies EN 60811-100:2012 as the corresponding publication. Part 100 supplies the general framework, including terms and definitions and the report format, so Part 503 can focus on the shrinkage test itself.
What does the SIST EN 60811-503:2012 document contain?
SIST EN 60811-503:2012 contains a single test method with supporting procedural detail. It sets out the equipment, sample conditioning, specimen dimensions, marking and length measurement approach, oven test cycle, and the calculation method for shrinkage. The document also includes a test-report requirement, a normative reference list in Annex ZA, and a bibliography entry for the withdrawn predecessor.
Relations
- Effective Date
- 28-Jan-2023
- Effective Date
- 28-Jan-2023
- Effective Date
- 03-Feb-2026
- Effective Date
- 03-Feb-2026
- Effective Date
- 03-Feb-2026
- Effective Date
- 03-Feb-2026
- Effective Date
- 01-Feb-2024
- Effective Date
- 07-Jun-2022
- Effective Date
- 07-Jun-2022
- Effective Date
- 23-Jul-2014
- Effective Date
- 23-Jul-2014
Get Certified
Connect with accredited certification bodies for this standard
IMQ S.p.A. (Certification)
Italian electrical product certification.
SLG Prüf- und Zertifizierungs GmbH
German testing and certification body.
UL Solutions
Global safety science company with testing, inspection and certification.
Sponsored listings
Frequently Asked Questions
SIST EN 60811-503:2012 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Electric and optical fibre cables - Test methods for non-metallic materials - Part 503: Mechanical tests - Shrinkage test for sheaths". This standard covers: IEC 60811-503:2012 gives the test method for the shrinkage for sheaths. IEC 60811-503:2012 cancels and replaces Clause 11 of IEC 60811-1-3:1993, which is withdrawn. Full details of the replacements are shown in Annex A of IEC 60811-100:2012. There are no specific technical changes with respect to the previous edition, but see the Foreword to IEC 60811-100:2012. This publication is to be read in conjunction with <a href='http://webstore.iec.ch/webstore/webstore.nsf/ArtNum_PK/46164'>IEC 60811-100:2012</a>.
IEC 60811-503:2012 gives the test method for the shrinkage for sheaths. IEC 60811-503:2012 cancels and replaces Clause 11 of IEC 60811-1-3:1993, which is withdrawn. Full details of the replacements are shown in Annex A of IEC 60811-100:2012. There are no specific technical changes with respect to the previous edition, but see the Foreword to IEC 60811-100:2012. This publication is to be read in conjunction with <a href='http://webstore.iec.ch/webstore/webstore.nsf/ArtNum_PK/46164'>IEC 60811-100:2012</a>.
SIST EN 60811-503:2012 is classified under the following ICS (International Classification for Standards) categories: 29.035.01 - Insulating materials in general; 29.060.20 - Cables. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN 60811-503:2012 has the following relationships with other standards: It is inter standard links to SIST EN 60811-1-3:1999, SIST EN 60811-1-3:1999/A1:2002, SIST EN 60811-100:2012, SIST EN IEC 60794-1-22:2018, SIST EN 60794-1-22:2012, SIST EN 50618:2015, SIST EN 60811-503:2012/A1:2024, SIST EN 60811-1-3:1999/A1:2002, SIST EN 60811-1-3:1999, SIST EN 60811-1-3:1999, SIST EN 60811-1-3:1999/A1:2002. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
SIST EN 60811-503:2012 is associated with the following European legislation: EU Directives/Regulations: 2006/95/EC, 2014/35/EU. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
SIST EN 60811-503:2012 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
SLOVENSKI STANDARD
01-september-2012
(OHNWULþQLLQRSWLþQLNDEOL3UHVNXãHYDOQHPHWRGH]DQHNRYLQVNHPDWHULDOH
GHO 0HKDQVNLSUHVNXVL3UHVNXVVNUþHQMDSODãþHY
Electric and optical fibre cables - Test methods for non-metallic materials - Part 503:
Mechanical tests - Shrinkage test for sheaths
Kabel, isolierte Leitungen und Glasfaserkabel - Prüfverfahren für nichtmetallene
Werkstoffe - Teil 503: Mechanische Prüfungen - Schrumpfungsprüfung für Mäntel
Câbles électriques et câbles à fibres optiques - Méthodes d'essai pour les matériaux non
-métalliques - Partie 503: Essais mécaniques - Essai de rétraction des gaines
Ta slovenski standard je istoveten z: EN 60811-503:2012
ICS:
29.035.01 Izolacijski materiali na Insulating materials in
splošno general
29.060.20 Kabli Cables
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD
EN 60811-503
NORME EUROPÉENNE
June 2012
EUROPÄISCHE NORM
ICS 29.035.01; 29.060.20 Supersedes EN 60811-1-3:1995 (partially) + A1:2001 (partially)
English version
Electric and optical fibre cables -
Test methods for non-metallic materials -
Part 503: Mechanical tests -
Shrinkage test for sheaths
(IEC 60811-503:2012)
Câbles électriques et à fibres optiques - Kabel, isolierte Leitungen
Méthodes d'essai pour les matériaux und Glasfaserkabel -
non-métalliques - Prüfverfahren für nichtmetallene
Partie 503: Essais mécaniques - Werkstoffe -
Essai de rétraction des gaines Teil 503: Mechanische Prüfungen -
(CEI 60811-503:2012) Schrumpfungsprüfung für Mäntel
(IEC 60811-503:2012)
This European Standard was approved by CENELEC on 2012-04-17. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the CEN-CENELEC Management Centre has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland, Turkey and the United Kingdom.
CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
Management Centre: Avenue Marnix 17, B - 1000 Brussels
© 2012 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60811-503:2012 E

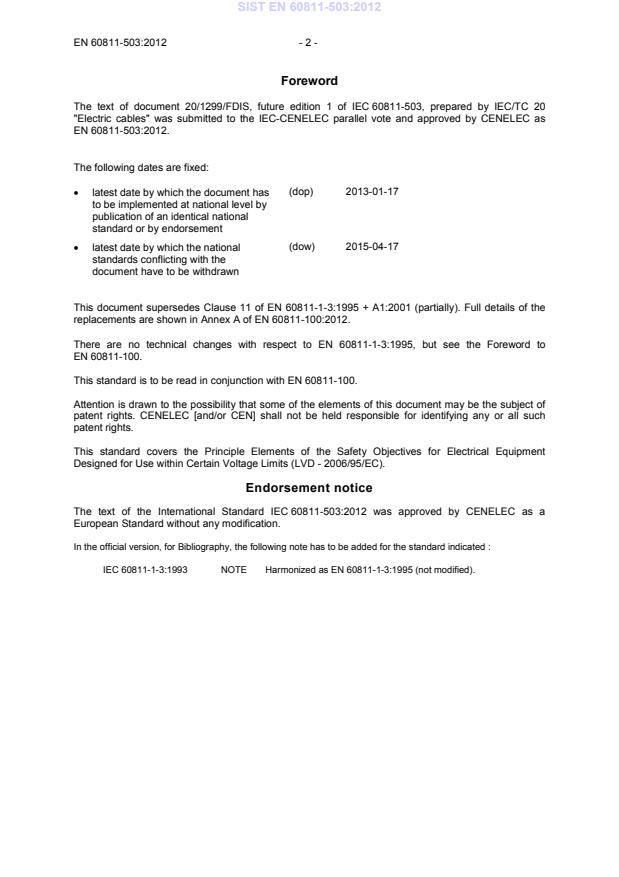

Foreword
The text of document 20/1299/FDIS, future edition 1 of IEC 60811-503, prepared by IEC/TC 20
"Electric cables" was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as
The following dates are fixed:
(dop) 2013-01-17
• latest date by which the document has
to be implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2015-04-17
standards conflicting with the
document have to be withdrawn
This document supersedes Clause 11 of EN 60811-1-3:1995 + A1:2001 (partially). Full details of the
replacements are shown in Annex A of EN 60811-100:2012.
There are no technical changes with respect to EN 60811-1-3:1995, but see the Foreword to
EN 60811-100.
This standard is to be read in conjunction with EN 60811-100.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.
This standard covers the Principle Elements of the Safety Objectives for Electrical Equipment
Designed for Use within Certain Voltage Limits (LVD - 2006/95/EC).
Endorsement notice
The text of the International Standard IEC 60811-503:2012 was approved by CENELEC as a
European Standard without any modification.
In the official version, for Bibliography, the following note has to be added for the standard indicated :
IEC 60811-1-3:1993 NOTE Harmonized as EN 60811-1-3:1995 (not modified).
- 3 - EN 60811-503:2012
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
NOTE When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year
IEC 60811-100 2012 Electric and optical fibre cables - Test EN 60811-100 2012
methods for non-metallic materials -
Part 100: General
IEC 60811-503 ®
Edition 1.0 2012-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Electric and optical fibre cables – Test methods for non-metallic materials –
Part 503: Mechanical tests – Shrinkage test for sheaths
Câbles électriques et à fibres optiques – Méthodes d’essai pour les matériaux
non-métalliques –
Partie 503: Essais mécaniques – Essai de rétraction des gaines
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX H
ICS 29.035.01; 29.060.20 ISBN 978-2-88912-977-5
– 2 – 60811-503 IEC:2012
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 Test method . 6
4.1 General . 6
4.2 Test equipment . 6
4.3 Sampling . 6
4.4 Preparation of test pieces . 6
4.5 Test procedure . 7
4.6 Expression of results . 7
5 Test report. 7
Bibliography . 8
---
...
