SIST HD 627 S1:1998
(Main)Multicore and multipair cables for installation above and below ground
Multicore and multipair cables for installation above and below ground
HD 627 applies to multicore and multipair rigid and flexible conductor cables for fixed installations having a rated voltage up to 1 kV and operating at a voltagec above 80 V rms. The insulation and sheath may be either thermoplastic and thermosetting, halogenated or halogen free. This Part 1 specifies the General Requirements applicable to these cables; additional or deviating requirements are given in the particular sections of this HD. Test methods are given in EN 60811, HD 21, HD 22, HD 186, HD 383, HD 405, HD 602, HD 605, HD 606, IEC 189 and this HD. The particular types of cables for each category of fire performance are specified in Parts 3 to 7. Cables designed to be installed within the containment area of nuclear power plants (LOCA), or cables specifically designed to be radiation resistant are not included in this HD.
Vieladrige und vielpaarige Kabel für die Verlegung in Luft und in Erde
Câbles multiconducteurs et multipaires pour installation dans l'air et dans le sol
Večžilni in večparni kabli za nadzemno in podzemno inštalacijo
General Information
- Status
- Published
- Publication Date
- 31-Jan-1998
- Technical Committee
- IEKA - Electric cables
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 01-Feb-1998
- Due Date
- 01-Feb-1998
- Completion Date
- 01-Feb-1998
Relations
- Amended By
SIST HD 627 S1:1998/A2:2006 - Multicore and multipair cables for installation above and below ground - Effective Date
- 01-Dec-2006
- Amended By
SIST HD 627 S1:1998/A1:2002 - Multicore and multipair cables for installation above and below ground - Effective Date
- 01-Apr-2002
Overview
HD 627 S1:1996 (CLC) defines the general requirements for multicore and multipair cables intended for fixed installation above and below ground. It applies to cables with rigid or flexible conductors and a rated voltage up to 1 kV, designed to operate at voltages above 80 V rms. The standard covers permitted insulation and sheath types (thermoplastic or thermosetting, halogenated or halogen‑free) and directs users to the specific test methods and additional requirements given in the relevant parts of the HD series.
Key Topics
- Scope & exclusions: Covers fixed-installation multicore and multipair cables for above‑ground and underground use; explicitly excludes cables for LOCA (nuclear containment) and radiation‑resistant nuclear cables.
- Construction materials: Insulation and sheathing options including thermoplastic, thermosetting, halogenated, and halogen‑free compounds.
- Voltage rating: Applies up to 1 kV with operational voltages above 80 V rms.
- General requirements: Mechanical, electrical and dimensional requirements that apply across cable types (Part 1 establishes the baseline).
- Test methods: References established test standards - EN 60811, HD 21, HD 22, HD 186, HD 383, HD 405, HD 602, HD 605, HD 606, IEC 189 and this HD - for verification of performance.
- Fire performance: Indicates that particular cable types and fire performance categories are specified in Parts 3–7 of HD 627.
Applications
- Specification, manufacture and quality control of multicore and multipair cables for:
- Building and industrial fixed wiring
- Underground power distribution and control circuits
- Overhead and conduit installations where fixed cables are required
- Useful to cable manufacturers, electrical designers, procurement specialists, installation contractors, testing laboratories and compliance officers who need to ensure cables meet CLC/HD general requirements for safety, construction and testing.
- Helps stakeholders select appropriate insulation/sheath materials (e.g., halogen‑free for reduced toxic emissions) and align cable selection with installation environment and regulatory testing needs.
Related Standards
- Test and method references: EN 60811; HD 21; HD 22; HD 186; HD 383; HD 405; HD 602; HD 605; HD 606; IEC 189
- Fire performance and type details: HD 627 Parts 3–7
- ICS classification: 29.060.20 (Cables)
This summary helps you identify whether HD 627 S1:1996 applies to your multicore or multipair cable project, which tests to consult, and where to look for more specific fire‑performance or construction requirements.
Frequently Asked Questions
SIST HD 627 S1:1998 is a standardization document published by the Slovenian Institute for Standardization (SIST). Its full title is "Multicore and multipair cables for installation above and below ground". This standard covers: HD 627 applies to multicore and multipair rigid and flexible conductor cables for fixed installations having a rated voltage up to 1 kV and operating at a voltagec above 80 V rms. The insulation and sheath may be either thermoplastic and thermosetting, halogenated or halogen free. This Part 1 specifies the General Requirements applicable to these cables; additional or deviating requirements are given in the particular sections of this HD. Test methods are given in EN 60811, HD 21, HD 22, HD 186, HD 383, HD 405, HD 602, HD 605, HD 606, IEC 189 and this HD. The particular types of cables for each category of fire performance are specified in Parts 3 to 7. Cables designed to be installed within the containment area of nuclear power plants (LOCA), or cables specifically designed to be radiation resistant are not included in this HD.
HD 627 applies to multicore and multipair rigid and flexible conductor cables for fixed installations having a rated voltage up to 1 kV and operating at a voltagec above 80 V rms. The insulation and sheath may be either thermoplastic and thermosetting, halogenated or halogen free. This Part 1 specifies the General Requirements applicable to these cables; additional or deviating requirements are given in the particular sections of this HD. Test methods are given in EN 60811, HD 21, HD 22, HD 186, HD 383, HD 405, HD 602, HD 605, HD 606, IEC 189 and this HD. The particular types of cables for each category of fire performance are specified in Parts 3 to 7. Cables designed to be installed within the containment area of nuclear power plants (LOCA), or cables specifically designed to be radiation resistant are not included in this HD.
SIST HD 627 S1:1998 is classified under the following ICS (International Classification for Standards) categories: 29.060.20 - Cables. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST HD 627 S1:1998 has the following relationships with other standards: It is inter standard links to SIST HD 627 S1:1998/A2:2006, SIST HD 627 S1:1998/A1:2002. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
SIST HD 627 S1:1998 is associated with the following European legislation: EU Directives/Regulations: 2006/95/EC, 2014/35/EU, 73/23/EEC. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
SIST HD 627 S1:1998 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

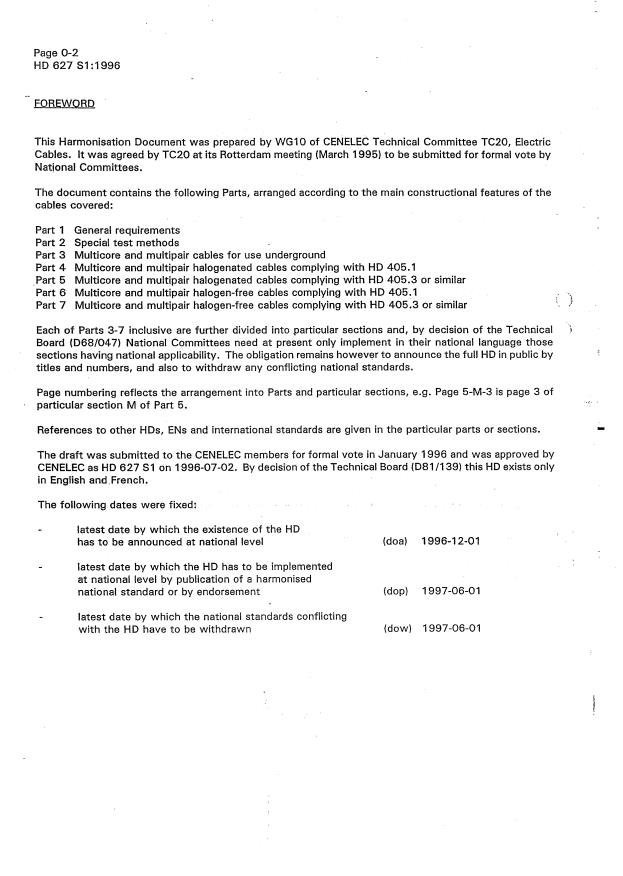

Standards Content (Sample)
SLOVENSKI STANDARD
01-februar-1998
9HþåLOQLLQYHþSDUQLNDEOL]DQDG]HPQRLQSRG]HPQRLQãWDODFLMR
Multicore and multipair cables for installation above and below ground
Vieladrige und vielpaarige Kabel für die Verlegung in Luft und in Erde
Câbles multiconducteurs et multipaires pour i
...
