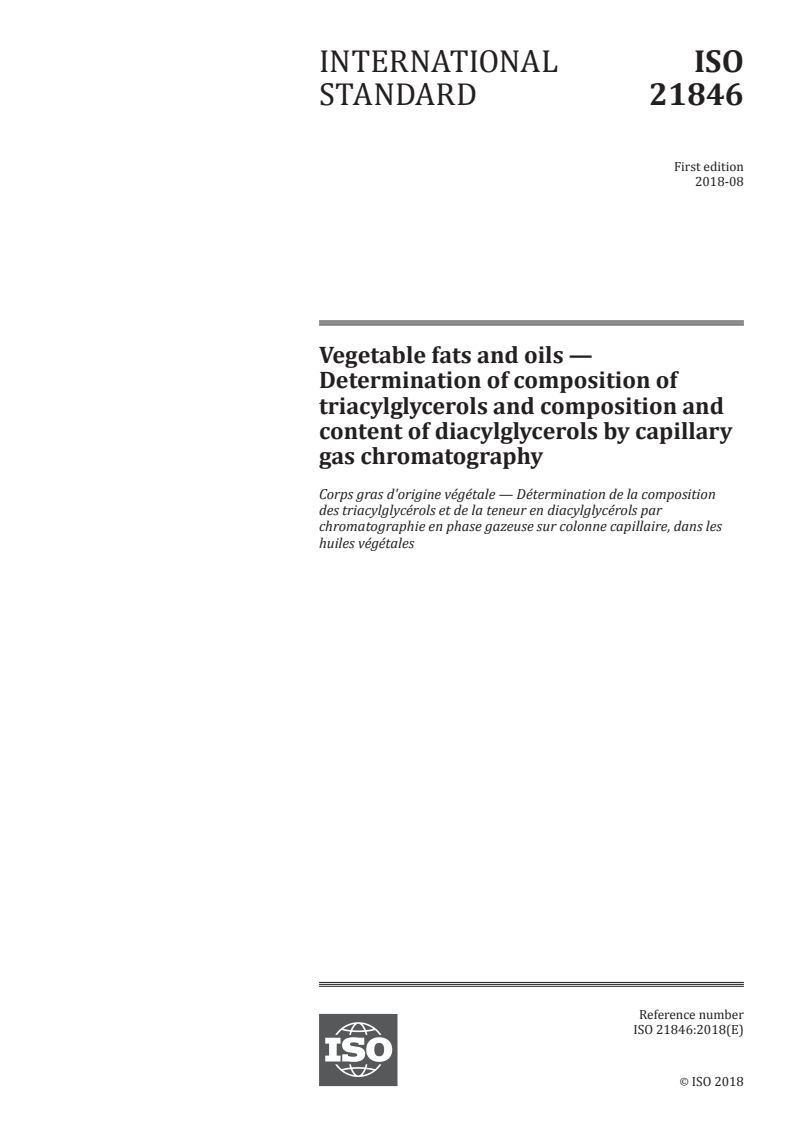

ISO 21846:2018

INTERNATIONAL ISO
STANDARD 21846
First edition
2018-08
Vegetable fats and oils —
Determination of composition of
triacylglycerols and composition and
content of diacylglycerols by capillary
gas chromatography
Corps gras d'origine végétale — Détermination de la composition
des triacylglycérols et de la teneur en diacylglycérols par
chromatographie en phase gazeuse sur colonne capillaire, dans les
huiles végétales
Reference number
©
ISO 2018
© ISO 2018
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2018 – All rights reserved

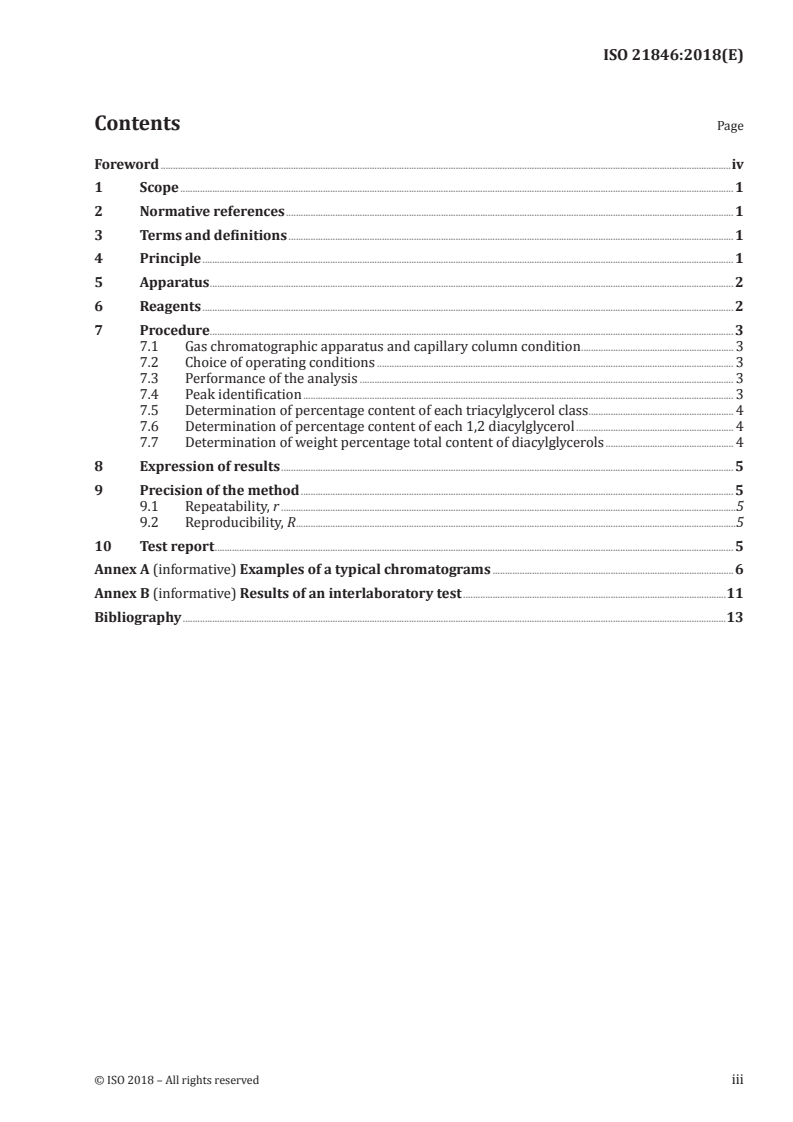

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principle . 1
5 Apparatus . 2
6 Reagents . 2
7 Procedure. 3
7.1 Gas chromatographic apparatus and capillary column condition . 3
7.2 Choice of operating conditions . 3
7.3 Performance of the analysis . 3
7.4 Peak identification . 3
7.5 Determination of percentage content of each triacylglycerol class . 4
7.6 Determination of percentage content of each 1,2 diacylglycerol . 4
7.7 Determination of weight percentage total content of diacylglycerols . 4
8 Expression of results . 5
9 Precision of the method . 5
9.1 Repeatability, r .5
9.2 Reproducibility, R .5
10 Test report . 5
Annex A (informative) Examples of a typical chromatograms . 6
Annex B (informative) Results of an interlaboratory test .11
Bibliography .13

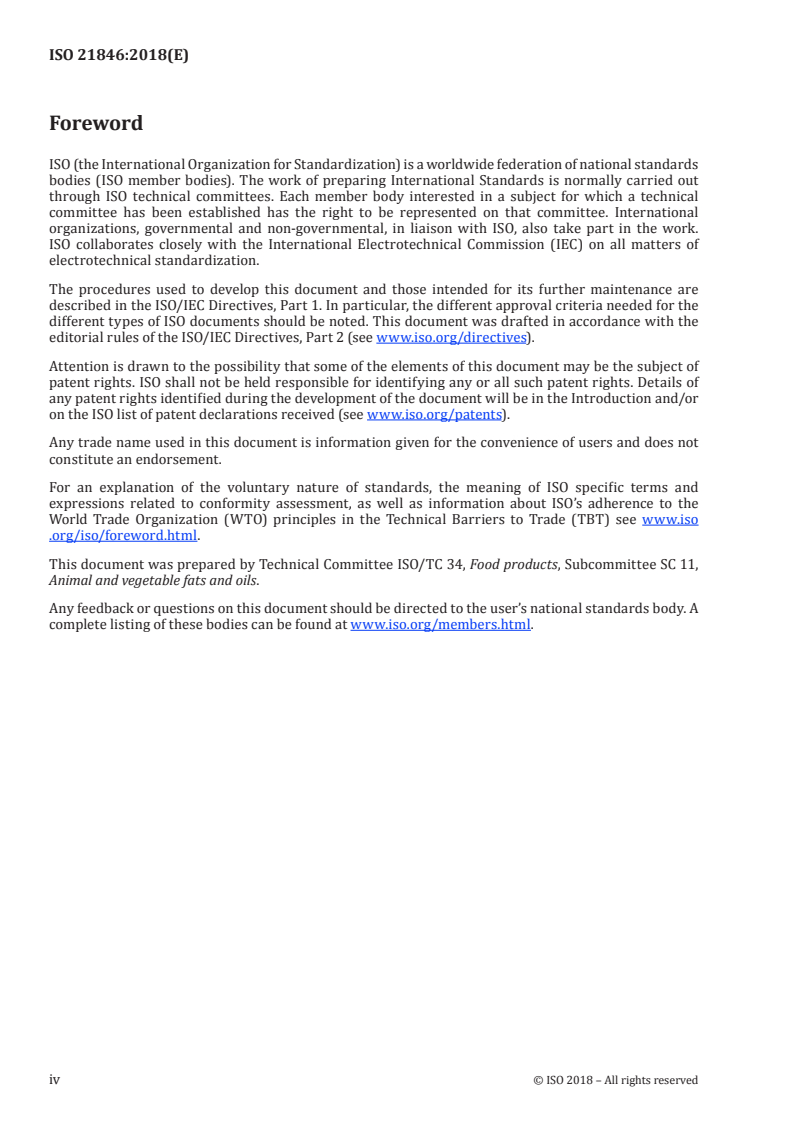

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO’s adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso
.org/iso/foreword .html.
This document was prepared by Technical Committee ISO/TC 34, Food products, Subcommittee SC 11,
Animal and vegetable fats and oils.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/members .html.
iv © ISO 2018 – All rights reserved

INTERNATIONAL STANDARD ISO 21846:2018(E)
Vegetable fats and oils — Determination of composition
of triacylglycerols and composition and content of
diacylglycerols by capillary gas chromatography
1 Scope
This document specifies the determination of composition of triacylglycerols and the determination of
the composition and content of diacylglycerols by capillary gas chromatography in vegetable oils with
a lauric acid content below 1 %.
Applying certain technological processing 1,2-diacylglycerols (1,2-DAGs) are transformed to the more
stable isomeric 1,3-diacylglycerols (1,3-DAGs) due to acidic catalysed reaction. During storage, the
speed and amount of this rearrangement depends on the acidity of the oil. The transformation normally
reaches an equilibrium between the two isomeric forms. The relative amount of 1,2-DAGs is related to
oil freshness or to a possible technological treatment. Therefore, it is possible to use the ratio of 1,2-
DAGs to 1,3-DAGs as a quality criterion for vegetable fats and oils.
The triacylglycerols profile is of potential interest for the fingerprint of each vegetable oil and may help
the detection of certain types of adulteration, such as the addition of high oleic sunflower oil or palm
olein in olive oil.
NOTE This document is based on Reference [3].
2 Normative references
There are no normative references in this document.
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https: //www .iso .org/obp
— IEC Electropedia: available at http: //www .electropedia .org/
4 Principle
After the addition of an internal standard the oil sample is silylated, dissolved in a suitable reagent and
directly injected in the gas chromatographic apparatus. Triacyglycerols are separated into classes on
the basis of their carbon atom number, while diacylglycerols are separated in function of their carbon
atom number and structure, as 1,2 structures show a lower retention time than 1,3 ones.
Unsaturated diacylglycerol structures do not affect retention time. Therefore, saturated and
unsaturated diacylglycerols elute together, so 1,2 and 1,3-diacylglycerol structures are identified by
their peak retention time. The percentage content of 1,2 structure is determined through the ratio of
1,2-diacylglycerol areas to the sum of areas of all the diacylglycerol peaks.
The diacylglycerol total content is calculated by means of an internal standard.
The percentage content for each triacylglycerol class is calculated after normalization to 100 % of all
the triacylglycerol peaks.
5 Apparatus
5.1 Analytical balance suitable to perform weighing to an accuracy of within +/−0,1 mg.
5.2 Gas chromatograph for use with a capillary column, equipped with a system for direct on-column
for cold injection or a programmed temperature vaporizer.
5.3 Thermostat-controlled oven with temperature programming.
5.4 Cold injector for on-column injection or programmed temperature vaporizer.
5.5 Flame-ionization detector and converter-amplifier.
5.6 Recorder-integrator for use with the converter-amplifier (5.5), with a rate of response below 1 s
and variable paper speed, or any suitable device for data capture and handling.
5.7 Capillary column, fused silica, 6 m to 8 m length, 0,25 mm to 0,32 mm internal diameter,
internally coated with SE 52, SE 54 liquid phase to a uniform thickness of 0,10 μm to 0,15 μm.
5.8 Microsyringe, 10 μl, with a hardened needle for on-column injector.
5.9 Microsyringe, 100 μl, with a hardened needle.
5.10 Usual laboratory glassware.
6 Reagents
WARNING — Attention is drawn to the regulations which specify the handling of hazardous
substances. Technical, organizational and personal safety measures shall be followed.
Unless otherwise stated analytically pure reagents shall be used.
6.1 Carrier gas: hydrogen or helium, pure, for gas chromatography.
6.2 Auxiliary gases:
— hydrogen, pure, for gas chromatography;
— air, pure, for gas chromatography.
6.3 Silylating reagent, mix equal volumes of
— pyridine, and
— bistrimethylsilylfluoroacetamide (BSTFA)-trimethylchlorosilane (TMCS), 99:1, volume fraction.
6.4 n-Heptane.
6.5 Reference samples: pure diacylglycerols and triacylglycerols and their mixtures, with known
composition.
6.6 Methyl tert-butyl ether.
2 © ISO 2018 – All rights reserved

6.7 Dinonadecanoin sample solution (internal standard), 0,1 % mass/ volume in methyl tert-
butyl ether.
7 Procedure
7.1 Gas chromatographic apparatus and capillary column condition
Fit the column to the gas chromatograph (5.2), connecting the inlet port to the on-column system
and the outlet port to the detector. Check the gas chromatography apparatus (operation of gas loops,
detector and recorder efficiency, etc.).
Run a light flow of gas through the column, then switch on the gas chromatography apparatus. Gradually
heat until a temperature of 350 °C is reached after approximately 4 h.
Maintain this temperature for at least 2 h, then regulate the apparatus to the operating conditions
(regulate gas flow, light flame, connect to electronic recorder, regulate oven temperature for column,
regulate detector, etc.). Record the signal at a sensitivity at least twice as high as that required for the
analysis. The base line should be linear, with no peaks of any kind, and shall not have any drift.
Negative straight-line drift indicates that the column connections are not correct. Positive drift
indicates that the column has not been properly conditioned.
7.2 Choice of operating conditions
The operating conditions are generally as follows.
— The injector temperature shall be at least 10 °C below the vaporization temperature (99 °C) of the
employed solvent (n-Heptane).
— Detector temperature: 350 °C.
— Column temperature: 80 °C at first (1 min), ramp at 20 °C/min to 220 °C, ramp at 5 °C/min to 340 °C
(10 min).
— Carrier gas: hydrogen or helium at the optimal linear speed for the chosen gas.
— Amount of injected substance: 0,5 μl to 1 μl of solution prepared as in 7.3.
7.3 Performance of the analysis
Weigh (5.1) exactly 100 mg of oil in a glass bottom conical tube and add 1 ml of internal standard
solution (6.7). Shake the sample up to a complete solution, take up with a microsyringe (5.8) 20 μl to
30 μl of solution, put it inside a new glass tube (with a stopper) and dry by nitrogen gentle stream. Add
200 μl of silylation reagent. Af
...
