ISO/TR 12910:2010

TECHNICAL ISO/TR
REPORT 12910
First edition
2010-04-01
Light-frame timber construction —
Comparison of four national design
documents
Construction à ossature légère de bois — Comparaison de quatre
documents nationaux pour la conception

Reference number
©
ISO 2010
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2010
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2010 – All rights reserved

Contents Page
Foreword .v
Introduction.vi
1 Scope.1
2 Document design principles .1
2.1 Basic principles .1
2.2 Compliance through pre-engineered solutions .2
2.3 Design requirements matched to risk level.2
2.4 Relationship to engineering design .3
2.5 Evolving understanding of load-resistance interaction.3
3 Coverage and limitations.3
3.1 General .3
3.2 Definition of light-frame construction .4
3.3 Prescriptive and performance-based approaches.4
3.4 Integration of national code provisions.4
3.5 Scope of structural design .5
3.6 Beyond structural requirements, such as durability .5
4 Loads and load factors .6
4.1 General .6
4.2 Basic design framework and philosophy .6
4.3 Load comparisons.6
5 Material specifications.7
5.1 General .7
5.2 Product standards.7
5.3 Proprietary wood products.7
6 Member design .7
6.1 General .7
6.2 Member vs. system design.8
6.3 Roofs.8
6.4 Walls .9
6.5 Floors.9
7 Lateral load systems design .9
7.1 General .9
7.2 Linking lateral design to analysis models .9
7.3 Load action assumptions .10
7.4 Uplift design.10
7.5 Racking and overturning design .11
7.6 Building plan irregularities.11
7.7 Wall openings .11
7.8 Elevation irregularities.12
8 Connection design .12
8.1 General .12
8.2 Fastener schedules .12
8.3 Proprietary connections .13
9 Other .13
9.1 Miscellaneous .13
9.2 Definitions of terminology.13

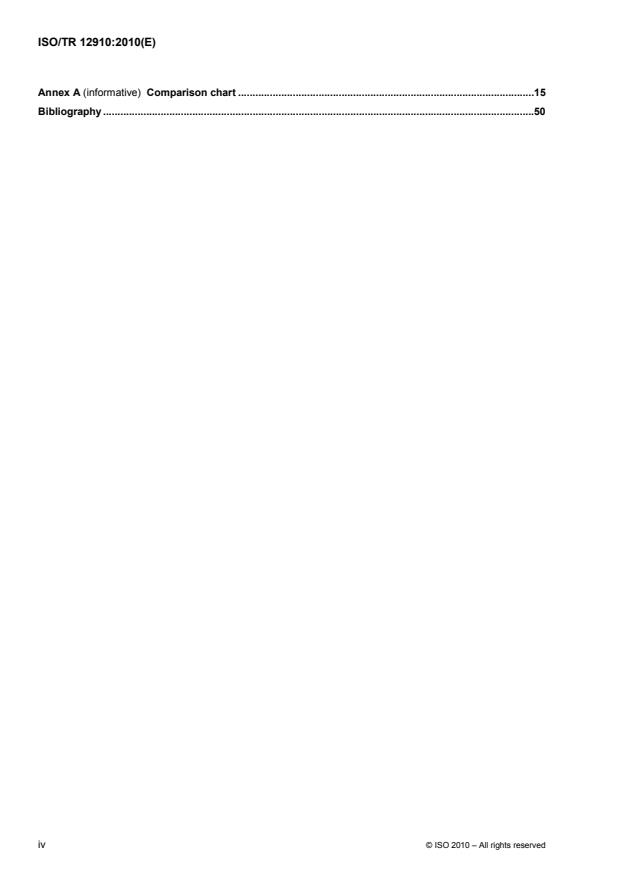

Annex A (informative) Comparison chart .15
Bibliography .50

iv © ISO 2010 – All rights reserved

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
In exceptional circumstances, when a technical committee has collected data of a different kind from that
which is normally published as an International Standard (“state of the art”, for example), it may decide by a
simple majority vote of its participating members to publish a Technical Report. A Technical Report is entirely
informative in nature and does not have to be reviewed until the data it provides are considered to be no
longer valid or useful.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO/TR 12910 was prepared by Technical Committee ISO/TC 165, Timber structures.
Introduction
Light-frame timber construction is the dominant construction practice for housing and other types of buildings
in some countries. In these countries, it has gained widespread acceptance due to its many benefits, including
ease of construction, cost-effectiveness, adaptation to energy efficient buildings and proven performance. This
Technical Report is intended to provide an overview of the common elements in existing national structural
design documents on light-frame timber construction.
The comparison chart (see Annex A) is intended to assist in that process. This Technical Report draws
attention to several common themes and identifies some differences in the documents reviewed.

vi © ISO 2010 – All rights reserved

TECHNICAL REPORT ISO/TR 12910:2010(E)

Light-frame timber construction — Comparison of four national
design documents
1 Scope
This Technical Report provides an introduction and synopsis of comparisons among the following four national
1)
design documents on light-frame timber (wood) construction:
a) AS 1684-1 (including AS 1684-1:1999/Amd.1:2002), AS 1684-2 and AS 1684-3;
b) the Engineering guide for wood-frame construction;
c) NZS 3604;
d) the Wood Frame Construction Manual (WFCM) for One- and Two-Family Dwellings (Chapter 1: General
information, Chapter 2: Engineered design and Chapter 3: Prescriptive design).
Each of the four light-frame texts compared in this Technical Report is based on a national timber design
standard that includes provisions for assemblies and systems, which go beyond single-member design
methodology. Other jurisdictions also have similar design documents on light-frame timber construction.
Although not all jurisdictions have design documents on light-frame timber construction, timber design
standards typically address assemblies and systems (See 6.2).
2 Document design principles
2.1 Basic principles
AS 1684-1, AS 1684-2, AS 1684-3, the Engineering guide for wood-frame construction, NZS 3604 and the
Wood Frame Construction Manual each comply with a national code, which defines the higher level building
design principles and conditions that need to be met for light-frame timber buildings, including strength and
serviceability criteria, specified loads and material design performance.
In general, AS 1684-1, AS 1684-2, AS 1684-3, the Engineering guide for wood-frame construction, NZS 3604
and the Wood Frame Construction Manual (design documents) share basic principles related to
demonstrating how light-frame timber construction can comply with structural requirements, particularly how it
can resist high-wind and/or seismic loading conditions and provide additional guidance concerning system
design and construction methods.
At the same time, AS 1684-1, AS 1684-2, AS 1684-3, the Engineering guide for wood-frame construction,
NZS 3604 and the Wood Frame Construction Manual do not all seek to have the same coverage or topics
(see Clause 3). Some deal with housing only, others with housing and small buildings; a few with wood
structural design only and others with other structural components or design aspects of the building. These
differences complicate direct comparisons of the documents on a detailed level.
The following are some observations on general principles found.

1) The terms “wood” and “timber” are used interchangeably in this Technical Report.
2.2 Compliance through pre-engineered solutions
To demonstrate how to comply with national code requirements for light-frame wood construction,
pre-engineered solutions and tables to accompany engineering design methods are included in AS 1684-1,
AS 1684-2, AS 1684-3, the Engineering guide for wood-frame construction, NZS 3604 and the Wood Frame
Construction Manual. This approach can be more conservative in some cases, but can also facilitate design
and regulatory checking, particularly in areas less familiar with the construction system.
The following are examples.
⎯ AU: AS 1684-1, AS 1684-2 and AS 1684-3 cover design of timber-framed construction conforming to
loading and performance requirements for Class 1 (housing or hostels) and Class 10 (non-habitable
structures) buildings as defined by the national code; less conservative designs can be permitted by other
building regulations or standards.
⎯ CA: The Engineering guide for wood-frame construction covers a subset of the national code — Part 9
(Housing and small buildings). Part 9 typically permits less conservative measures for housing and small
buildings, particularly for buildings subjected to significant lateral loading.
⎯ NZ: NZS 3604 provides acceptable “non-specific” design solutions to the performance-based national
code, including many detailed construction provisions.
⎯ US: The Wood Frame Construction Manual is referenced in US national codes for design of wood-frame
construction, particularly in higher wind and seismic conditions; other provisions permit less conservative
conventional construction or engineered designs.
2.3 Design requirements matched to risk level
2.3.1 General
AS 1684-1, AS 1684-2 and AS 1684-3, the Engineering guide for wood-frame construction, NZS 3604 and the
Wood Frame Construction Manual all, in one way or another, match design provisions to the type and
intensity of loading as well as vulnerability of the building structure. This can in some cases lead to design
discontinuities where special solutions are specified only for high- or low-risk areas, but also helps to provide a
better fit to the scale of the problem.
2.3.2 Examples
⎯ AU: Separate cyclonic and non-cyclonic documents deal with high- or low-risk cyclonic events. AS 1684-1,
AS 1684-2 and AS 1684-3 increase requirements for higher risk areas, with up to half of racking force
permitted to be resisted by nominal wall bracing; AS 1684-2 is published for simplified design in non-
cyclonic areas.
⎯ CA: Part C of the Engineering guide for wood-frame construction advises on applicability of solutions
under lateral loading conditions, based on spacing and location of braced walls; national codes permit
prescriptive construction that are more liberal than Part C of the Engineering guide for wood-frame
construction.
⎯ NZ: Prescriptive provisions include restrictions on bracing elements in terms of spacing, minimum
capacity and location; if spacing of bracing lines not evenly distributed, spacing is reduced to coincide
with a line of supporting members.
⎯ US: Separate “prescriptive design” document in tabular format is based on engineering principles;
national codes permit conventional construction in lower risk situations.
2 © ISO 2010 – All rights reserved

2.4 Relationship to engineering design
AS 1684-1, AS 1684-2, AS 1684-3, the Engineering guide for wood-frame construction, NZS 3604 and the
Wood Frame Construction Manual share the objective of maintaining continuous load paths, but it is
recognized that they cannot fully replace the design process. Common themes include agreement that not all
aspects of the complete structure are fully addressed and conservative assumptions are made to present
efficient design aids. The documents are intended to be used principally by engineers or other competent
designers.
The following are examples.
⎯ AU: Intended to provide building industry with design procedures and details for use in cyclonic and
non-cyclonic areas; another simplified version (AS 1684-4) was published for non-designers.
⎯ CA: Intended to be used in conjunction with competent engineering design, as well as to provide
guidance to a wide range of the building community (e.g. builders, code officials).
⎯ NZ: Intended to be used by a wide range of the building industry, while recognizing that due to national
code requirements, users would be mainly fulfilling the role of a designer.
⎯ US: Intended to be used in conjunction with competent engineering design, providing guidance and
saving time for the design professional.
2.5 Evolving understanding of load-resistance interaction
There is widespread recognition of the complexity of load and resistance distribution and interaction in
light-frame construction systems under gravity and lateral loading patterns. AS 1684-1, AS 1684-2, AS 1684-3,
the Engineering guide for wood-frame construction, NZS 3604 and the Wood Frame Construction Manual
include varying approaches to incorporating system action provisions and calibrating to the long performance
history of these systems. These provisions are likely to evolve to include more advanced design tools as
knowledge grows.
The following are examples.
⎯ AU: Load distribution and strength-sharing effects are included in design methods for framing members,
including rafter, studs and joists.
⎯ CA: Design of rafters, studs, joists, headers and beams includes consideration of system action and
strength sharing; shearwall design is a mechanics-based approach with additional consideration of
shearwalls without hold-downs where sheathing is used to resist overturning and/or uplift.
⎯ NZ: Nominal bracing systems are provided with prescribed bracing capacities; performance-based design
(national code) permits use of alternative design solutions.
⎯ US: Wall stud design includes system factors, load-sharing increase factors provided for joists, rafters
and other members; shearwall design includes a mechanics-based approach for shearwalls with
hold-downs with additional consideration of the empirical based perforated shearwall model (without
hold-downs).
3 Coverage and limitations
3.1 General
The light-frame construction documents are limited in terms of building size, loads and other parameters.
These limits are dictated largely by national codes, yet committees also make many decisions on what to
include within the scope and limitations of light-frame construction documents.
3.2 Definition of light-frame construction
AS 1684-1, AS 1684-2, AS 1684-3, the Engineering guide for wood-frame construction, NZS 3604 and the
Wood Frame Construction Manual all address small light-frame buildings constructed primarily of closely-
spaced repetitive wood-framing members connected together in roof, wall and floor systems. Construction
details are based on traditional domestic methods, and consequently, they differ to some extent on restrictions
on building height, width, size and occupancy. The differences are less significant than common elements of
structural design interest.
The following are examples.
⎯ AU: Maximum building of two stories above substructure, maximum 8,5 m height; storey height up to
3,0 m, except up to 3,6 m where increased loads considered in design.
⎯ CA: Building height not greater than three stories and maximum storey height not greater than 3,5 m.
⎯ NZ: Timber-framed buildings up to three stories high, total height not more than 10 m.
⎯ US: Building not more than three stories or a mean roof height of 10 m, maximum story height of 3,6 m
for engineered design or 3,0 m for prescriptive design.
3.3 Prescriptive and performance-based approaches
Design documents are formulated on the basis of either prescriptive or performance-based designs, or
combinations of both. Both approaches can take the form of pre-engineered solutions and it is sometimes
difficult to disentangle them in a standard. In general, one would expect prescriptive measures to be more
limited in application or more conservative than a fully engineered approach, but this is not always so.
The following are examples.
⎯ AU: Bracing walls with minimum shear capacity require nominal fixing only and prescriptive fixings are
provided for such cases; design criteria include system-based assumptions.
⎯ CA: Mechanics-based lateral design method supplemented by tables; prescriptive bracing provisions,
including consideration of non-structural elements included in Part C of the Engeneering guide for
wood-frame construction.
⎯ NZ: Prescriptive measures are based on tabulated bracing units equivalent to shear force (kN) per unit
length or unit area; detailed provisions depend on building location and climatic data.
⎯ US: Engineering lateral design method supplemented by prescriptive tables and specific framing details
based on engineering assumptions and calculations.
3.4 Integration of national code provisions
National building codes vary from country to country and can include other sections related to light-frame
construction, such as conventional construction provisions, loading and load factors, design principles and
methods. On the other hand, national codes cannot cover all that is needed to fully address light-frame
construction. Therefore, the documents either duplicate some of the national code provisions or make
reference to them. Duplication is more complete, but can also lead to errors, revisions and national code
interpretation questions.
The following are examples.
⎯ AU: AS 1684-1, AS 1684-2 and AS 1684-3 include many prescriptive and engineering design and loading
provisions, as well as reference to other documents forming part of the criteria for residential timber-
framed construction to show conformance to national code requirements.
4 © ISO 2010 – All rights reserved

⎯ CA: National code includes separate provisions for both fully-engineered and prescriptive design of wood
buildings, therefore the Engineering guide for wood-frame construction includes selective provisions on
loads and design assumptions to ensure understanding of which are applicable it.
⎯ NZ: National code is a high-level performance-based document without specific provisions for light-frame
construction, therefore NZ 3604 includes all aspects of design for these types of buildings, but does not
include all load and design provisions.
⎯ US: National codes include specific provisions for prescriptive braced walls which may be used for
conventional construction, but these provisions are not included in the Wood Frame Construction Manual;
the Wood Frame Construction Manual includes design provisions with reference to the national code for
further load information.
3.5 Scope of structural design
Structural design of light-frame construction can include design of foundations, components, ancillary
buildings, hybrid concrete-wood construction and other types of structures. Some of the documents include
provisions for design aspects of these non-wood structures, while others are limited to the basic wood-frame
construction system. AS 1684-1, AS 1684-2, AS 1684-3, the Engineering guide for wood-frame construction,
NZS 3604 and the Wood Frame Construction Manual stress the need for load path continuity throughout the
structure.
The following are examples.
⎯ AU: AS 1684-1, AS 1684-2 and AS 1684-3 include detailed provisions for concrete foundations, piers,
stumps, columns and slabs; AS 1684-1, AS 1684-2 and AS 1684-3 also includes building practice and
procedures to assist in correct specification and construction procedures.
⎯ CA: The Engineering guide for wood-frame construction does not cover specific foundation design, but
includes forces and design provisions for attachment of walls to foundation and anchor bolt capacities; it
also contains detailed prescriptive provisions for connecting braced walls to foundation.
⎯ NZ: Includes detailed provisions for site requirements, foundations, expansive soils, slabs, piles, lintels,
claddings, linings and ceilings; concrete masonry walls included as part of framing system; some design
aspects covered by reference to other standards.
⎯ US: Does not cover specific foundation design, but includes forces and connection design provisions for
attachment of walls to foundation or crawl spaces, and anchor bolt capacities.
3.6 Beyond structural requirements, such as durability
Regulation of wood-frame construction does not end with structural requirements. Durability issues are of
equal concern and can also be linked to structural issues resulting from high-wind and seismic events, e.g.
corrosion, decay, mould and ventilation. Some of these documents are limited to structural design, while some
cover other aspects of national code requirements.
The following are examples.
⎯ AU: Includes durability provisions for timber, hardware, service conditions by reference to other standards
and informative appendices on durability classes and timber properties.
⎯ CA: Addresses structural requirements only; durability is outside scope, other than a general requirement
to consider decay resistance in design of the structure.
⎯ NZ: Includes section on durability covering timber, hardware, service conditions, claddings, underlay,
sheathing, concrete, sealants and flashings; it does not include full details related to protection of the
building envelope.
⎯ US: Addresses structural requirements only; it is not applicable to durability.
4 Loads and load factors
4.1 General
Because loading is dictated largely by national codes, there are load differences between AS 1684-1,
AS 1684-2, AS 1684-3, the Engineering guide for wood-frame construction, NZS 3604 and the Wood Frame
Construction Manual. However, these differences are not so large as to change the nature of the light-frame
construction system or the demands placed on the system.
4.2 Basic design framework and philosophy
All except the Wood Frame Construction Manual are based on factored load and resistance Limit states
design format. While the Wood Frame Construction Manual is in unfactored or Working stress design format
in accordance with general US practice, the referenced US wood design standard is available in dual (factored
and unfactored) format. Another framework choice relates to decisions about design for load combinations,
including the probability of simultaneous occurrence of maximum design loads.
The following are examples.
⎯ AU: Loads and capacities based on Limit states design; calculations include consideration of various
combinations and patterns of permanent and transient loads for single span, continuous and cantilevered
spans.
⎯ CA: Loads and capacities based on Limit states design; primary members designed for single spans
under uniform loading with point loads as appropriate; reductions apply where multiple transient loads are
considered together.
⎯ NZ: Loads and capacities based on Limit states design; national code requires compliance but does not
stipulate how to comply; intent of NZS 3604 is to provide acceptable “non-specific” pre-engineered
solutions; some design capacities are referenced to test results.
⎯ US: Loads and capacities based on Working stress design, although multi-level load combination factors
based on factored load approach; primary members designed for single spans under uniform or
unbalanced (snow) loading with point loads as appropriate.
4.3 Load comparisons
Comparison of load levels in AS 1684-1, AS 1684-2, AS 1684-3, the Engineering guide for wood-frame
construction, NZS 3604 and the Wood Frame Construction Manual is not straightforward because of the many
load and resistance adjustments forming part of the design methods in different countries. In some cases,
cross-boundary comparisons are misleading due to offsetting load and resistance modifications. National
committees make many different decisions about how to characterize loads, e.g. return period, statistical
parameters and modification factors.
The following are examples.
⎯ AU: Permanent and transient loads are listed as specified loads along with associated load factors; loads
are modified by additional load distribution factors depending on construction variables.
⎯ CA: Live loads, F , snow loads, F , rain loads, F , wind loads, F , earthquake loads and dead
L snow rain wind
loads, F , are listed as specified loads, along with associated load factors; wind load calculations involve
D
many additional gust factors.
⎯ NZ: Live loads, F , are listed in the standard without identified modification factors and adjustments.
L
⎯ US: Live, snow, wind, earthquake loads and dead loads are specified; loads are based on unfactored
Working stress design, and wind calculations involve many additional load modifications.
6 © ISO 2010 – All rights reserved

5 Material specifications
5.1 General
AS 1684-1, AS 1684-2, AS 1684-3, the Engineering guide for wood-frame construction, NZS 3604 and the
Wood Frame Construction Manual address material specifications and resistances for standard and non-
standard products, including engineered wood and connections.
5.2 Product standards
Each document includes domestic material references and specifications accepted by the authority having
jurisdiction. While these references tend to be limited to national standards and other documents, there is
some provision for acceptance of other specifications as needed.
The following are examples.
⎯ AU: References to applicable standards and supplements; alternative seasoned and unseasoned timber
sizes also provided.
⎯ CA: References to applicable material and design standards provided.
⎯ NZ: Materials limited to two species, specific sizes and grades; other specifications require alternative
solutions.
⎯ US: References to applicable material and design standards provided.
5.3 Proprietary wood products
Proprietary wood products, such as I-joists and structural composite lumber, expand wood-frame construction
through increased spans or load-carrying capacities. AS 1684-1, AS 1684-2, AS 1684-3, the Engineering
guide for wood-frame construction, NZS 3604 and the Wood Frame Construction Manual have sought to
integrate these products as much as possible, although their proprietary nature makes it impossible to include
complete design information.
The following are examples.
⎯ AU: Proprietary engineered wood product use subject to approval of building authority and manufacturer's
recommendations.
⎯ CA: Proprietary engineered wood product use in accordance with QA programme supervised by
independent third party certification organization and as stated in the manufacturer's report.
⎯ NZ: Proprietary products subject to approval of authorities, with testing standards referenced for
evaluating proprietary products.
⎯ US: Proprietary engineered wood product use according to the national code and the manufacturer's
report.
6 Member design
6.1 General
In accordance with the relevant national code, members are designed to meet specific strength and
serviceability limits. At the same time, AS 1684-1, AS 1684-2, AS 1684-3, the Engineering guide for
wood-frame construction, NZS 3604 and the Wood Frame Construction Manual are useful in helping set those
limits because performance levels are complex and calculated or prescribed solutions are only approximations
of actual performance. Light-frame wood systems have a long performance history that is also considered in
developing AS 1684-1, AS 1684-2, AS 1684-3, the Engineering guide for wood-frame construction, NZS 3604
and the Wood Frame Construction Manual. Calculations, partial calculations or prescriptive determinations of
roof, floor and wall provisions are included.
6.2 Member vs. system design
AS 1684-1, AS 1684-2, AS 1684-3, the Engineering guide for wood-frame construction, NZS 3604 and the
Wood Frame Construction Manual are based on a national material design standard that covers design of
wood or timber members and their connections, including provisions for structural components or systems
which go beyond single member design methodology, adding greater efficiency or accuracy to specified end
uses. System design is typically referenced to other standard documents, based on full-sized tests, models or
historical experience or a combination of these.
The following are examples.
⎯ AU: Design criteria include system-based assumptions to recognize the interaction between structural
and other elements of the construction assembly; any changes to materials or methods can invalidate
these assumptions.
⎯ CA: Design criteria for framing members include system action, strength sharing and special short-term
load duration; built-up members also have system factors.
⎯ NZ: Design criteria include bracing system capacities which are based on test results.
⎯ US: Design criteria for framing members include factors for composite action and load sharing.
⎯ Other jurisdictions also have design standards which address timber assemblies and systems. For
example EN 1995-1-1 and EN 1995-1-2 include design provisions for trusses, shearwalls, diaphragms
and system design.
6.3 Roofs
Roof design is typically simplified for light-frame construction, taking into account the complexity of roof
shapes and systems. As a result, AS 1684-1, AS 1684-2, AS 1684-3, the Engineering guide for wood-frame
construction, NZS 3604 and the Wood Frame Construction Manual do not always require consideration of roof
live or snow load patterns and can permit reduced gravity loads. Roof trusses tend to have more complete
engineering solutions than rafter systems, but can also be calibrated up to limits of span and building size.
Wind uplift on roofs is a different matter (see Clause 7).
The following are examples.
⎯ AU: Roof members designed as sloped bending member under uniform and point live loads, coupled or
uncoupled with ceiling joists; deflection calculated on basis of span along axis.
⎯ CA: Roof members designed as sloped bending member under gravity and wind loads, F , supported
wind
at top and bottom or as rafter connected to ridge board at top and ceiling joist at bottom; deflection on
horizontal projection.
⎯ NZ: Roof members designed to resist vertical wind and roofing loads, with rafters either coupled with
ceilings or supported by ridge beam.
⎯ US: Roof members designed as sloped bending member under gravity and wind loads, supported at top
and bottom or as roof rafter connected to ridge board at top and ceiling joist at bottom; deflection on
horizontal projection.
8 © ISO 2010 – All rights reserved

6.4 Walls
For light-frame walls up to 3 m in height, stud design tends to be governed more by practical constraints, such
as the spacing of interior lining attachment, rather than by structural requirements. Where they are engineered,
wall studs are designed to resist axial and lateral loads, alone or in combination. Where open spaces or
vaulted ceilings require taller studs, special tables or designs are provided.
The following are examples.
⎯ AU: Wall studs designed for axial forces from supported floors or roofs, as well as for horizontal bending
loads.
⎯ CA: Wall studs designed for bending, axial and axial-bending cases; bending-axial design has lower wind
pressure coefficients than bending design alone.
⎯ NZ: Wall studs designed to resist vertical loads as well as to resist horizontal loads separately.
⎯ US: Wall studs designed for bending, axial and axial-bending cases; bending-axial design has lower wind
pressure coefficients than bending design alone.
6.5 Floors
Floor design solutions are based on National performance criteria, and serviceability criteria—more than
strength criteria — typically limit joist spans. Proprietary engineered wood members provide acceptable
alternative solutions, but can also achieve longer spans and involve special design considerations, therefore
member design and documentation in accordance with specified procedures and reports are required.
The following are examples.
⎯ AU: Floor joists designed as bending members under permanent, transient and point loading: single span,
continuous or cantilevered spans; serviceability includes deflection and dynamic criteria.
⎯ CA: Floor joists designed for gravity loads and, in the case of diaphragms, designed for lateral loads;
serviceability criteria include deflection and vibration performance.
⎯ NZ: Floor joists pre-engineered for tabulated spans and loads.
⎯ US: Floor joists designed for gravity loads and, in the case of diaphragms, designed for lateral loads;
serviceability criteria includes deflection performance.
7 Lateral load systems design
7.1 General
Most questions about structural performance of light-frame construction systems arise from lateral load design,
including shear, uplift and overturning. This is a topic of interest to national code bodies and an active area of
research, so it's not surprising that the various documents provide different solutions. Each committee has
had to decide whether lateral load resistance provisions were to be calculated, partially calculated or
determined prescriptively in specific cases.
7.2 Linking lateral design to analysis models
In general, structural analysis methodology is not the principal subject of AS 1684-1, AS 1684-2, AS 1684-3,
the Engineering guide for wood-frame construction, NZS 3604 or the Wood Frame Construction Manual.
Nevertheless, design of the lateral load system can be predicated on assumptions about structural models in
accordance with codes or general practice, and it is not always possible to separate analysis from design.
The following are examples.
⎯ AU: Diaphragms transfer horizontal loads to braced cross walls; net uplift reduced at bottom plate level
based on the assumption that the house acts as a box.
⎯ CA: Roof and floors act as flexible diaphragms to transfer lateral forces to wall systems, disregarding
contribution of non-structural elements, redundancy and load sharing.
⎯ NZ: Pre-engineered design of foundation, wall, roof and floor systems based on evenly distributed loading
and bracing assumptions; wings or blocks designed as if the wing or block were a separate building.
⎯ US: Lateral design based on assumption of “box-like” structure of roughly rectangular shape, relatively
uniform shear resistance and enclosed against wind pressures.
7.3 Load action assumptions
Lateral design emphasizes the need for continuity in load paths through the structure and its connections. At
the same time, AS 1684-1, AS 1684-2, AS 1684-3, the Engineering guide for wood-frame construction,
NZS 3604 and the Wood Frame Construction Manual all include decisions about whether loads in different
directions should be assumed to act together or independently, taking into account the complex and variable
nature of load distribution in these structures.
The following are examples.
⎯ AU: Forces from horizontal loads are transferred to braced cross walls for each floor level considered
separately; vertical loads (including uplift) are designed separately.
⎯ CA: Forces between roof framing and walls caused by wind uplift, diaphragm shear, and wind on the face
of the building are assumed to act independently.
⎯ NZ: Wall and roof systems designed separately for vertical and horizontal loads; bracing forces
determined separately for the level within the building being considered.
⎯ US: Forces between roof framing and walls caused by wind uplift, shear and face loading are assumed to
act independently.
7.4 Uplift design
The most serious failures observed in high-wind areas often result from uplift deficiencies, either at roof-to-wall,
wall-to-wall or wall-to-foundation connections. In general, complete solutions are provided to address these
critical interfaces.
The following are examples.
⎯ AU: Roof members tied to supports (walls, floors and foundations) to resist uplift forces minus factored
gravity loads including partial dead load and the permanent component of live load resisting uplift.
⎯ CA: Roof members tied to supports (walls, floors and foundations) to resist uplift loads minus partial dead
load; special design required for buildings in higher wind load areas; otherwise, prescriptive details can be
used.
⎯ NZ: Uplift fixings provided prescriptively for low, medium, high and very high wind zones.
⎯ US: Roof members tied to resist uplift loads minus partial dead load, with load path provided by either a
continuous connector or series of connections between roof, walls, floors and foundation.
10 © ISO 2010 – All rights reserved

7.5 Racking and overturning design
Racking design is addressed in different ways ranging from complete shearwall design to nominal wall bracing
details. Nominal bracing solutions are typically limited in application to protect structural integrity in higher-risk
situations.
The following are examples.
⎯ AU: All bracing walls fixed to floo
...
