ISO/IEC TS 18661-2:2015

TECHNICAL ISO/IEC TS
SPECIFICATION 18661-2
First edition
2015-02-15
Information Technology —
Programming languages, their
environments, and system software
interfaces — Floating-point
extensions for C —
Part 2:
Decimal floating-point arithmetic
Technologies de l’information — Langages de programmation, leurs
environnements et interfaces du logiciel système — Extensions à
virgule flottante pour C —
Partie 2: Arithmétique décimal en virgule flottante
Reference number
ISO/IEC TS 18661-2:2015(E)
©
ISO/IEC 2015

---------------------- Page: 1 ----------------------
ISO/IEC TS 18661-2:2015(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO/IEC 2015
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO/IEC 2015 – All rights reserved

---------------------- Page: 2 ----------------------
ISO/IEC TS 18661-2:2015(E)

Foreword .iv
Introduction .v
1 Scope . 1
2 Conformance . 1
3 Normative references . 1
4 Terms and definitions . 1
5 C standard conformance . 2
5.1 Freestanding implementations . 2
5.2 Predefined macros . 2
5.3 Standard headers . 3
6 Decimal floating types .10
7 Characteristics of decimal floating types .11
8 Operation binding .15
9 Conversions .16
9.1 Conversions between decimal floating and integer types .16
9.2 Conversions among decimal floating types, and between decimal floating and
standard floating types .17
9.3 Conversions between decimal floating and complex types.18
9.4 Usual arithmetic conversions .18
9.5 Default argument promotion .18
10 Constants .18
11 Arithmetic operations.19
11.1 Operators .19
11.2 Functions .20
11.3 Conversions .21
11.4 Expression transformations .21
12 Library .21
12.1 Standard headers .21
12.2 Decimal floating-point environment in .21
12.3 Decimal mathematics in .25
12.4 Decimal-only functions in .34
12.4.1 Quantum and quantum exponent functions .34
12.4.2 Decimal re-encoding functions .36
12.5 Formatted input/output specifiers .38
12.6 strtodN functions in .40
12.7 wcstodN functions in .43
12.8 strfromdN functions in .44
12.9 Type-generic math for decimal in .45
Bibliography .50
© ISO/IEC 2015 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO/IEC TS 18661-2:2015(E)

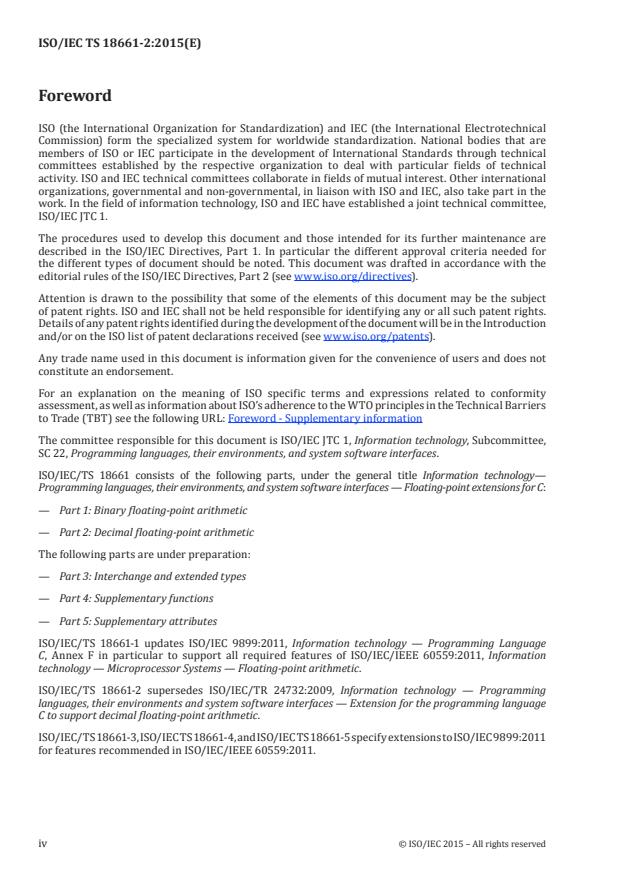

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are
members of ISO or IEC participate in the development of International Standards through technical
committees established by the respective organization to deal with particular fields of technical
activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other international
organizations, governmental and non-governmental, in liaison with ISO and IEC, also take part in the
work. In the field of information technology, ISO and IEC have established a joint technical committee,
ISO/IEC JTC 1.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for
the different types of document should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject
of patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
Details of any patent rights identified during the development of the document will be in the Introduction
and/or on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical Barriers
to Trade (TBT) see the following URL: Foreword - Supplementary information
The committee responsible for this document is ISO/IEC JTC 1, Information technology, Subcommittee,
SC 22, Programming languages, their environments, and system software interfaces.
ISO/IEC/TS 18661 consists of the following parts, under the general title Information technology—
Programming languages, their environments, and system software interfaces — Floating-point extensions for C:
— Part 1: Binary floating-point arithmetic
— Part 2: Decimal floating-point arithmetic
The following parts are under preparation:
— Part 3: Interchange and extended types
— Part 4: Supplementary functions
— Part 5: Supplementary attributes
ISO/IEC/TS 18661-1 updates ISO/IEC 9899:2011, Information technology — Programming Language
C, Annex F in particular to support all required features of ISO/IEC/IEEE 60559:2011, Information
technology — Microprocessor Systems — Floating-point arithmetic.
ISO/IEC/TS 18661-2 supersedes ISO/IEC/TR 24732:2009, Information technology — Programming
languages, their environments and system software interfaces — Extension for the programming language
C to support decimal floating-point arithmetic.
ISO/IEC/TS 18661-3, ISO/IEC TS 18661-4, and ISO/IEC TS 18661-5 specify extensions to ISO/IEC 9899:2011
for features recommended in ISO/IEC/IEEE 60559:2011.
iv © ISO/IEC 2015 – All rights reserved

---------------------- Page: 4 ----------------------
ISO/IEC TS 18661-2:2015(E)

Introduction
Background
IEC 60559 floating-point standard
The IEEE 754:1985 standard for binary floating-point arithmetic was motivated by an expanding diversity
in floating-point data representation and arithmetic which made writing robust programs, debugging,
and moving programs between systems exceedingly difficult. Now, the great majority of systems provide
data formats and arithmetic operations according to this International Standard. The IEC 60559:1989
international standard is equivalent to IEEE 754-1985 standard. Its stated goals are the following:
a) facilitate movement of existing programs from diverse computers to those that adhere to this
International Standard;
b) enhance the capabilities and safety available to programmers who, though not expert in numerical
methods, can well be attempting to produce numerically sophisticated programs. However, we
recognize that utility and safety are sometimes antagonists;
c) encourage experts to develop and distribute robust and efficient numerical programs that are
portable, by way of minor editing and recompilation, onto any computer that conforms to this
International Standard and possesses adequate capacity. When restricted to a declared subset of
the standard, these programs should produce identical results on all conforming systems;
d) provide direct support for
1) execution-time diagnosis of anomalies,
2) smoother handling of exceptions, and
3) interval arithmetic at a reasonable cost;
e) provide for the development of
1) standard elementary functions such as exp and cos,
2) very high precision (multiword) arithmetic, and
3) coupling of numerical and symbolic algebraic computation;
f) enable rather than preclude further refinements and extensions.
To these ends, the standard specified a floating-point model comprised of the following:
— formats – for binary floating-point data, including representations for Not-a-Number (NaN) and
signed infinities and zeros;
— operations – basic arithmetic operations (addition, multiplication, etc.) on the format data to compose
a well-defined, closed arithmetic system; also specified conversions between floating-point formats
and decimal character sequences, and a few auxiliary operations;
— context – status flags for detecting exceptional conditions (invalid operation, division by zero,
overflow, underflow, and inexact) and controls for choosing different rounding methods.
The ISO/IEC/IEEE 60559:2011 international standard is equivalent to the IEEE 754-2008 standard for
floating-point arithmetic which is a major revision to IEEE 754-1985.
The revised standard specifies more formats including decimal as well as binary. It adds a 128-bit binary
format to its basic formats. It also defines extended formats for all of its basic formats. It then specifies
data interchange formats (which may or may not be arithmetic), including a 16-bit binary format and an
unbounded tower of wider formats. To conform to the floating-point standard, an implementation must
provide at least one of the basic formats, along with the required operations.
© ISO/IEC 2015 – All rights reserved v

---------------------- Page: 5 ----------------------
ISO/IEC TS 18661-2:2015(E)

The revised standard specifies more operations. New requirements include, among others, arithmetic
operations that round their result to a narrower format than the operands (with just one rounding),
more conversions with integer types, more classifications and comparisons, and more operations for
managing flags and modes. New recommendations include an extensive set of mathematical functions
and seven reduction functions for sums and scaled products.
The revised standard places more emphasis on the reproducible results which is reflected in its
standardization of more operations. For most parts, behaviors are completely specified. The standard
requires conversions between floating-point formats and decimal character sequences to be correctly
rounded for at least three more decimal digits than what is required to distinguish all numbers in the
widest supported binary format. It also fully specifies conversions involving any number of decimal
digits. It then recommends that transcendental functions be correctly rounded.
The revised standard requires a way to specify a constant rounding direction for a static portion of code
with details left to programming language standards. This feature potentially allows rounding control
without incurring the overhead of runtime access to a global (or thread) rounding mode.
Other features recommended by the revised standard include alternate methods for exception handling,
controls for expression evaluation (allowing or disallowing various optimizations), support for fully
reproducible results, and support for program debugging.
The revised standard, like its predecessor, defines its model of floating-point arithmetic in the abstract. It
neither defines the way in which operations are expressed (which might vary depending on the computer
language or other interface being used), nor does it define the concrete representation (specific layout
in storage or in a processor’s register, for example) of data or context, except that it does define specific
encodings that are to be used for data that can be exchanged between different implementations that
conform to the specification.
IEC 60559 does not include bindings of its floating-point model for particular programming languages.
However, the revised standard does include guidance for programming language standards in recognition
of the fact that features of the floating-point standard, even if well supported in the hardware, are not
available to users unless the programming language provides a commensurate level of support. The
implementation’s combination of both hardware and software determines conformance to the floating-
point standard.
C support for IEC 60559
The C standard specifies floating-point arithmetic using an abstract model. The representation of
a floating-point number is specified in an abstract form where the constituent components (sign,
exponent, significand) of the representation are defined, but not the internals of these components. In
particular, the exponent range, significand size, and the base (or radix) are implementation-defined.
This allows flexibility for an implementation to take advantage of its underlying hardware architecture.
Furthermore, certain behaviors of operations are also implementation-defined, for example in the area
of handling of special numbers and in exceptions.
The reason for this approach is historical. At the time when C was first standardized, before the floating-
point standard was established, there were various hardware implementations of floating-point
arithmetic in common use. Specifying the exact details of a representation would have made most of the
existing implementations at the time not conforming.
Beginning with ISO/IEC 9899:1999, (C99), C has included an optional second level of specification for
implementations supporting the floating-point standard. C99, in conditionally normative Annex F,
introduced nearly complete support for the IEC 60559:1989 standard for binary floating-point arithmetic.
Also, C99’s informative Annex G offered a specification of complex arithmetic that is compatible with
IEC 60559:1989.
ISO/IEC 9899:2011, (C11) includes refinements to the C99 floating-point specification, though it is still
based on IEC 60559. C11:1989 upgraded Annex G from “informative” to “conditionally normative”.
ISO/IEC/TR 24732:2009 introduced partial C support for the decimal floating-point arithmetic in
ISO/IEC/IEEE 60559:2011. ISO/IEC/TR 24732, for which technical content was completed while
vi © ISO/IEC 2015 – All rights reserved

---------------------- Page: 6 ----------------------
ISO/IEC TS 18661-2:2015(E)

IEEE 754-2008 was still in the later stages of development, specifies decimal types based on ISO/IEC/
IEEE 60559:2011 decimal formats, though it does not include all of the operations required by ISO/IEC/
IEEE 60559:2011.
Purpose
The purpose of this International Standard is to provide a C language binding for ISO/IEC/IEEE 60559:2011
based on the C11 standard that delivers the goals of ISO/IEC/IEEE 60559 to users and is feasible to be
implemented. It is then organized into five parts.
ISO/IEC/TS 18661-1 provides changes to C11 that cover all the requirements plus some basic
recommendations of ISO/IEC/IEEE 60559:2011 for binary floating-point arithmetic. C implementations
intending to support ISO/IEC/IEEE 60559:2011 are expected to conform to conditionally normative
Annex F as enhanced by the changes in ISO/IEC TS 18661-1.
ISO/IEC/TS 18661-2 enhances ISO/IEC/TR 24732 to cover all the requirements plus some basic
recommendations of ISO/IEC/IEEE 60559:2011 for decimal floating-point arithmetic. C implementations
intending to provide an extension for decimal floating-point arithmetic supporting ISO/IEC/
IEEE 60559:2011 are expected to conform to ISO/IEC TS 18661-2.
ISO/IEC/TS 18661-3 (Interchange and extended types), ISO/IEC/TS 18661-4 (Supplementary functions),
and ISO/IEC/TS 18661-5 (Supplementary attributes) cover recommended features of ISO/IEC/
IEEE 60559:2011. C implementations intending to provide extensions for these features are expected to
conform to the corresponding parts.
Additional background on decimal floating-point arithmetic
Most of today’s general-purpose computing architectures provide binary floating-point arithmetic in
hardware. Binary floating point is an efficient representation that minimizes memory use and is simpler
to implement than floating-point arithmetic using other bases. It has therefore become the norm for
scientific computations with almost all implementations following the IEEE 754 standard for binary
floating-point arithmetic (and the equivalent international ISO/IEC/IEEE 60559 standard).
However, human computation and communication of numeric values almost always uses decimal
arithmetic and decimal notations. Laboratory notes, scientific papers, legal documents, business
reports, and financial statements all record numeric values in decimal form. When numeric data are
given to a program or are displayed to a user, conversion between binary and decimal is required. There
are inherent rounding errors involved in such conversions. Decimal fractions cannot, in general, be
represented exactly by binary floating-point values. These errors often cause usability and efficiency
problems depending on the application.
These problems are minor when the application domain accepts or requires results to have associated
error estimates (as is the case with scientific applications). However, in business and financial
applications, computations are either required to be exact (with no rounding errors), unless explicitly
rounded or supported by detailed analyses that are auditable to be correct. Such applications therefore
have to take special care in handling any rounding errors introduced by the computations.
The most efficient way to avoid conversion error is to use decimal arithmetic. Currently, the IBM
z/Architecture (and its predecessors since System/360) is a widely used system that supports built-in
decimal arithmetic. Prior to the IBM System z10 processor, however, this provided integer arithmetic
only, meaning that every number and computation has to have separate scale information preserved
and computed in order to maintain the required precision and value range. Such scaling is difficult to
code and is error-prone. It also affects execution time significantly and the resulting program is often
difficult to maintain and enhance.
Eventhough the hardware might not provide decimal arithmetic operations, the support can still
be emulated by software. Programming languages used for business applications either have native
decimal types (such as PL/I, COBOL, REXX, C#, or Visual Basic) or provide decimal arithmetic libraries
(such as the BigDecimal class in Java). The arithmetic used in business applications, nowadays, is almost
invariably decimal floating-point. The COBOL 2002 ISO standard, for example, requires that all standard
decimal arithmetic calculations use 32-digit decimal floating-point.
© ISO/IEC 2015 – All rights reserved vii

---------------------- Page: 7 ----------------------
ISO/IEC TS 18661-2:2015(E)

The IEEE has recognized this importance. Decimal floating-point formats and arithmetic are major new
features in the IEEE 754-2008 standard and its international equivalent ISO/IEC/IEEE 60559:2011.
viii © ISO/IEC 2015 – All rights reserved

---------------------- Page: 8 ----------------------
TECHNICAL SPECIFICATION ISO/IEC TS 18661-2:2015(E)
Information Technology — Programming languages, their
environments, and system software interfaces — Floating-
point extensions for C —
Part 2:
Decimal floating-point arithmetic
1 Scope
This part of ISO/IEC/TS 18661 extends programming language C as specified in ISO/IEC 9899:2011,
(C11) with changes specified in ISO/IEC/TS 18661-1, to support decimal floating-point arithmetic
conforming to ISO/IEC/IEEE 60559:2011. It covers all requirements of IEC 60559 as they pertain to C
decimal floating types.
This part of ISO/IEC/TS 18661 supersedes ISO/IEC/TR 24732:2009.
This part of ISO/IEC/TS 18661 does not cover binary floating-point arithmetic (which is covered in
ISO/IEC/TS 18661-1), nor does it cover most optional features of IEC 60559.
2 Conformance
An implementation conforms to this part of ISO/IEC/TS 18661 if
a) it meets the requirements for a conforming implementation of C11 with all the changes to C11
specified in ISO/IEC/TS 18661-1 and in this part of ISO/IEC/TS 18661, and
b) it defines __STDC_IEC_60559_DFP__ to 201ymmL.
NOTE Conformance to this part of ISO/IEC/TS 18661 does not include all the requirements of ISO/IEC/TS 18661-
1. An implementation can conform to either or both of ISO/IEC/TS 18661-1 and this part of ISO/IEC/TS 18661.
3 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
ISO/IEC 9899:2011, Information technology — Programming languages — C
ISO/IEC/IEEE 60559:2011, Information technology — Microprocessor Systems — Floating-Point arithmetic
ISO/IEC/TS 18661-1, Information technology — Programming languages, their environments, and system
software interfaces — Floating-point extensions for C — Part 1: Binary floating-point arithmetic
4 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO/IEC 9899:2011, ISO/IEC/
IEEE 60559:2011, and the following apply.
© ISO/IEC 2015 – All rights reserved 1

---------------------- Page: 9 ----------------------
ISO/IEC TS 18661-2:2015(E)

4.1
C11
standard ISO/IEC 9899:2011, Information technology — Programming languages C, including Technical
Corrigendum 1 (ISO/IEC 9899-1:2011/Cor:2012)
5 C standard conformance
5.1 Freestanding implementations
The following change to C11 + TS18661-1 expands the conformance requirements for freestanding
implementations so that they might conform to this part of ISO/IEC/TS 18661.
Change to C11 + TS18661-1:
Replace the fourth sentence of 4#6:
The strictly conforming programs that shall be accepted by a conforming freestanding
implementation that defines __STDC_IEC_60559_BFP__ may also use features in the contents
of the standard headers and and the numeric conversion functions (7.22.1)
of the standard header .
with:
The strictly conforming programs that shall be accepted by a conforming freestanding
implementation that defines __STDC_IEC_60559_BFP__ or __STDC_IEC_60559_DFP__
may also use features in the contents of the standard headers and and the
numeric conversion functions (7.22.1) of the standard header .
5.2 Predefined macros
The following change to C11 + TS18661-1 replaces __STDC_DEC_FP__, the conformance macro for
decimal floating-point arithmetic specified in TR 24732, with __STDC_IEC_60559_DFP__, for
consistency with the conformance macro for ISO/IEC/TS 18661-1. Note that an implementation may
continue to define __STDC_DEC_FP__, so that programs that use __STDC_DEC_FP__ may remain
valid under the changes in Part 2 of Technical Specification 18661.
Change to C11 + TS18661-1:
In 6.10.8.3#1, add:
__STDC_IEC_60559_DFP__ The integer constant 201ymmL, intended to indicate support of
decimal floating types and conformance with Annex F for IEC 60559 decimal floating-point arithmetic.
The following change to C11 + TS18661-1 specifies the applications of Annex F to binary and decimal
floating-point arithmetic.
Change to C11 + TS18661-1:
Replace F.1#3:
[3] An implementation that defines __STDC_IEC_60559_BFP__ to 201ymmL shall conform to
the specifications in this Annex.356) Where a binding between the C language and IEC 60559 is
indicated, the IEC 60559-specified behavior is adopted by reference, unless stated otherwise.
with:
[3] An implementation that defines __STDC_IEC_60559_BFP__ to 201ymmL shall conform to the
specifications in this annex for binary floating-point arithmetic.356)
2 © ISO/IEC 2015 – All rights reserved

---------------------- Page: 10 ----------------------
ISO/IEC TS 18661-2:2015(E)

[4] An implementation that defines __STDC_IEC_60559_DFP__ to 201ymmL shall conform to the
specifications for decimal floating-point arithmetic in the following subclauses of this
...
