ISO/IEC 29171:2009

INTERNATIONAL ISO/IEC
STANDARD 29171
First edition
2009-11-15


Information technology — Digitally
recorded media for information
interchange and storage — Information
Versatile Disk for Removable usage
(iVDR) cartridge
Technologies de l'information — Supports enregistrés numériquement
pour échange et stockage d'information — Disque versatile
d'information pour cartouche d'emploi amovible (iVDR)




Reference number
ISO/IEC 29171:2009(E)
©
ISO/IEC 2009

---------------------- Page: 1 ----------------------
ISO/IEC 29171:2009(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.


COPYRIGHT PROTECTED DOCUMENT


©  ISO/IEC 2009
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland

ii © ISO/IEC 2009 – All rights reserved

---------------------- Page: 2 ----------------------
ISO/IEC 29171:2009(E)
Contents Page
Foreword .iv
Introduction.v
1 Scope.1
2 Normative references.1
3 Terms and definitions .2
4 Conventions and notations .3
4.1 Representation of numbers.3
4.2 Names.3
5 Acronyms .3
6 Environment and safety.3
6.1 Testing environment .3
6.2 Operating environment.4
6.3 Storage environment.4
6.4 Safety.4
6.5 Flammability.5
6.6 Transportation .5
7 Dimensional, mechanical, and physical characteristics of the iVDR cartridge.5
7.1 General description of the iVDR cartridge.5
7.2 Outer dimensions .6
7.3 Mass.6
7.4 Detailed mechanical specifications.7
8 iVDR cartridge plug connector description.15
8.1 General specification .15
8.2 Configuration specification.15
9 Signal assignment for connector .17
Annex A (normative) iVDR cartridge receptacle connector .19
Annex B (normative) Insertion and extraction force of the connector .22
Annex C (informative) Connecting condition of connector.23
Annex D (informative) Contact material and surface plating .25
Annex E (informative) Recommendations for transportation .26
Annex F (informative) Insertion direction mark area and label area.27
Annex G (informative) Example and supplement .28
Bibliography.29

© ISO/IEC 2009 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO/IEC 29171:2009(E)

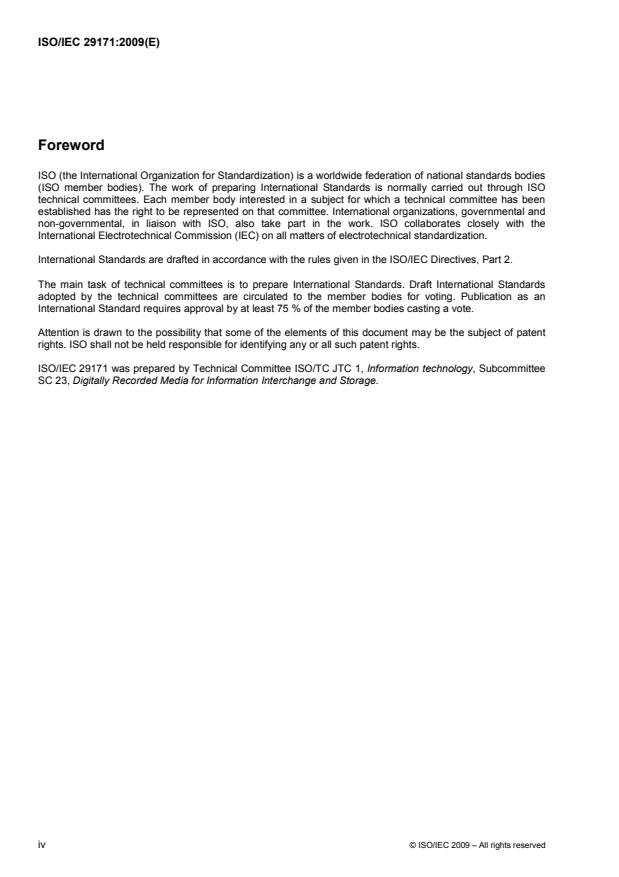

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO/IEC 29171 was prepared by Technical Committee ISO/TC JTC 1, Information technology, Subcommittee
SC 23, Digitally Recorded Media for Information Interchange and Storage.

iv © ISO/IEC 2009 – All rights reserved

---------------------- Page: 4 ----------------------
ISO/IEC 29171:2009(E)
Introduction
The original iVDR specification was developed by the “iVDR Consortium”, (http://www.ivdr.org).
Hard disk drive technologies can be used in the cartridge. A major use of iVDR cartridges might be storage for
digitally recorded audio and video content.

© ISO/IEC 2009 – All rights reserved v

---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO/IEC 29171:2009(E)

Information technology — Digitally recorded media for
information interchange and storage — Information Versatile
Disk for Removable usage (iVDR) cartridge
1 Scope
This International Standard specifies the dimensional, mechanical and physical characteristics of an
information Versatile Disk for Removable usage (iVDR) cartridge to enable mechanical interchangeability
between data processing systems. Hard disk drive technologies can be used in the cartridge.
This International Standard specifies the environment in which iVDR cartridges are to be operated and stored,
and specifies the dimensions and pin assignments of a connector employed by iVDR cartridges to enable data
interchange.
Together with ISO/IEC 24739-3 and a standard for volume and file structure, this International Standard
enables full data interchange between data processing systems.
Figure 1 shows an external view of an iVDR cartridge.

Figure 1 — External view of iVDR cartridge
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
IEC 60950-1, Information technology equipment — Safety — Part 1: General requirements
© ISO/IEC 2009 – All rights reserved 1

---------------------- Page: 6 ----------------------
ISO/IEC 29171:2009(E)
ISO/IEC 24739-3, Information technology — AT Attachment with Packet Interface - 7 — Part 3: Serial
1)
Transport Protocols and Physical Interconnect (ATA/ATAPI-7 V3)
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
cartridge
housing that protects the inner storage mechanism and facilitates data interchange
3.2
clamp area
part of the cartridge to which the clamping force is applied by the clamping mechanism
3.3
eject area
part of the cartridge to which the ejection force is applied by the eject mechanism
3.4
gap
part of the housing that is used to lock the cartridge in place to prevent ejection
3.5
guide rail
part of the housing that facilitates proper cartridge loading and ejection
3.6
interface ID
identification of interface type such as ATA
3.7
insertion direction mark area
area on the cartridge that is used to apply markings which indicate the proper insertion of the cartridge into the
receiving system
3.8
label area
area on the cartridge that is used to apply labels
3.9
load area
part of the cartridge to which the loading force is applied by the loading mechanism
3.10
locking system
mechanism that prevents ejection of the cartridge
3.11
plug connector
male type connector implemented on the cartridge
3.12
power ID
identification of operating voltage

1) Under preparation.
2 © ISO/IEC 2009 – All rights reserved

---------------------- Page: 7 ----------------------
ISO/IEC 29171:2009(E)
3.13
receiving system
part of a data processing system of which the mechanism is designed to “receive” the cartridge
3.14
receptacle connector
female type connector implemented on the receiving system
4 Conventions and notations
4.1 Representation of numbers
A measured value is rounded off to the least significant digit of the corresponding specified value. For instance,
it implies that a specified value of 1,26 with a positive tolerance of + 0,01 and a negative tolerance of - 0,02
allows a range of measured values from 1,235 to 1,275.
Numbers in decimal notations are represented by the digits 0 to 9.
Numbers in hexadecimal notation are represented by the hexadecimal digits 0 to 9 and A to F in parentheses.
The setting of bits is denoted by ZERO and ONE.
Numbers in binary notations and bit patterns are represented by strings of digits 0 and 1.
4.2 Names
The names of entities, e.g. specific sides, are given a capital initial, except for iVDR.
5 Acronyms
AT  Advanced Technology
ATA  Advanced Technology Attachment
GND ground
ID  identification
IF  interface
PWR power
6 Environment and safety
The conditions specified below refer to the environment where air immediately surrounding the iVDR cartridge
has the following properties.
6.1 Testing environment
Unless stated otherwise, tests and measurements made on the iVDR cartridge to check conformance with this
International Standard shall be carried out under the following conditions:
- Temperature:  20 °C ± 3 °C
© ISO/IEC 2009 – All rights reserved 3

---------------------- Page: 8 ----------------------
ISO/IEC 29171:2009(E)
- Relative humidity:  50 % ± 20 %
- Condition before testing: 24 h min.
The iVDR cartridge shall not be exposed to magnetic fields greater then 1,5 mT. No condensation on or in the
iVDR cartridge shall occur.
6.2 Operating environment
The operating environment is the environment where air immediately surrounding the iVDR cartridge shall
have the following properties:
- Temperature:  5 °C to 50 °C
- Relative humidity:  8 % to 90 %
- Wet bulb temperature: 29,4 °C max.
- Temperature gradient: 20 °C /h max.
- Atmospheric pressure: 714 hPa to 1 050 hPa
2
- Vibration:  9,8 m/s max.
    at 5 Hz to 500 Hz swept sine wave at 1,0 octave per minute.
The iVDR cartridge surface temperature in operating mode shall be below 55 °C.
No condensation on or in the iVDR cartridge shall occur. The iVDR cartridge shall not be exposed to magnetic
fields greater then 1,5 mT. If an iVDR cartridge has been exposed during storage and/or transportation to a
condition outside the above values, before use, the cartridge shall be conditioned in the operating
environment for a time at least equal to the period during which it has been out of the operating environment,
up to a maximum of 24 h.
The iVDR cartridge shall be operated under the following electrical conditions:
- Power supply voltage:    +5,00 V ± 0,25 V
- Maximum peak to peak ripple noise:  100 mV
Frequency range of the ripple noise of power supply voltage is from 0 MHz to 1 MHz.
- Power supply current:    2 A max.
Maximum duration time of the incident peak current is 3 seconds.
6.3 Storage environment
The iVDR cartridge shall be stored under the following conditions:
- Temperature:  -40 °C to 65 °C
- Relative humidity:  5 % to 95 %
- Wet bulb temperature: 40 °C max.
- Temperature gradient: 20 °C /h max.
- Atmospheric pressure: 282 hPa to 1 050 hPa
The iVDR cartridge shall not be exposed to magnetic fields greater then 1,5 mT. No condensation on or in the
iVDR cartridge shall occur.
6.4 Safety
The iVDR cartridge assembly shall satisfy the requirements of IEC 60950-1 when used in the intended
manner or in any foreseeable use in a receiving system.
4 © ISO/IEC 2009 – All rights reserved

---------------------- Page: 9 ----------------------
ISO/IEC 29171:2009(E)
6.5 Flammability
The iVDR cartridge assembly shall be constructed such that, if ignited it does not continue to burn in a still
carbon dioxide atmosphere.
6.6 Transportation
Recommended limits for the environment to which an iVDR cartridge may be subjected during transportation,
and the precautions to be taken to minimise the possibility of damage, are provided in Annex E.
7 Dimensional, mechanical, and physical characteristics of the iVDR cartridge
7.1 General description of the iVDR cartridge
The iVDR cartridge (see Figure 2) is a container of rectangular shape. It features guide rails on both sides to
facilitate proper connector insertion. It has gaps for a locking system and has areas for a label and insertion
direction mark. The label and insertion direction mark are optional.
Figure 2 shows a drawing of the iVDR cartridge in isometric form, with major features identified.


Gaps for lock system (on both sides)
Label (optional)


















Guide rail

Connector

Insertion direction mark (optional)


Figure 2 — iVDR cartridge outline
© ISO/IEC 2009 – All rights reserved 5

---------------------- Page: 10 ----------------------
ISO/IEC 29171:2009(E)
7.2 Outer dimensions
Figure 3 shows an outline drawing of the iVDR cartridge. A more detailed drawing can be found in Figure 4.
The total length of the iVDR shall be
+0,0 mm
l = 110,0 mm
1
   -0,3 mm
The total width shall be
  +0,0 mm
l = 80,0 mm
2
  -0,3 mm
The total thickness shall be
  +0,0 mm
l = 12,7 mm

3
  -0,3 mm

The total thickness shall not cause the cartridge thickness l to exceed the value specified above
3
even though label and/or insertion direction mark are optional.








l
2





l
1
l
3




Figure 3 — Outline drawing of the iVDR cartridge
7.3 Mass
The maximum mass of the iVDR cartridge shall be 0,25 kg.
6 © ISO/IEC 2009 – All rights reserved

---------------------- Page: 11 ----------------------
ISO/IEC 29171:2009(E)
7.4 Detailed mechanical specifications
7.4.1 Dimensions
The cartridge is represented schematically by Figure 4. The dimensions of the iVDR cartridge shall be
...
