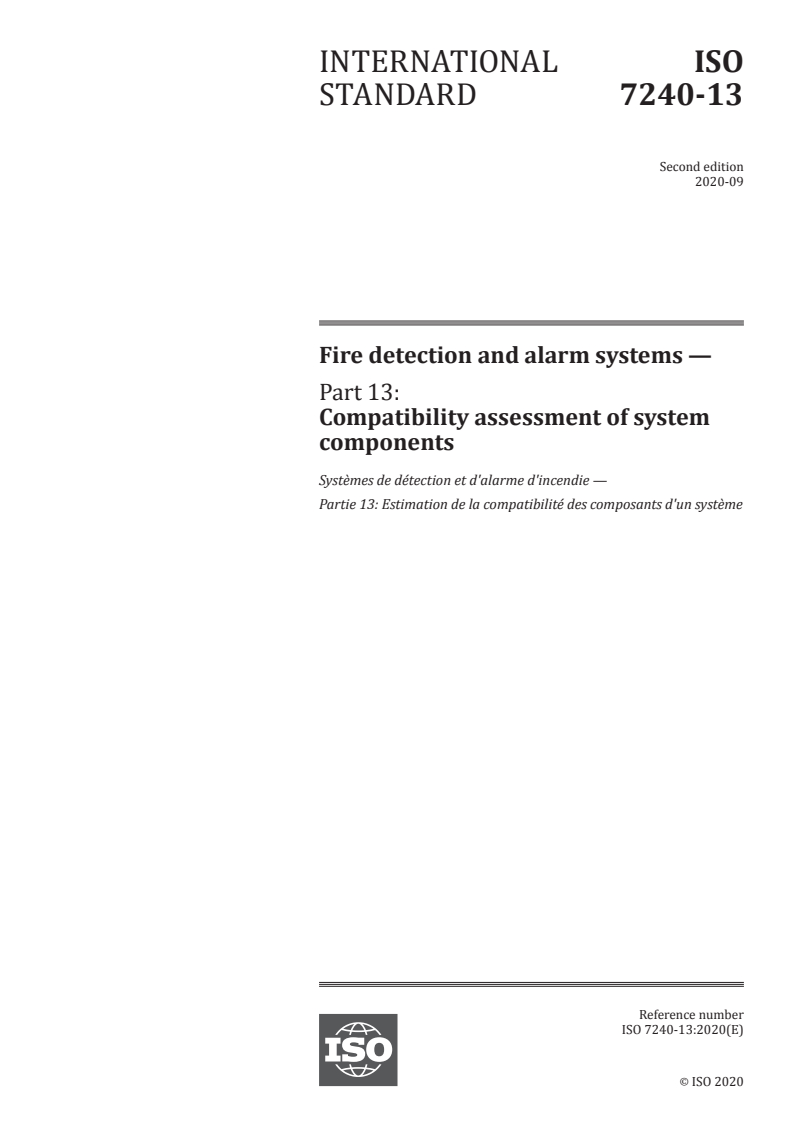

ISO 7240-13:2020

INTERNATIONAL ISO
STANDARD 7240-13
Second edition
2020-09
Fire detection and alarm systems —
Part 13:
Compatibility assessment of system
components
Systèmes de détection et d'alarme d'incendie —
Partie 13: Estimation de la compatibilité des composants d'un système
Reference number
©
ISO 2020
© ISO 2020
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2020 – All rights reserved

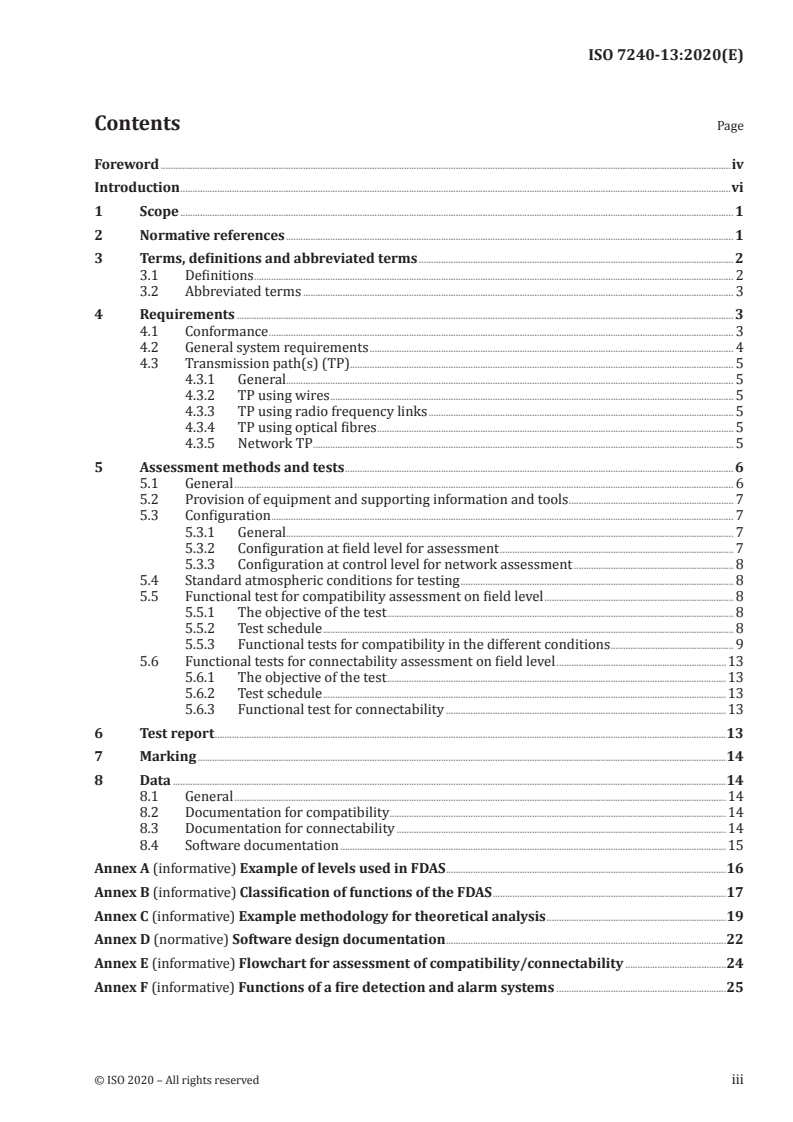

Contents Page
Foreword .iv
Introduction .vi
1 Scope . 1
2 Normative references . 1
3 Terms, definitions and abbreviated terms . 2
3.1 Definitions . 2
3.2 Abbreviated terms . 3
4 Requirements . 3
4.1 Conformance . 3
4.2 General system requirements . 4
4.3 Transmission path(s) (TP) . 5
4.3.1 General. 5
4.3.2 TP using wires . 5
4.3.3 TP using radio frequency links . 5
4.3.4 TP using optical fibres . 5
4.3.5 Network TP . 5
5 Assessment methods and tests . 6
5.1 General . 6
5.2 Provision of equipment and supporting information and tools . 7
5.3 Configuration . 7
5.3.1 General. 7
5.3.2 Configuration at field level for assessment . 7
5.3.3 Configuration at control level for network assessment . 8
5.4 Standard atmospheric conditions for testing . 8
5.5 Functional test for compatibility assessment on field level . 8
5.5.1 The objective of the test . 8
5.5.2 Test schedule . 8
5.5.3 Functional tests for compatibility in the different conditions . 9
5.6 Functional tests for connectability assessment on field level .13
5.6.1 The objective of the test .13
5.6.2 Test schedule .13
5.6.3 Functional test for connectability .13
6 Test report .13
7 Marking .14
8 Data .14
8.1 General .14
8.2 Documentation for compatibility.14
8.3 Documentation for connectability .14
8.4 Software documentation .15
Annex A (informative) Example of levels used in FDAS .16
Annex B (informative) Classification of functions of the FDAS .17
Annex C (informative) Example methodology for theoretical analysis .19
Annex D (normative) Software design documentation .22
Annex E (informative) Flowchart for assessment of compatibility/connectability .24
Annex F (informative) Functions of a fire detection and alarm systems .25

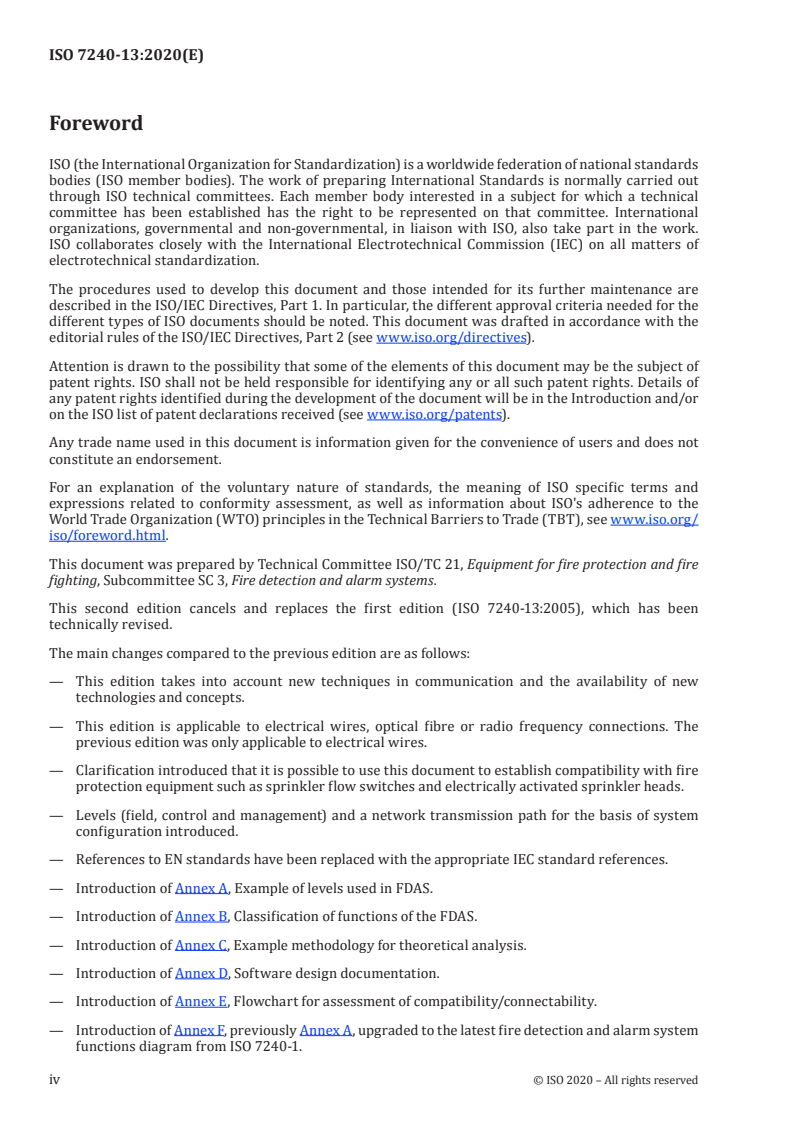

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso .org/
iso/ foreword .html.
This document was prepared by Technical Committee ISO/TC 21, Equipment for fire protection and fire
fighting, Subcommittee SC 3, Fire detection and alarm systems.
This second edition cancels and replaces the first edition (ISO 7240-13:2005), which has been
technically revised.
The main changes compared to the previous edition are as follows:
— This edition takes into account new techniques in communication and the availability of new
technologies and concepts.
— This edition is applicable to electrical wires, optical fibre or radio frequency connections. The
previous edition was only applicable to electrical wires.
— Clarification introduced that it is possible to use this document to establish compatibility with fire
protection equipment such as sprinkler flow switches and electrically activated sprinkler heads.
— Levels (field, control and management) and a network transmission path for the basis of system
configuration introduced.
— References to EN standards have been replaced with the appropriate IEC standard references.
— Introduction of Annex A, Example of levels used in FDAS.
— Introduction of Annex B, Classification of functions of the FDAS.
— Introduction of Annex C, Example methodology for theoretical analysis.
— Introduction of Annex D, Software design documentation.
— Introduction of Annex E, Flowchart for assessment of compatibility/connectability.
— Introduction of Annex F, previously Annex A, upgraded to the latest fire detection and alarm system
functions diagram from ISO 7240-1.
iv © ISO 2020 – All rights reserved

A list of all parts in the ISO 7240 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/ members .html.
Introduction
The purpose of fire detection is to detect a fire at the earliest practicable moment and to give signals
and indications so that appropriate action can be taken.
The purpose of a fire alarm is, at a minimum, to give audible and/or visible signals to the occupants of a
building who may be at risk from fire.
A fire detection and alarm system including voice alarm systems combines the functions of detection and
alarm in a single system and typically consists of a number of inter-linked components including automatic
fire detectors, manual call points and alarm devices. These components are connected to control and
indicating equipment by means of one or more transmission paths. All system components, including the
control and indicating equipment, are also directly or indirectly connected to a power supply.
A separate voice alarm system can be assessed for compatibility and connectability independently of
the fire detection and alarm system.
ISO 7240-1 provides additional information about the components performing these functions, listed in
Annex F of this document.
A fire protection system and/or building management system, or remote fault and fire alarm
monitoring stations that are linked to a fire detection and alarm system, are not considered part of the
fire detection and alarm system.
It is necessary for all of the components constituting the fire detection and alarm system to be
compatible or connectable and it is necessary that requirements relating to the performance of the
overall system be fulfilled.
Differentiation is made between components classified as components type 1 and other components,
classified as components type 2.
As the possible configurations of fire detection and alarm systems are unlimited, the assessment is
only carried out on the configuration(s) declared by the applicant.
This document recognizes that it is not practical to assess the compatibility or connectability of
components in all possible configurations. Methods of assessment are specified to reach an acceptable
degree of confidence within pre-determined operational and environmental conditions.
National application guidelines (also known as codes of practice) also contain system requirements.
System requirements are also included for fire detection and alarm systems which are linked to fire
protection systems and/or other systems (for example: fire suppression and building management
systems).
The intended use of this document is to demonstrate the compatibility and connectability of
components, even if they are not defined by an ISO standard.
vi © ISO 2020 – All rights reserved

INTERNATIONAL STANDARD ISO 7240-13:2020(E)
Fire detection and alarm systems —
Part 13:
Compatibility assessment of system components
1 Scope
This document specifies the requirements for compatibility and connectability assessment of the
components of fire detection and alarm systems, fire protection systems and voice alarm systems.
This document only includes system requirements when these are necessary for compatibility
assessment.
This document also specifies requirements for the integrity of the fire detection and fire alarm system
when connected to other systems.
This document does not specify the manner in which the system is designed, installed and used in any
particular application.
This document does not cover components or functions which are not included in the fire detection and
alarm systems (FDAS), such as functions performed by a building management system.
Methods of assessment are specified to permit an acceptable degree of confidence within predetermined
operational and environmental conditions to be achieved.
The requirements for the transmission path used for a distributed function are covered by a relevant
ISO standard and not by this document.
This document is applicable to systems where the components are connected to control-and-indicating
equipment (CIE) and where the components are interconnected by electrical wires or optical fibre or by
radio frequency links or by any combination of these.
ISO 7240-25 provides additional information and requirements about systems using radio
frequency links.
NOTE Other International Standards are expected to cover the requirements of other systems to which the
fire detection and fire alarm system is connected.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 7240-1, Fire detection and alarm systems — Part 1: General and definitions
ISO 7240-2, Fire detection and alarm systems — Part 2: Fire detection control and indicating equipment
ISO 7240-4, Fire detection and alarm systems — Part 4: Power supply equipment
ISO 7240-16, Fire detection and alarm systems — Part 16: Sound system control and indicating equipment
ISO 7240-25, Fire detection and fire alarm systems — Part 25: Components using radio transmission paths
IEC 62599-1, Alarm systems — Part 1: Environmental test methods
IEC 62599-2, Alarm systems — Part 2: Electromagnetic compatibility — Immunity requirements for
components of fire and security alarm systems
3 Terms, definitions and abbreviated terms
3.1 Definitions
For the purposes of this document, the terms and definitions given in ISO 7240-1 and the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
3.1.1
compatibility of the component type 1
ability of a component type 1 (3.1.2) to operate with control-and-indicating equipment
— within the limits specified for each component,
— within the specified limits given by the relevant parts of the ISO 7240 series or the ISO 6182 series if
available and if not available, given by either a National fire equipment standard or by the applicant,
— within specified configurations of systems
3.1.2
component type 1
device performing a function for the protection of life and/or property, which is required by national
guidelines or regulations
3.1.3
component type 2
device other than a type 1 device which is connected to a component type 1 (3.1.2) performing a function
for the protection of life and/or property, which is not required by national guidelines or regulations
EXAMPLE A printer used for listing fire events.
3.1.4
configuration
topological arrangement of components connected through transmission paths to a control and
indicating equipment
3.1.5
connectability of component type 2
ability of a component type 2 (3.1.3) to operate without jeopardizing the performance of the fire
detection and fire alarm system
3.1.6
control level
level where control and indication functions are provided
Note 1 to entry: See Figure A.1.
Note 2 to entry: CIE and VACIE belong to this level.
3.1.7
field level
level where detection, activation and fire alarm functions are provided
Note 1 to entry: See Figure A.1.
2 © ISO 2020 – All rights reserved

Note 2 to entry: Detectors, input/output devices and visual/audible alarm devices belong to this level.
3.1.8
fire protection system
group of devices, which in combination are capable of automatically actuating measures to limit the
effect of fire
EXAMPLE Compartmentalization systems, smoke control systems, fixed fire-fighting systems.
3.1.9
hierarchical system
networked system in which one item of control-and-indicating equipment is designated as the main
control-and-indicating equipment, and in which the main control-and-indicating equipment is able to
— receive signals from and/or transmit signals to the control-and-indicating equipment of a
subsystem, and
— indicate the status of the control-and-indicating equipment of a subsystem
3.1.10
management level
level where management functions are provided
Note 1 to entry: The FDAS shall not depend on these functions for its operation.
3.1.11
networked CIE
fire-detection and fire-alarm system in which more than one CIE or VACIE or a combination are
interconnected on a fault tolerant transmission path and are able to exchange information
3.1.12
applicant
organization or other such body requiring an assessment of the compatibility and connectability of
system components
3.2 Abbreviated terms
CIE control-and-indicating equipment
FDAS fire detection and fire alarm system
PSE power supply equipment
TP transmission path
VACIE voice alarm control and indicating equipment
VAS voice alarm system
4 Requirements
4.1 Conformance
The components shall conform to the requirements of the ISO 7240 series or the ISO 6182 series or with
a national equipment standard or with a manufacturer’s specification where a standard is not available.
National application guidelines (also known as codes of practice) also contain system requirements.
Suppliers of components shall ensure that they
— meet the requirements of this document;
— meet the requirements of the application guidelines of the countries where the components are
intended to be placed on the market.
In order to conform to this document, compatibility of the components type 1 or connectability of the
components type 2 within the FDAS shall meet the requirements listed in Clause 4 of this document.
This shall be verified by theoretical assessment (5.1) with reference to the required documentation
(Clause 8). When it is an outcome of the theoretical assessment, configuration(s) according to 5.3 shall
be tested as described using the relevant selection of functional tests defined in 5.5 and 5.6 and shall
meet the acceptance criteria of the tests.
4.2 General system requirements
4.2.1 The applicant shall provide a list of the FDAS devices and those devices not covered by the
ISO 7240 series shall be declared as component type 1 or component type 2.
4.2.2 The different FDAS configurations intended to be used shall be described within the applicant’s
documentation.
4.2.3 Each of the configurations declared by the applicant shall be considered and representative
configurations shall be assessed to meet the requirements of this document.
4.2.4 Each component type 1 shall be powered directly or indirectly by a PSE which conforms to the
requirements in ISO 7240-4, except for some radio link components in accordance with ISO 7240-25
which may be powered by batteries.
4.2.5 Each component type 1 shall meet the requirements of the relevant part of the ISO 7240 series or
the ISO 6182 series.
Where the component type 1 is not covered by a relevant part of ISO 7240 series or the ISO 6182 series,
it shall meet the following criteria:
a) conformity of the functionality (indication, control, activation) as declared by the component
manufacturer: this functionality shall be consistent with the purpose of a FDAS. The applicant shall
provide the means to check the functionality;
b) conformance to IEC 62599-2;
c) conformance to IEC 62599-1; the applicant shall declare the environmental class. The measurements
or inspections are made before, during (if necessary) and after testing. There shall be no change in
the functioning of the equipment and no significant change in any measurements, which shall also
remain within specification.
Alternatively, the component may comply with the environmental clauses included in the relevant part
of the ISO 7240 series (refer to ISO 7240-1 to classify the components and select the appropriate part).
NOTE It is possible for a component to be covered by a National Assessment Document where there is not an
ISO 7240 standard.
4.2.6 The operation of type 1 and type 2 components shall not jeopardize the operation of the system.
4.2.7 Each component within the FDAS shall operate correctly when submitted to supply voltage
variation as specified by the manufacturer. For each configuration, voltage shall be within the specified
voltage supply range of each component in the FDAS.
4 © ISO 2020 – All rights reserved

4.3 Transmission path(s) (TP)
4.3.1 General
Each TP between components shall be realized as one of or a combination of the following: electrical
cables, radio frequency links or fibre optic cables.
Means, specified and provided, of limiting the consequences of faults on a transmission path shall
ensure that the function of remaining operational devices is re-established within 300 s following the
occurrence of the fault.
Application guidelines may require that the consequences of a fault (for example a short circuit or an
interruption) on a transmission path are limited: for example, not losing more than one function or
limiting the maximum area affected by the fault.
4.3.2 TP using wires
The applicant shall define in the installation documentation the arrangement of the TP and if the TPs
may be combined in one cable.
A single short or open or earth fault in any TP between components of the FDAS shall not affect the
correct functioning of any other TP.
A short, open or earth fault on a TP to any other system shall not affect the correct functioning of the FDAS.
4.3.3 TP using radio frequency links
The applicant shall define in the installation documentation the arrangement of the TP using radio
frequency links. The component type 1 using radio frequency links shall comply with the requirements
of ISO 7240-25.
4.3.4 TP using optical fibres
The applicant shall define in the installation documentation the arrangement of the TP and whether or
not the TPs may be combined in one cable.
A single fibre break or loss of transmission within a cable shall not affect more than one TP.
A fibre break or loss of transmission on a transmission path to any other system shall not affect the
correct functioning of the FDAS.
4.3.5 Network TP
The network technology of networked CIE could be either a wired link, fibre optics or radio.
The following requirements shall apply:
a) the connection to the network and any single short, open or earth fault in the network shall not
jeopardize the correct operation of the FDAS (in the specified configuration);
b) any traffic on the network shall stay within the limits defined by the applicant and shall not
jeopardize the correct operation of the FDAS;
c) the access to the CIE through the network shall comply with the requirement of the access levels
defined in the relevant part of the ISO 7240 series;
d) if the configuration is designed to transmit a functional condition (such as fire, fault, disablement,
etc.) from one CIE to any other CIE through the network, then the transmission time shall be
determined by the applicable product standard forming part of the ISO 7240 series. However,
where this is not the case, the transmission time shall be within 20 s;
e) if the configuration is designed to transmit an activation message(s) from one CIE to any other CIE
through the network, then the transmission time shall be within 20 s and the relevant output shall
be activated at the other CIE as specified in ISO 7240-2 or ISO 7240-16;
f) if the configuration is designed to transmit a fire alarm, fault warning or disablement condition
from one CIE to any other CIE through the network, it shall be possible to identify at least the CIE
from which the information originated;
g) a loss of communication to a network CIE shall cause at least one CIE to enter the fault warning
condition within 100 s. In the case of a hierarchical system, the main CIE shall enter the fault
warning condition within 20 s of the original fault warning condition;
h) if it is possible to remotely control one CIE from another CIE via the network, the result shall be
identical to that achieved by the operation of these controls on the controlled CIE.
5 Assessment methods and tests
5.1 General
5.1.1 To assess the compatibility or connectability, a theoretical analysis shall be undertaken for each
component and its type of transmission path.
Based on the theoretical analysis of the system, a set of tests shall be selected from those listed in
Clause 5.
If requirements defined in Clause 4 are included in the applicable part of the ISO 7240 series, no further
testing is required.
NOTE 1 An example of the methodology for the theoretical analysis is given in Annex C.
NOTE 2 A flow chart to illustrate the process for implementing the compatibility assessment is given in
Annex E.
The compatibility or connectability of each component for each system configuration(s) as specified by
the applicant shall be assessed.
5.1.2 For components type 1 not covered by the ISO 7240 series, if no evidence of conformance to
electromagnetic compatibility [see 4.2.5 b)] is provided, then the electromagnetic compatibility
immunity tests shall be carried out in accordance with 4.2.5 b).
5.1.3 For components type 1 not covered by the ISO 7240 series, if no evidence of conformance to
environmental tests [see 4.2.5 c)] is provided, then tests shall be carried out in accordance with 4.2.5 c).
5.1.4 The test programme shall be undertaken after the theoretical analysis and be dependent upon
the results of this analysis.
The test programme may be undertaken as part of a programme to assess the performance of a device
in accordance with the relevant part of the ISO 7240 series.
5.1.5 The assessment of the software documentation of components type 1 not covered by the
ISO 7240 series shall carried out in accordance with Annex D.
5.1.6 The assessment shall be based on the assumption of the initial condition of the system being in
the quiescent state.
6 © ISO 2020 – All rights reserved

5.2 Provision of equipment and supporting information and tools
5.2.1 At least one system configuration shall be provided for testing conformance with this document.
5.2.2 Each configuration of a component shall be representative of the maximum capacity of equipment
declared in the manufacturer's documentation. This may be achieved by the submission of equipment
with a full complement of interfaces to transmission paths, zones and outputs.
5.2.3 The components for connection to transmission paths may be substituted by simulated devices,
provided that these have equivalent functional and electrical characteristics. In any case, at least one
component of each type shall be provided.
Each type may cover variants of the same component.
5.2.4 Information and tools shall be provided to exercise the different configurations of the system.
5.3 Configuration
5.3.1 General
There may be three levels (field level, control level, management level, see Annex A).
Separate configuration may be possible at each of these levels.
This document does not consider configurations at management level and therefore no method of
assessment is provided in the document.
When determining the equipment configuration for testing, both field and control configurations shall
be considered.
5.3.2 Configuration at field level for assessment
From the assessment of documentation, the relevant configuration(s) shall be provided for testing.
All different types of components type 1 and components type 2 connected to CIE or VACIE used in the
configuration shall be considered (see Annex B).
If there are several TP of the same type, at least one TP shall be used for testing.
The input and output connections shall be made in accordance with the manufacturer’s instructions.
The different TP characteristics provided by the applicant shall be considered and testing shall be
carried out with the TP characteristic that is considered to be the worst case. Simulated characteristics
on TP may be used, provided that these have equivalent characteristics.
The components under consideration are connected through the transmission path which is loaded as
mentioned in the applicant documentation. This shall include:
a) in the case of wired transmission paths, the maximum electrical loading. Different detection
circuits and transmission paths may be used;
b) in the case of transmission paths that connect addressable components, the maximum number of
components. Different detection circuits and transmission paths may be used;
c) in the case of transmission paths that connect radio linked components, the maximum number of
components;
d) in the case of transmission paths that connect components through fibre optic cable, the maximum
attenuation;
e) the minimum loading. In the absence of this specification it shall be assumed to be a single
transmission path loaded with a single component and no load on other transmission paths unless
a component is functionally necessary.
5.3.3 Configuration at control level for network assessment
Each network topology shall be configured as per the applicant's declared worst case(s): for example,
the limitation of the network system, in terms of number of nodes, cabling and architecture, etc.
At least three CIEs and the necessary components for the functional testing described in this document
shall be configured in accordance with ISO 7240-2. At least three VACIEs and the necessary components
for the functional testing described in this standard shall be configured in accordance with ISO 7240-16.
It is also possible to combine CIE and VACIE (at least three in total), with each of them loaded as specified
in 5.3.2.
NOTE Where the network is limited to two CIE, it is sufficient to evaluate only two CIE.
5.4 Standard atmospheric conditions for testing
Unless otherwise stated in a test procedure, the testing shall be carried out after the test specimen
has been allowed to stabilize in the standard atmospheric conditions for testing as described in
IEC 60068-1, as follows:
a) temperature —15 °C to 35 °C;
b) relative humidity — 25 % to 75 %;
c) air pressure — 86 kPa to 106 kPa.
If variations in these parameters have a significant effect on a measurement, then such variations shall
be kept to a minimum during a series of measurements carried out as part of one test on one specimen.
5.5 Functional test for compatibility assessment on field level
5.5.1 The objective of the test
The objective of the test is to check the functionality of each component type 1 together with all other
components of the system as specified by the applicant in accordance with manufacturer’s instructions
and the applicable ISO 7240 series standards under each defined test.
5.5.2 Test schedule
5.5.2.1 A schedule of tests shall be drawn up that is appropriate to the system design assessment and
the technology employed.
NOTE The design assessments can include both inspections of the components and of the documentation.
5.5.2.2 During testing, implemented functions of the FDAS shall be activated in sequence (except when
it is specified differently) starting from the quiescent conditions.
5.5.2.3 Each functional test shall be carried out at:
— the minimum supply voltage with the maximum electrical load and maximum number of components
on all configured transmission paths;
— the maximum supply voltage with the minimum electrical load on all transmission paths.
8 © ISO 2020 – All rights reserved

During each of the conditions described in 5.5.3, the power and data parameters on the transmission
path shall be within the manufacturer’s specifications for the connected components.
5.5.3 Functional tests for compatibility in the different conditions
5.5.3.1 Fire alarm condition
5.5.3.1.1 Procedure
Start from the quiescent condition.
Activate one or more of the components (detector, manual call point or input element) that can be
connected to the transmission path.
Check the criteria for each component and reset the CIE to quiescent condition.
5.5.3.1.2 Criteria of acceptance
The following criteria of acceptance shall be met for the functional test of the fire alarm condition:
— the activation of one component or two components simultaneously (if it is technically possible for
two components to simultaneously enter the fire alarm condition) with subsequent activation of
further components shall lead to the fire alarm condition of the system;
— resetting shall return the system to the quiescent condition.
5.5.3.2 Voice alarm condition
5.5.3.2.1 Procedure
Start from the quiescent condition.
Activate one or more of the components that can be connected to the transmission path.
Check the criteria for each component and reset the VACIE to quiescent condition.
5.5.3.2.2 Criteria of acceptance
The following criteria of acceptance shall be met for the functional test of the voice alarm condition:
— the activation of one component shall lead to the voice alarm condition;
— resetting shall return the system to the quiescent condition.
5.5.3.3 Fault warning condition: interruption or short circuit on a transmission path
5.5.3.3.1 Interruption on a transmission path
5.5.3.3.1.1 Procedure
Start from the quiescent condition.
Influence the transmission path to cause a full physical interruption or total loss of communication for
wireless TP.
This shall be carried out:
— core by core for a wire transmission path in one cable. Some configurations include a redundancy
or multiple cores with the same function. In this case, loss of one core may not cause interruption or
fault warning condition and therefore all cores with the same function shall be interrupted to cause
the required fault warning condition;
— fibre by fibre for a fibre optic transmission path in one cable;
— simultaneous interruption for wire or fibre optic in one cable;
— interruption of the radio transmission for a wireless transmission path.
NOTE For wireless systems, the aim of this test is not to evaluate the conformance with ISO 7240–25, but to
check that a fault occurring within the wireless TP is indicated as a fault warning at the CIE.
Remove all interruptions and reset the transmission path function to the quiescent condition.
Check the criteria for each fault identified above.
5.5.3.3.1.2 Criteria of acceptance
The following criteria of acceptance shall be met for the functional test of the fault warning condition:
— an interruption shall cause the fault warning condition and indicate the intended fault(s);
— means, specified and provided, to limit the consequences of faults shall operate as intended;
— the reestablishment of the transmission path shall cause the system to become fully operational.
5.5.3.3.2 Short circuit on a transmission path using wires
5.5.3.3.2.1 Procedure
Start from the quiescent condition.
Influence the transmission path by causing a single full physical short circuit.
This shall be carried out:
— at any combination of two cores within a wire transmission path in one cable. Some configurations
include a redundancy or multiple cores with the same function. In this case, a short circuit will
not cause a fault warning condition and therefore this combination of cores shall be excluded
from the test.
Simultaneously short circuit all cores within a wire transmission path in one cable.
Remove all short circuits, replace any damaged fuse or other protective device and re-establish the
transmission path function to the quiescent condition.
Check the criteria for each fault identified above.
5.5.3.3.2.2 Criteria of acceptance
The following criteria of acceptance shall be met for the functional test of a short circuit on a
transmission path:
— a short circuit fault shall cause the fault warning condition and indicate the intended fault(s);
— means, specified and provided, to limit the consequences of faults shall operate as intended;
— reestablishment of the transmission path shall cause the system to become fully operational.
10 © ISO 2020 – All rights reserved

5.5.3.3.3 Earth fault on a transmission path using wires
5.5.3.3.3.1 Procedure
Start from the quiescent condition.
Influence the transmission path by causing an earth fault.
This shall be carried out at each core within a wire transmission path in one cable.
Remove the earth fault and re-establish the transmission path function to the quiescent condition.
Check the criteria for each earth fault.
5.5.3.3.3.2 Criteria of acceptance
The following criteria of acceptance shall be met for the functional test of an earth fault on a
transmission path:
— an earth fault shall cause the fault warning condition and indicate the intended fault(s). If no fault is
indicated, check that the system is fully operational;
— the removal of the earth fault of the transmission path and reestablishment to the quiescent
condition shall cause the system to become fully operational.
5.5.3.4 Removal of detachable components
5.5.3.4.1 Procedure
Start from the quiescent condition.
Remove a detachable component from the transmission path.
Check the criteria for each component.
Reinsert the removed component and reset the transmission path function to the quiescent condition.
5.5.3.4.2 Criteria of acceptance
The following criteria of acceptance shall be met for the functional test of the fault warning condition:
— the removal of a detachable component from the transmission path shall cause the fault warning
condition and indicate the intended fault(s);
— means, specified and provided, to limit the consequences of faults shall operate as intended;
— the re-establishment of the transmission path by reinserting and, if necessary, resetting the CIE and
the removed component shall cause the component and system to become fully operational.
5.5.3.5 Reduction of power supply voltage
5.5.3.5.1 Procedure
Start from the quiescent condition.
Disconnect the mains voltage and reduce the battery voltage by discharge or by simulation:
— until activation of a deep discharge protection device, followed by;
— reconnection to the mains line supply; or
— until the voltage reaches a level below which the system does not operate, followed by reconnection
to the mains line supply.
The simulation of a reduction of the battery voltage shall not be at a rate greater than 0,4 V/min.
Check the criteria for each power supply fault identified above.
5.5.3.5.2 Criteria of acceptance
The power supply fault shall be indicated as specified in ISO 7240-4.
NOTE 1 Additional fault can be indicated on different equipment of the system.
All the type 1 components shall be supplied within the power supply voltage range defined by the
manufactur
...
