Cryogenic vessels — Gas/material compatibility

ISO 21010:2017 specifies gas/material compatibility requirements (such as chemical resistance) for cryogenic vessels, but it does not cover mechanical properties (e.g. for low-temperature applications). ISO 21010:2017 provides general guidance for compatibility with gases and detailed compatibility requirements for oxygen and oxygen-enriched atmospheres. This document also defines the testing methods for establishing oxygen compatibility of materials (metallic and non-metallic) to be used for cryogenic vessels and associated equipment. ISO 21010:2017 focuses on materials that are normally with or could be in contact with cryogenic fluids.

Récipients cryogéniques — Compatibilité gaz/matériaux

General Information

Status
Published
Publication Date
07-Dec-2017
Current Stage
9092 - International Standard to be revised
Start Date
28-Sep-2023
Completion Date
19-Apr-2025
Ref Project

Relations

Buy Standard

Standard
ISO 21010:2017 - Cryogenic vessels — Gas/material compatibility Released:12/8/2017
English language
15 pages
sale 15% off
Preview
sale 15% off
Preview
Standard
ISO 21010:2017 - Cryogenic vessels -- Gas/material compatibility
English language
15 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)


INTERNATIONAL ISO
STANDARD 21010
Third edition
2017-12
Cryogenic vessels — Gas/material
compatibility
Récipients cryogéniques — Compatibilité gaz/matériaux
Reference number
©
ISO 2017
© ISO 2017, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2017 – All rights reserved

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Compatibility of materials with gases other than oxygen . 1
5 General requirements for oxygen service . 1
5.1 Evaluation of materials for oxygen service . 1
5.1.1 General. 1
5.1.2 Evaluation of the insulation system . 2
5.2 Evaluation of metallic materials . 2
5.3 Evaluation of non-metallic materials . 2
5.4 Test methods and acceptance criteria . 3
5.4.1 General. 3
5.4.2 Ignition tests . 3
5.4.3 Insulation test . 4
5.5 Alternative method for acceptance . 5
Annex A (informative) Metallic materials commonly used for liquid oxygen service .6
Annex B (normative) Spontaneous ignition test (bomb test) . 7
Annex C (normative) Pressure surge test .12
Bibliography .15

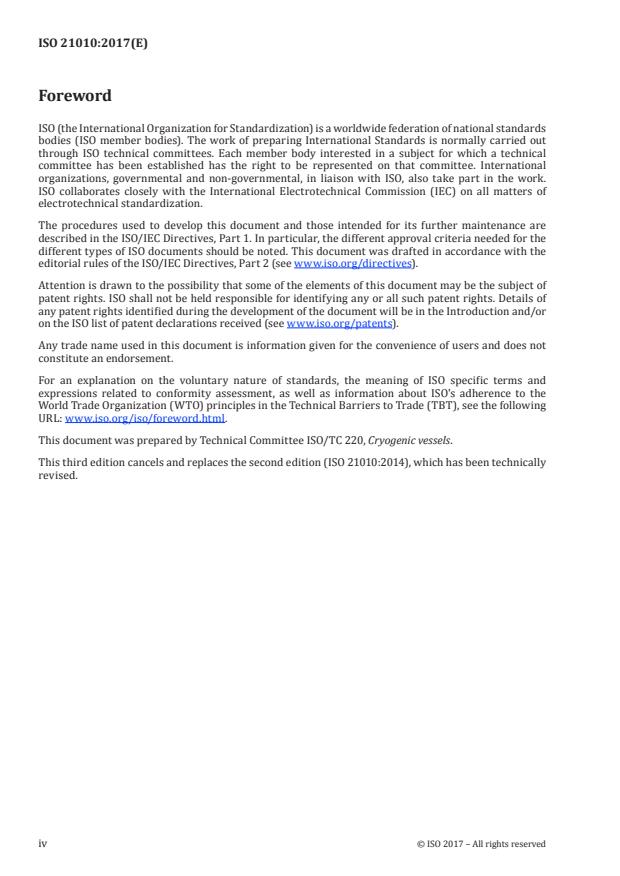

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see the following
URL: www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 220, Cryogenic vessels.
This third edition cancels and replaces the second edition (ISO 21010:2014), which has been technically
revised.
iv © ISO 2017 – All rights reserved

INTERNATIONAL STANDARD ISO 21010:2017(E)
Cryogenic vessels — Gas/material compatibility
1 Scope
This document specifies gas/material compatibility requirements (such as chemical resistance) for
cryogenic vessels, but it does not cover mechanical properties (e.g. for low-temperature applications).
This document provides general guidance for compatibility with gases and detailed compatibility
requirements for oxygen and oxygen-enriched atmospheres. This document also defines the testing
methods for establishing oxygen compatibility of materials (metallic and non-metallic) to be used for
cryogenic vessels and associated equipment.
This document focuses on materials that are normally with or could be in contact with cryogenic fluids.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 10297:2014, Gas cylinders — Cylinder valves — Specification and type testing
ISO 23208, Cryogenic vessels — Cleanliness for cryogenic service
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at https://www.electropedia.org/
— ISO Online browsing platform: available at https://www.iso.org/obp
4 Compatibility of materials with gases other than oxygen
Cryogenic vessels are used in a range of temperatures from very low temperature to ambient
temperature. On excluding oxygen, compatibility problems such as corrosion normally occur at ambient
temperature and become negligible at cryogenic temperatures.
In the case of gases other than oxygen, ISO 11114-1 and ISO 11114-2 can be used as a guide for cryogenic
vessels.
5 General requirements for oxygen service
5.1 Evaluation of materials for oxygen service
5.1.1 General
The selection of a material for use with oxygen and/or in an oxygen-enriched atmosphere is primarily a
matter of understanding the circumstances that cause oxygen to react with the material. Most materials
in contact with oxygen will not ignite without a source of ignition energy. When an energy input rate,
as converted to heat, is greater than the rate of heat dissipation, and the resulting heat increase is
continued for sufficient time, ignition and combustion will occur. Thus, two things shall be considered:
— the material's minimum ignition temperature;
— the energy sources that will produce a sufficient increase in the temperature of the material.
These should be viewed in the context of the entire system design so that the specific factors listed
below will assume proper relative significance.
The specific factors are:
— the properties of the materials, including the factors affecting ease of ignition and the conditions
affecting potential resultant damage (heat of reaction);
— the operating conditions: pressure, temperature, gas velocity, oxygen concentrations, and oxygen
state (gaseous or liquid) and surface contamination in accordance with ISO 23208;
— the potential sources of ignition: friction, heat of compression, heat from mass impact, heat from
particle impact, static electricity, electric arc, resonance, and internal flexing etc.;
— the reaction effect (consequences on the surroundings, etc.);
— additional factors: performance requirements, prior experience, availability, and cost.
CAUTION — This document specifies the minimum acceptance requirements for materials
in oxygen and enriched air service. In the cases of severe conditions and when the operating
pressure is above 40 bar, additional tests to those specified should be considered.
5.1.2 Evaluation of the insulation system
Insulation systems for cryogenic vessels that can come into contact with oxygen or condensed enriched
air, shall be tested in accordance with 5.4.3.
5.2 Evaluation of metallic materials
Metallic materials commonly used for the construction of cryogenic vessels do not normally present
any incompatibility when in contact with oxygen. Annex A lists the metallic materials commonly used
for liquid oxygen.
The cases in which ignition or violent reactions can occur are when very thin materials are used with
high surface to volume ratio, and when high ignition energy is available (e.g. pump failure). Materials
thinner than 0,1 mm shall be tested in accordance with 5.4.3.1 in conditions as close as possible to
the actual operational conditions. Materials to be used in applications where the ignition energy is
potentially high should be subjected to special consideration.
For cryogenic vessels intended for oxygen service, the test described in 5.4.3.1 shall be performed with
oxygen. When materials are located in an area where contact with condensed enriched air and the
presence of potential sources of ignition is a risk, the test described in 5.4.3.1 shall be performed with
cryogenic O /N mixtures containing at least 50 % oxygen.
2 2
NOTE Condensed enriched air can be produced on surfaces with temperatures colder than −191,3 °C at
1 atm (101,325 Pa). The use of atm is deprecated according to ISO 80000-4:2006, Annex C.
5.3 Evaluation of non-metallic materials
Example of non-metallic materials includes plastics, elastomers, lubricants, ceramics, glasses and glues.
Some of these materials present a high risk of ignition when in contact with oxygen and should be
avoided or carefully selected and used in limited quantities.
2 © ISO 2017 – All rights reserved

Some fully oxidized materials, such as ceramics and glass, present no risk of ignition provided they are
not contaminated.
Any combustible non-metallic materials, used in steady or incidental contact with liquid oxygen, where
the presence of a potential source of ignition is a risk, shall be tested in accordance with 5.4.2 and
5.4.3.1. Consideration shall be given to testing materials used in those parts of the system where liquid
oxygen accumulation might incidentally occur.
For cryogenic vessels intended for oxygen service, the test described in 5.4.3 shall be performed with
oxygen. When materials are located in an area where contact with condensed enriched air and the
presence of potential sources of ignition is a risk, the test described in 5.4.3 shall be performed with
cryogenic O /N mixtures containing at least 50 % oxygen.
2 2
NOTE Condensed enriched air can be produced on surfaces with temperature colder than −191,3 °C at 1 atm
(101,325 Pa). The use of atm is deprecated according to ISO 80000-4:2006, Annex C.
Any combustible non-metallic materials, used in steady or incidental contact with gaseous oxygen
where the presence of potential sources of ignition is a risk, shall be tested in accordance with 5.4.2.
Consideration shall be given to testing materials used in those parts of the system where gaseous
oxygen accumulation might incidentally occur.
5.4 Test methods and acceptance criteria
5.4.1 General
Each material to be tested shall be clearly identified, usually by the commercial name and the
manufacturer's name.
5.4.2 Ignition tests
5.4.2.1 Pass criteria
Two alternative test methods are described in 5.4.2.2 and 5.4.2.3. Materials not satisfying the
requirements of 5.4.2.2 or 5.4.2.3 can still be used providing they successfully pass, in their actual
operating configuration, the “oxygen pressure surge test” described in ISO 10297:2014, 5.9 (e.g. for a
valve-sealing material, the entire valve or a representative assembly shall be tested).
5.4.2.2 Spontaneous ignition test (bomb test)
5.4.2.2.1 Test pr
...


INTERNATIONAL ISO
STANDARD 21010
Third edition
2017-12
Cryogenic vessels — Gas/material
compatibility
Récipients cryogéniques — Compatibilité gaz/matériaux
Reference number
©
ISO 2017
© ISO 2017, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2017 – All rights reserved

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Compatibility of materials with gases other than oxygen . 1
5 General requirements for oxygen service . 1
5.1 Evaluation of materials for oxygen service . 1
5.1.1 General. 1
5.1.2 Evaluation of the insulation system . 2
5.2 Evaluation of metallic materials . 2
5.3 Evaluation of non-metallic materials . 2
5.4 Test methods and acceptance criteria . 3
5.4.1 General. 3
5.4.2 Ignition tests . 3
5.4.3 Insulation test . 4
5.5 Alternative method for acceptance . 5
Annex A (informative) Metallic materials commonly used for liquid oxygen service .6
Annex B (normative) Spontaneous ignition test (bomb test) . 7
Annex C (normative) Pressure surge test .12
Bibliography .15
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see the following
URL: www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 220, Cryogenic vessels.
This third edition cancels and replaces the second edition (ISO 21010:2014), which has been technically
revised.
iv © ISO 2017 – All rights reserved

INTERNATIONAL STANDARD ISO 21010:2017(E)
Cryogenic vessels — Gas/material compatibility
1 Scope
This document specifies gas/material compatibility requirements (such as chemical resistance) for
cryogenic vessels, but it does not cover mechanical properties (e.g. for low-temperature applications).
This document provides general guidance for compatibility with gases and detailed compatibility
requirements for oxygen and oxygen-enriched atmospheres. This document also defines the testing
methods for establishing oxygen compatibility of materials (metallic and non-metallic) to be used for
cryogenic vessels and associated equipment.
This document focuses on materials that are normally with or could be in contact with cryogenic fluids.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 10297:2014, Gas cylinders — Cylinder valves — Specification and type testing
ISO 23208, Cryogenic vessels — Cleanliness for cryogenic service
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at https://www.electropedia.org/
— ISO Online browsing platform: available at https://www.iso.org/obp
4 Compatibility of materials with gases other than oxygen
Cryogenic vessels are used in a range of temperatures from very low temperature to ambient
temperature. On excluding oxygen, compatibility problems such as corrosion normally occur at ambient
temperature and become negligible at cryogenic temperatures.
In the case of gases other than oxygen, ISO 11114-1 and ISO 11114-2 can be used as a guide for cryogenic
vessels.
5 General requirements for oxygen service
5.1 Evaluation of materials for oxygen service
5.1.1 General
The selection of a material for use with oxygen and/or in an oxygen-enriched atmosphere is primarily a
matter of understanding the circumstances that cause oxygen to react with the material. Most materials
in contact with oxygen will not ignite without a source of ignition energy. When an energy input rate,
as converted to heat, is greater than the rate of heat dissipation, and the resulting heat increase is
continued for sufficient time, ignition and combustion will occur. Thus, two things shall be considered:
— the material's minimum ignition temperature;
— the energy sources that will produce a sufficient increase in the temperature of the material.
These should be viewed in the context of the entire system design so that the specific factors listed
below will assume proper relative significance.
The specific factors are:
— the properties of the materials, including the factors affecting ease of ignition and the conditions
affecting potential resultant damage (heat of reaction);
— the operating conditions: pressure, temperature, gas velocity, oxygen concentrations, and oxygen
state (gaseous or liquid) and surface contamination in accordance with ISO 23208;
— the potential sources of ignition: friction, heat of compression, heat from mass impact, heat from
particle impact, static electricity, electric arc, resonance, and internal flexing etc.;
— the reaction effect (consequences on the surroundings, etc.);
— additional factors: performance requirements, prior experience, availability, and cost.
CAUTION — This document specifies the minimum acceptance requirements for materials
in oxygen and enriched air service. In the cases of severe conditions and when the operating
pressure is above 40 bar, additional tests to those specified should be considered.
5.1.2 Evaluation of the insulation system
Insulation systems for cryogenic vessels that can come into contact with oxygen or condensed enriched
air, shall be tested in accordance with 5.4.3.
5.2 Evaluation of metallic materials
Metallic materials commonly used for the construction of cryogenic vessels do not normally present
any incompatibility when in contact with oxygen. Annex A lists the metallic materials commonly used
for liquid oxygen.
The cases in which ignition or violent reactions can occur are when very thin materials are used with
high surface to volume ratio, and when high ignition energy is available (e.g. pump failure). Materials
thinner than 0,1 mm shall be tested in accordance with 5.4.3.1 in conditions as close as possible to
the actual operational conditions. Materials to be used in applications where the ignition energy is
potentially high should be subjected to special consideration.
For cryogenic vessels intended for oxygen service, the test described in 5.4.3.1 shall be performed with
oxygen. When materials are located in an area where contact with condensed enriched air and the
presence of potential sources of ignition is a risk, the test described in 5.4.3.1 shall be performed with
cryogenic O /N mixtures containing at least 50 % oxygen.
2 2
NOTE Condensed enriched air can be produced on surfaces with temperatures colder than −191,3 °C at
1 atm (101,325 Pa). The use of atm is deprecated according to ISO 80000-4:2006, Annex C.
5.3 Evaluation of non-metallic materials
Example of non-metallic materials includes plastics, elastomers, lubricants, ceramics, glasses and glues.
Some of these materials present a high risk of ignition when in contact with oxygen and should be
avoided or carefully selected and used in limited quantities.
2 © ISO 2017 – All rights reserved

Some fully oxidized materials, such as ceramics and glass, present no risk of ignition provided they are
not contaminated.
Any combustible non-metallic materials, used in steady or incidental contact with liquid oxygen, where
the presence of a potential source of ignition is a risk, shall be tested in accordance with 5.4.2 and
5.4.3.1. Consideration shall be given to testing materials used in those parts of the system where liquid
oxygen accumulation might incidentally occur.
For cryogenic vessels intended for oxygen service, the test described in 5.4.3 shall be performed with
oxygen. When materials are located in an area where contact with condensed enriched air and the
presence of potential sources of ignition is a risk, the test described in 5.4.3 shall be performed with
cryogenic O /N mixtures containing at least 50 % oxygen.
2 2
NOTE Condensed enriched air can be produced on surfaces with temperature colder than −191,3 °C at 1 atm
(101,325 Pa). The use of atm is deprecated according to ISO 80000-4:2006, Annex C.
Any combustible non-metallic materials, used in steady or incidental contact with gaseous oxygen
where the presence of potential sources of ignition is a risk, shall be tested in accordance with 5.4.2.
Consideration shall be given to testing materials used in those parts of the system where gaseous
oxygen accumulation might incidentally occur.
5.4 Test methods and acceptance criteria
5.4.1 General
Each material to be tested shall be clearly identified, usually by the commercial name and the
manufacturer's name.
5.4.2 Ignition tests
5.4.2.1 Pass criteria
Two alternative test methods are described in 5.4.2.2 and 5.4.2.3. Materials not satisfying the
requirements of 5.4.2.2 or 5.4.2.3 can still be used providing they successfully pass, in their actual
operating configuration, the “oxygen pressure surge test” described in ISO 10297:2014, 5.9 (e.g. for a
valve-sealing material, the entire valve or a representative assembly shall be tested).
5.4.2.2 Spontaneous ignition test (bomb test)
5.4.2.2.1 Test pr
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
