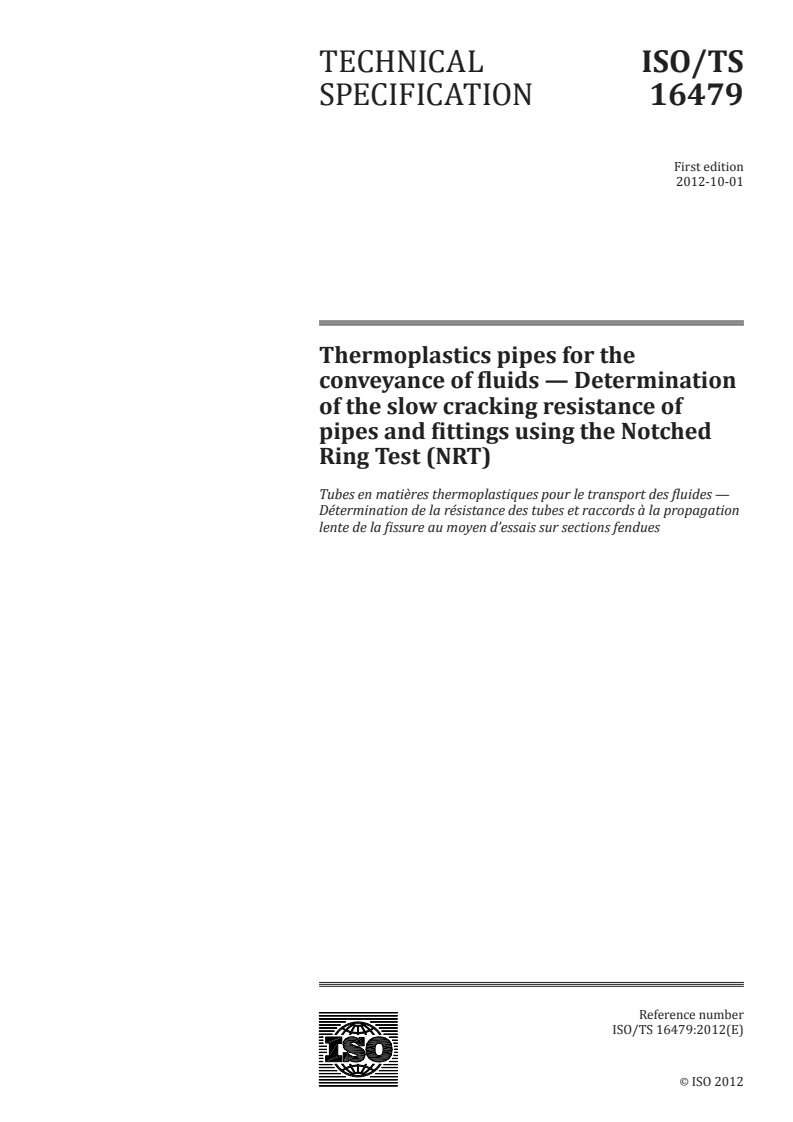

ISO/TS 16479:2012

TECHNICAL ISO/TS
SPECIFICATION 16479
First edition
2012-10-01
Thermoplastics pipes for the
conveyance of fluids — Determination
of the slow cracking resistance of
pipes and fittings using the Notched
Ring Test (NRT)
Tubes en matières thermoplastiques pour le transport des fluides —
Détermination de la résistance des tubes et raccords à la propagation
lente de la fissure au moyen d’essais sur sections fendues
Reference number
©
ISO 2012
© ISO 2012
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any
means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the
address below or ISO’s member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2012 – All rights reserved

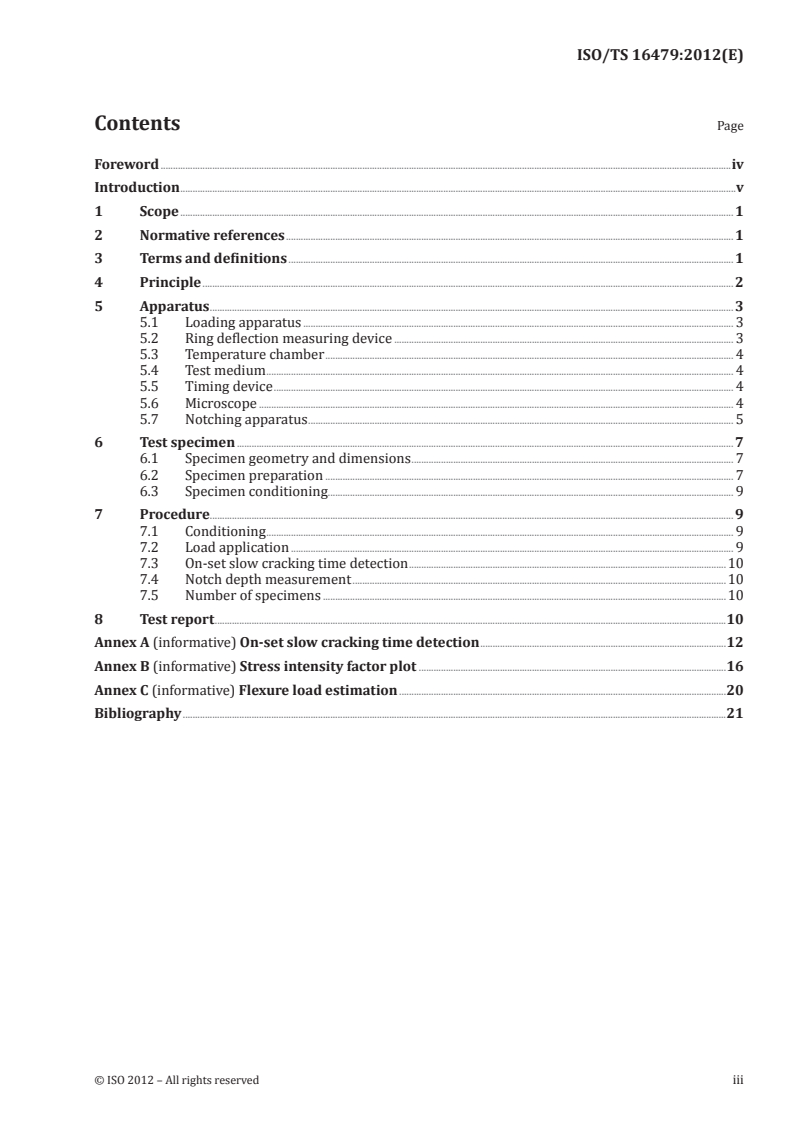

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principle . 2
5 Apparatus . 3
5.1 Loading apparatus . 3
5.2 Ring deflection measuring device . 3
5.3 Temperature chamber . 4
5.4 Test medium . 4
5.5 Timing device . 4
5.6 Microscope . 4
5.7 Notching apparatus . 5
6 Test specimen . 7
6.1 Specimen geometry and dimensions . 7
6.2 Specimen preparation . 7
6.3 Specimen conditioning . . 9
7 Procedure. 9
7.1 Conditioning . 9
7.2 Load application . 9
7.3 On-set slow cracking time detection .10
7.4 Notch depth measurement .10
7.5 Number of specimens .10
8 Test report .10
Annex A (informative) On-set slow cracking time detection .12
Annex B (informative) Stress intensity factor plot .16
Annex C (informative) Flexure load estimation .20
Bibliography .21
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International
Standards adopted by the technical committees are circulated to the member bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the member bodies
casting a vote.
In other circumstances, particularly when there is an urgent market requirement for such documents, a
technical committee may decide to publish other types of document:
— an ISO Publicly Available Specification (ISO/PAS) represents an agreement between technical
experts in an ISO working group and is accepted for publication if it is approved by more than 50 %
of the members of the parent committee casting a vote;
— an ISO Technical Specification (ISO/TS) represents an agreement between the members of a
technical committee and is accepted for publication if it is approved by 2/3 of the members of the
committee casting a vote.
An ISO/PAS or ISO/TS is reviewed after three years in order to decide whether it will be confirmed for
a further three years, revised to become an International Standard, or withdrawn. If the ISO/PAS or
ISO/TS is confirmed, it is reviewed again after a further three years, at which time it must either be
transformed into an International Standard or be withdrawn.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO/TS 16479 was prepared by Technical Committee ISO/TC 138, Plastics pipes, fittings and valves for the
transport of fluids, Subcommittee SC 5, General properties of pipes, fittings and valves of plastic materials
and their accessories — Test methods and basic specifications.
iv © ISO 2012 – All rights reserved

Introduction
At the present time ISO/TC 138 provides several test methods for determining the resistance to slow
cracking which are essential for assessing properties and durability of thermoplastics pipes and fittings.
In fact, they constitute a basis for determining the long term performance characteristics of these parts.
In line with the development of better slow crack resistant materials, new accelerated test methods
for evaluating slow crack resistance of thermoplastic piping parts are frequently under investigation
[1-3]. In consideration of this, the Notched Ring Test (NRT) method has been developed and applied
to determine its applicability as the standard test method and has demonstrated its effectiveness in
generating slow cracking within the time frame of interest [4-7]. This Technical Specification provides
details of the NRT method in terms of test implementation, its SCG performance evaluation, and the
application of the method utilizing the stress intensity factor approach.
TECHNICAL SPECIFICATION ISO/TS 16479:2012(E)
Thermoplastics pipes for the conveyance of fluids —
Determination of the slow cracking resistance of pipes and
fittings using the Notched Ring Test (NRT)
1 Scope
This Technical Specification determines the slow cracking resistance of pipes and fittings using the
Notched Ring Test (NRT) which is a method for determining the slow crack resistance of thermoplastics
resins and compounds in pipe form and/or finished products (e.g. pipes and fittings) from which a ring
specimen can be cut and notched. The test is performed under sustained constant loading in a test medium
at a specified temperature and the time to the on-set of slow cracking is measured. This method applies to
the rings from pipes or fittings having a wall thickness greater than 5 mm. This Technical Specification
specifies the method of testing using notched ring specimens directly obtained from pipes or fittings.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 6108, Double equal angle cutters with plain bore and key drive
ISO 13479, Polyolefin pipes for the conveyance of fluids — Determination of resistance to crack propagation
— Test method for slow crack growth on notched pipes (notch test)
3 Terms and definitions
3.1
slow crack growth
SCG
crack growth that occurs below the critical stress intensity factor at which the unstable rapid crack
propagation takes place
NOTE The crack growth is stable and hence can grow to a substantial length before causing material to
fail either by rapid fracture or ligament yielding. In some polyolefin materials, distinct fracture surface features
characteristic of slow crack growth are apparent and are often used as an indicator of slow crack growth
3.2
ring deflection curve
time dependent deflection curve obtained from the sustained constant flexure loading of the ring specimen
NOTE 1 See Annex A.
NOTE 2 The curve may have similar features of a creep curve, normally consisting of primary, steady state
secondary and tertiary regions. Deflection is normally taken at the notch position and directly above the line of
load application.
3.3
on-set slow cracking time
t (h)
i
time for first noticeable abnormal change to appear on the recorded ring deflection curve
NOTE 1 See Annex A.
NOTE 2 For this definition to be complete, the fracture surface must show features of slow cracking in any
degree or features defined otherwise.
EXAMPLE Examples of abnormal change are discontinuity, slope change etc.
3.4
applied load
L (N)
load applied in three point flexure mode
3.5
applied stress intensity factor
3/2
K (N/m )
crack-tip stress intensity factor calculated based on the initial notch dimension
4 Principle
A suitable NRT specimen is an undisturbed full ring of certain width directly removed from the pipes
or fittings (see Figure 1), having features that include an inner wall notch along the sample width
between the tips of two coplanar sidewall notches (see Figure 5). The inner wall and sidewall notches
are all in the same plane and the notch and specimen dimensions are such that conditions for the plane-
strain slow crack growth are met at the notch tip. Coplanar sidewall notches are introduced to further
maintain the plane strain condition as well as to act to guide the loading rod accurately along the line
of the crack tip. NRT specimens are subjected to sustained and constant flexure load in a temperature
controlled medium and the time to on-set cracking as defined in 3.3 is determined from the measured
ring deflection curve (see 3.2 and Annex A). In the NRT specimen, the slow cracking can be initiated in a
relatively shorter time due to the possibility of constrained crack tip deformation induced by the sample
and the loading geometry, hence allowing higher stress intensity to develop at the crack tip without
gross yielding.
2 © ISO 2012 – All rights reserved

Key
W width of the ring S span length
W width between sidewall notches a razor notch depth
n
R inside radius L applied load
R outside radius D diameter of loading and supporting rods
t wall thickness
Figure 1 — The diagram and loading configuration of NRT specimen
5 Apparatus
5.1 Loading apparatus
A suitable device for loading the ring specimen in a sustained and constant manner under flexure mode
shall be used. The device may utilize dead weights, pneumatically actuated loading or any other means
for producing a sustained constant load with accuracy better than ±1,0 % of the applied load. The
loading, supporting and guiding rods (see Figure 1) are made from a 316 stainless steel having the same
ground surface and they are positioned parallel to each other. The guiding rod guides the loading rod
right on top of the inner wall notch by means of adapting the sidewall notches (see Figures 1 and 5). An
impression of a typical loading jig is shown in Figure 2.
5.2 Ring deflection measuring device
Ring deflection of the mid-span containing the plane of the crack front (see Figure 1) shall be measured
by means of a suitable device that will not influence the specimen in any way. Particular caution should
be practiced to ensure the stability of the measuring device with time, temperature and humidity. The
device shall be capable of deflection measurement with accuracy better than ±1,0 % and a resolution
of 0,01 mm. Since it is important to continuously monitor the deflection, it is recommended to use an
automatic deflection measuring system. An example of an electronic displacement gauge and its assembly
to an overall loading-measuring device is shown in Annex A. The measurement shall not be influenced
by any mechanical and/or electric disturbances that may end up in the deflection curve being obtained.
Figure 2 — Flexure apparatus for loading notched ring specimen
5.3 Temperature chamber
A suitable chamber should contain the environment needed for this test and ensure complete immersion
of the specimen. The construction material of this chamber shall not affect the environment or vice
versa. The chamber can usually be closed with a lid to prevent medium evaporation as well as to protect
the loading-measuring apparatus. The temperature of the environment is controlled to maintain the
specimens within ±1,0 °C of the specified test temperature. Replenishment of the lost medium due to
evaporation is achieved best through the use of an auxiliary container using gravity feeding to minimize
temperature variation during feeding.
5.4 Test medium
The tests are usually performed in water, unless stated otherwise.
5.5 Timing device
A suitable timing device that can monitor time accumulation shall be used. The accuracy of the
measurement is recommended to be better than ±1 % of the elapsed time.
5.6 Microscope
A travelling microscope or an equivalent device is used to measure the initial razor notch length
accurately after the slow crack test. The recommended resolution for this method is ±100 µm.
NOTE A combination of digital camera and image processing software is considered a readily available
solution. This method can provide a razor notch depth measurement with required accuracy and convenience.
4 © ISO 2012 – All rights reserved

5.7 Notching apparatus
5.7.1 Inner wall notching device
The device shall be capable of producing a sharp notch at the inner wall of the ring specimen at a cutting
speed of less than 300μm per minute.
NOTE Such cutting speeds are generally available in a typical universal testing machine and the load-
displacement curve can be readily obtained simultaneously by installing the notching device on such machines
[see Figure 3b)]. Higher notching speed is known to create abnormality at the notch tip which can affect the slow
crack initiation.
It is recommended that the device utilized is also able to produce load-razor blade displacement curve
during notching for the purpose of checking consistency and uniformity of notching. The notch tip radius
produced depends on the type of razor blade (blade thickness not exceeding 0,2 mm) and shall be less than
10 μm. A broaching device is also acceptable provided that the notch tip radius is also less than 10 μm.
Figure 3 shows an inner wall notching device. It consists of a removable arm for accommodating the
razor blade holder, depth adjusting parts and the ring specimen, a base to hold the arm perpendicular
to the compression load and a mechanism for firmly holding the base to the universal testing machine.
5.7.2 Sidewall notching device
A suitable device capable of machining a 90° angle “V”-notch at each sidewall of the ring specimen
opposite each other and the notch tips in the same plane (see Figure 1) shall be used. The device should
provide a notching rate of 0,010 ± 0,002 (mm/rev)/tooth (see ISO 1347
...
