ISO 6119:2006

INTERNATIONAL ISO
STANDARD 6119
Second edition
2006-08-01
Road vehicles — Elastomeric seals for
hydraulic disc brake cylinders using a
non-petroleum base hydraulic brake fluid
(Service temperature 120 °C max.)
Véhicules routiers — Joints en caoutchouc pour cylindres de freins
hydrauliques à disque utilisant un liquide de frein à base non pétrolière
(Température maximale d'utilisation: 120 °C)

Reference number
©
ISO 2006
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2006
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2006 – All rights reserved

Contents Page
Foreword. iv
1 Scope . 1
2 Normative references . 1
3 Product requirements. 1
4 Brake test fluid . 1
5 Apparatus . 2
5.1 Apparatus for test of resistance to fluid at elevated temperature, physical stability and
precipitation characteristics. 2
5.2 Apparatus for high-temperature strocking test (see Figure 1) . 2
5.3 Apparatus for low-temperature leakage test (see Figure 2). 3
6 Test requirements. 3
7 Preparation of test specimens . 4
8 Resistance to fluid at elevated temperature — Physical stability . 4
8.1 Test specimens . 4
8.2 Test procedure . 4
9 Resistance to fluid at elevated temperature — Precipitation characteristics . 5
9.1 Test specimens . 5
9.2 Test procedure . 5
10 Resistance to elevated temperature in dry air.6
10.1 Test specimens . 6
10.2 Test procedure . 6
11 Ambient-temperature stroking test. 6
11.1 Test specimens . 6
11.2 Test procedure . 6
12 High-temperature stroking test . 7
12.1 Test specimens . 7
12.2 Test procedure . 7
13 Low-temperature leakage test . 8
13.1 Test specimens . 8
13.2 Test procedure . 8
13.3 Bend test procedure. 9
14 Cycling humidity storage corrosion test. 9
14.1 Test specimens . 9
14.2 Test procedure . 9

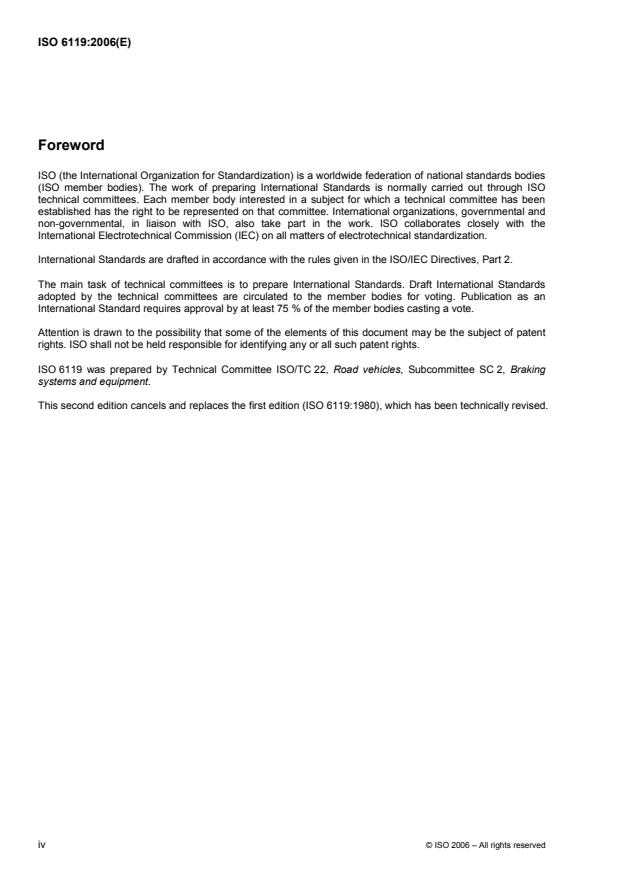

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 6119 was prepared by Technical Committee ISO/TC 22, Road vehicles, Subcommittee SC 2, Braking
systems and equipment.
This second edition cancels and replaces the first edition (ISO 6119:1980), which has been technically revised.

iv © ISO 2006 – All rights reserved

INTERNATIONAL STANDARD ISO 6119:2006(E)

Road vehicles — Elastomeric seals for hydraulic disc brake
cylinders using a non-petroleum base hydraulic brake fluid
(Service temperature 120 °C max.)
1 Scope
This International Standard specifies the performance test methods and requirements for elastomeric seals
used in road vehicle disc brake cylinders.
It is applicable to solid section type seals (square, rectangular, “O”-ring), mounted stationary in the cylinder
bore or on the movable piston of disc brakes.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 48, Rubber, vulcanized or thermoplastic — Determination of hardness (hardness between 10 IRHD and
100 IRHD
ISO 188, Rubber, vulcanized or thermoplastic — Accelerated ageing and heat resistance tests
ISO 1817, Rubber, vulcanized — Determination of the effect of liquids
ISO 4926, Road vehicles — Hydraulic brake systems — Non-petroleum base reference fluids
ISO 4928, Road vehicles — Elastomeric cups and seals for cylinders for hydraulic braking systems using a
non-petroleum base hydraulic brake fluid (Service temperature 120 °C max.)
3 Product requirements
Seals shall conform to the pertinent drawing in all respects and shall be free from blisters, pin-holes, cracks,
protuberances, embedded foreign material, or other physical defects which can be detected by thorough
inspection.
These elastomeric seals shall be suitable for operation in a temperature range of −40 °C to +120 °C.
4 Brake test fluid
The test fluid for all tests except the test prescribed in Clause 14 shall be compatibility fluid as defined in
ISO 4926. The fluid specified in Clause 14 shall be ISO fluid for storage corrosion test as defined in ISO 4926,
or the fluid agreed by the parties concerned.
5 Apparatus
5.1 Apparatus for test of resistance to fluid at elevated temperature, physical stability and
precipitation characteristics
5.1.1 Oven, uniformly heated, dry air type conforming to the requirements of ISO 188.
5.1.2 Test jar, screw-top straight-sided round glass type, having a capacity of approximately 250 ml and
inner dimensions of approximately 125 mm height and 50 mm diameter, with a tinned steel lid (no insert or
organic coating).
5.2 Apparatus for high-temperature strocking test (see Figure 1)
5.2.1 Pneumatic or hydraulic pressure source.
5.2.2 Master cylinder.
5.2.3 Pressure gauge.
5.2.4 Wheel cylinder seat stroking fixture.
5.2.6 Cylinder assembly.
5.2.7 Oven, in accordance with 5.1.1.

Key
1 pneumatic or hydraulic pressure source
2 master cylinder
3 pressure gauge
4 wheel cylinder seat stroking fixture
5 oven chamber at +120 °C
6 cylinder assembly
Figure 1 — High-temperature strocking test
2 © ISO 2006 – All rights reserved

5.3 Apparatus for low-temperature leakage test (see Figure 2)
5.3.1 Hydraulic pressure gauge.
5.3.2 Master cylinder.
5.3.3 Cylinder assembly.
5.3.4 Cold chamber, at −40 °C.
Dimensions in millimetres
Key
1 hydraulic pressure gauge
2 master cylinder
3 cylinder assembly
4 cold chamber at −40 °C
Figure 2 — Low-temperature leakage test
6 Test requirements
6.1 After the test for resistance to fluid at elevated temperature (physical stability) (see Clause 8), the seals
shall conform to the following requirements:
a) any change in volume shall be within 0 % to +15 %;
b) any change in hardness shall be within 0 IRHD to −15 IRHD.
6.2 After the test for resistance to fluid at elevated temperature (precipitation characteristics) (see Clause 9),
not more than 0,3 % sediment by volume shall be formed in the test fluid used.
6.3 After the test for resistance to elevated temperature in dry air (see Clause 10), the seals shall conform
to the following requirements:
a) any change in hardness shall be within 0 IRHD to +15 IRHD;
b) test specimens shall show no evidence of blistering, cracking or change in shape from original form.
6.4 After the ambient-temperature stroking test (see Clause 11), seals and assembly shall conform to the
following requirements:
a) no leakage beyond normal wetting of the bore(s) shall occur during the stroking test;
b) no leakage beyond normal wetting of the bore(s) shall occur during the static leak test (see 11.2.3).
6.5 After the high-temperature stroking test (see Clause 12), the seals and assembly shall conform to the
following requirements:
a) no leakage beyond normal wetting of the bore(s) shall occur during the stroking test;
b) no leakage beyond normal wetting of the bore(s) shall occur during the static leak test (see 12.2.4).
6.6 After the low-temperature leakage test (see Clause 13), the seals and assembly shall conform to the
following requirements:
a) no leakage beyond normal wetting of the bore(s) shall occur during the test period or pressure
application;
b) the seal shall not crack, shall remain flexible and shall return to its approximate original shape within
1 min when tested according
...
