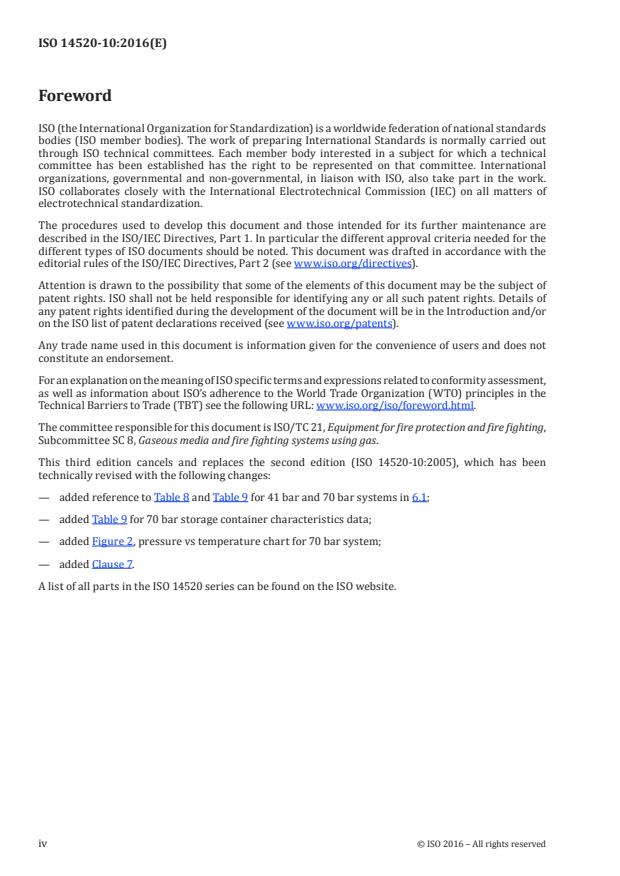

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity assessment,
as well as information about ISO’s adherence to the World Trade Organization (WTO) principles in the
Technical Barriers to Trade (TBT) see the following URL: www.iso.org/iso/foreword.html.
The committee responsible for this document is ISO/TC 21, Equipment for fire protection and fire fighting,
Subcommittee SC 8, Gaseous media and fire fighting systems using gas.
This third edition cancels and replaces the second edition (ISO 14520-10:2005), which has been
technically revised with the following changes:
— added reference to Table 8 and Table 9 for 41 bar and 70 bar systems in 6.1;
— added Table 9 for 70 bar storage container characteristics data;
— added Figure 2, pressure vs temperature chart for 70 bar system;
— added Clause 7.
A list of all parts in the ISO 14520 series can be found on the ISO website.
iv © ISO 2016 – All rights reserved

INTERNATIONAL STANDARD ISO 14520-10:2016(E)
Gaseous fire-extinguishing systems — Physical properties
and system design —
Part 10:
HFC 23 extinguishant
1 Scope
This document contains specific requirements for gaseous fire-extinguishing systems, with respect
to the HFC 23 extinguishant. It includes details of physical properties, specification, usage and safety
aspects and is applicable to systems operating at a nominal pressure of 41 bar without nitrogen
superpressurization and 70 bar superpressurized with nitrogen.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 14520-1:2015, Gaseous fire-extinguishing systems — Physical properties and system design —
Part 1: General requirements.
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 14520-1 apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http://www.electropedia.org/
— ISO Online browsing platform: available at http://www.iso.org/obp
4 Characteristics and uses
4.1 General
Extinguishant HFC 23 shall comply with the specification shown in Table 1.
HFC 23 is a colourless, almost odourless, electrically non-conductive gas with a density approximately
2,4 times that of air.
The physical properties are shown in Table 2.
HFC 23 extinguishes fires mainly by physical means, also by some chemical means.
Table 1 — Specification for HFC 23
Property Requirement
Purity 99,6 % (mol/mol), min.
–6
Acidity 3 × 10 by mass, max.
–6
Water content 10 × 10 by mass, max.
Non-volatile residue 0,01 % by mass, max.
Suspended matter or sediment None visible
Table 2 — Physical properties of HFC 23
Property Units Value
Molecular mass — 70
Boiling point at 1,013 bar (absolute) °C –82,0
Freezing point °C –155,2
Critical temperature °C 25,9
Critical pressure bar abs 48,36
Critical volume cm /mol 133
Critical density kg/m 525
Vapour pressure 20 °C bar abs 41,80
Liquid density 20 °C kg/m 806,6
Saturated vapour density 20 °C kg/m 263,0
Specific volume of superheated m /kg 0,340 9
vapour at 1,013 bar and 20 °C
Chemical formula CHF
Chemical name
Trifluoromethane
4.2 Use of HFC 23 systems
HFC 23 total flooding systems may be used for extinguishing fires of all classes within the limits
specified in ISO 14520-1:2015, Clause 4.
The extinguishant requirements per volume of protected space are shown in Table 3 for various levels
of concentration. These are based on methods shown in ISO 14520-1:2015, 7.6.
The extinguishing concentrations and design concentrations for n-heptane and surface class A hazards
are shown in Table 4. Concentrations for acetone heptane, methanol and toluene are shown in Table 5,
and inerting concentrations are shown in Table 6.
2 © ISO 2016 – All rights reserved

Table 3 — HFC 23 total flooding quantity
Tempera- Specific HFC 23 mass requirements per unit volume of protected space, m/V (kg/m )
ture vapour
volume
Design concentration (by volume)
T
S
°C
m /kg 10 % 12 % 14 % 15 % 16 % 17 % 18 % 20 % 22 % 24 %
