ISO/TR 24098:2007

TECHNICAL ISO/TR
REPORT 24098
First edition
2007-03-15

Intelligent transport systems — System
architecture, taxonomy and
terminology — Procedures for developing
ITS deployment plans utilizing ITS system
architecture
Systèmes intelligents de transport — Architecture, taxinomie et
terminologie des systèmes — Procédures pour développer des plans
de déploiement ITS en utilisant une architecture ITS



Reference number
ISO/TR 24098:2007(E)
©
ISO 2007

---------------------- Page: 1 ----------------------
ISO/TR 24098:2007(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.


©  ISO 2007
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland

ii © ISO 2007 – All rights reserved

---------------------- Page: 2 ----------------------
ISO/TR 24098:2007(E)
Contents Page
Foreword. iv
Introduction . v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions. 1
4 Abbreviation . 2
5 Basic policy of ITS deployment. 2
5.1 Realization of regional ITS. 2
5.2 National ITS architecture . 3
6 The procedure for developing ITS deployment plans. 4
6.1 Framework. 4
6.2 Procedure . 4
6.3 Requirements . 6
Annex A (informative) Examples of ITS deployment guidelines . 7
Bibliography . 12

© ISO 2007 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO/TR 24098:2007(E)

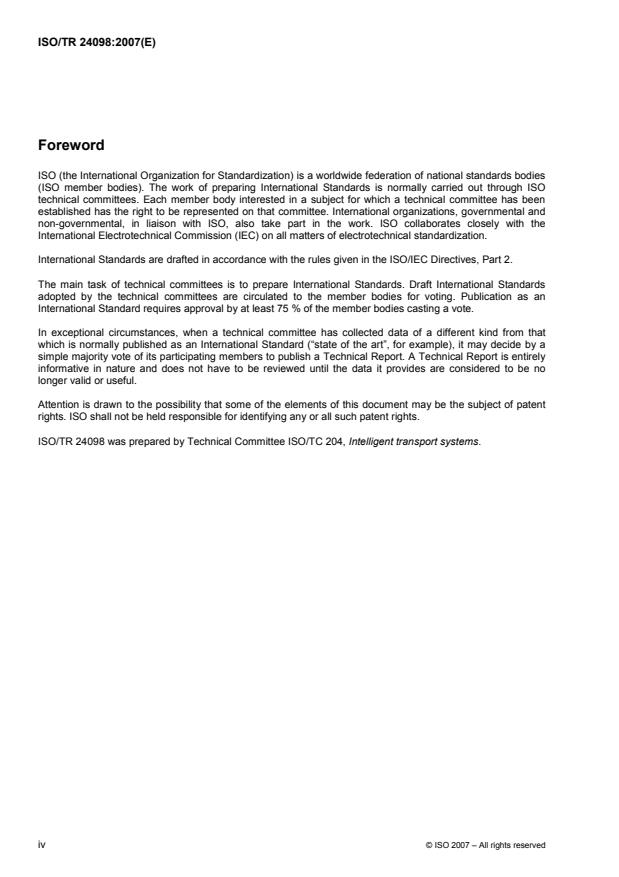

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
In exceptional circumstances, when a technical committee has collected data of a different kind from that
which is normally published as an International Standard (“state of the art”, for example), it may decide by a
simple majority vote of its participating members to publish a Technical Report. A Technical Report is entirely
informative in nature and does not have to be reviewed until the data it provides are considered to be no
longer valid or useful.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO/TR 24098 was prepared by Technical Committee ISO/TC 204, Intelligent transport systems.

iv © ISO 2007 – All rights reserved

---------------------- Page: 4 ----------------------
ISO/TR 24098:2007(E)
Introduction
This Technical Report was developed by ISO/TC 204, WG 1, Architecture, in order to provide a procedure for
developing Intelligent Transport System (ITS) deployment plans utilizing ITS system architectures.
It is well perceived in the ITS community that understanding the system architecture is significant for the
realization of ITS, which extends over wide areas on service domains, system sizes, and relating stakeholders
and users. Those who deploy ITS systems within a specific region need to consider the coverage area, as
well as existing inventories.
This Technical Report facilitates the introduction of ITS at regional levels through the development of the ITS
deployment plans by utilizing regional ITS architectures.
Examples of ITS deployment guidelines are given in Annex A.

© ISO 2007 – All rights reserved v

---------------------- Page: 5 ----------------------
TECHNICAL REPORT ISO/TR 24098:2007(E)

Intelligent transport systems — System architecture, taxonomy
and terminology — Procedures for developing ITS deployment
plans utilizing ITS system architecture
1 Scope
This Technical Report describes the procedure for developing Intelligent Transport System (ITS) deployment
plans utilizing ITS system architectures. The document consists of the basic policy of ITS deployment and the
procedure for developing ITS deployment plans. Framework, procedures and requirements for developing
regional ITS deployment plans utilizing regional ITS architecture are reported.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 14813-1:2007, Intelligent transport systems — Reference model architecture(s) for the ITS sector —
Part 1: ITS service domains, service groups and services
ISO/TR 14813-5:1999, Transport information and control systems — Reference model architecture(s) for the
TICS sector — Part 5: Requirements for architecture description in TICS standards
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
institutional architecture
architecture based on political or administrational infrastructure partitioning and its division of responsibilities
(rather than functions)
[ISO 14813-5:1999]
3.2
ITS service
consists of a product or activity targeted to a specific type of ITS user
NOTE 1 Adapted from ISO 14813-1:2007.
NOTE 2 An ITS service group consists of one or more similar or complementary services provided to ITS users. An
“ITS service domain” refers to a specific application area which comprises one or more service groups.
3.3
ITS stakeholders
people or organizations that are involved in some way in the deployment of ITS
NOTE Their involvement can be through use, manufacture of products, provision of services, or regulations.
© ISO 2007 – All rights reserved 1

---------------------- Page: 6 ----------------------
ISO/TR 24098:2007(E)
3.4
ITS user
one who directly receives and can act on ITS data, information or outputs that implement a measure of control
NOTE 1 Adapted from ISO 14813-1:2007.
NOTE 2 An ITS user is one who receives, directly or indirectly, or provides, the transaction of an ITS service. These
users of ITS services may be human, systems or environment monitoring.
3.5
logical architecture
functional architecture
functional viewpoint
describes how the system behaves, including what it does with the inputs that it receives and how it produces
the outputs; it may be described either from an object-oriented, or process-oriented, perspective and
describes the system according to its behaviour
NOTE 1 Adapted from ISO 14813-1:2007.
NOTE 2 In an object-oriented perspective, a logical architecture elaborates the conceptual behaviour and in so doing
defines some detail of the objects. In a process-oriented perspective, the logical (or functional) architecture determines the
nature of the system (in terms of functions and data stores), and describes its conceptual behaviour and the detail of what
must be done to the inputs to produce the outputs. The logical architecture is independent of any hardware or software
approach.
3.6
physical architecture
allocation of the logical architecture to physical entities but not including details of the deployment of specific
numbers of systems or equipment at particular geographic locations
NOTE 1 Adapted from ISO 14813-1:2007.
NOTE 2 A physical architecture, whilst describing physical configurations in system terms, is not specific to any
particular location.
3.7
physical model
subset of a physical architecture which mainly considers the realization of providing one or more service(s)
4 Abbreviation
For the purposes of this document, the following abbreviation applies.
ITS Intelligent Transport System
5 Basic policy of ITS deployment
5.1 Realization of regional ITS
The general framework of ITS deployment within a region (or any other part of a nation, such as a city, state,
or county) is described in Figure 1. The target is realization of regional ITS systems and provision of ITS
services to the users by the collaboration of subsystems that are implemented by relevant ITS stakeholders.
An ITS deployment plan for a region will make the efficient implementation through the intelligible
accountability and the consensus among the regional stakeholders. The plan is used for obtaining a budget
for deployment, for designing the regional ITS systems, and for promoting the deployment and operation of
the systems within the region.
2 © ISO 2007 – All rights reserved

---------------------- Page: 7 ----------------------
ISO/TR 24098:2007(E)

Figure 1 — Framework of regional ITS deployment
5.2 National ITS architecture
There are several ways in which a national ITS architecture can be used to create ITS deployment plans.
These are illustrated in Figure 2.

Figure 2 — Relationship between regional and national ITS deployments
The example in Figure 2 enables interoperability between the ITS systems deployed at nearby regions, as
well as within the target region itself.
© ISO 2007 – All rights reserved 3

---------------------- Page: 8 ----------------------
ISO/TR 24098:2007(E)
6 The procedure for developing ITS deployment plans
6.1 Framework
A national architecture covers overall ITS services within a nation and this may be what is needed for some
ITS deployments. However, a regional architecture may be needed when only some of the ITS services within
the national architecture are required.
In order to realize sustainable ITS within a region or nation, it is necessary to identify the ITS services that are
required, to establish subsystems by dividing roles among ITS-related stakeholders, and to keep a close
liaison between those stakeholders.
To achieve this, it is necessary to prepare ITS deployment plans based on the regional or national ITS
architecture. These plans will illustrate the division of roles and coordination between ITS stakeholders. Based
on these plans, it will be possible to negotiate and secure budgets and establish operational systems at the
stakeholder level.
6.2 Procedure
The procedure for developing an ITS deployment plan for a region or nation should be the following.
⎯ Identify the appropriate ITS stakeholders and gain their cooperation and participation.
⎯ With the stakeholders, define the ITS services that they want to see deployed.
⎯ Describe the ITS physical system structure that is needed to provide the services.
⎯ Define and agree upon the stakeholders’ roles for the ITS deployment.
6.2.1 Identifying the participation of appropriate ITS stakeholders
It is essential that the scope of the regional (or national) ITS architecture, and the identification and
participation of the ITS stakeholders involved in the development process, are determined and agreed.
The mobility of residents in daily activities should be taken into account (e.g. commuting, shopping and
business). The geographic coverage of the ITS architecture will depend on the area of jurisdiction belonging to
its owners. Thus, regional ITS architecture may cover one or more metropolitan regions and transport
infrastructures between them, and a city ITS architecture may cover one city. The area where the
stakeholders involved in the ITS development operate or administer should also be taken into consideration.
However, the need for a regional ITS architecture should also depend on how much of the national ITS
architecture it will include.
Stakeholders involved in the development of the ITS architecture should include organizations that fit into one
or more of the following types. These types should include those stakeholders that:
⎯ want ITS: these will be local authorities that manage the highways, and road operators that will want ITS
to improve the operation of their transport networks;
⎯ make ITS: these will be organizations that are component and system suppliers and/or infrastructure
providers that will see ITS as providing them with extra business opportunities;
⎯ use ITS: these will be travellers, pedestrians, PT passengers, plus those that move freight; all of whom
hope that ITS will improve the ways that they can travel;
⎯ rule ITS: these will be organizations such as national and regional governments and standards bodies
that regulate and control the way that ITS is deployed and implemented.
4 © ISO 2007 – All rights reserved

---------------------- Page: 9 ----------------------
ISO/TR 24098:2007(E)
A broad range of stakeholders of several of the above types may exist within the area in which ITS is to be
deployed. It is also important for any stakeholders whose existence is recognized during the ITS architecture
development process be asked to participate, as appropriate.
It is important to ensure that outreach to the ITS stakeholders gains commitment to the usefulness and
significance of the ITS architecture in the process of establishing the ITS systems that need to be deployed to
provide the services.
It is useful to nominate a leading stakeholder, sometimes called the “architecture champion” to urge all the
stakeholders to participate positively in the establishment of the ITS systems. The leading stakeholder will
normally review the area covered by the ITS architecture to be developed and identify the stakeholders
participating in the development process.
6.2.2 Defining ITS services
Services to be provided within the area of the ITS deployment should be based on local issues and needs for
transportation. The services that are required are normally selected from the list of ITS services described in
the national ITS architecture or the framework ITS architectures that are to be adopted. Consideration must be
allowed for the services currently existing in the region to be incorporated into the ITS architecture and the
resulting ITS deployment.
Issues arising in the area of the ITS deployment and the needs of users and stakeholders are compiled and
categorized by causal factors from the perspective of each stakeholder, in order to gain an understanding of
the issues and needs of the transport area.
The issues and needs thus identified are used in a subsequent process for selecting the ITS services that
resolve the issues and the needs. This process identifies all the ITS services to be realized within the area.
6.2
...
