ISO 8367-1:1993
(Main)Packaging - Dimensional tolerances for general purpose sacks - Part 1: Paper sacks
Packaging - Dimensional tolerances for general purpose sacks - Part 1: Paper sacks
The tolerances of the following dimensions of paper sacks as defined in ISO 6590-1 are specified: ply grammage, length of sack, width of sack, width of gusset, circumference of sack with gussets, width of bottom, width of valve, position of the leading edge of the valve sleeve, print position on sack.
Emballages — Tolérances dimensionnelles des sacs d'usage général — Partie 1: Sacs en papier
La présente partie de l'ISO 8367 prescrit un ensemble de tolérances applicables à la fabrication de sacs en papier tels que définis dans l'ISO 6590-1.
General Information
- Status
- Published
- Publication Date
- 22-Dec-1993
- Technical Committee
- ISO/TC 122 - Packaging
- Drafting Committee
- ISO/TC 122 - Packaging
- Current Stage
- 9092 - International Standard to be revised
- Start Date
- 19-Jun-2025
- Completion Date
- 13-Dec-2025
Overview
ISO 8367-1:1993 is an international standard published by the International Organization for Standardization (ISO) that specifies the dimensional tolerances for general purpose paper sacks. This part of ISO 8367 focuses exclusively on paper sacks, providing manufacturers and users with clear guidelines to ensure uniformity and quality in sack production. The standard defines acceptable tolerances for critical dimensions such as ply grammage, sack length and width, gusset width, circumference with gussets, bottom width, valve width and position, as well as print placement.
By adhering to ISO 8367-1, packaging manufacturers can ensure their paper sacks meet consistent size and quality requirements, facilitating better performance, compatibility, and customer satisfaction in logistics and storage.
Key Topics
Scope and Application
ISO 8367-1 applies to the dimensional tolerances of paper sacks as described in ISO 6590-1. It covers sacks intended for general purpose packaging, ensuring the sacks' dimensions fall within standardized limits.Dimensions Covered and Tolerances

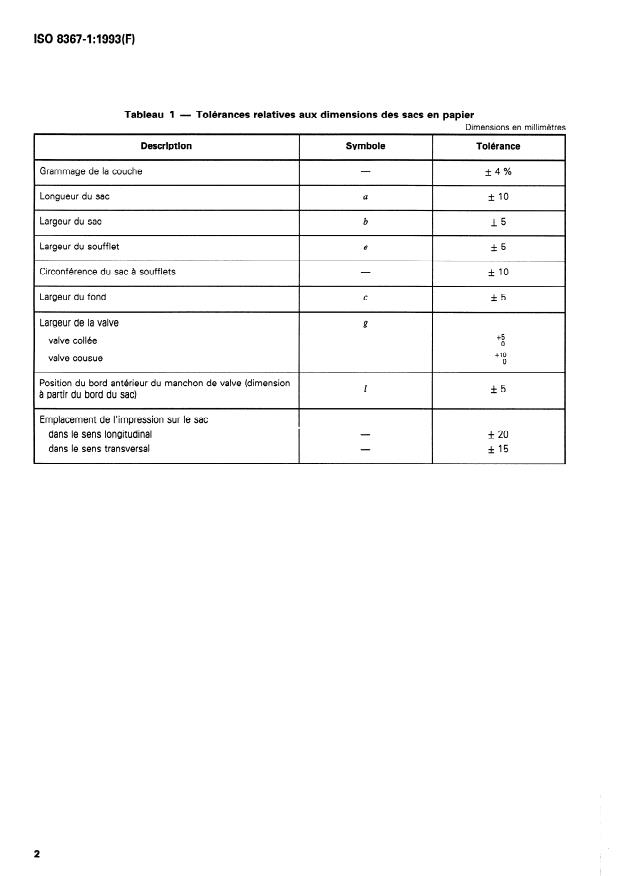

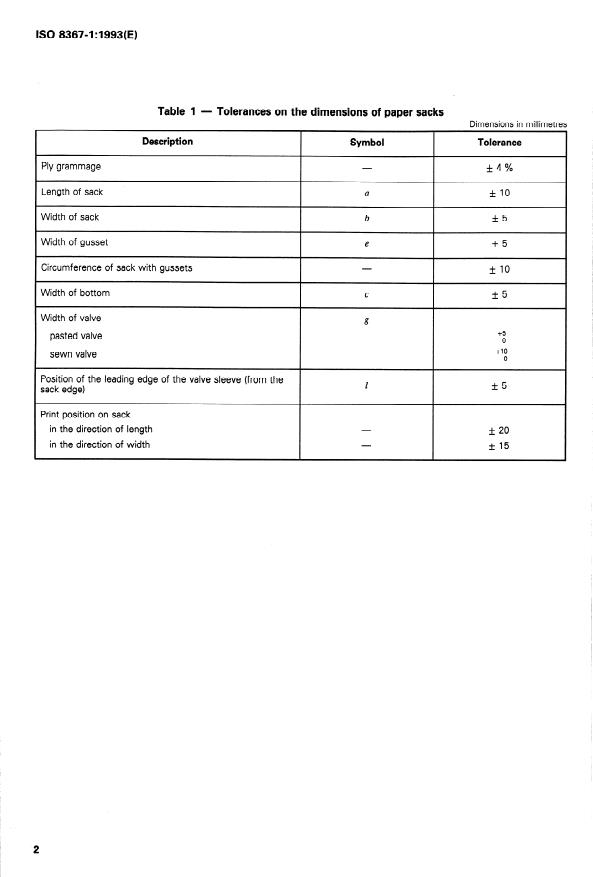

The standard specifies precise tolerances for various sacks' dimensions, including:- Ply grammage: ±4%
- Length of sack: ±10 mm
- Width of sack: ±5 mm
- Width of gusset: ±5 mm
- Sack circumference with gussets: ±10 mm
- Width of bottom: ±5 mm
- Width of valve: +5 mm
- Valve collar and sewn valve: 0 mm tolerance
- Position of leading edge of valve sleeve: ±5 mm
- Print position longitudinally: ±20 mm
- Print position transversely: ±15 mm
Measurement and Sampling Methods
Measurements must be taken according to ISO 6591-1, and sampling is performed per ISO 7023 to ensure batches delivered for quality control comply systematically with the defined tolerances.Quality Control and Agreements
If tighter tolerances than those specified are required, agreements between buyer and supplier should be established to meet specific product needs.
Applications
Paper Sack Manufacturing
Manufacturers use ISO 8367-1 to design and produce paper sacks with consistent dimensions, which improves stacking, filling efficiency, and durability.Quality Assurance in Packaging
Quality control departments rely on this standard to sample and verify sack dimensions, ensuring compliance with contractual and regulatory requirements.Logistics and Storage
Standardized sack sizes and tolerances allow for optimized palletizing, storage, and transportation, reducing damages caused by improper sizing.Printing and Branding
The defined tolerances for print positioning guarantee consistent logo and label placement, which is crucial for brand visibility and regulatory labeling.
Related Standards
- ISO 6590-1:1983 – Defines vocabulary and types for paper sacks, serving as a foundational reference for ISO 8367-1.
- ISO 6591-1:1984 – Details description and measurement methods of empty paper sacks, referenced for proper dimensional testing.
- ISO 7023:1983 – Specifies sampling methods for empty sacks during inspection and testing processes.
- ISO 536 – Describes determination of grammage for paper and cardboard layers used in sack manufacture.
Benefits of Implementing ISO 8367-1
- Ensures consistency in sack sizes across producers and batches
- Supports product quality and performance in packaging applications
- Facilitates international trade by meeting globally recognized tolerances
- Enhances customer confidence and satisfaction via reliable product specifications
- Enables efficient manufacturing and inventory management through standard dimensions
Keywords: ISO 8367-1, dimensional tolerances, paper sacks, general purpose sacks, packaging standards, sack dimensions, ply grammage, quality control for sacks, print positioning, packaging quality assurance
ISO 8367-1:1993 - Packaging -- Dimensional tolerances for general purpose sacks
ISO 8367-1:1993 - Emballages -- Tolérances dimensionnelles des sacs d'usage général
ISO 8367-1:1993 - Emballages -- Tolérances dimensionnelles des sacs d'usage général
Frequently Asked Questions
ISO 8367-1:1993 is a standard published by the International Organization for Standardization (ISO). Its full title is "Packaging - Dimensional tolerances for general purpose sacks - Part 1: Paper sacks". This standard covers: The tolerances of the following dimensions of paper sacks as defined in ISO 6590-1 are specified: ply grammage, length of sack, width of sack, width of gusset, circumference of sack with gussets, width of bottom, width of valve, position of the leading edge of the valve sleeve, print position on sack.
The tolerances of the following dimensions of paper sacks as defined in ISO 6590-1 are specified: ply grammage, length of sack, width of sack, width of gusset, circumference of sack with gussets, width of bottom, width of valve, position of the leading edge of the valve sleeve, print position on sack.
ISO 8367-1:1993 is classified under the following ICS (International Classification for Standards) categories: 55.080 - Sacks. Bags. The ICS classification helps identify the subject area and facilitates finding related standards.
ISO 8367-1:1993 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
INTERNATIONAL
IS0
STANDARD
8367-l
First edition
1993-12-15
Dimensional tolerances for
Packaging -
general purpose sacks -
Part 1:
Paper sacks
Emballages - Tohances dimensionnelles des sacs d’usage g6nhal -
Partie 1: Sacs en papier
Reference number
IS0 8367-1:1993(E)
IS0 8367-l : 1993(E)
Foreword
IS0 (the International Organization for Standardization) is a worldwide
federation of national standards bodies (IS0 member bodies). The work
of preparing International Standards is normally carried out through IS0
technical committees. Each member body interested in a subject for
which a technical committee has been established has the right to be
represented on that committee. International organizations, governmental
and non-governmental, in liaison with ISO, also take part in the work. IS0
collaborates closely with the International Electrotechnical Commission
(IEC) on all matters of electrotechnical standardization.
Draft International Standards adopted by the technical committees are
circulated to the member bodies for voting. Publication as an International
Standard requires approval by at least 75 % of the member bodies casting
a vote.
International Standard IS0 8367-l was prepared by Technical Committee
ISO/lC 122, Packaging, Sub-Committee SC 2, Sacks.
IS0 8367 consists of the following parts, under the ge neral title Packaging
- Dimensional tolerances for general purpose sacks:
- Part I: Paper sacks
- Part 2: Sacks made from thermoplastic flexible film
CD IS0 1993
All rights reserved. No part of this publication may be reproduced or utilized in any form or
by any means, electronic or mechanical, including photocopying and microfilm, without per-
mission in writing from the publisher.
International Organization for Standardization
Case Postale 56 l CH-1211 Geneve 20 l Switzerland
Printed in Switzerland
ii
INTERNATIONAL STANDARD IS0 83674:1993(E)
Packaging - Dimensional tolerances for general
purpose sacks -
Part 1:
Paper sacks
IS0 6590-I :I 983, Packaging - Sacks - Vocabulary
1 Scope
Part 1: Paper sacks.
and types -
This part of IS0 8367 specifies a set of tolerances
IS0 6591-l : 1984, Packaging - Sacks - Description
applicable to the manufac
...
NORME ISO
INTERNATIONALE 8367-l
Première édition
1993-12-15
Tolérances dimensionnelles
Emballages -
des sacs d’usage général -
Partie 1:
Sacs en papier
Packaging - Dimensional tolerances for general purpose sacks -
Part 1: Paper sacks
Numéro de référence
ISO 8367-l : 1993(F)

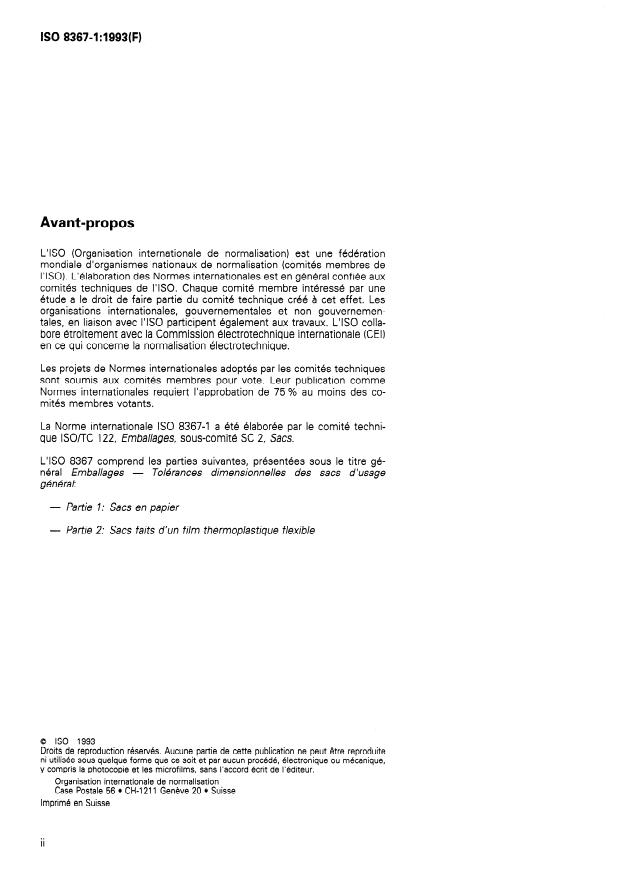

Avant-propos
L’ISO (Organisation internationale de normalisation) est une féderation
mondiale d’organismes nationaux de normalisation (comités membres de
I’ISO). L’élaboration des Normes internationales est en général confiée aux
comités techniques de I’ISO. Chaque comité membre intéressé par une
etude a le droit de faire partie du comite technique cree a cet effet. Les
organisations internationales, gouvernementales et non gouvernemen-
tales, en liaison avec I’ISO participent également aux travaux. L’ISO colla-
bore étroitement avec la Commission électrotechnique internationale (CEI)
en ce qui concerne la normalisation électrotechnique.
Les projets de Normes internationales adoptes par les comités techniques
sont soumis aux comites membres pour vote. Leur publication comme
Normes internationales requiert l’approbation de 75 % au moins des co-
mites membres votants.
La Norme internationale ISO 8367-l a ete élaboree par le comité techni-
que lSO/TC 122, Emballages, sous-comite SC 2, Sacs.
L’ISO 8367 comprend les parties suivantes, présentées sous le titre gé-
néral Emballages - Tokrances dimensionnelles des sacs d’usage
général:
- Partie 1: Sacs en papier
- Partie 2: Sacs faits d’un film thermoplastique flexible
0 ISO 1993
Droits de reproduction reservés. Aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procede, électronique ou mécanique,
y compris la photocopie et les microfilms, sans l’accord ecrit de l’éditeur.
Organisation internationale de normalisation
Case Postale 56 0 CH-1 211 Geneve 20 0 Suisse
Imprimé en Suisse
ii
NORME INTERNATIONALE ISO 83674:1993(F)
Emballages - Tolérances dimensionnelles des sacs
d’usage général -
Partie 1:
Sacs en papier
ISO 6590-l : 1983, , Emballages - Sacs - Vocabulaire
1 Domaine d’application
et types - Partie 1: Sacs en papier.
La présente partie de I’ISO 8367 prescrit un ensemble
ISO 6591-1 :1984, Emballages 7 Sacs - Description
de tolerances applicables à la fabrication de sacs en
et méthode de me
...
NORME ISO
INTERNATIONALE 8367-l
Première édition
1993-12-15
Tolérances dimensionnelles
Emballages -
des sacs d’usage général -
Partie 1:
Sacs en papier
Packaging - Dimensional tolerances for general purpose sacks -
Part 1: Paper sacks
Numéro de référence
ISO 8367-l : 1993(F)
Avant-propos
L’ISO (Organisation internationale de normalisation) est une féderation
mondiale d’organismes nationaux de normalisation (comités membres de
I’ISO). L’élaboration des Normes internationales est en général confiée aux
comités techniques de I’ISO. Chaque comité membre intéressé par une
etude a le droit de faire partie du comite technique cree a cet effet. Les
organisations internationales, gouvernementales et non gouvernemen-
tales, en liaison avec I’ISO participent également aux travaux. L’ISO colla-
bore étroitement avec la Commission électrotechnique internationale (CEI)
en ce qui concerne la normalisation électrotechnique.
Les projets de Normes internationales adoptes par les comités techniques
sont soumis aux comites membres pour vote. Leur publication comme
Normes internationales requiert l’approbation de 75 % au moins des co-
mites membres votants.
La Norme internationale ISO 8367-l a ete élaboree par le comité techni-
que lSO/TC 122, Emballages, sous-comite SC 2, Sacs.
L’ISO 8367 comprend les parties suivantes, présentées sous le titre gé-
néral Emballages - Tokrances dimensionnelles des sacs d’usage
général:
- Partie 1: Sacs en papier
- Partie 2: Sacs faits d’un film thermoplastique flexible
0 ISO 1993
Droits de reproduction reservés. Aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procede, électronique ou mécanique,
y compris la photocopie et les microfilms, sans l’accord ecrit de l’éditeur.
Organisation internationale de normalisation
Case Postale 56 0 CH-1 211 Geneve 20 0 Suisse
Imprimé en Suisse
ii
NORME INTERNATIONALE ISO 83674:1993(F)
Emballages - Tolérances dimensionnelles des sacs
d’usage général -
Partie 1:
Sacs en papier
ISO 6590-l : 1983, , Emballages - Sacs - Vocabulaire
1 Domaine d’application
et types - Partie 1: Sacs en papier.
La présente partie de I’ISO 8367 prescrit un ensemble
ISO 6591-1 :1984, Emballages 7 Sacs - Description
de tolerances applicables à la fabrication de sacs en
et méthode de me
...
