ISO/TS 13399-3:2007

TECHNICAL ISO/TS
SPECIFICATION 13399-3
First edition
2007-01-15
Cutting tool data representation
and exchange —
Part 3:
Reference dictionary for tool items
Représentation et échange des données relatives aux outils
coupants —
Partie 3: Dictionnaire de référence pour les éléments relatifs aux outils

Reference number
©
ISO 2007

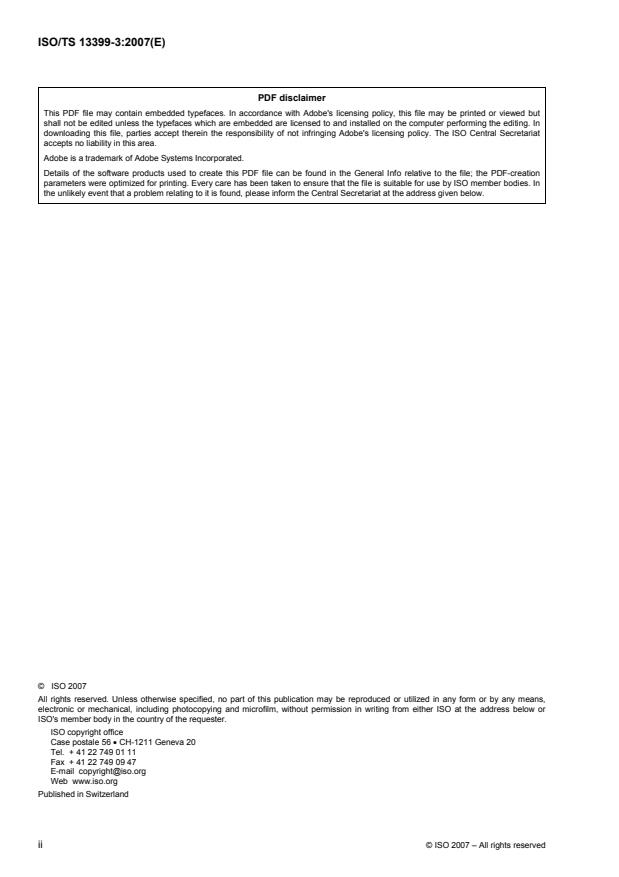

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2007
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2007 – All rights reserved

Contents Page
Foreword. iv
Introduction . v
1 Scope . 1
2 Normative references . 2
3 Terms and definitions. 2
4 Abbreviated terms . 6
5 Representation of the ontological concepts as dictionary entries . 6
5.1 tool_item_feature. 7
5.1.1 chip_management . 7
5.1.2 drill_point. 7
5.1.3 guide_pilot_feature. 7
5.1.4 pilot_drill_feature. 7
5.1.5 tool_hub. 7
5.2 tool_item_type. 7
5.2.1 broach . 8
5.2.2 burr_tool . 8
5.2.3 cartridge. 9
5.2.4 drill. 9
5.2.5 mill. 10
5.2.6 ream. 11
5.2.7 rotating_borer . 12
5.2.8 threading_die . 12
5.2.9 threading_tap . 12
5.2.10 turn . 13
6 Properties for tool item features and tool item types . 13
Annex A (normative) Information object registration. 17
Annex B (informative) Classification structure . 18
Annex C (informative) Class definitions . 21
Annex D (informative) Tool item property definitions . 57
Annex E (informative) Illustration of properties. 146
Bibliography . 160

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
In other circumstances, particularly when there is an urgent market requirement for such documents, a
technical committee may decide to publish other types of normative document:
⎯ an ISO Publicly Available Specification (ISO/PAS) represents an agreement between technical experts in
an ISO working group and is accepted for publication if it is approved by more than 50 % of the members
of the parent committee casting a vote;
⎯ an ISO Technical Specification (ISO/TS) represents an agreement between the members of a technical
committee and is accepted for publication if it is approved by 2/3 of the members of the committee casting
a vote.
An ISO/PAS or ISO/TS is reviewed after three years in order to decide whether it will be confirmed for a
further three years, revised to become an International Standard, or withdrawn. If the ISO/PAS or ISO/TS is
confirmed, it is reviewed again after a further three years, at which time it must either be transformed into an
International Standard or be withdrawn.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO/TS 13399-3 was prepared by Technical Committee ISO/TC 29, Small tools.
ISO 13399 consists of the following parts, under the general title Cutting tool data representation and
exchange:
⎯ Part 1: Overview, fundamental principles and general information model
⎯ Part 2: Reference dictionary for the cutting items [Technical Specification]
⎯ Part 3: Reference dictionary for tool items [Technical Specification]
⎯ Part 4: Reference dictionary for adaptive items [Technical Specification]
⎯ Part 5: Reference dictionary for assembly items [Technical Specification]
⎯ Part 50: Reference dictionary for reference systems and common concepts [Technical Specification]
⎯ Part 60: Reference dictionary for connection systems [Technical Specification]
⎯ Part 100: Definitions, principles and methods for reference dictionaries [Technical Specification]
iv © ISO 2007 – All rights reserved

Introduction
ISO 13399 provides the means to achieve an electronic representation of cutting tool data by providing the
information structure needed to describe various data about cutting tools and cutting tool assemblies. It is
intended to facilitate the use, manipulation and exchange of cutting tool data within and between
manufacturing, distribution and usage.
This part of ISO 13399 defines the terms, properties and definitions for those portions of a cutting tool that
support one or more cutting items with defined cutting edges. Tool items include, but are not limited to, turning
tools, milling tools, drilling tools, and threading tools. The purpose of this part ISO 13399 is to provide a
reference dictionary to support the use of the general information model defined in ISO 13399-1.
A cutting tool with defined cutting edges is used on a machine tool to remove workpiece material through a
shearing action at the cutting edge(s) of the tool. Cutting tool data are characteristics of the cutting tool and its
use that must be known and evaluated in order to make manufacturing decisions and to perform
manufacturing operations.
ISO 13399 includes the data representation of everything between the workpiece and the machine tool.
Information about inserts (e.g. regular and irregular shaped replaceable cutting items), solid tools (e.g. solid
drill and solid endmill), assembled tools (e.g. boring bars, indexable drills and indexable milling cutters),
adaptors (e.g. milling arbor and chucks), components (e.g. shims, screws and clamps) or any combination of
the above can be exchanged.
Possible assemblies of the components of a cutting tool are illustrated in Figure 1.
The cutting tool data described include, but are not limited to, geometrical and dimensional data, identification
and designation data, miscellaneous and spare part data, cutting material data, and component connectivity.
The use of the tool information model established by ISO 13399 will provide increased productivity for the user
in the same way as do the tools. The effective management of tool information will improve the management
of the tools themselves. Use of the tool information model will enable the identification of the “right” tool in
every operation — from tool purchase, through planning, set-up in machine-tools, maintenance and reuse of
the tools — with short lead times and with high reliability and product quality. Tool users will benefit from
improved support from the tool vendors who will be able to provide a standard information product to
accompany the tool products. Computer interfaces for information exchange will be more efficient.
The objective of ISO 13399 is to provide the means to represent the information that describes cutting tools in
a computer-sensible form that is independent of any particular computer system. Such a representation will
facilitate the processing and exchange of cutting tool data within and between different software systems and
computer platforms and support the application of this data in manufacturing planning, cutting operations and
the supply of tools. The nature of this description makes it suitable not only for neutral file exchange, but also
as a basis for implementing and sharing product databases and for archiving. The methods that are used for
these representations are those developed by ISO TC 184, Industrial automation systems and integration,
SC 4, Industrial data, for the representation of product data by using standardized information models and
reference dictionaries.
An information model is a formal specification of types of ideas, facts and processes which together describe
a portion of interest of the real world and which provides an explicit set of interpretation rules. Information is
knowledge of ideas, facts and/or processes. Data are symbols or functions that represent information for
processing purposes. Data are interpreted to extract information by using rules for how that should be done
and a dictionary to define the terms that identify the data. Everyone in a communication process must use the
same information model, the same set of explicit rules and the same dictionary in order to avoid
misunderstanding. If an information model and its dictionary are written in a computer-sensible language then
there is the additional benefit that they can be computer-processable.
An engineering information model is therefore a specification for data that establishes the meaning of that
data in a particular engineering context. A model has to be developed by formal methods to ensure that it
meets the needs of the situation that it represents. An engineering information model defines: the information
objects that represent the concepts in an engineering application, the attributes of the objects and their
relationships and the constraints that add further meaning. An information model is an abstract concept that
can be used repeatedly for any example of the real-world situation that it represents. An instance of the model
is produced when it is populated with the data items and their values that are applicable to a particular
example of that situation.
This part of ISO 13399 uses the following resources developed by ISO TC 184/SC 4:
a) the EXPRESS language according to ISO 10303-11 for defining the information model;
b) the file format for data exchange derived from the model and defined in ISO 10303-21;
c) the data dictionary defined in ISO 13584.
ISO 13399 is intended for use by manufacturers, tool vendors or producers, and developers of manufacturing
software, among others. It provides a common structure for exchanging data about cutting tools (see Figure 1),
and is intended to allow or improve several capabilities, including
⎯ provision of a common set of definitions for use in describing cutting tools and cutting tool assemblies,
⎯ the integration and sharing of cutting tool and assembly data between software applications,
⎯ direct import of vendor cutting tool data into customer databases or applications, and
⎯ a reduction in the level of effort required for manufacturers to maintain accurate and current cutting tool
information from multiple sources and for multiple applications.
Different companies use different business models to determine their need for the communication of
information about their products. For example, one cutting tool manufacturer could regrind its customers’ tools
while another could allow its customers to do the regrinding and provide the information to enable them to do
so. Therefore, the two cutting tool manufacturers could have a different set of cutting tool properties to
communicate using the information model and dictionaries provided by ISO 13399.
ISO 13399 defines only that information which could be communicated; it does not specify what information
must be communicated.
vi © ISO 2007 – All rights reserved

Figure 1 — Examples of different types of assemblies of items

TECHNICAL SPECIFICATION ISO/TS 13399-3:2007(E)

Cutting tool data representation and exchange —
Part 3:
Reference dictionary for tool items
1 Scope
This part of ISO 13399 specifies a reference dictionary for tool items, together with their descriptive properties
and domains of values.
This part of ISO 13399 specifies a reference dictionary that contains
a) definitions and identifications of the classes of tool items and their features, with an associated
classification scheme,
b) definitions and identifications of the data element types that represent the properties of tool items and
their features,
c) definitions and identifications of domains of values for describing the above data element types.
Each class, property or domain of values of this application domain constitutes an entry of the reference
dictionary defined in this part of ISO 13399. It is associated with a computer-sensible and human-readable
definition, and with a computer-sensible identification. Identification of a dictionary entry allows unambiguous
1)
reference to it from any application that implements the information model defined in ISO 13399-1.
The following is within the scope of this part of ISO 13399:
⎯ standard data that represent the various classes of tool items and tool item features;
⎯ standard data that represent the various properties of tool items and tool item features;
⎯ standard data that represent domains of values used for properties of tool items and tool item features;
⎯ a single implementation method by which the standard data defined in this part ISO 13399 can be
exchanged (see ISO 10303-21).
The following is not within its scope:
⎯ specialized or expert knowledge on the design and use of cutting tools;
⎯ rules used to determine the information that should be communicated;
⎯ applications where these standard data may be stored or referenced;

1) Definitions and identifications of dictionary entries are defined by means of standard data that consist of instances of
the EXPRESS entity data types defined in the common dictionary schema, resulting from a joint effort between
ISO TC 184/SC 4 and IEC SC 3D, and in its extensions according to ISO 13584-24 and ISO 13584-25.
⎯ implementation methods other that the one defined in this part of ISO 13399 by which the standard data
can be exchanged and referenced;
⎯ information models for cutting tools;
⎯ definitions of classes and properties for cutting items, adaptive items, assembly items, reference systems
and common concepts, or for connection systems, these being covered by other parts of ISO 13399.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO/TS 13399-100, Cutting tool data representation and exchange — Part 100: Definitions, principles and
methods for reference dictionaries
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO/TS 13399-100 and the following
apply.
3.1
applicable property
property that is defined for some family of items and that applies to any member of this family
[ISO 13584-24]
3.2
basic semantic unit
entity that provides an absolute and universal identification of classes and data element types in an
application domain
[ISO 13584-42]
3.3
chip
material removed from a workpiece by a cutting process
[ISO/TS 13399-2]
3.4
coordinate axis system
right-handed rectangular Cartesian coordinate system in three-dimensional space with three principal axes
labelled X, Y and Z
[ISO/TS 13399-50]
3.5
cutting tool
device or assembly of items for removing material from a workpiece through a shearing action at the defined
cutting edge or edges of the device
NOTE A cutting tool could be the assembly of one or more adaptive items, a tool item and several cutting items on a
tool item. See Figure 1.
2 © ISO 2007 – All rights reserved

[ISO 13399-1]
3.6
data
representation of facts concepts or instructions in a formal manner suitable for communication, interpretation
or processing by human beings or computers
[ISO 10303-1]
3.7
data element type
unit of data for which the identification, description and value representation have been specified
[ISO 13584-42]
3.8
data exchange
storing, accessing, transferring and archiving of data
[ISO 10303-1]
3.9
data type
domain of values
[ISO 10303-11]
3.10
dictionary
structured set of entries with one and only one meaning corresponding to each entry and one and only one
entry identifying a single meaning
[ISO 13584-511]
NOTE In ISO 13399, a dictionary is a formal and computer-sensible representation of an ontology.
3.11
entity
class of information defined by its attributes that establishes a domain of values defined by common attributes
and constraints.
NOTE Adapted from ISO 10303-11.
3.12
entity data type
representation of an entity
[ISO 10303-11]
3.13
entity instance
named unit of data that represents a unit of information within the class defined by an entity
NOTE It is a member of the domain established by an entity data type.
[ISO 10303-11]
3.14
family of items
simple or generic family of items
[ISO 13584-42]
3.15
generic family of items
grouping of simple or generic families of items for the purpose of classification or for associating common
information
[ISO 13584-42]
3.16
implementation method
means for computers to process or exchange data
[ISO 10303-1]
3.17
information
facts, concepts or instructions
[ISO 10303-1]
3.18
information model
formal description of a bounded set of information to meet a specific requirement
[ISO 10303-1]
3.19
machine side
identification of a direction pointing towards the machine
3.20
machined surface
surface produced by the action of a cutting tool
[ISO 3002-1]
3.21
mirror plane
xz plane in the coordinate axis system
[ISO/TS 13399-50]
3.22
ontology
explicit and consensual specification of concepts of an application domain independent of any use of these
concepts
[ISO 13584-511]
NOTE In ISO 13399 a dictionary is the formal and computer-sensible representation of an ontology.
4 © ISO 2007 – All rights reserved

3.23
property
characteristic of a product or process that may be represented by a data element type
NOTE Adapted from ISO 13584-42.
3.24
simple family of items
set of items in which each item may be described by the same group of properties
[ISO 13584-42]
3.25
transient surface
part of the surface which is formed on the workpiece by the cutting operation and is removed during the
following cutting action either during the following revolution of the tool or the workpiece or by the following
cutting edge
[ISO 3002-1]
3.26
visible property
property that is defined for some family of items that may or may not be applicable to the different members of
the family
[ISO 13584-42]
3.27
workpiece
object on which a cutting action is performed
[ISO/TS 13399-2]
3.28
workpiece side
identification of a direction pointing towards the workpiece
[ISO/TS 13399-2]
3.29
work surface
surface that is to be removed on the workpiece
[ISO 3002-1]
3.30
xy plane
plane in the coordinate axis system that contains the X and Y axes with the normal of the plane in the positive
Z direction
[ISO/TS 13399-50]
3.31
xyw plane
plane in the coordinate axis system related to the xy plane by the rotation angle PHI about the X axis in a
counter clockwise direction and located at a distance XYWD from the origin of the coordinate axis system
[ISO/TS 13399-50]
3.32
xz plane
plane in the coordinate axis system that contains the X and Z axes with the normal of the plane in the positive
Y direction
[ISO/TS 13399-50]
3.33
xzw plane
plane in the coordinate axis system related to the xz plane by the rotation angle KAPPA about the Z axis in a
counter clockwise direction and located at a distance XZWD from the origin of the coordinate axis system
[ISO/TS 13399-50]
3.34
yz plane
plane in the coordinate axis system that contains the Y and Z axes with the normal of the plane in the positive
X direction
[ISO/TS 13399-50]
3.35
yzw plane
plane in the coordinate axis system related to the yz plane by the rotation angle RHO about the Y axis in a
counter clockwise direction and located at a distance YZWD from the origin of the coordinate axis system
[ISO/TS 13399-50]
NOTE The xzw plane, the xyw plane and the yzw plane are mutually perpendicular.
4 Abbreviated terms
BSU basic semantic unit
DET data element type
5 Representation of the ontological concepts as dictionary entries
In the following subclauses, a concept in the ontology is identified by a name in lower-case characters. The
name of a class that represents the concept in the dictionary is identified by bold, lower-case characters with
multiple words joined by an underscore character.
EXAMPLE “tool item type” is the name of a concept in the ontology: tool_item_type is the identifier of the class in
the dictionary that represents the concept.
Data for tool items are grouped into two main classes: tool_item_feature and tool_item_type. The items in
the classification of tool_item_type are identified by a label that is derived from the main application of a tool.
However, it should be recognised that a tool may be used for more than one type of cutting operation. A
tool_item_feature is an aspect of a tool_item_type that could not exist in isolation from the tool_item_type.
Some of the definitions of properties that are applicable to tool items are defined in terms of a coordinate axis
system. The coordinate system is the same for adaptive items, cutting items and tool items and is defined in
ISO/TS 13399-50. The applications of this coordinate system to tool items are described in this part of. All
functional dimensions of a tool item that uses replaceable cutting items are defined on the assembly of the
tool item and the master insert. The convention followed is “the tool in hand”.
6 © ISO 2007 – All rights reserved

Each entry in the dictionary, whether a class or a property, is identified with a numerical code (BSU) that is
generated at random when the dictionary is compiled. A BSU can be made unique by the addition of a code
that is a reference to the supplier of the dictionary. Each classified item in the following subclauses is
associated with its definition from the dictionary.
The structure of the classification is summarized in Annex B. The complete definitions of the tool item classes
are provided in Annex C. The properties applicable to tool item classes are defined in Annex D.
5.1 tool_item_feature
tool_item_feature is a generic family of characteristics of a tool item that cannot exist independently of the
tool item. tool_item_feature has the following subclasses:
⎯ chip_management;
⎯ drill_point;
⎯ guide_pilot_feature;
⎯ pilot_drill_feature;
⎯ tool_hub;
5.1.1 chip_management
chip_management is a generic class of features of the tool body or assembly to control the direction of
motion of the chip.
5.1.2 drill_point
A drill_point is the part of a drill that first makes contact with the workpiece.
5.1.3 guide_pilot_feature
A guide_pilot_feature is a portion of a cylindrical tool in front of the cutting portion that acts to limit the
sideways movement of the tool in operation.
5.1.4 pilot_drill_feature
A pilot_drill_feature is part of a larger drill for guiding the main cutting operation.
5.1.5 tool_hub
A tool_hub is the central part of a disk-shaped tool item with increased thickness.
5.2 tool_item_type
A tool_item_type is a generic family of items that support or hold one or more cutting items in a cutting
operation. tool_item_type has the following subclasses:
⎯ broach;
⎯ burr_tool;
⎯ cartridge;
⎯ drill;
⎯ mill;
⎯ ream;
⎯ rotating_borer;
⎯ threading_die;
⎯ threading_tap;
⎯ turn.
5.2.1 broach
broach is a generic family of items designed for use mainly in broaching operations. broach has the following
subclasses:
⎯ cylindrical_broach;
⎯ disk_ broach;
⎯ prismatic_ broach;
⎯ tapered_broach.
5.2.1.1 cylindrical_broach
A cylindrical_broach is a tool item used for changing the dimensions of an existing profile that has a
constant circular cross section and cutting edges around the whole circumference.
5.2.1.2 disk_broach
A disk_broach is a disk-shaped tool item used for changing the dimensions of an existing profile and that has
the cutting edges on the periphery of the disk.
5.2.1.3 prismatic_broach
A prismatic_broach is a tool item with a rectangular cross section used for changing the dimensions of an
existing profile and that has cutting items on one side of the cross section.
5.2.1.4 tapered_broach
A tapered_broach is a tool item for changing the dimensions of an existing profile that that has a continuously
varying cross section with cutting edges surrounding the cross section.
NOTE The cross section can be rectangular or circular or elliptical.
5.2.2 burr_tool
A burr_tool is a small rotating tool for removing areas of roughness from a machined edge
8 © ISO 2007 – All rights reserved

5.2.3 cartridge
A cartridge is a tool item that carries a solid cutting edge or locks a replaceable insert and is designed to be
mounted onto either an adaptive item or a tool item.
5.2.4 drill
drill is a generic family of items designed for use mainly in drilling operations. drill has the following
subclasses:
⎯ centre_drill;
⎯ chamfer_drill;
⎯ conical_drill;
⎯ core_drill;
⎯ counterbore_drill;
⎯ countersink_drill;
⎯ deep_hole_drill;
⎯ pilot_drill;
⎯ step_drill;
⎯ trepanning_drill;
⎯ twist_drill.
5.2.4.1 centre_drill
A centre_drill is a tool item for creating a hole for the location of a subsequent operation.
NOTE This drill is usually a solid drill.
5.2.4.2 chamfer_drill
A chamfer_drill is a tool item for creating a chamfer in or on a hole.
5.2.4.3 conical_drill
A conical_drill is a tool item for forming a cone shaped hole.
5.2.4.4 core_drill
A core_drill is a tool item without a central cutting point or means of starting a hole.
5.2.4.5 counterbore_drill
A counter_bore_drill is a tool item for creating a counterbore section of a hole.
5.2.4.6 countersink_drill
A countersink_drill is a tool item for creating a countersink section of a hole.
5.2.4.7 deep_hole_drill
A deep_hole_drill is a tool item for creating a hole usually deeper than ten times the diameter of the tool item.
5.2.4.8 pilot_drill
A pilot_drill is a tool item that is added to a larger drill for guiding the main cutting operation.
5.2.4.9 step_drill
A step_drill is a tool item for creating a stepped hole.
5.2.4.10 trepanning_drill
A trepanning_drill is a tool item used to cut a deep face groove leaving a plug of material equal to the inner
diameter.
NOTE The tool can be small to leave a boss on a component or large to create a large hole but not produce all the
cut material to swarf.
5.2.4.11 twist_drill
A twist_drill is a solid tool item with helical chip flutes.
5.2.5 mill
mill is a generic family of items designed for use mainly in milling operations. mill has the following
subclasses:
⎯ double_half_side_mill;
⎯ end_mill;
⎯ face_mill;
⎯ half_side_mill;
⎯ ring_mill;
⎯ slab_mill;
⎯ slotting_cutter;
⎯ threading_grooving_mill.
5.2.5.1 double_half_side_mill
A double_half_side_mill is a milling cutter that cuts on both sides and part of the periphery and is used for
enlarging an existing slot.
NOTE The X axis is perpendicular to the slot being enlarged, the cutting width is less than half the cutting diameter
(CW 10 © ISO 2007 – All rights reserved

5.2.5.2 end_mill
An end_mill is a milling cutter with an integral shank.
NOTE The X axis is either perpendicular or parallel to the surface being machined and the tool has a cutting diameter
of less than 150mm (CD<150mm).
5.2.5.3 face_mill
A face_mill is a milling cutter that produces a flat surface on the workpiece although the cutting edges on the
periphery remove most of the workpiece material.
NOTE The X axis is perpendicular to the surface being machined, there is one row of inserts, the mounting is usually
a bore with transverse keyways and the depth of cut is less than cutting diameter (DOC 5.2.5.4 half_side_mill
A half_side_mill is a milling cutter that cuts on the periphery and one side.
NOTE The X axis is perpendicular to the main workpiece surface being produced, the depth of cut is less than half
the cutting diameter (DOC 5.2.5.5 ring_mill
A ring_mill is a milling cutter that cuts on the internal annular surface and both sides.
NOTE The X axis is perpendicular to the slot being produced and the cutting width is less than half the cutting
diameter (CW 5.2.5.6 slab_mill
A slab_mill is a milling cutter with cutting edges on the periphery for machining large surfaces.
NOTE The tool axis is parallel to the workpiece surface, the mounting surface is a bore and the useable length is
greater than cutting diameter (LU>CD).
5.2.5.7 slotting_cutter
A slotting_cutter is a milling cutter that cuts on the periphery and both sides.
NOTE The X axis is perpendicular to the slot being produced, the cutting width is less than half the cutting diameter
(CW 5.2.5.8 threading_grooving_mill
A threading_grooving_mill is a milling cutter that cuts on its periphery to produce a groove or a thread.
NOTE The X axis is parallel to the groove width or to the axis of thread being cut and the mill can either be designed
with an integral shank or with a bore mount.
5.2.6 ream
ream is a generic family of items designed for use mainly in reaming operations. ream has the following
subclasses:
⎯ cylindrical_reamer;
⎯ profile_reamer;
⎯ stepped_reamer;
⎯ tapered_reamer.
5.2.6.1 cylindrical_reamer
A cylindrical_reamer is a tool item used for reaming a cylindrical surface.
5.2.6.2 profile_reamer
A profile_reamer is a tool item for reaming a non-regular surface.
5.2.6.3 stepped_reamer
A stepped_reamer is a tool for reaming a hole with more than one diameter.
5.2.6.4 tapered_reamer
A tapered_reamer is a tool item for reaming a conical hole.
5.2.7 rotating_borer
A rotating_borer is an assembly of cutting item or items, tool item or items and adaptive item or items to
enlarge an existing hole.
5.2.8 threading_die
threading_die is a generic family of items used for external threading operations. threading_die has the
following subclasses:
⎯ cylindrical_die;
⎯ hexagonal_die.
5.2.8.1 cylindrical_die
A cylindrical_die is a threading die whose outside shape is cylindrical.
5.2.8.2 hexagonal_die
A hexagonal_die is a threading die whose outside shape is hexagonal.
5.2.9 threading_tap
threading_tap is a generic family of items designed to form an internal thread in an existing hole in a
workpiece. threading_tap has the following subclasses:
⎯ conical_tap;
⎯ cylindrical_tap.
5.2.9.1 conical_tap
A conical_tap is a tool item that creates tapered internal threads.
12 © ISO 2007 – All rights reserved

5.2.9.2 cylindrical_tap
A cylindrical_tap is a tool item that creates internal cylindrical threads.
5.2.10 turn
turn is a generic family of items designed for use mainly in internal and external turning operations. turn has
the following subclasses:
⎯ boring_bar;
⎯ prismatic_tool_holder;
⎯ system_tool.
5.2.10.1 boring_bar
A boring_bar is a tool item with a cylindrical cross section shank mainly used for internal turning operations.
5.2.10.2 prismatic_tool_holder
A prismatic_toll_holder is a tool item with prismatic cross section shank mainly used for external turning
operations.
NOTE The class includes, but is not limited to, square shanks, rectangular shanks, cartridges and cut-off blades.
5.2.10.3 system_tool
A system_tool is a tool item with a manufacturer’s specific connection used for external and, or, internal
turning operations.
6 Properties for tool item features and tool item types
The properties that are applicable to items defined in Clause 5 are defined in Annex D, where the association
of a property with a class is also specified. In the compilation of the dictionary all properties are visible
properties at the root class of the dictionary and are made applicable properties at the class level where they
apply. The names of properties that may be applicable to tool item features and tool item types, with their
identification codes (BSU), are shown in Table 1. The order of the names in the table should be read in rows
from left to right.
NOTE 1 The value domains for properties are specified in ISO/TS 13399-100.
Table 1 — Property names and identification codes
Identification code Identification code
Property name Property name
(BSU) (BSU)
a dimension on lf 71D0793ECEF9A a dimension on wf 71CF299431CAC
adjustability 71EBBA9E78025 adjustment axial property 71D0845BB2310
axial groove outside daimeter
adjustment radial property 71D0845C34AB9 71D07543FD182
maximum
axial groove outside diameter
71CF299354332 balance quality code 71DF151EA5CF1
minimum
balanced by design 71EAC0CAB861F ball nosed property 71D1AE0CB32D1
blade reinforcement radius 71CF2992DBC44 body clearance depth 71EAC81F88336
body diameter 71ED6A9AF7D1D body diameter maximum 71D08462F8185
body half taper angle 71EAC472BD116 body height 71EBB332C60EB
body length 71ED6AA478A3D body length maximum 71DCD3B16750B
body material code 71DF1523224D8 body width 71EBB33230236
bolt hole circle property 71EDCB7490ED5 burr type code 71DF1523869EE
cartridge size code 71DF1523EE184 clamping length 71EBAF896BE9A
clamping length maximum 71ED6E54B15C4 clamping length minimum 71EBB339ED2BD
clamping type code 71CF298EEB4F5 clamping width 71EBAF85006BD
clearance angle axial 71EAC83CD450B clearance angle normal 71ED6E5CD0DAE
clearance angle orthogonal 71D08418C3B4D clearance angle radial 71EAC83B73825
coating property 71DD703B84298 connection code machine side 71D102AE3B252
connection retaining knob
connection code workpiece side 71D102AE8A5A9 71CF298A76B66
thread size
connection bore depth 71EAC48CAD407 connection bore diameter 71E01D92C41E8
connection count workpiece side 71EDD2C17746F connection diameter 71EBDBF5060E6
connection size code 71FC193318002 connection unit basis 71ED6E16D5978
contact surface diameter
71D087D97FCE3 coolant supply property 71EBB342CC751
machine side
cutting length minimum bore
71CF299287FD3 cutting depth maximum 71CEAEBD5A66A
diameter
cutting diameter internal cutting diameter internal
71D0846570977 71D084655A2F7
maximum minimum
cutting diameter internal 71D0846545C4E cutting diameter 71D084653E57F
cutting diameter maximum 71D084656CE32 cutting diameter minimum 71D0846556288
cutting diameter size code 71DF1527D828C cutting edge centre count 71DCD0033973E
cutting edge count 71CEAE9B489F4 cutting end count 71DCD00CBBC2A
cutting item count 71DF8C52B8926 cutting pitch density 71DF15283219C
cutting pitch differential 71DF152D8CF7D cutting width 71CEAEBE2B825
cutting width maximum 71D07569F8BC3 cutting width minimum 71D0756A28B42

14 © ISO 2007 – All rights reserved

Table 1 (continued)
Identification code Identification code
Property name Property name
(BSU) (BSU)
damping property 71CED03D70452 data chip provision 71CF29869CA0F
depth of cut maximum 71D07576C0558 design configuration style code 71CF2993DC583
drill back taper 71EAC81AD9AE1 drilling profile property 71D1AE126DEFD
drive angle 71D08096F930C drive count 71E0306423B2A
face effective cutting edge
drop head design 71EAC49F75413 71DCD00239812
count
face mounted insert count 71DCD0029BBE7 flange diameter 71EC61D8A1771
flute count 71DCCFEBB883E flute design code 71DCCFEC645BD
flute helix angle 71DCCFEC20115 flute helix hand 71DCCFF654756
flute helix pitch 71DCCFF6A1A13 fluted land width 71EAC8210DF36
functional height 71CF29994E737 functional length 71DCD39338974
functional length minimum 71EBC1EB8456A functional length secondary 71D078F5BEDBE
functional width 71CF29984CDA7 functional width 2 71D193F495583
groove depth minimum bore
functional width secondary 71CF299874B1E 71CF298FB10E4
diameter
guide element property 71EE070696F08 guide pilot diameter 71ED6A7A6E6A2
hand 71CF29872F0AB head back offset length 71D075730A82B
head back offset width 71D075731F172 head bottom offset height 71CF298F073D3
head bottom offset length 71CF298F4E487 head diameter 71E03062EC034
head length 71D07574A61E8 hub diameter 71D087D3B17B0
hub property 71DF5C078FF46 hub thickness 71D087D3F5E07
inclination angle 71D075754F8A3 insert adjustable count 71DF1538E7378
insert interface code 71CE7A9936610 insert seat size code 71CEAEBF2A69F
interlocking capabilty 71DF1526AC952 keyway property 71DF5C0761888
length chip flute 71DCCC27DEF53 master insert identification 71CF298FDE0EF
minimum bore diameter 71D07543367C5 mounting hole angle 71EAC0F064E2D
mounting hole distance 71EAC0E9FA4CD mounting hole distance 2 71EAC0EF68BB7
mounting hole height 71EAC0EFA1BF3 neck diameter 71EAC48EC5DE0
neck length 71EBC1E026769 overall length minimum 71EBC1E8857BE
overall height 71D078EB73E87 overall length 71D078EB7C086
peripheral effective cutting
overall width 71CF299257986 71DCCFF75E485
edge count
peripheral mounted insert count 71DCD00054F65 pilot drill protrusion 71EAC49030828
pilot protruding length 71DCCFD24119E plug chamfer diameter 71EBC1EA293DC
plug style 71E02C679DC6D plunge depth maximum 71D08099F1DDC
point angle 71DCCC4FEF366 point length 71DCCFD064042
premachined hole diameter 71DCCC5A4FD18 profile specification 71DF8C5D91804
protruding length 71DCD394BB20E qualified tool co
...
