ISO 17281:2002

INTERNATIONAL ISO
STANDARD 17281
First edition
2002-11-01
Plastics — Determination of fracture
toughness (G and K ) at moderately high
IC IC
loading rates (1 m/s)
Plastiques — Détermination de la ténacité à la rupture (G et K ) à
IC IC
vitesses de charge modérément élevées (1 m/s)

Reference number
©
ISO 2002
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall not
be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In downloading this
file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat accepts no liability in this
area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation parameters
were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the unlikely event
that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2002
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means, electronic
or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or ISO's member body
in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.ch
Web www.iso.ch
Printed in Switzerland
ii © ISO 2002 – All rights reserved

Contents Page
Foreword . iv
Introduction. v
1 Scope. 1
2 Normative reference. 1
3 Terms and definitions. 2
4 Test specimens . 2
4.1 Specimen geometry and preparation. 2
4.2 Crack length and number of test replicates . 2
4.3 Measurement of test specimen dimensions. 2
5 Test conditions. 2
5.1 Loading mode. 2
5.2 Test speed. 2
5.3 Test atmosphere and temperature . 4
6 Test Equipment . 4
6.1 Loading machine. 4
6.2 Loading rigs. 4
6.3 Instrumentation . 4
7 Control of dynamic effects. 4
7.1 Electronic filtering. 4
7.2 Mechanical damping. 5
7.3 Damping level . 5
7.4 Check on speed. 6
8 Data handling. 6
8.1 Analysis of the test records and identification of fracture initiation . 6
8.2 Energy correction. 9
9 Expression of results. 11
9.1 Determination of K . 11
IC
9.2 Determination of σ . 11
y
9.3 Determination of G . 12
IC
10 Precision . 13
11 Test report. 15
Annex A (informative) Estimation of curve fit parameters . 16
Annex B (informative) Recommended test report forms. 17
Bibliography. 22

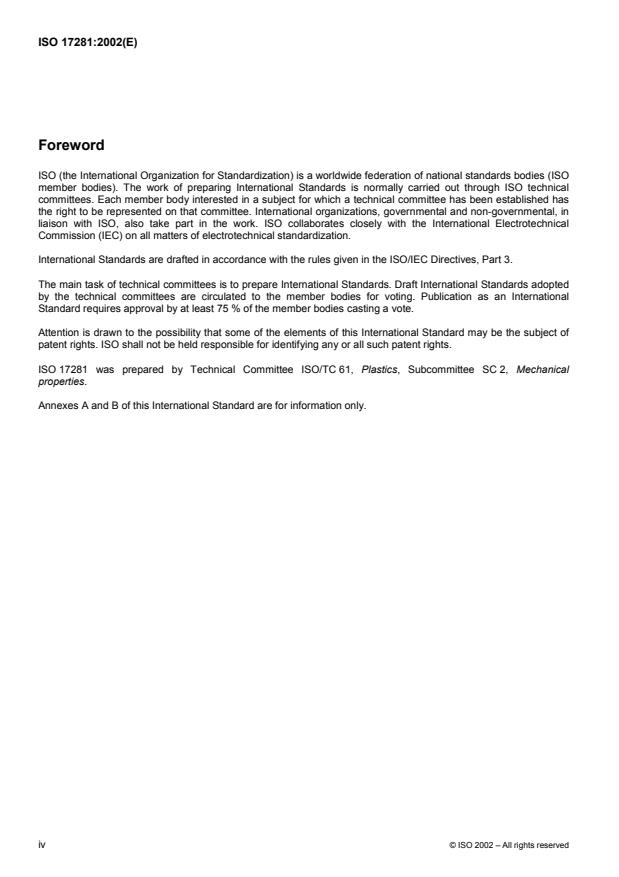

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies (ISO
member bodies). The work of preparing International Standards is normally carried out through ISO technical
committees. Each member body interested in a subject for which a technical committee has been established has
the right to be represented on that committee. International organizations, governmental and non-governmental, in
liaison with ISO, also take part in the work. ISO collaborates closely with the International Electrotechnical
Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 3.
The main task of technical committees is to prepare International Standards. Draft International Standards adopted
by the technical committees are circulated to the member bodies for voting. Publication as an International
Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this International Standard may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 17281 was prepared by Technical Committee ISO/TC 61, Plastics, Subcommittee SC 2, Mechanical
properties.
Annexes A and B of this International Standard are for information only.
iv © ISO 2002 – All rights reserved

Introduction
This International Standard is based on a testing protocol developed by ESIS (the European Structural Integrity
Society), Technical Committee 4, Polymers and Composites, who carried out the preliminary enabling research
through a series of round-robin exercises which covered a range of material samples, specimen geometries, test
instruments and operational conditions see [3-6]. This activity involved about thirty laboratories from twelve
countries.
INTERNATIONAL STANDARD ISO 17281:2002(E)

Plastics — Determination of fracture toughness (G and K ) at
IC IC
moderately high loading rates (1 m/s)
1 Scope
This International Standard provides guidelines for determining the fracture toughness of plastics in the crack-
opening mode (Mode I) by a linear elastic fracture mechanics (LEMF) approach, at load-point displacement rates of
up to 1 m/s. It supplements ISO 13586 so as to extend its applicability to loading rates somewhat higher than is the
case in the scope of the latter International Standard.
Fracture testing at high loading rates presents special problems because of the presence of dynamic effects:
vibrations in the test system producing oscillations in the recorded quantities, and inertial loads producing forces on
the test specimen different from the forces sensed by the test fixture. These effects need either to be controlled
and, if possible, reduced by appropriate action, or else to be taken into account through proper analysis of the
measured data.
The relative importance of such effects increases with increasing testing rate (decreasing test duration). At speeds
of less than 0,1 m/s (loading times of greater than 10 ms) the dynamic effects may be negligible and the testing
procedure given in ISO 13586 can be applied as it stands. At speeds approaching 1 m/s (loading times of the order
of 1 ms) the dynamic effects may become significant but still controllable. The procedure given in ISO 13586 can
still be used though with some provisos and these are contemplated in this International Standard. At speeds of
several meters per second and higher (loading times markedly shorter than 1 ms) the dynamic effects become
dominant, and different approaches to fracture toughness determination are required, which are outside the scope
of this International Standard.
The general principles, methods and rules given in ISO 13586 for fracture testing at low loading rates remain valid
and should be followed except where expressly stated otherwise in this International Standard.
The methods are suitable for use with the same range of materials as covered by ISO 13586.
Although the dynamic effects occurring at high loading rates are largely dependent on the material tested as well
as on the test equipment and test geometry used, the guidelines given here are valid in general, irrespective of test
equipment, test geometry and material tested.
The same restrictions as to linearity of the load-displacement diagram, specimen size and notch tip sharpness
apply as for ISO 13586.
The linearity requirements referred to in 6.1 of ISO 13586:2000, are verified here on the “smoothed” load-
displacement curve, to be obtained as specified in 8.1.
2 Normative reference
The following normative document contains provisions which, through reference in this text, constitute provisions of
this International Standard. For dated references, subsequent amendments to, or revisions of, any of these
publications do not apply. However, parties to agreements based on this International Standard are encouraged to
investigate the possibility of applying the most recent edition of the normative document indicated below. For
undated references, the latest edition of the normative document referred to applies. Members of ISO and IEC
maintain registers of currently valid International Standards.
ISO 13586:2000, Plastics — Determination of fracture toughness (G and K ) — Linear elastic fracture
IC IC
mechanics (LEFM) approach
3 Terms and definitions
For the purposes of this International Standard, the terms and definitions given in ISO 13586 apply.
4 Test specimens
4.1 Specimen geometry and preparation
As for the low-rate testing case covered by ISO 13586, two test configurations are recommended, namely the
three-point bending (also called single edge notch bend and denoted SENB) and the compact tension (denoted
CT), see Figure 1.
Shape and size, preparation, notching and conditioning of test specimens shall comply with the requirements set
out in clause 4 of ISO 13586:2000.
4.2 Crack length and number of test replicates
4.2.1 Determination of K
IC
As in the low-rate testing case covered by ISO 13586, measuring test specimens having the same crack length is
adequate for determining K . The initial crack length a should be in the range 0,45 u a / w u 0,55. However, in view
IC
of the lower degree of accuracy to be expected with measurements at high rates of loading as compared with low-
rate testing, it is recommended that at least five replicates, with crack lengths in the range specified above, be used
to determine K , and the results averaged.
IC
4.2.2 Determination of G
IC
At variance with the low-rate testing case covered by ISO 13586, a multispecimen procedure, using a series of test
specimens with identical dimensions but varying crack-length as specified below, shall be applied for determining
G .
IC
At least fifteen valid determinations shall be made, with initial crack length varying over the range
0,20 u a / w u 0,70 for the SENB configuration and 0,40 u a / w u 0,75 for the CT configuration. They may include
the five determinations made on test specimens having initial crack lengths in the range 0,45 u a / w u 0,55 to
obtain K . It is then suggested that, of the remaining ten test specimens to be used, six have initial crack lengths in
IC
the range 0,20 u a / w u 0,45 and four in the range 0,55 u a / w u 0,70 in the case of the SENB configuration and
three have initial crack length in the range 0,40 u a / w u 0,45 and seven in the range 0,55 u a / w u 0,70 in the case
of the CT configuration.
4.3 Measurement of test specimen dimensions
Measurement is carried out as described in 5.6 of ISO 13586:2000.
5 Test conditions
5.1 Loading mode
The test shall be performed at constant load-point displacement rate. A maximum variation of 10 % in the load-
point displacement rate during the test is allowed (see 6.1).
5.2 Test speed
As a basic test condition, it is recommended that a load-point displacement rate of 1 m/s be used. If a different rate
is applied, it shall be quoted in the test report.
2 © ISO 2002 – All rights reserved

a)  SENB
b)  CT
Figure 1 — Test configurations as specified in 4.1 and 6.2
With rate-sensitive materials such as plastics, a more significant measure of the rate of the experiment is probably
its duration, i.e. the time required to bring the test specimen to fracture. The time to fracture, t , is understood here
f
as the time interval between the moment when the load starts acting on the test specimen and the point of fracture
initiation as defined in 8.1.
With a fixed load-point displacement rate the time to fracture varies with material and specimen geometry. If results
at a given time to fracture (e.g. 1 ms) are desired, it is necessary to adapt the load-point displacement rate of the
test to each material and specimen geometry (type and dimensions). For this purpose it is expedient to run some
preliminary trial tests at different testing speeds (i.e. load-point displacement rates) to determine the testing speed
required to obtain the assigned time to fracture under the given test conditions.
In any case, the time to fracture, t , shall also be quoted in the test report.
f
5.3 Test atmosphere and temperature
These are determined as described in 5.5 and 5.7 of ISO 13586:2000.
6 Test equipment
6.1 Loading machine
Any type of loading machine (impact pendulums, falling-weight towers, servohydraulic universal testing machines,
etc.) is permitted, provided it is capable of applying an adequate load to bring the test piece to fracture at the
required load-point displacement rate and of maintaining this rate constant throughout the test up to fracture
initiation. With testing machines of limited capacity, this requirement may need to be verified by preliminary tests,
especially when new materials are tested or when new test conditions (e.g. change in specimen size) are used.
Any variation in the load-point displacement rate during the test shall be determined and quoted if it exceeds 10 %
of the rate at fracture initiation.
6.2 Loading rigs
Unlike for low-rate testing, the use of fixed anvils rather than moving rollers is preferred for conducting three-point
bend (SENB) fracture tests under high rate conditions, as is normally the case with standard impact pendulums.
The span between the supports shall be adjustable however, so that specimens of different size can be
accommodated, as specified in clause 4 of ISO 13586:2000.
NOTE In the case of three-point bend testing (SENB specimens), improved results can be obtained if the testpiece is held
in contact with the anvils by light springs (e.g. rubber bands). These will assist in maintaining the testpiece in position during the
sudden load transmission from the machine to the test specimen, and ensure more reproducible records.
6.3 Instrumentation
Acquisition of a complete record of the load/time response of the material sample under test is essential for the
determination of K . In addition, a means of evaluating the displacement of the moving load-point during the test is
IC
necessary for the independent determination of G . Instrumentation of the testing machine should thus comprise,
IC
basically, a force sensing and recording system and a displacement measuring and recording system or devices to
measure and record quantities from which the load and the load-point displacement can also be indirectly
determined.
The adequacy of the response of this equipment to the dynamic events occurring in the relevant determinations
shall be checked. It can be considered satisfactory if a plain plastic specimen (without any mechanical damping
device in place) shows an inertial peak (see Figure 2) larger than 100 N at 1 m/s test speed. The response time
shall be < 20 % of the input signal rise time.
If a digital recording system is used, the sampling time should be less than 1/200 of the time to fracture, i.e. at least
200 data points should be collected over the time interval from the first increase of the signal to the point of fracture
initiation in order to define the required data curve with sufficient accuracy.
7 Control of dynamic effects
7.1 Electronic filtering
The first manifestation of dynamic effects is the presence of oscillations in the load recording signal. They may
complicate the interpretation of the test records up to the point of obscuring the basic response of the specimen
under test. It is thus desirable that these effects be contained. Reducing these oscillations artificially, a posteriori,
by electronic filtering or attenuation can be fallacious however, since it may wipe out some real features of the
specimen response. Therefore, electronic filtering or attenuation is not permitted unless the source of the removed
“noise” is known and the effect on the data is understood.
4 © ISO 2002 – All rights reserved

a
Inertial peak
Figure 2 — Typical load/time record in the absence of signal attenuation and mechanical damping
7.2 Mechanical damping
Some control of the effects of inertial loads can be achieved by proper mechanical damping of the load
transmission. With impact testing machines the impact may be cushioned by means of a soft pad, placed where
the tup strikes the specimen. The pad should reduce the inertial effects by reducing the “contact stiffness”. With
high-speed testing machines (e.g. servohydraulic), initial acceleration of the specimen can be controlled by means
of a damper applied in the motion transmission unit.
With impact testing machines and (SENB) test specimens the damping pad can be made by spreading a layer of a
paste or a highly viscous grease over the contact surface either of the tup of the striking hammer or of the test
piece. For the sake of reproducibility it is important that the grease be homogeneous and evenly applied, with
thickness constant to ± 0,05 mm. This can be obtained by delivering the grease with a spatula through an
aluminium stencil having the required thickness, normally a few tenths of a millimetre, as shown in Figure 3.
With high-speed testing machines and (CT) test specimens the damping pad can be more conveniently made of a
viscoelastic rubber-like material with a low coefficient of restitution. The rubber-like character should ensure a more
or less complete recovery of the pad deformation after each test, thus allowing the same pad to be used
repeatedly.
7.3 Damping level
If mechanical damping is applied, it shall be kept to a minimum, sufficient to contain the fluctuations in the force-
time trace within the 10 % envelope defined in 8.1. To obtain this optimal result it is advisable to run some
preliminary trial tests to gauge the performance of the damper. This can be varied by changing consistency and
thickness of the damping material used.
Key
1 Aluminium stencil
2 Damping pad
Figure 3 — Deposition of damping pad on SENB test specimen
If the test specimens are in short supply, it is advisable to use an unnotched specimen to assay the performance of
the damper. The dynamic effects that are to be controlled by mechanical damping are in fact largely independent of
crack length and the use of an unnotched specimen offers the advantage that it can stand repeated strokes without
breaking.
In order to determine the level of damping needed to meet the requirement stated in 8.1, reference should be made
to the worst case to be expected in the testing programme, i.e. the case of the specimen with the deepest notch,
which will present the lowest fracture resistance and thus the largest force oscillation:fracture load ratio.
7.4 Check on speed
Because of damping, some deviations from the pre-set load-point displacement rate may ensue. Thus, if
mechanical damping is applied, the instrument shall be reset to the desired load-point displacement rate and its
constancy checked (as requested under 5.2) under the actual test conditions, i.e. with the damping device in place.
If mechanical damping is applied, it shall be recorded in the test report.
8 Data handling
8.1 Analysis of the test records and identification of fracture initiation
These tests, as well as the low speed tests covered in ISO 13586, are designed to characterize the toughness at
fracture initiation. Once a fracture test has been performed and the load-time or load-load point displacement curve
has been obtained, the question arises of identifying the point of fracture initiation. Several techniques are possible,
but in this International Standard it is deduced from the load diagram.
6 © ISO 2002 – All rights reserved

The same rules as those stated in ISO 13586, for the determination of F are used here, but in the case of high-
Q
rate testing some preliminary analysis of the load-time record is required to make sure that dynamic effects do not
obscure the basic response of the specimen under test.
Firstly, in the case of high-rate testing, a load drop before maximum load should not be assumed to be an arrested
crack extension (“pop-in”), unless borne out by examination of the fracture surface.
Secondly, the occurrence of force peaks and fluctuations in the initial part of the load-time record is tolerated, but a
limit is placed on force fluctuations in the portion of the force-time record where the force exceeds 1/2 of its v
...
