IS0 274-1975 (E)
INTERNATIONAL STANDARD

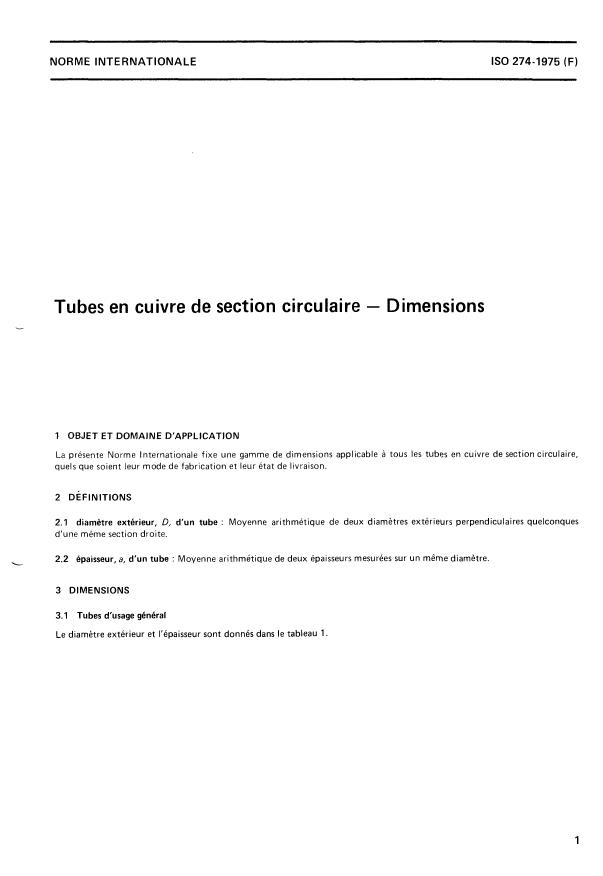

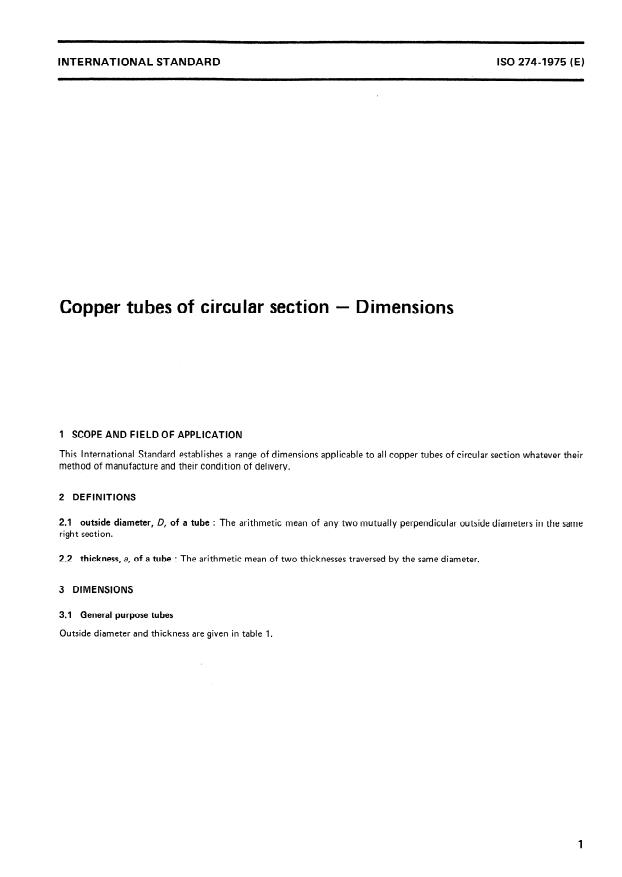

Copper tubes of circular section - Dimensions
1 SCOPE AND FIELD OF APPLICATION
This International Standard establishes a range of dimensions applicable to all copper tubes of circular section whatever their
method of manufacture and their condition of delivery.
2 DEFINITIONS
2.1 outside diameter, D, of a tube : The arithmetic mean of any two mutually perpendicular outside diameters in the same
right section.
2.2 thickness, a, of a tube : The arithmetic mean of two thicknesses traversed by the same diameter.
3 DIMENSIONS
3.1 General purpose tubes
Outside diameter and thickness are given in table 1.
IS0 274-1975 (E)

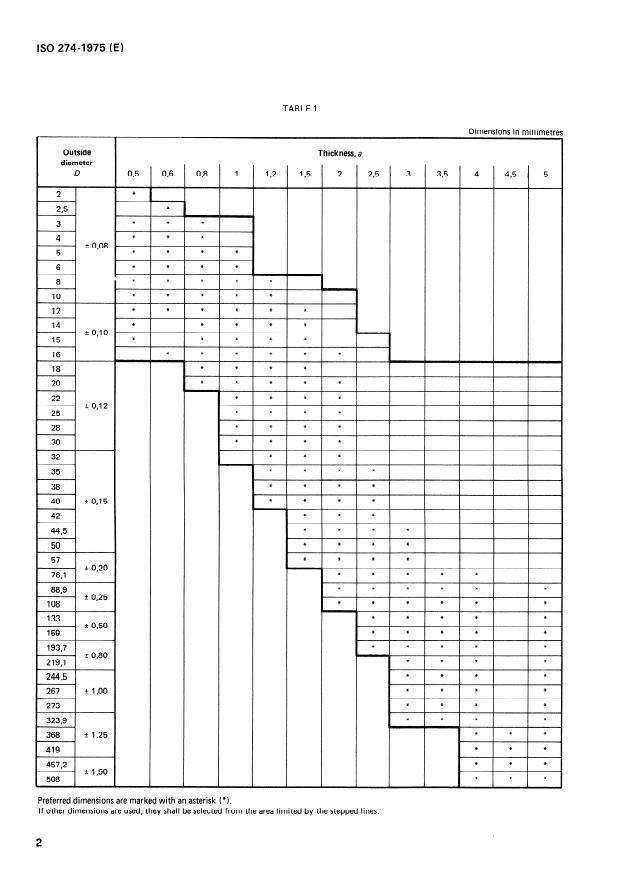

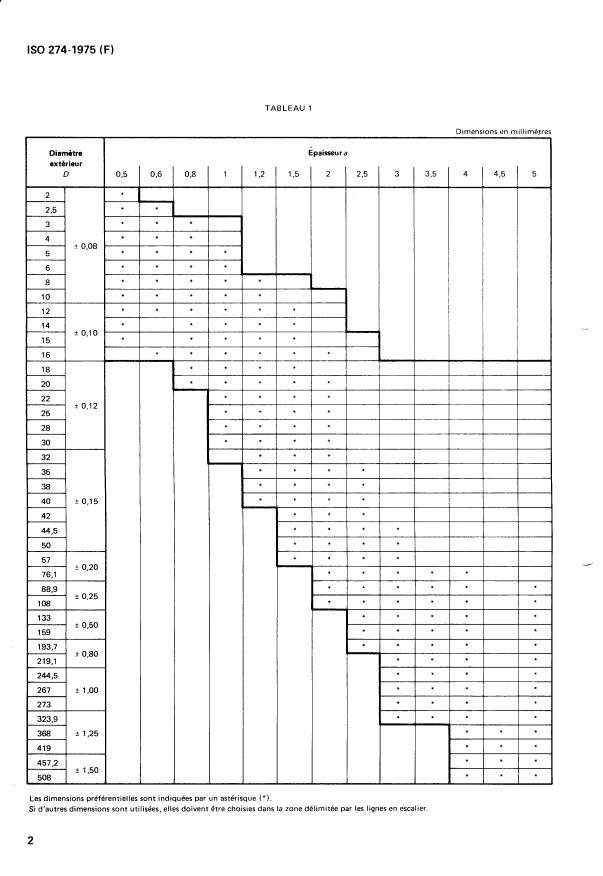

TABLE 1
Dimensions in millimetres
I
Outside
Thickness, a
diameter
D
0,5 0,6 03 2,5
2 *
2,5
3 * *
4 * *
- + 0,08 .
5 *
6 -it
*
*
z!z 0,lO
*
-i
‘6 I
2 0,12
--i
+
32 I
I
42 1
+
* *
* +
4=
*
*
*
244,5 1
~
* *
267 I
...
